Groen D-20 Steam Kettles
Description

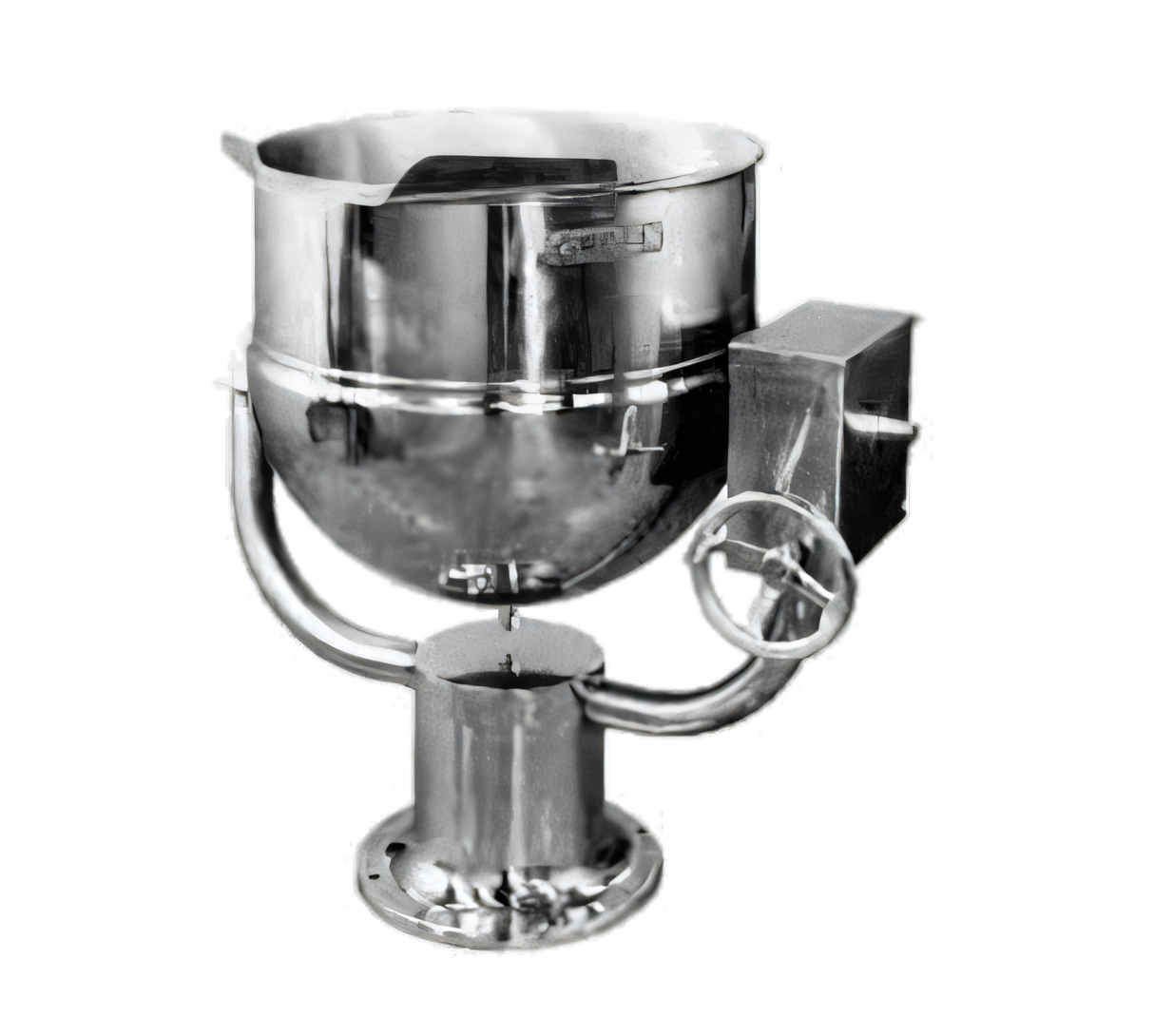

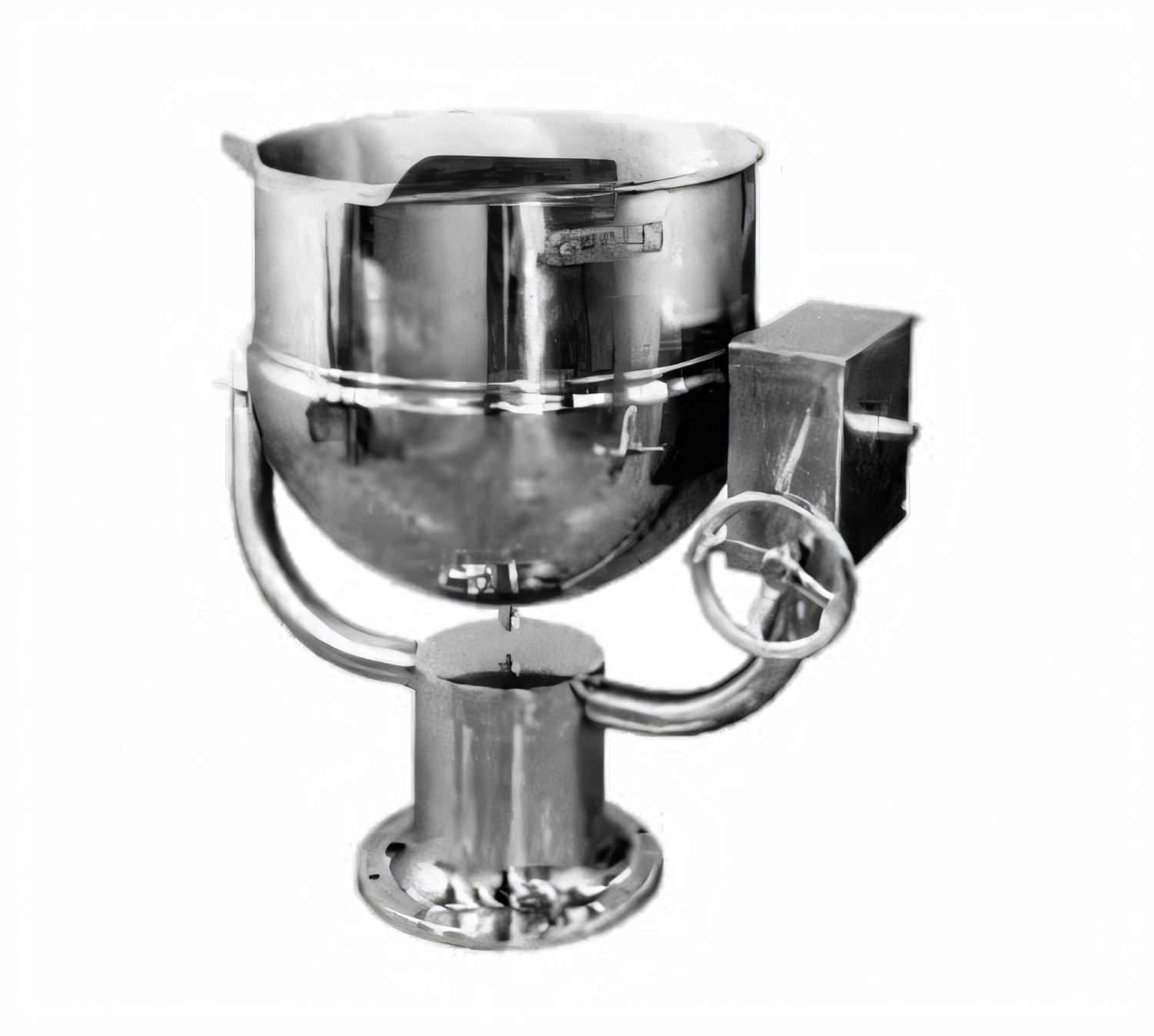

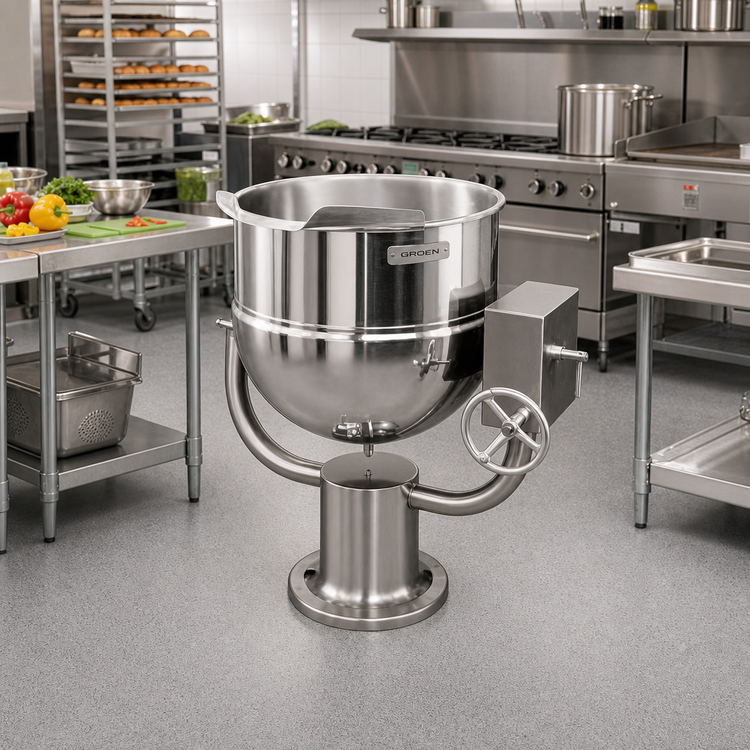

Groen Model D 20-Gallon Direct-Steam Tilting Kettle
Pedestal-Mounted | 2/3 Steam Jacket | Manual Tilt | 316 SS InteriorBuilt for demanding institutional and commercial kitchens, the Groen Model D delivers fast, uniform cooking performance in a compact 20-gallon footprint. Its heavy-duty 2/3 steam jacket surrounds the kettle with gentle, even heat up to 25 PSI, while the self-locking crank tilt gives you perfect pouring control dish after dish.
Key Benefits
- 20 gal / 76 L working capacity—ideal for sauces, soups, pasta, ground meats and more
- Type 316 stainless steel liner resists acidic foods and harsh cleaners better than 304 SS

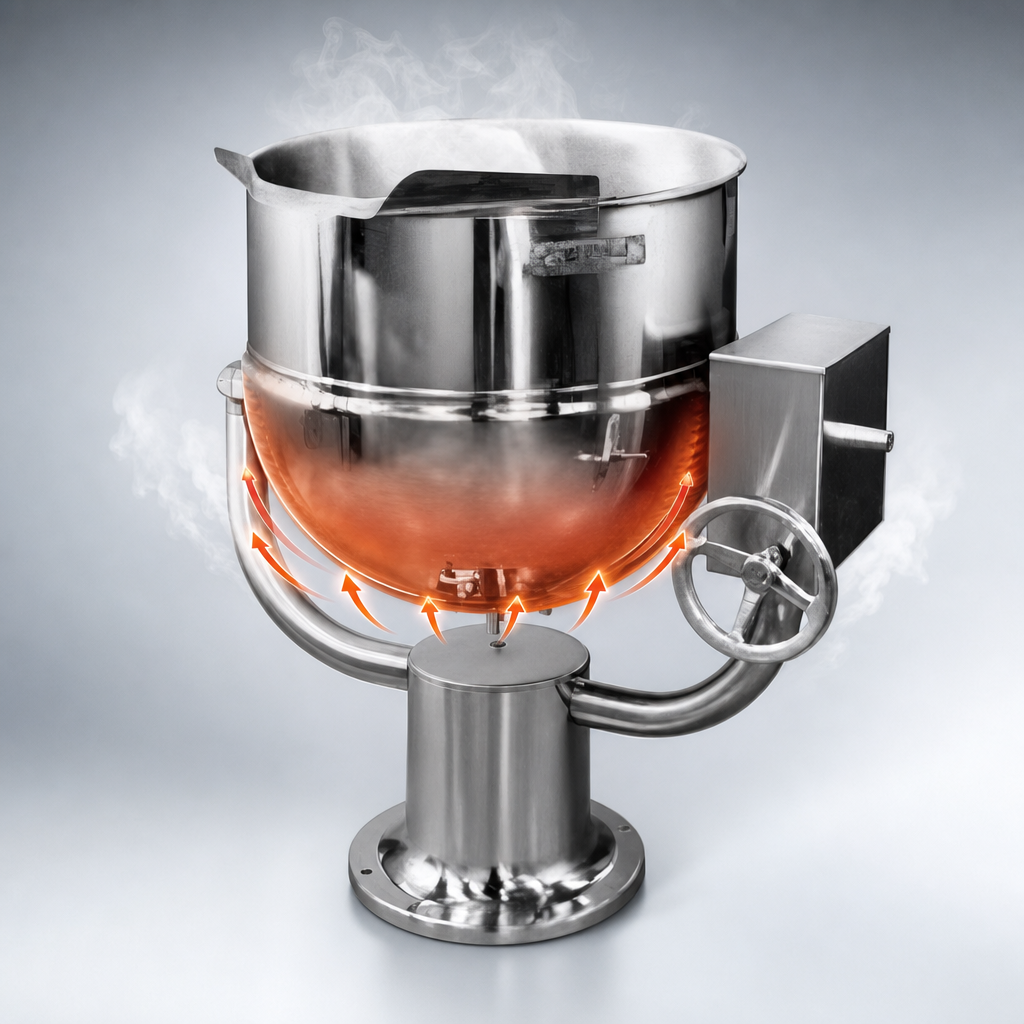

- 2/3-jacketed design (304 SS) transfers heat evenly with no hot spots

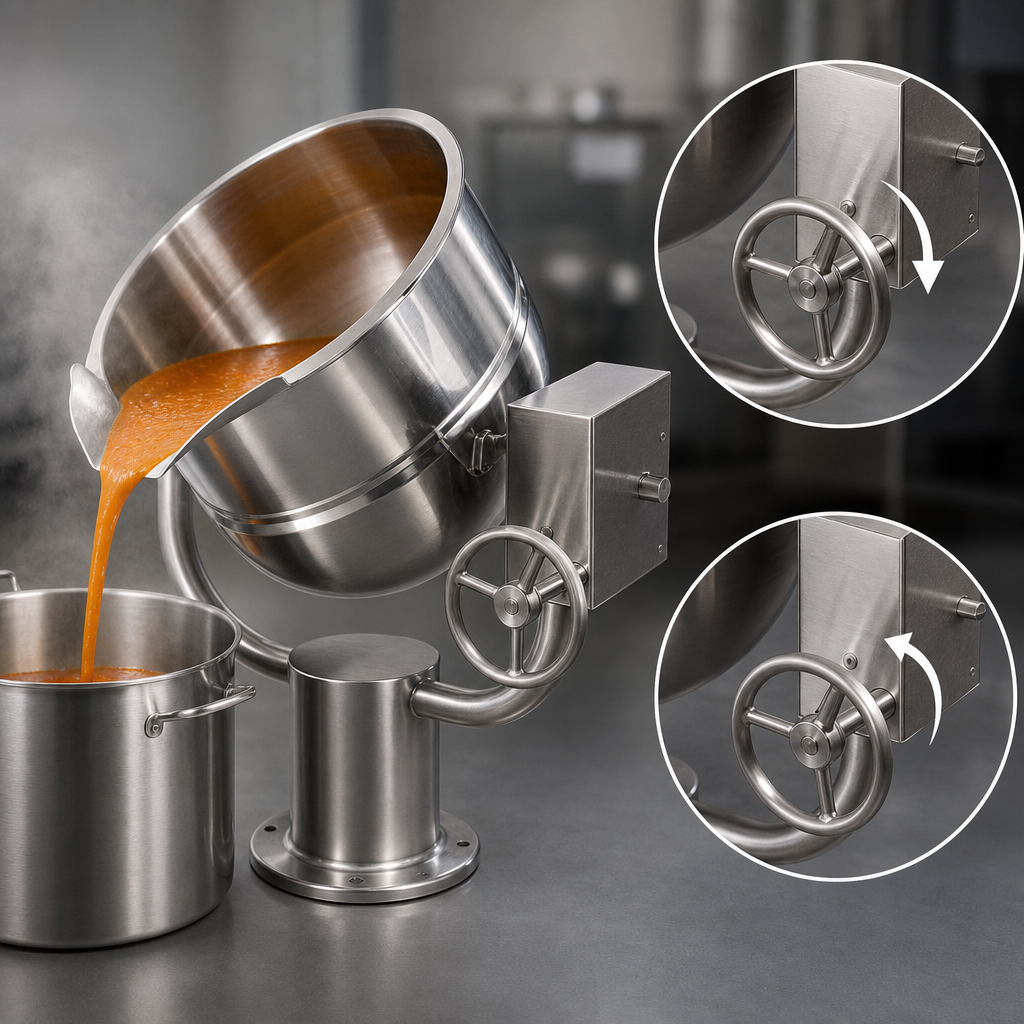

- Manual crank, worm-and-gear tilt mechanism is self-locking for safe, precise pouring
- Reinforced bar rim with butterfly-shaped pouring lip for drip-free transfers
- Pedestal base with flanged collar anchors securely to the floor for rock-solid stability
- NSF listed and ASME-stamped for 5-25 PSI operation; safety valve included
- Made in the USA by Unified Brands with nationwide parts & service support
Technical Specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Heat Source | Direct external steam (remote boiler required) |
| Operating Pressure | 5 – 25 PSI (172 kPa max) |
| Jacket Coverage | 2/3 (side & bottom) |
| Interior Material | 316 stainless steel, 180-grit polish |
| Exterior / Jacket | 304 stainless steel, semi-deluxe buff finish |
| Tilt Mechanism | Manual hand-crank, worm & gear, self-locking |
| Steam Inlet (NPT) | ¾ in. |
| Overall Height (tilted / upright) | 36 in. / 914 mm |
| Diameter (inside rim) | 20 in. / 508 mm |
| Front-to-Back (upright) | 23 in. / 584 mm |
| Net Weight | Approx. 230 lb / 104 kg |
Popular Options (sold separately)
- Lift-off or counterbalanced hinged cover kit
- Single or double-pantry water fill faucets
- 2 in. tangent draw-off valve with strainer
- Basket inserts & lip strainers
- Steam trap assembly & steam regulator kits
- Contour measuring strip & gallon etch marks
Groen Limited Warranty
1-year parts & labor coverage (2,000 operating hours), backed by Groen’s nationwide authorized service network. Extended coverage available at time of purchase.
