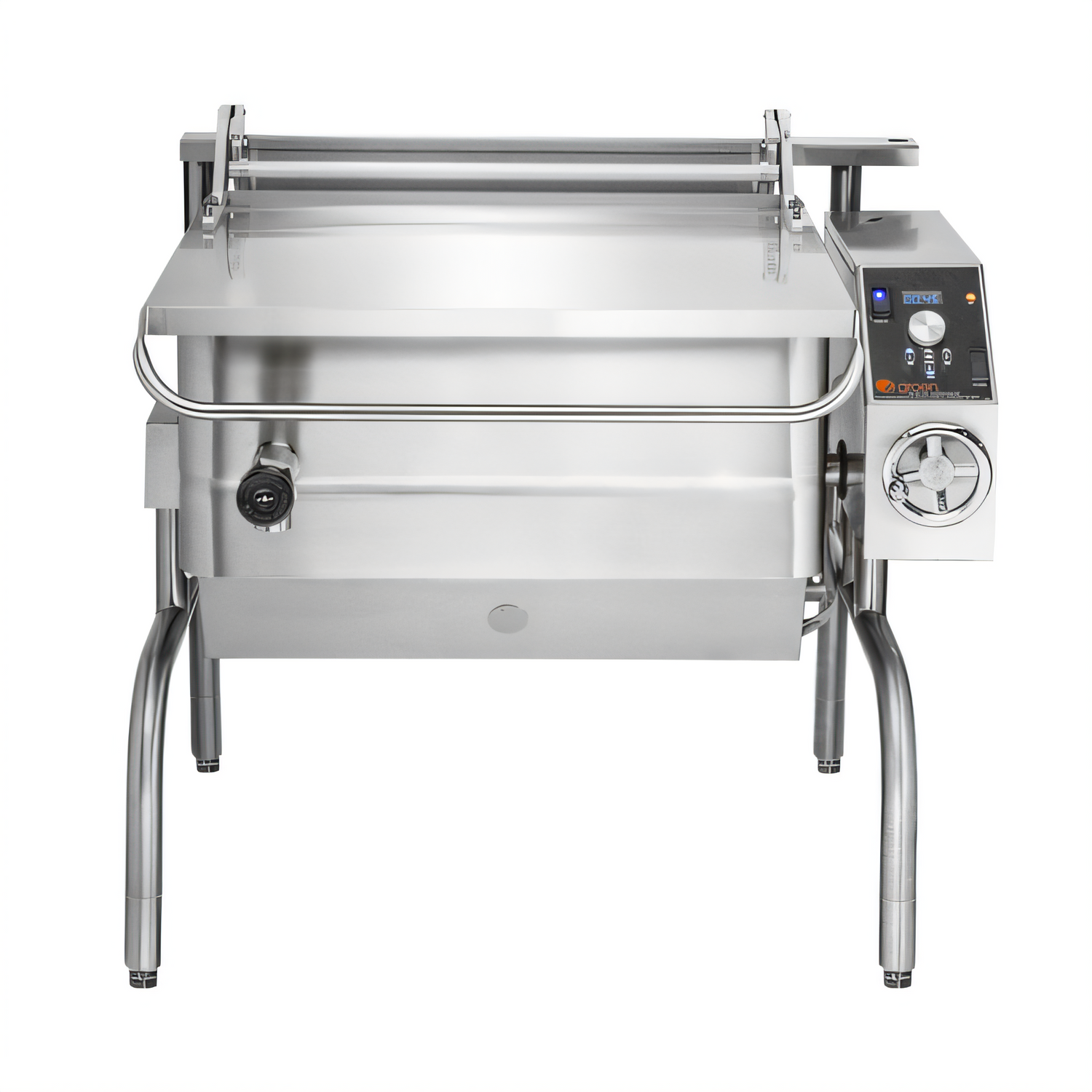

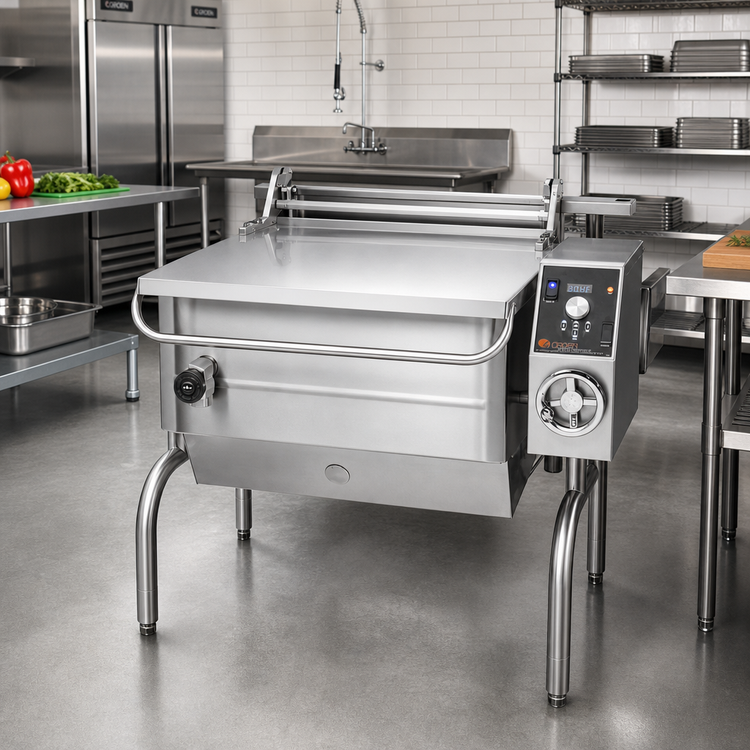

Groen 40-Gallon Electric Braising Pan with Advanced Controls, Manual Tilt, and Open Leg Base
Groen 40-Gallon Electric Braising Pan with Advanced Controls, Manual Tilt, and Open Leg Base
10-Inch Deep Pan, IPX6 Water-Resistant Electronics, Field-Convertible Electrical Service
Built for high-volume production, this 40-gallon braising pan combines precise electronic control, manual tilting, and durable stainless steel construction for demanding commercial kitchens.
- 40-gallon capacity with a 10-inch deep pan body for large-batch braising, sautéing, and simmering.
- Advanced electronic controls provide a digital display, preset temperatures, manual temperature setting, and timer functions.
- Manual crank tilt with worm-and-gear action gives smooth, controlled pouring and easy cleaning.
- Stainless steel construction, open leg stand, and bullet feet are built for durability and easy maintenance.
- IPX6-rated control housing and thermostatic safety features support dependable daily use.
- Standard faucet mounting bracket and graduated fill marks add convenience during production.
Overall Dimensions:
48.0"W x 39.75"D x 43.5"HProduct Weight:

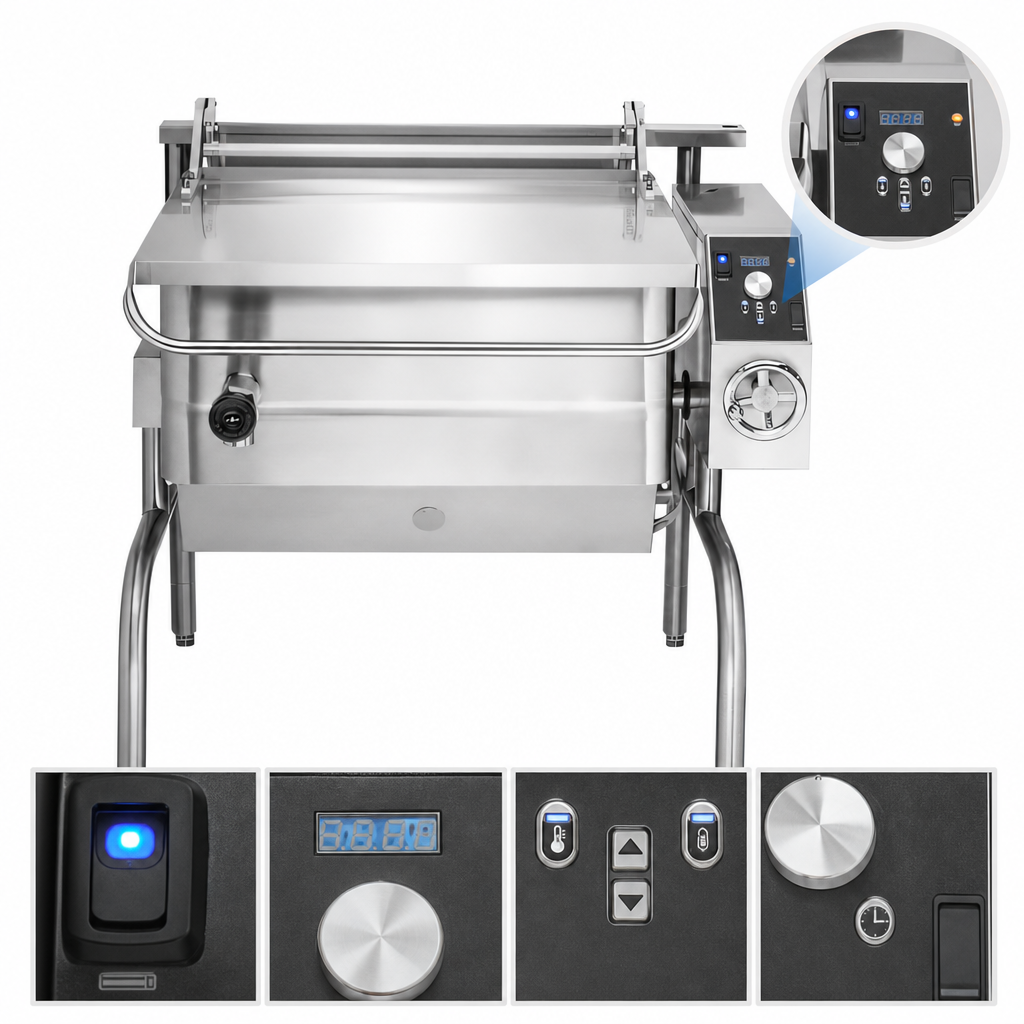

673.0 lbAdvanced Electronic Controls
Right-front mounted controls include a temperature and time set knob, LED display, preset temperature buttons, manual mode, and timer control.

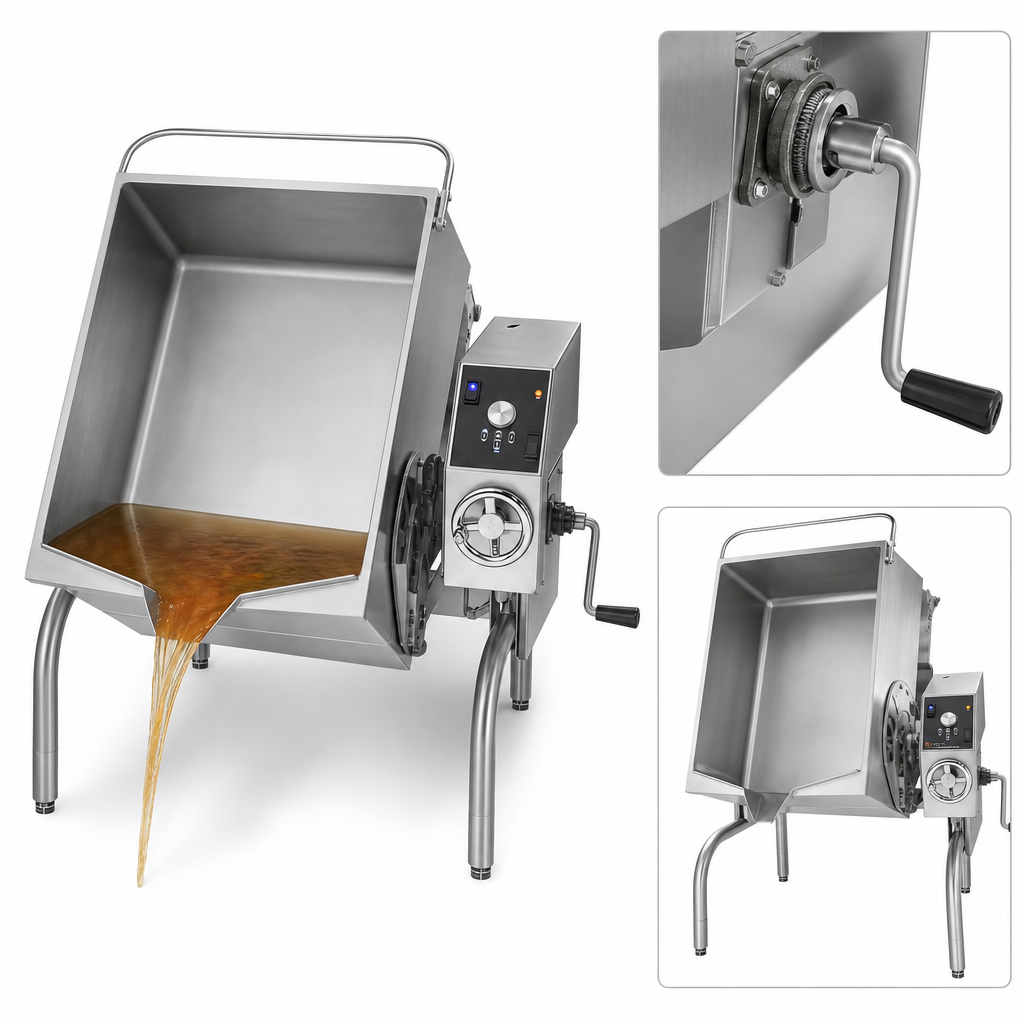

Manual Tilt Mechanism
The pan tilts smoothly with a manual crank and worm-and-gear assembly, allowing precise pouring and tilting past vertical for cleaning.
Heavy-Duty Stainless Steel Construction
The pan body is a one-piece welded 304 stainless steel construction with 3-inch radius corners and a 5/8-inch thick stainless steel clad cooking surface.
IPX6 Water-Resistant Enclosure
Controls and tilt mechanism are housed in a stainless steel IPX6-rated enclosure for added protection in wet kitchen environments.
Temperature And Timer Control
Provides a 175°F to 400°F preset temperature range, manual temperature setting capability, and a timer ranging from 1 minute to 10 hours.
Open Leg Stand With Bullet Feet
The unit is mounted on a round tubular open leg base with height-adjustable bullet feet for stability and cleaning access.
Convenient Faucet Mounting
A standard mounting bracket supports right-side, left-side, or right-rear faucet mounting, and graduated fill-level marks are provided in gallons and liters.
Thermostatic Safety Features
Includes automatic shutoff at the desired temperature, automatic power-on when temperature falls below the set point, and a high-limit thermostat.
Certifications & Compliance
Warranty & Protection
Standard limited warranty covers 2000 operating hours, 12 months from installation, or 15 months from shipment, whichever comes first.
