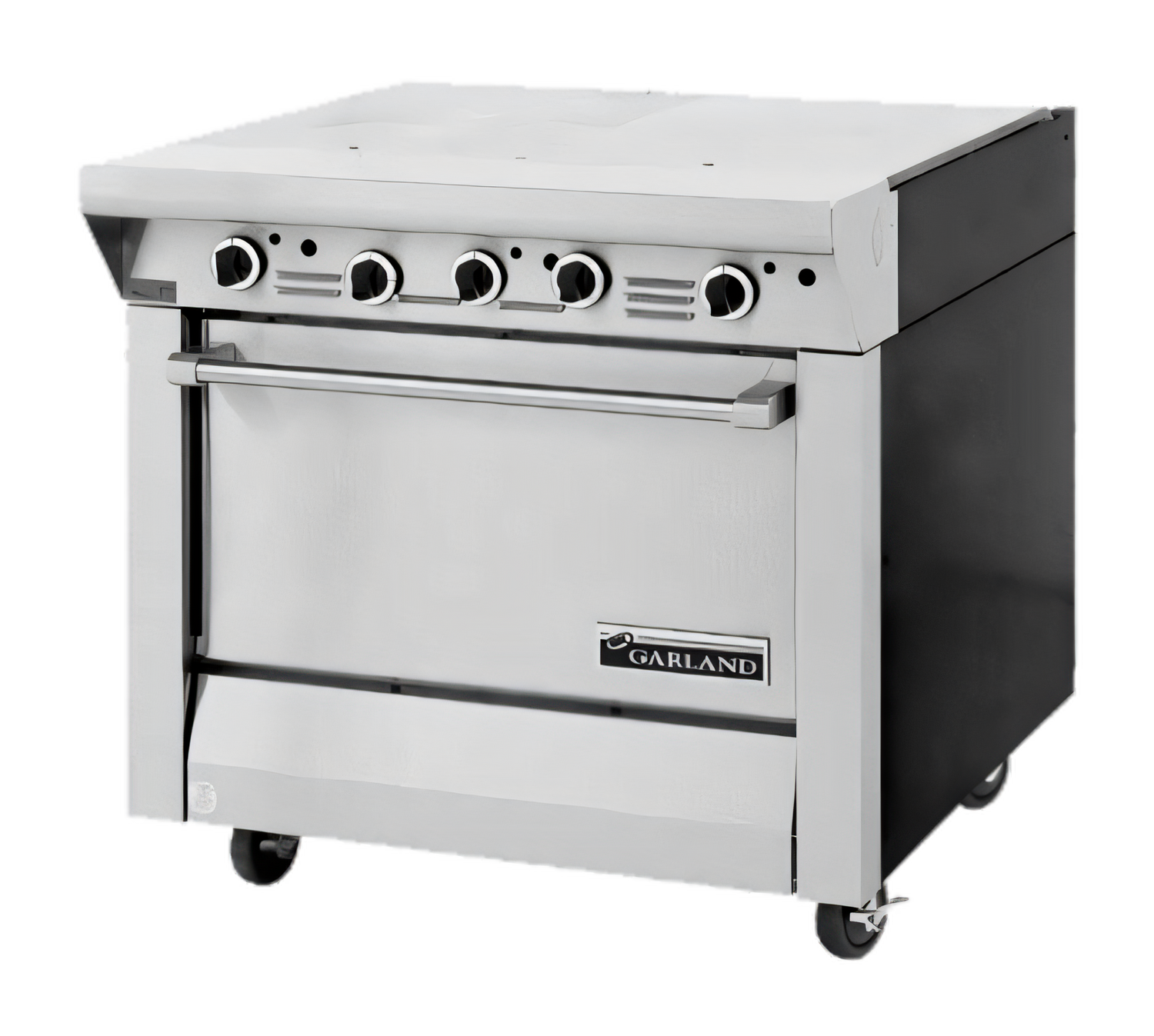

Garland MST46T-E Master Gas Ranges
$6,369.00
Unit price
/
Unavailable
Description
Garland Master Series 34" Modular Heavy-Duty Even-Heat Hot-Top Range
Model MST46T-E • 90,000 BTU / 23.7 kW (Natural Gas)Purpose-built for demanding commercial kitchens, the Garland Master Series MST46T-E delivers rock-solid durability, exceptional heat consistency and full safety protection in a low-profile modular package that drops easily into a battery or chef’s counter.
Key benefits- (2) extra-heavy 17" even-heat cast-iron hot tops disperse heat edge-to-edge—perfect for large stockpots, rondeaus or sauté pans.
- (3) high-performance “H” style burners deliver a combined 90,000 BTU/hr for rapid recovery under heavy loads.
- Electric spark ignition and Sentry total flame-failure protection on every burner—no standing pilot and maximum operator safety.
- Stainless-steel front, sides and burner box withstand daily scrubbing, steam and corrosive kitchen environments.
- Heavy-gauge aluminized steel radiation baffle system evens out top-surface temperatures and boosts burner efficiency.
- Separate brass valve for each burner gives you pinpoint control from gentle simmer to full power.
- 1-1/4" NPT front gas connection (rear connection optional) simplifies installation in new or replacement line-ups.
- Field-convertible to propane with factory kit.
- Full compliance with CSA Flame & Star, CE and NSF listings—ready for international or domestic projects.
| Exterior width | 34" / 864 mm |
|---|---|
| Exterior depth | 38" / 965 mm |
| Height (with optional stand) | 36-3/8" / 924 mm |
| Height (counter-top, modular) | 9-1/2" / 241 mm (1-1/2" seating flanges) |
| Total input (Natural Gas) | 90,000 BTU/hr | 23.7 kW |
| Operating pressure | Nat Gas 6" W.C. / LP Gas 10" W.C. |
| Gas inlet | 1-1/4" NPT front connection (rear optional) |
| Shipping weight | 260 lb / 118 kg 20 cu ft crated volume |
| Certifications | NSF, CSA Flame, CSA Star, CE |
- 6" adjustable stainless or NSF chrome legs
- Polyurethane non-marking swivel casters with front brakes
- 10", 17" or 33" stainless-steel backguard (required on Master Series)
- Stainless-steel common front rail for battery line-ups (up to 102")
- 3/4", 1" or 1-1/4" gas regulator, shut-off valve, flex hose & quick-disconnect kits
- End cap & cover plates (factory installed)
Installation note: Maintain minimum clearances of 11" (279 mm) to
combustible side walls and 6" (152 mm) to the rear. All Master Series units
require an appropriate backguard and must be installed in accordance with
local codes.
Need help configuring a full Master Series battery? Contact our equipment specialists at 1-800-424-2411.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CE, CSA Star, CSA Flame
Height
9.5in
Width
34.0in
Depth
31.5in
Shipping Weight
270.0lbs
Top
(2) hot tops
Exterior Finish
stainless steel front & sides
Base
modular
Specifications
Master Series Heavy Duty Range, gas, 34", modular, (2) 17" even heat hot tops, electric ignition & flame fail on all burners, stainless steel front & sides, 90,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
