Garland M4T Master Gas Ranges
Description
Garland Master Series 17" Modular Add-A-Unit – 2 Open Burners
Model M4T | Heavy-Duty Gas Range AttachmentDrop legendary Garland fire-power anywhere on your cook line. The Master Series M4T modular add-a-unit delivers 70,000 BTU of open-burner performance in only 17 inches of frontage, giving chefs a compact yet uncompromising way to boil, sauté or sear exactly where it’s needed.
Key Features

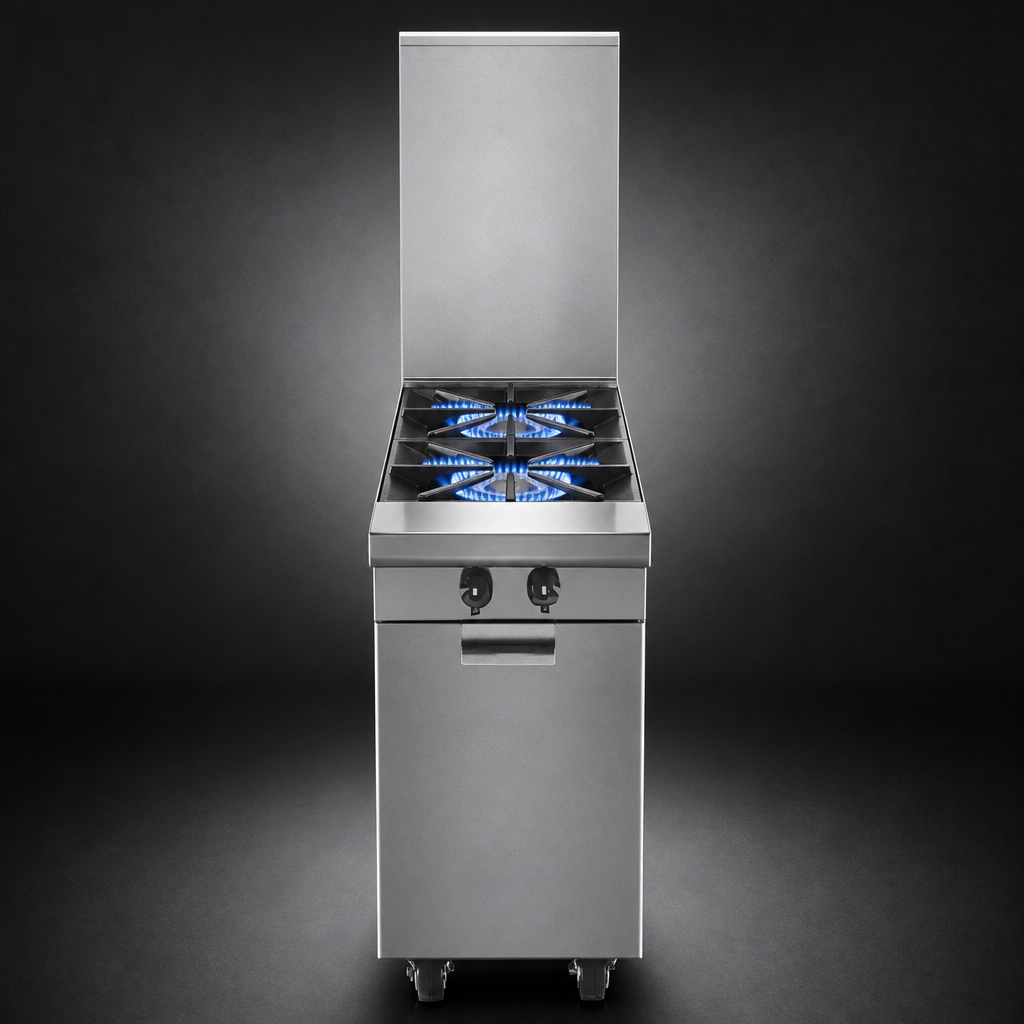

- Two 2-piece Starfire™ open burners – 35,000 BTU each (natural) / 32,000 BTU each (propane).
- Heavy-duty cast-iron top grates with removable ring-grate bowls for wok or stock-pot versatility.

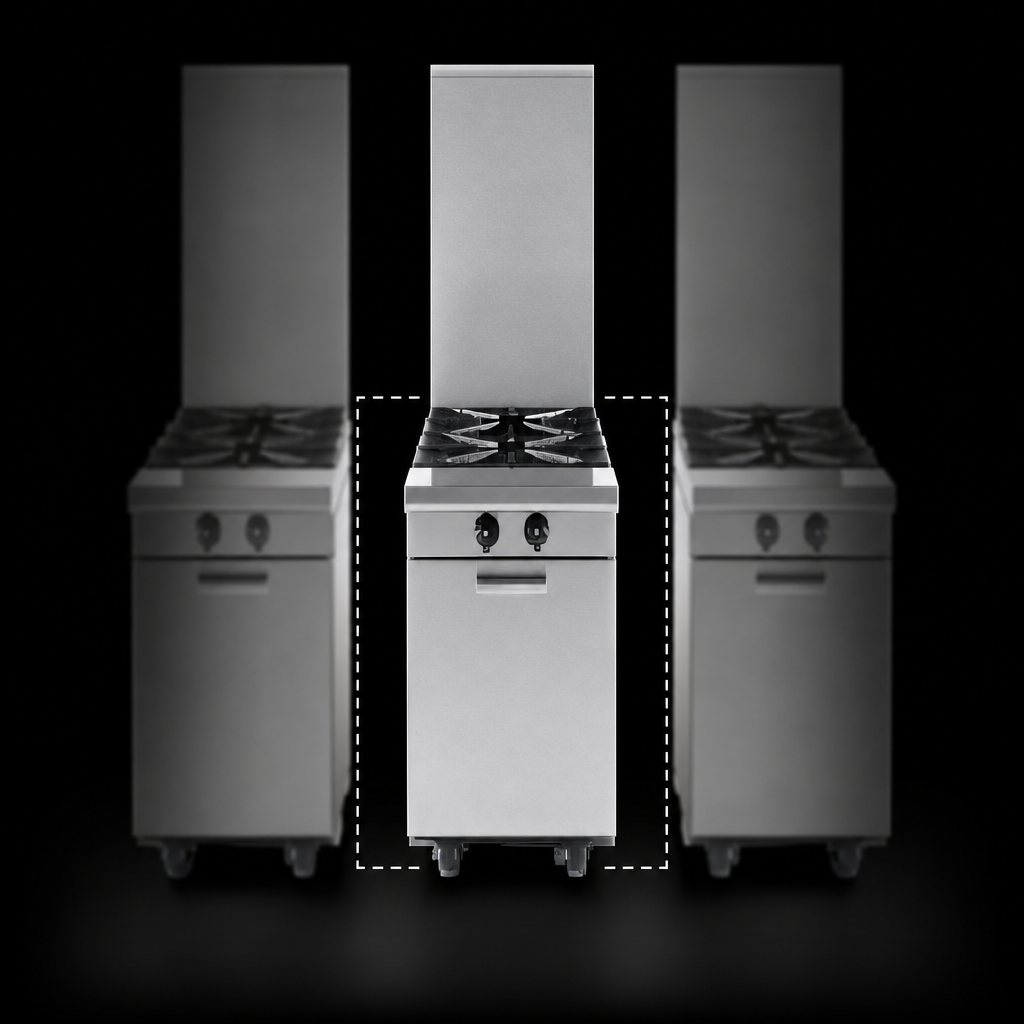

- 1 ½" seating flanges let the unit drop seamlessly into any Master Series battery.
- 7 ½" stainless steel front rail protects valves and provides a handy plating shelf.
- One-piece stainless steel crumb / drip tray slides out for fast cleanup.
- Stainless steel front & sides stand up to the toughest commercial kitchens.
- Total input: 70,000 BTU (20.51 kW) natural / 64,000 BTU (18.74 kW) propane.
- Certified to CSA Flame, CSA Star & NSF standards for safety and sanitation.
At-a-Glance Specifications
| Width | 17" / 432 mm |
|---|---|
| Depth | 38" / 965 mm |
| Height | 9 ½" / 241 mm (with optional stand) |
| Total Input (Natural) | 70,000 BTU/hr • 20.51 kW |
| Total Input (Propane) | 64,000 BTU/hr • 18.74 kW |
| Burner Rating | 35,000 BTU each (NAT) • 32,000 BTU each (LP) |
| Gas Connection | 1 ¼" NPT front (rear connection optional) |
| Operating Pressure | 6" WC natural • 10" WC propane |
| Shipping Weight | 120 lb / 55 kg |
| Clearances to Combustibles | Sides 14" (356 mm) • Back 6" (152 mm) |
| Certifications | CSA Flame • CSA Star • NSF |
Popular Options & Accessories
- Rear gas connection kit – ¾" or 1 ¼" NPT.
- Gas regulator or shut-off valve (¾", 1" or 1 ¼").
- 5' gas flex hose with quick disconnect & restraining device.
- Modular stand or dais base.
- Stainless steel backguard – 10", 17" or 33" high.
- Stainless steel tubular high shelf – single or double deck.
- Polyurethane non-marking swivel casters with front brakes.
- Common front rail for multi-unit batteries (up to 102").
One-year limited parts & labor warranty (USA & Canada). Please specify gas type and altitude above 2,000 ft (610 m) when ordering.
