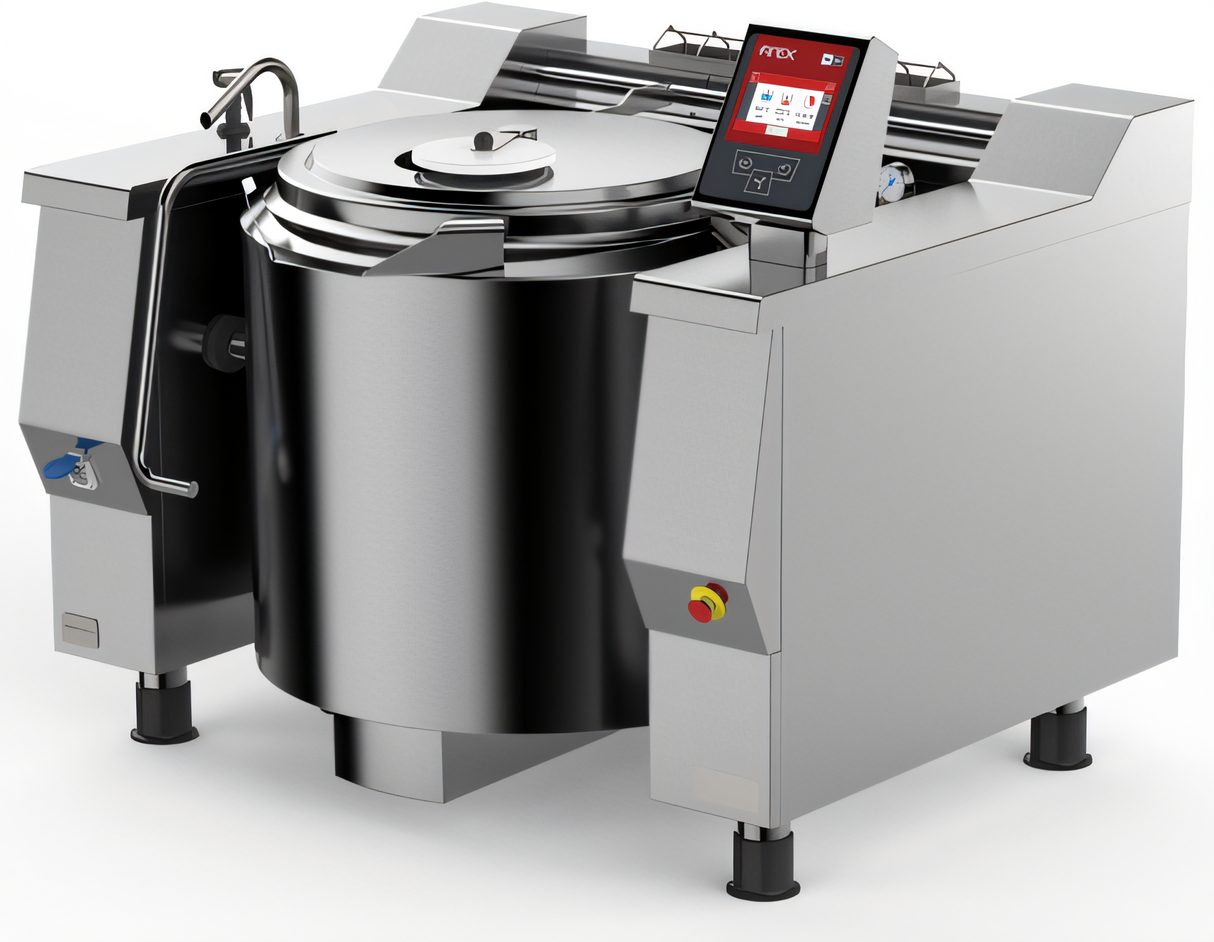

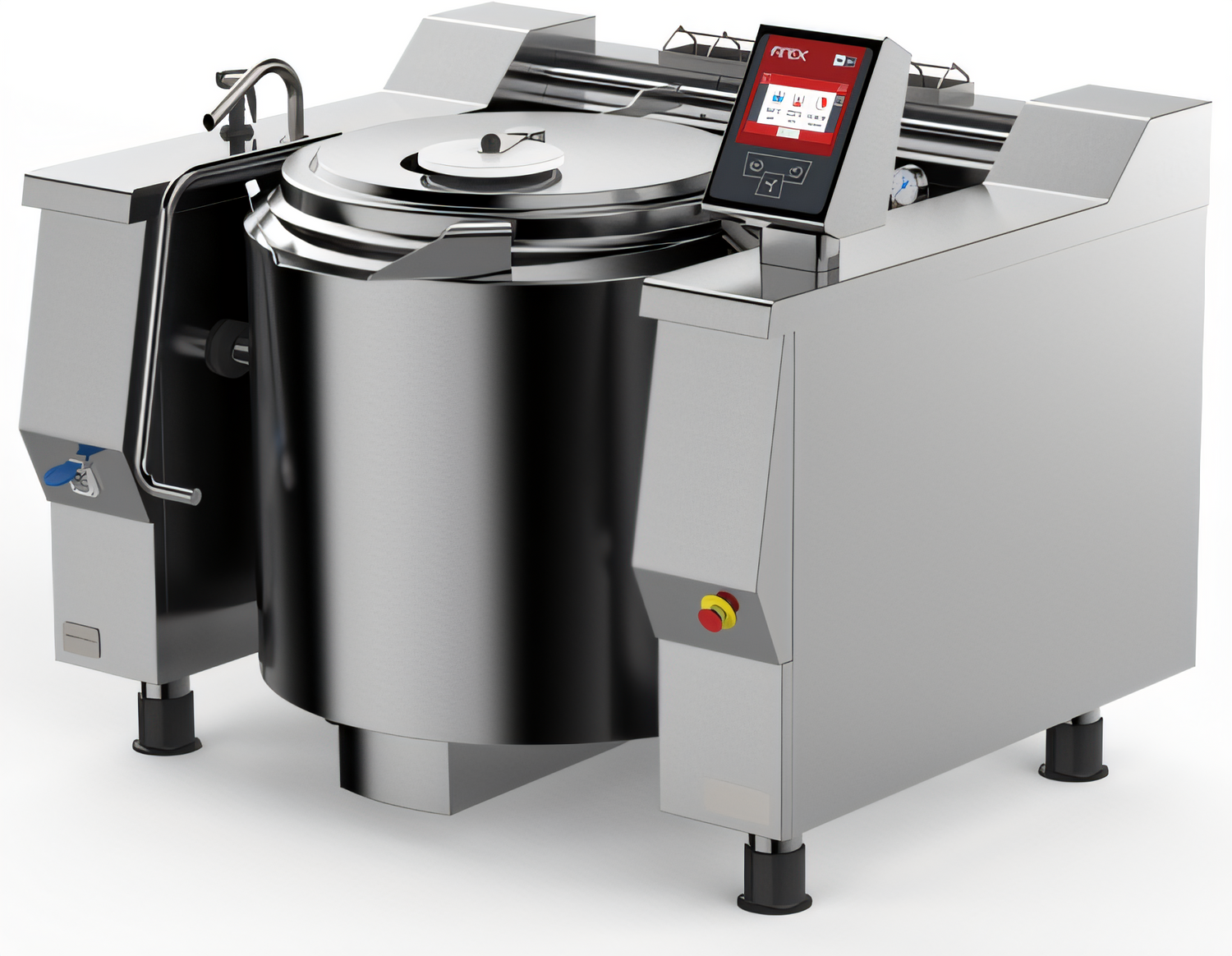

Baskett Firex UPRIG122_V1 122 Gallon Gas Indirect Heat Tilting Kettle

Floor Model, 316 Stainless Steel Inner Liner, Programmable Digital Controls

Achieve superior cooking versatility and efficiency with the Baskett Firex UPRIG122_V1 gas tilting kettle, designed for processing large volumes of diverse products.

  • 122-gallon capacity ideal for high-volume commercial kitchens.
  • Indirect heating via high-efficiency stainless steel tube burners ensures even heat distribution.
  • AISI 316 stainless steel cooking vessel suitable for highly acidic products.
  • Advanced electronic control with 7" Touch Screen for intuitive operation and programming.
  • Automatic filling of the double-jacket and precise temperature control with two probes.
  • Enhanced safety features including emergency button and heating interruption during tilting.
  • Durable AISI 304 stainless steel construction for frame and exterior ensures longevity.

Heavy-Duty Construction

Cooking vessel made from AISI 316 stainless steel (2.5-4.0 mm thickness) for durability and resistance to acidic products. Jacket, self-supporting frame, and outer cover are constructed from AISI 304 stainless steel with a fine satin finish.

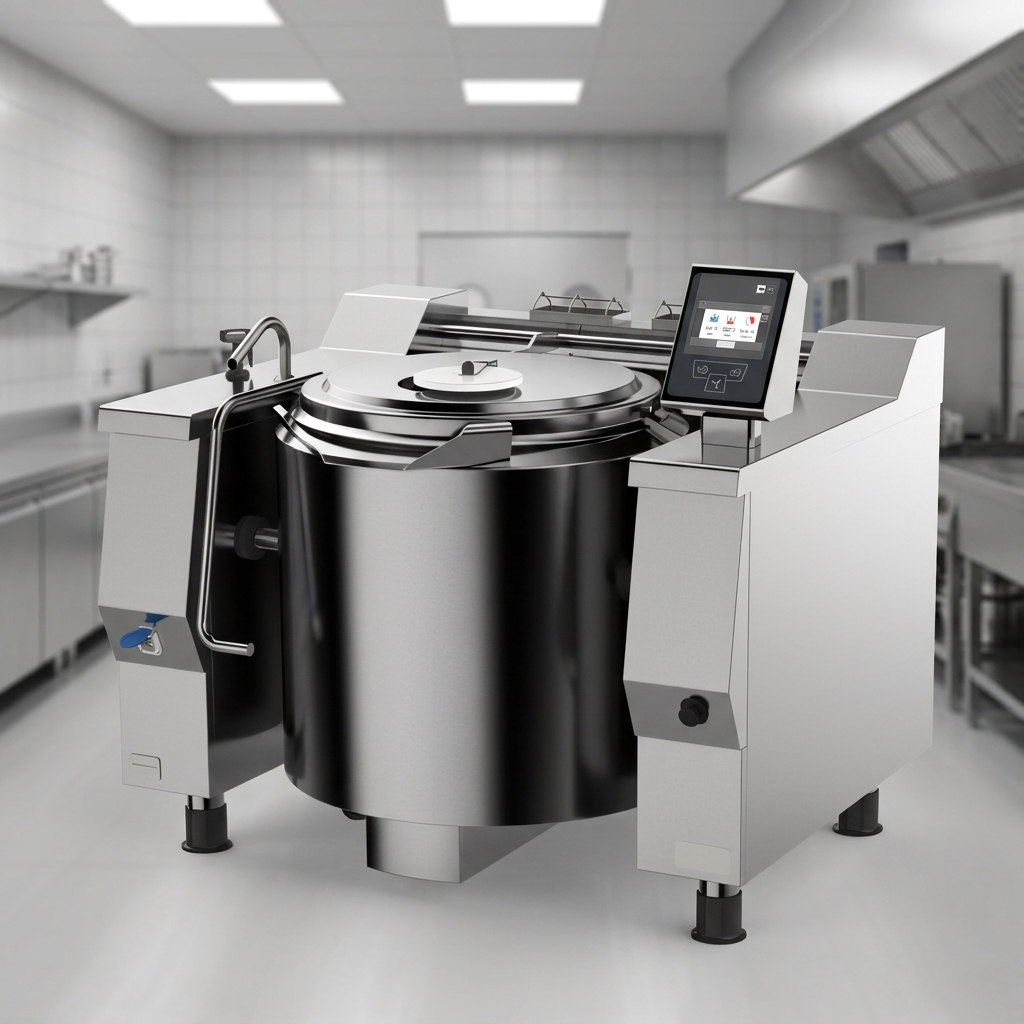

This image showcases the 122-gallon tilting kettle's robust, heavy-duty stainless steel construction designed for unparalleled durability in any commercial kitchen.

Insulated Tilting Lid

Features an insulated lid with a double cover in AISI 304 stainless steel, an ergonomic handle, and gas spring balancing for safe and easy operation. The vessel tilts electrically from the front.

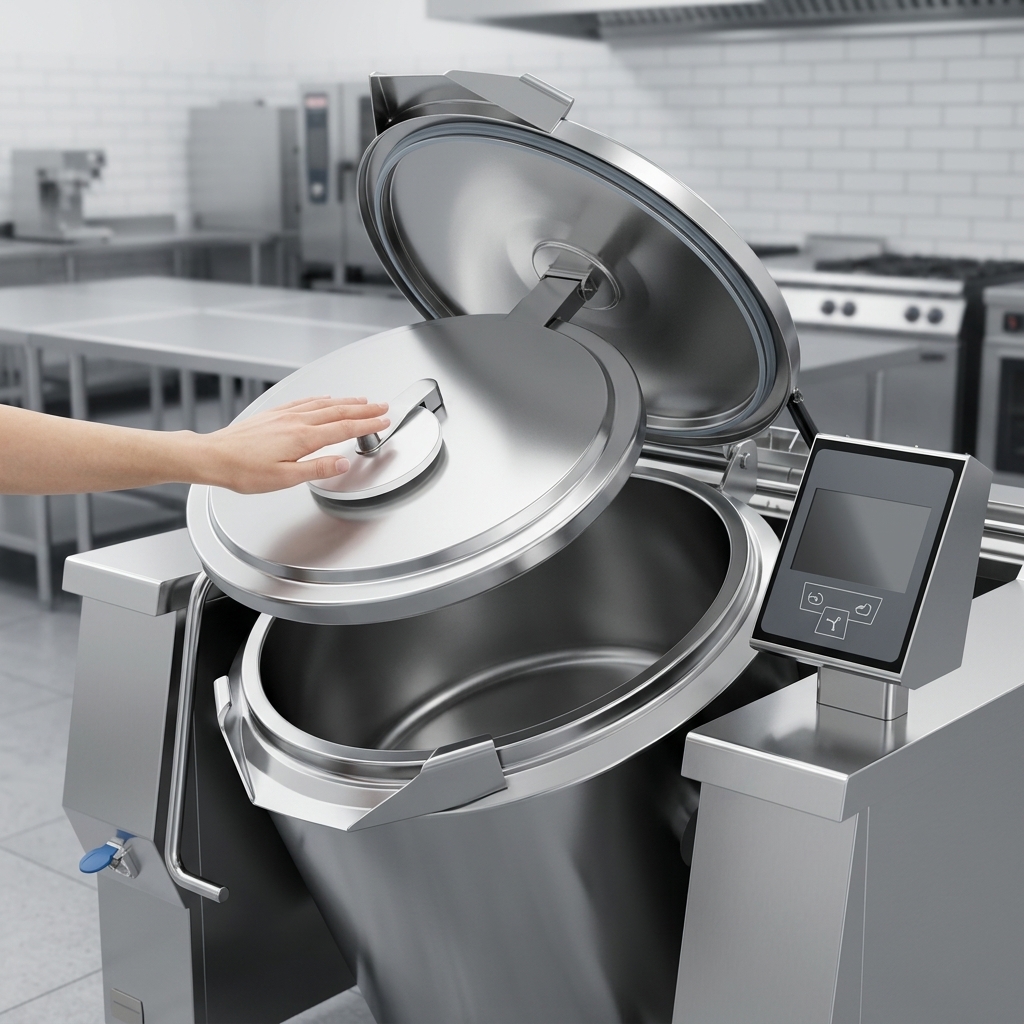

Experience effortless operation with the Baskett Firex tilting kettle's insulated lid, designed for safety and ease of use in any commercial kitchen.

High-Efficiency Gas Heating

Utilizes high-efficiency stainless steel tube burners with automatic ignition and flame control, eliminating the need for a pilot burner. Heating is controlled electronically with automatic activation.

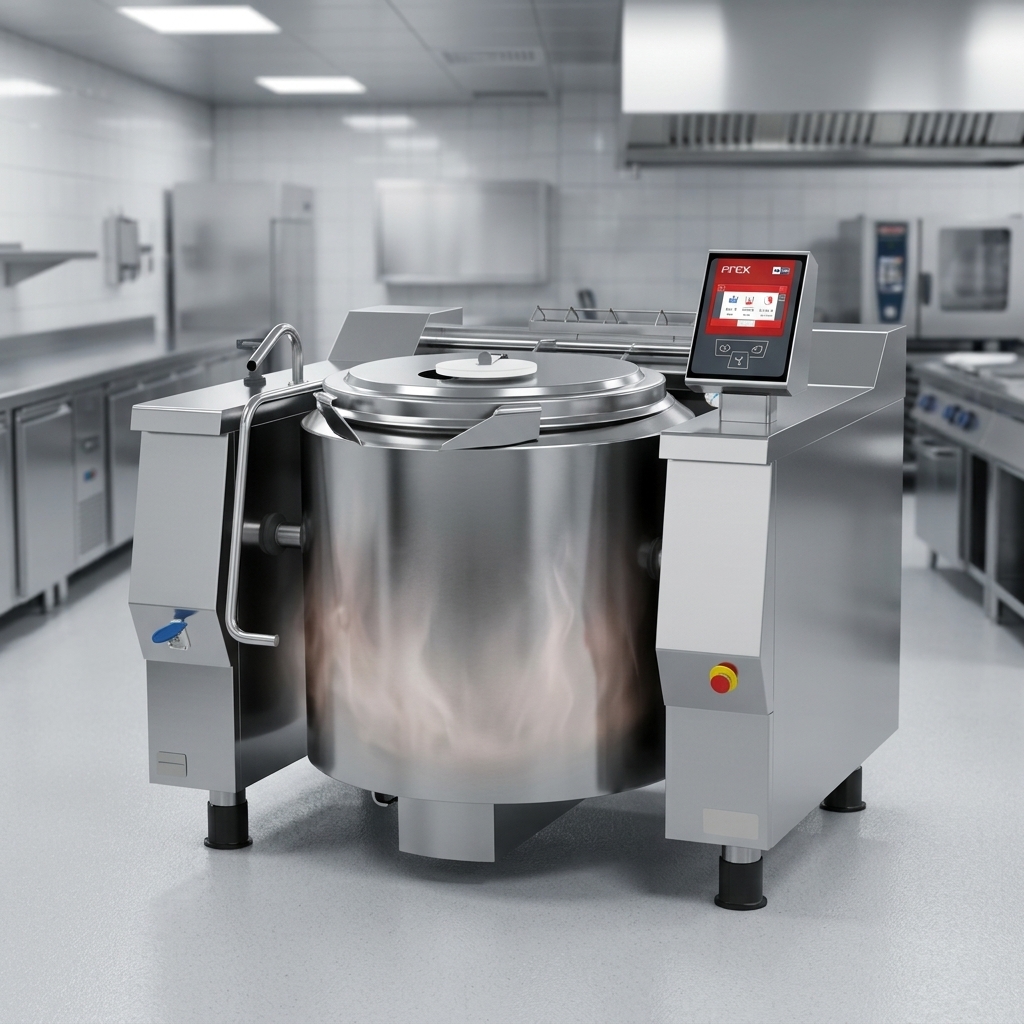

Achieve optimal cooking results with the tilting kettle's high-efficiency gas heating, featuring precise automatic electronic control.

Precise Temperature and Pressure Control

Temperature is precisely controlled by two probes (one for the product and one for the jacket). Pressure is managed by an 8.7 PSI pressure switch, a 12.3 PSI safety valve, a vacuum valve, and an analogic pressure gauge. A breather valve eliminates air for faster heating.

Advanced Electronic Control

Equipped with a multifunctional keyboard and a 7" resistive Touch Screen display with clear messages. Features ON/OFF switch, basin movement keys, and settings for various cooking modes.

Programmable Cooking Modes

Offers 5 different cooking modes (6 with optional cooling), with settings for working temperature, cooking type, and time. Users can create and edit multiphase programs, including text messages for each phase.

HACCP Data & Software Management

Includes a USB connection for downloading HACCP data, updating software, and loading cooking programs. Supports MODBUS over RS485 serial interface for machine interrogation.

Automatic Double-Jacket Filling

The double-jacket automatically fills, and the system manages water level with a sound-visual alarm for minimum water in the jacket.

Adjustable Stainless Steel Feet

Four adjustable AISI 304 stainless steel feet ensure proper leveling and stability, with removable covers for easy cleaning.

Enhanced Safety Systems

Features an emergency button, heating block for excess temperature with a manual resettable safety thermostat, heating block at minimum water level, double-jacket safety valve, and heating interruption during vat tilting.

IPX4 Protection Level

Offers IPX4 protection level, indicating resistance to water splashes from any direction.

Specifications

Type Tilting Kettle
Style Indirect Heat
Installation Type Floor Model
Capacity 122 Gallons
Gas Type Gas
Kettle Liner 316 Stainless Steel
Kettle Jacket 304 Stainless Steel
Material 304 Stainless Steel
Controls Programmable Digital Touch Screen
Pressure Control 8.7 PSI (Pressure Switch), 12.3 PSI (Safety Valve)
Protection Level IPX4
Shipping Width 70 Inches
Shipping Depth 65 Inches
Shipping Height 59 Inches
Shipping Weight 1598.0 lb.
Selling Unit Each
Units Per Case 1

Overall Dimensions:

69.09"W x 64.96"D x 58.39"H

Product Weight:

1598.0 lb
Manufacturer Firex (Middleby)
Brand name Baskett
Height 58.39in
Width 69.09in
Depth 64.96in
Shipping Weight 1598.0lbs
Capacity 80 - 150 gallon
Kettle Liner 316 stainless steel
Kettle Jacket full jacket
Specifications Tilting Kettle, gas, indirect heating, 122 gallon capacity, insulated lid with double cover, (5) cooking modes, cooling double-jacket, temperature control by means of two probes, multifunctional keyboard with touch screen, pressure controlled by means of pressure switch 8.7 PSI, safety valve (12.3 PSI), vacuum valve and analogic pressure gauge, ON/OFF switch, emergency button, double-jacket safety valve, (4) adjustable stainless steel feet, 316 stainless steel inner liner, 304 stainless steel construction,IPX4, ETL

Warranty & Protection

1-year parts and labor warranty, with a standard 10-year Hemisphere warranty for kettles.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking vessel is made of AISI 316 stainless steel, specifically designed for processing particularly acidic products, ensuring durability and corrosion resistance.
Temperature is precisely controlled by an electronic board using two probes (one for the product and one for the jacket). The system also features automatic activation 4°F before the setpoint to prevent steam outlet.
Yes, the kettle features a self-diagnostics system that displays various signals and alarms, including heating operation, time to end of cycle, tank position, water levels, and gas supply issues.
The kettle features electronic control via a multifunctional keyboard with a 7-inch resistive Touch Screen display. This allows for setting cooking modes, temperature, time, and creating multi-phase cooking programs.
Yes, the kettle is equipped with a USB connection, allowing users to download HACCP data, update the software, and load customized cooking programs.
