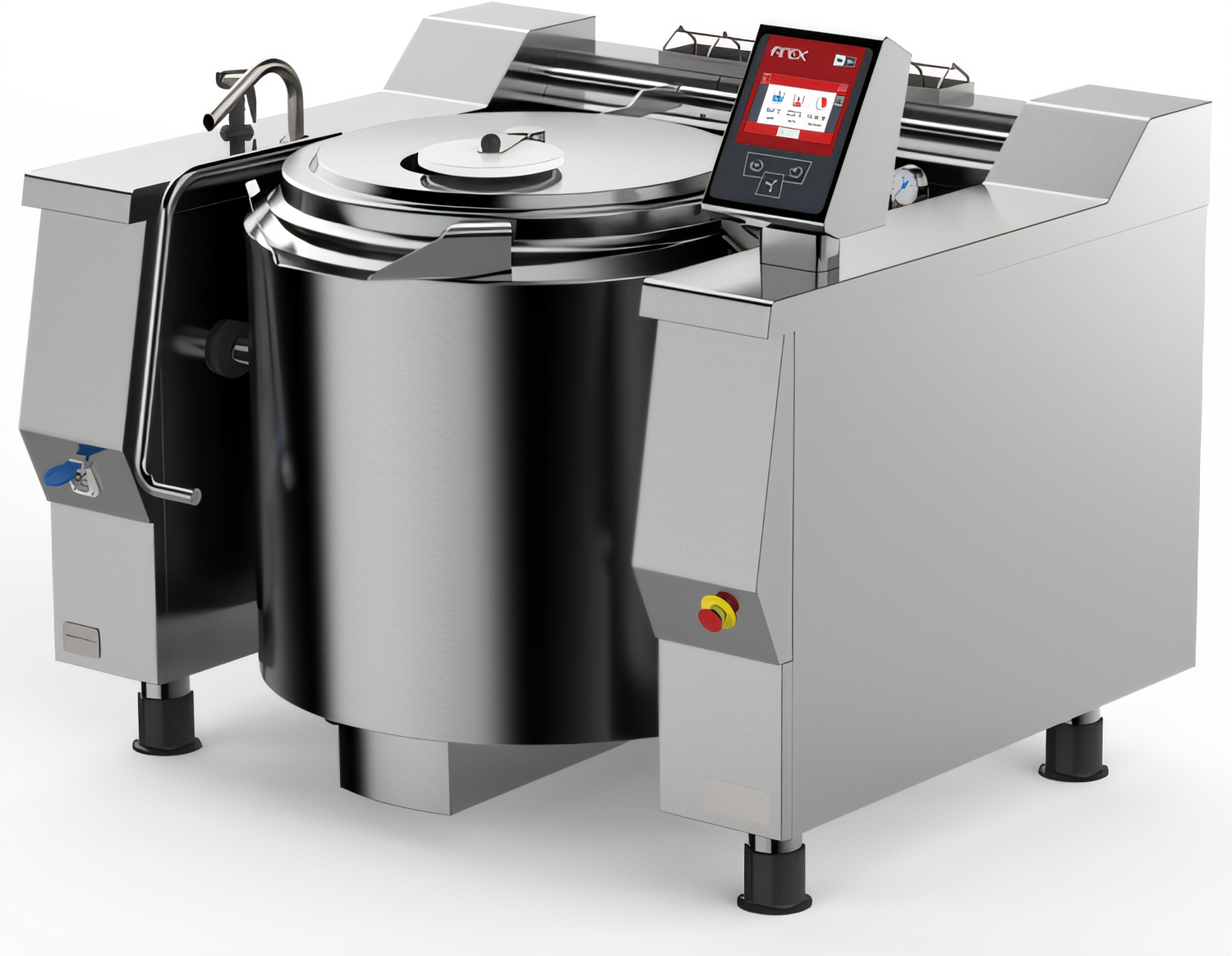

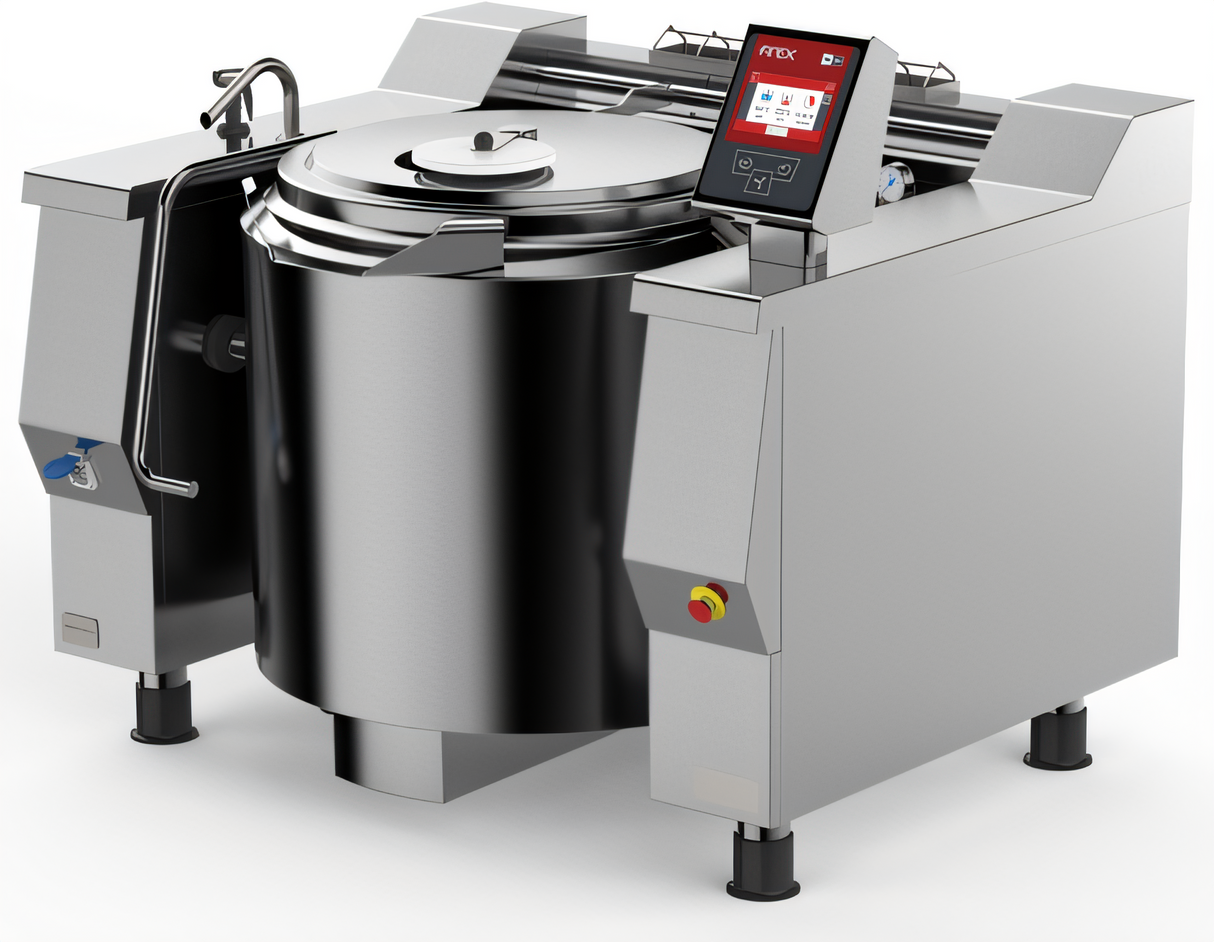

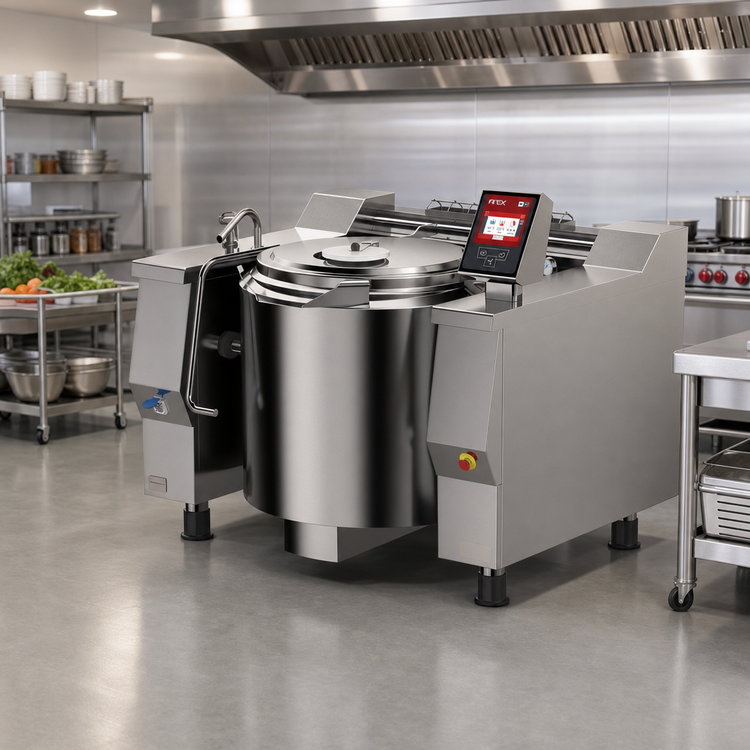

Baskett UPRIE062_V1 62 Gallon Electric Indirect Heat Tilting Kettle

62 Gallon, Electric, Indirect Heat, 316 Stainless Steel Liner, Tilting

This 62-gallon electric tilting kettle offers precise indirect heating and advanced controls for versatile and efficient commercial cooking operations.

  • Large 62-gallon capacity ideal for high-volume cooking needs in commercial kitchens.
  • Indirect heating system with INCOLOY-800 alloy armoured elements ensures consistent and controlled cooking.
  • Advanced 7" resistive touch screen interface with multifunctional keyboard for intuitive operation and programmable cooking.
  • Durable AISI 316 stainless steel cooking vessel specifically designed for processing particularly acidic products.
  • Electric tilting mechanism provides easy and safe discharge of contents.
  • IPX5 protection level for enhanced durability and ease of cleaning.
  • Features two probes for accurate product and jacket temperature monitoring.

Overall Dimensions:

61.22"W x 54.73"D x 52.48"H

Product Weight:

1146.0 lb

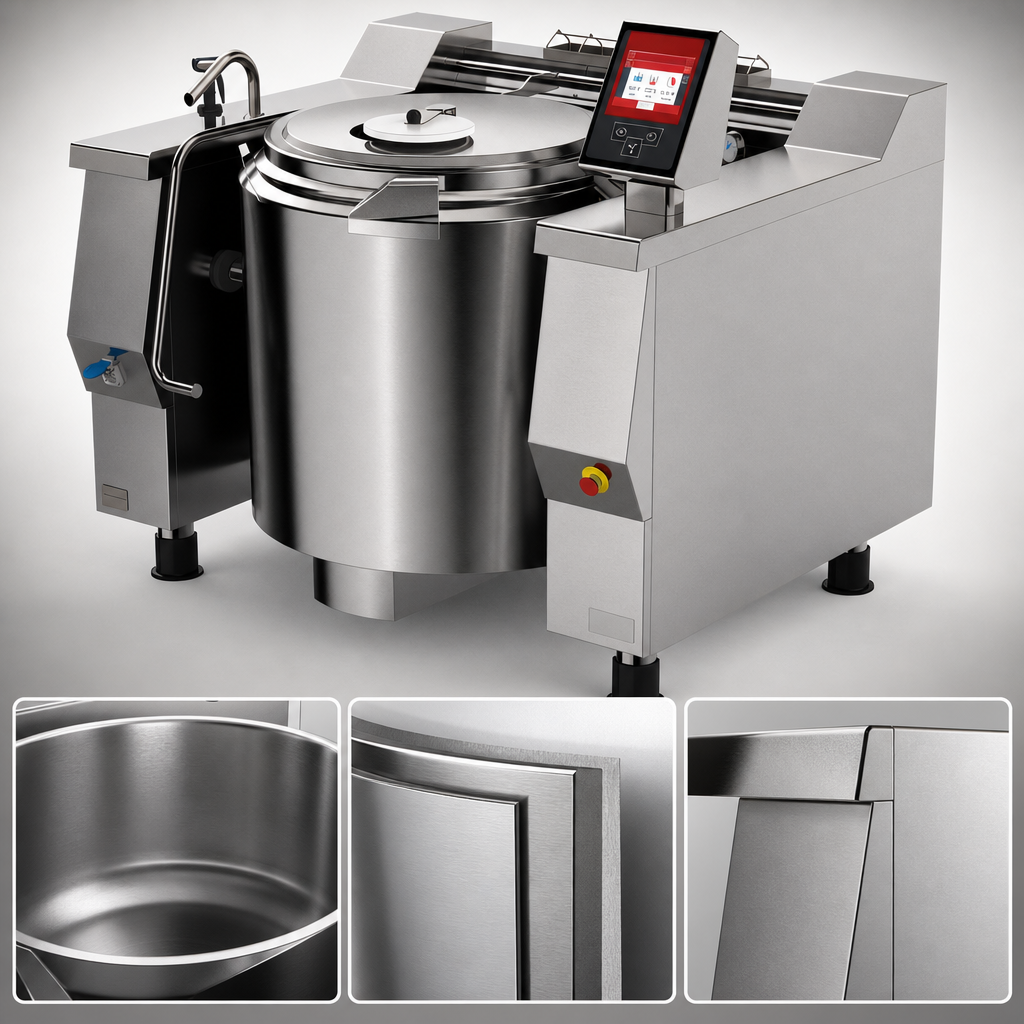

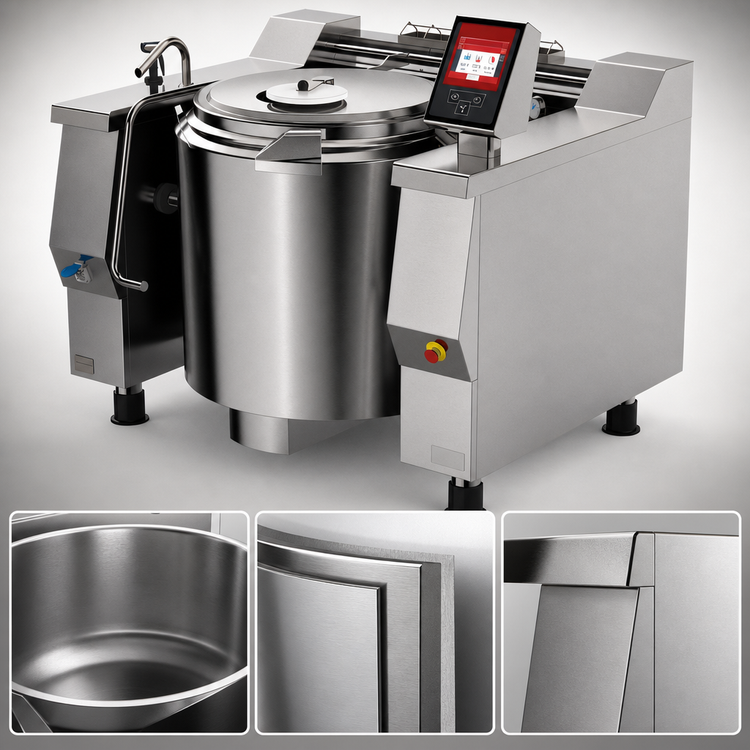

Robust Construction

Cooking vessel made from AISI 316 stainless steel (25-40/10 thickness) for durability and resistance to acidic products, with an AISI 304 stainless steel jacket, frame, and outer cover (12-15/10 thickness).

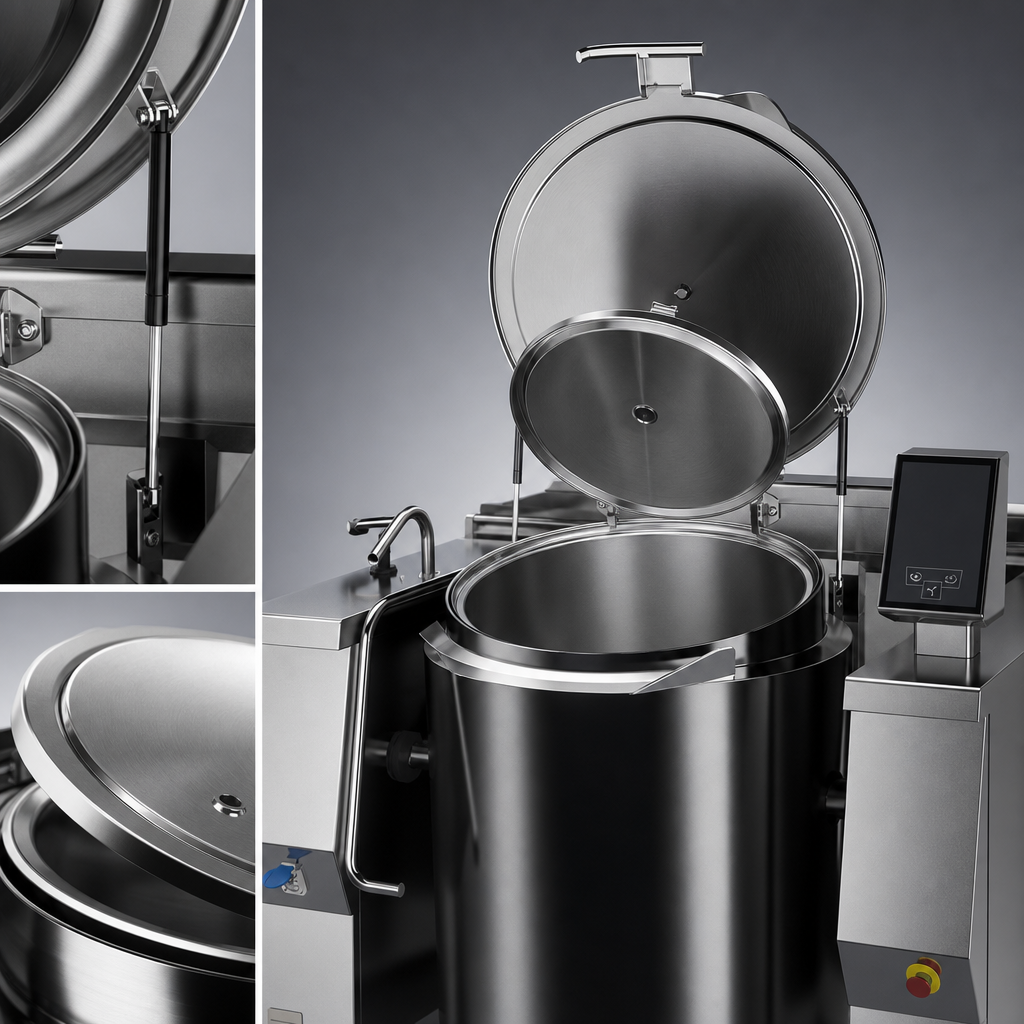

Insulated Lid

Double cover in AISI 304 stainless steel with an ergonomic handle, balanced by gas springs, to retain heat and improve safety.

Efficient Heating System

Heating by armoured elements in INCOLOY-800 alloy, controlled by an electronic board with automatic activation 4°F before the setpoint and a pressure switch set at 8.7 PSI to optimize energy usage.

Precise Temperature Control

Equipped with two probes for accurate monitoring of both product and jacket temperatures.

Advanced Electronic Control

Features a 7" resistive touch screen with a multifunctional keyboard for easy navigation, displaying clear messages, and managing various cooking functions.

Data Management & Connectivity

USB connection allows for downloading HACCP data, updating software, and loading cooking programs. Supports MODBUS over RS485 serial interface for machine interrogation.

Versatile Cooking Modes

Offers 5 different cooking modes (expandable to 6 with optional cooling), with settings for working temperature, cooking type, and time.

Programmable Cooking

Ability to create and edit multiphase cooking programs, allowing users to set cooking type, parameters (temperature and time), and custom text messages for each phase.

Automated Water Load

Settings for automatic loading of hot (up to 140°F) or cold water into the tank with precise liter measurements.

Comprehensive Safety Systems

Includes an emergency button, heating block for excess temperature with a manual resettable thermostat, heating block at minimum water level, double-jacket safety valve, and heating interruption during vat tilting.

Adjustable & Accessible Design

Adjustable AISI 304 stainless steel feet for leveling with removable covers for cleaning, and fast accessibility to main functional parts via removable frontal panels.

Type Tilting Kettle
Style Indirect Heating
Installation Type Floor Model (With Adjustable Feet)
Capacity 62 Gallons
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Controls Programmable Digital Touch Screen
Voltage 208 Volts
Phase 3-Phase
Hertz 60 Hz
Watts 27.50 kW
Amps 76.3 Amps
Water Connection Size 3/4" NPT
Water Inlet Pressure 25-50 PSI
Pressure Switch Setting 8.7 PSI
Safety Valve Setting 12.3 PSI
IP Rating IPX5
Shipping Width 62 Inches
Shipping Depth 55 Inches
Shipping Height 53 Inches
Shipping Weight 1146.0 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor limited warranty by Crown Steam Group

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This Firex tilting kettle has a generous cooking capacity of 62 gallons.
The cooking vessel is constructed from AISI 316 stainless steel, specifically chosen for processing acidic products, while the jacket and exterior components are made from durable AISI 304 stainless steel.
Temperature is precisely controlled using two probes, one for the product and one for the jacket, ensuring consistent heating. The system also features armored elements with electronic board control and a pressure switch.
Yes, the kettle features a 7" touch screen with the ability to select from 5 cooking modes and create/edit multiphase cooking programs with customizable parameters and text messages for each phase.
The standard electrical connection for this model is 3-Phase, 208 Volts, 60 Hz, with an electric power of 27.50 kW and a current of 76.3 Amps. Other voltage options are available.
Yes, a double-jacket cooling connection (USCT2) is available as an optional accessory, providing an additional 6th cooking mode for cooling.
