Firex (Middleby)

Baskett UPRIE048M_V1 Tilting Kettle with Mixer, 48 Gallon Electric Indirect Heat

SKU: UPRIE048M_V1
$185,430.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Firex (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

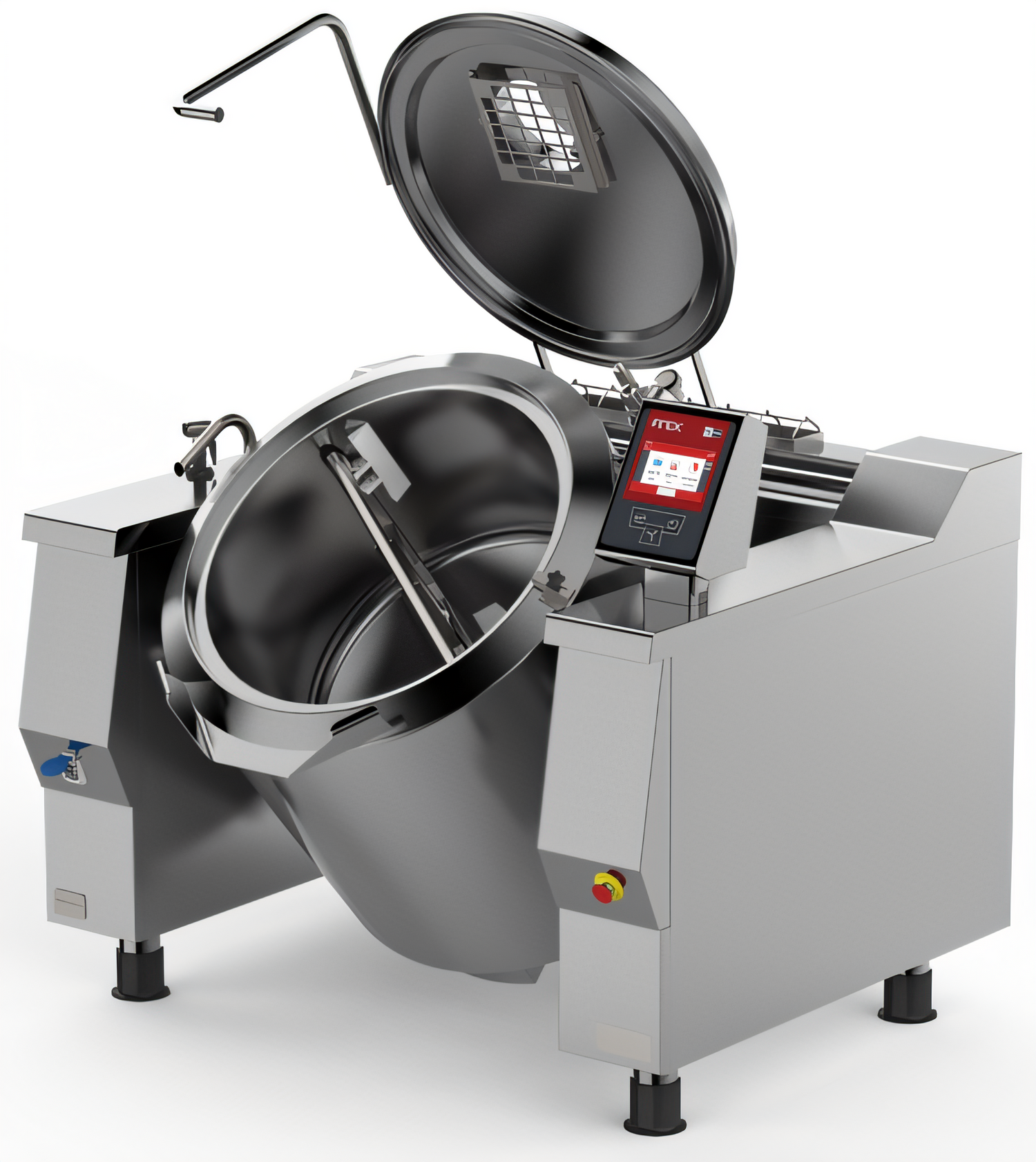

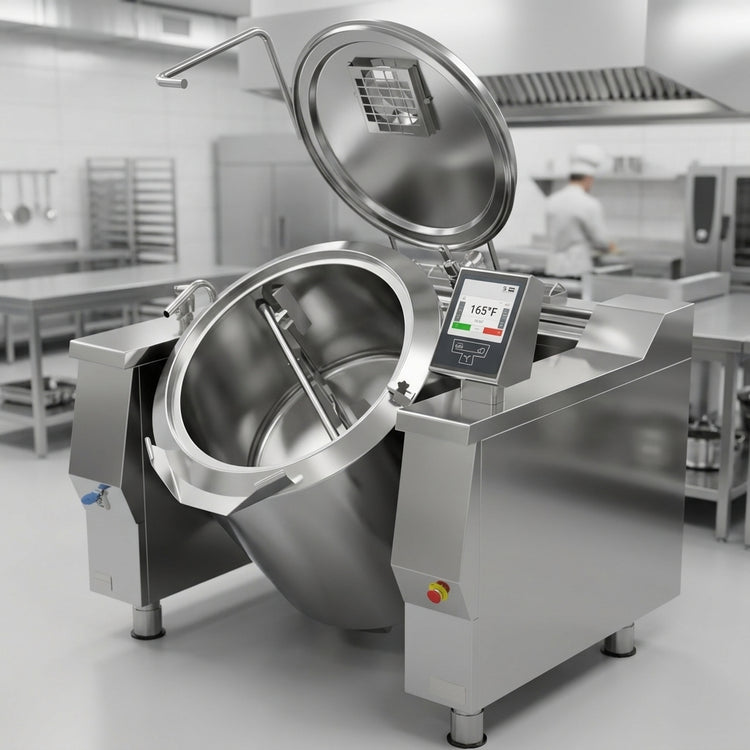

Baskett UPRIE048M_V1 Tilting Kettle with Mixer, 48 Gallon Electric Indirect Heat

Full-Jacketed, 316 Stainless Steel Liner, Floor Model

This 48-gallon electric tilting kettle with an integrated mixer provides versatile cooking for a wide range of products, ensuring consistent results and easy operation.

  • 48-gallon capacity for high-volume commercial kitchens.
  • Indirect electric heating with precise temperature control via two probes.
  • Integrated 2-arm mixer with 4 removable POM scrapers for thorough and programmable mixing.
  • Intuitive 7-inch resistive touch screen control panel with 5 cooking modes and recipe programming.
  • Durable AISI 316 stainless steel cooking vessel suitable for processing acidic products.
  • Automatic double-jacket filling and optional cooling connection for diverse cooking needs.
  • High IPX5 protection level ensures durability and simplifies cleaning operations.
  • USB connection for HACCP data download, software updates, and recipe management.

316 Stainless Steel Cooking Vessel

The cooking vessel is constructed from AISI 316 stainless steel (25-40/10 thickness), specifically designed for processing acidic products without corrosion.

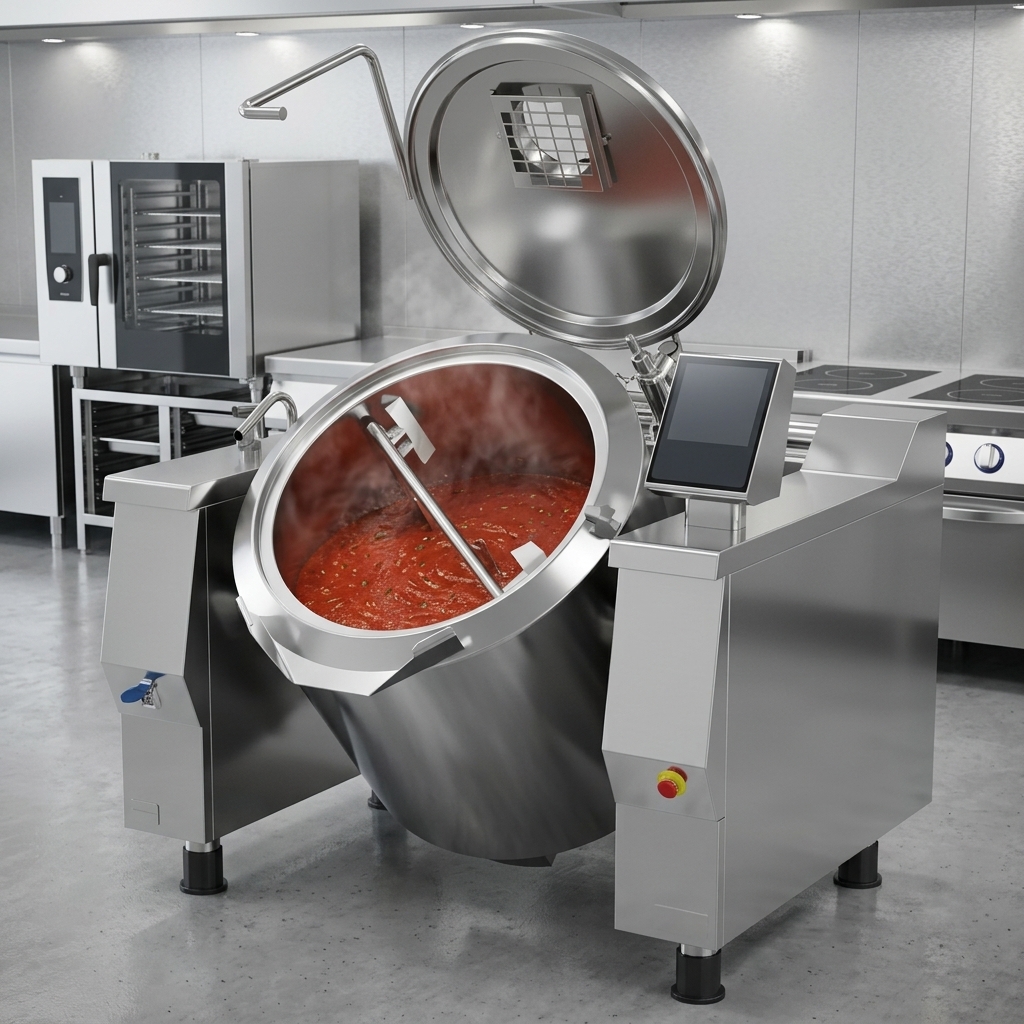

Discover the unparalleled durability of the kettle's 316 stainless steel cooking vessel, engineered to handle acidic products without corrosion.

Indirect Electric Heating System

Heating is achieved through armored elements made of INCOLOY-800 alloy, precisely controlled by an electronic board with automatic activation 4°F before the setpoint to prevent power waste.

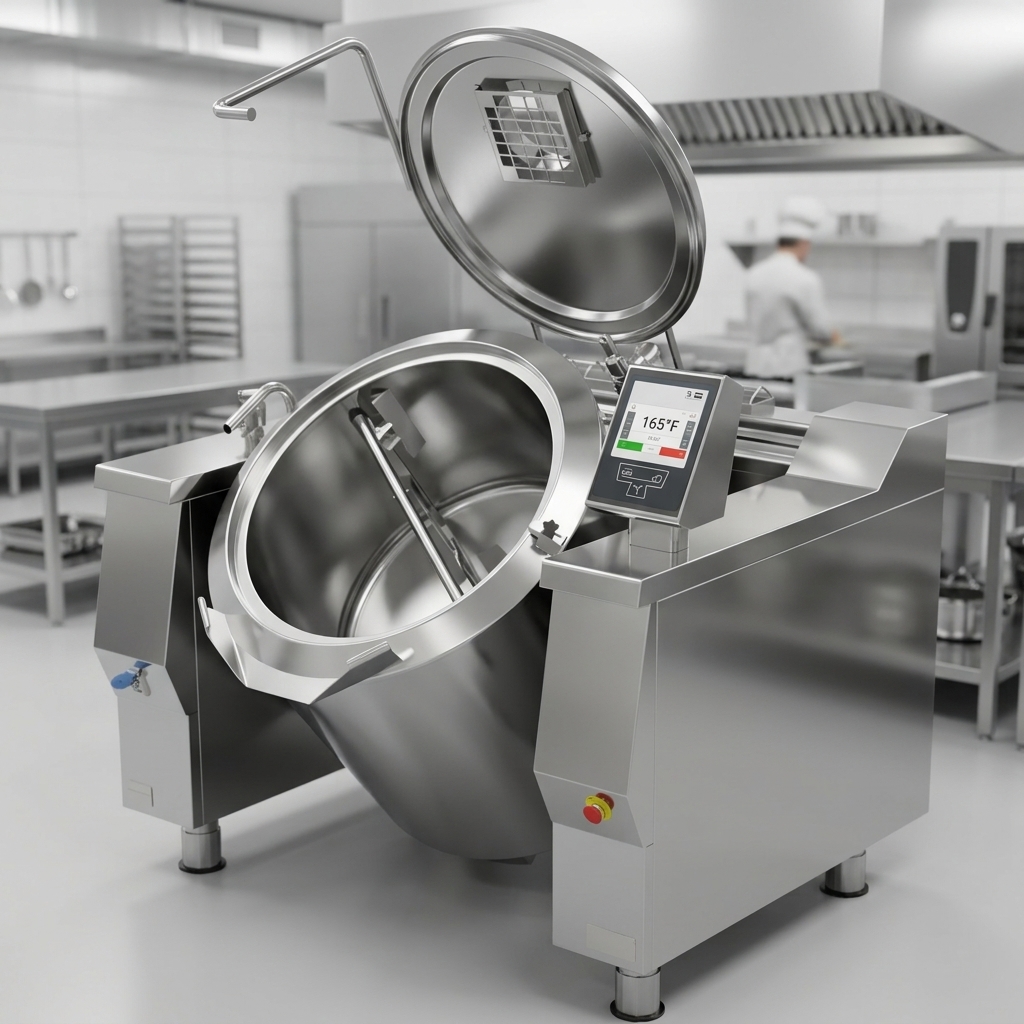

Experience precise temperature management with the kettle's advanced indirect electric heating system, ensuring consistent cooking results.

Integrated 2-Arm Mixer with Removable Scrapers

Features a mixer made of AISI 304 stainless steel with two arms and four removable POM scrapers. The mixer can be completely removed for easy cleaning, and its speed and rotation times are programmable via the control panel.

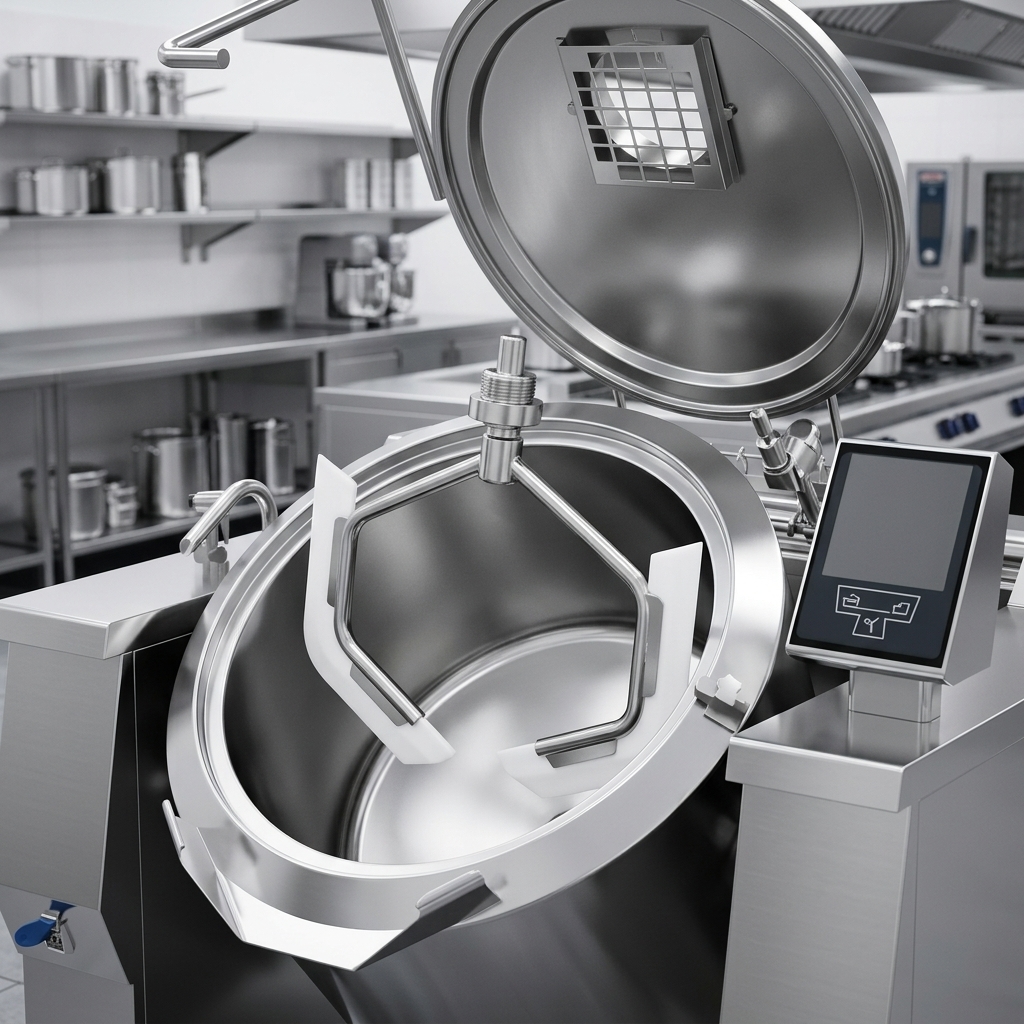

See the integrated two-arm mixer with its four removable scrapers, designed for effortless cleaning and maintenance.

7-Inch Touch Screen Control Panel

Equipped with a multifunctional keyboard and a 7-inch resistive touch screen for intuitive operation, clear messages, and comprehensive control over cooking parameters and mixer settings.

Multiple Cooking Modes

Offers 5 distinct cooking modes (6 with optional cooling), allowing for precise setting of working temperature, cooking type, and time to suit various recipes.

Programmable Multiphase Cooking

Enables creation and editing of multiphase cooking programs, where each phase can have specific cooking types, temperature, time, mixer settings, and custom text messages.

Precise Temperature and Pressure Control

Temperature is controlled by two probes (product and jacket), while pressure is managed by a pressure switch set at 8.7 PSI, a safety valve (12.3 PSI), a vacuum valve, and an analog pressure gauge.

Automatic Double-Jacket Filling

The system automatically fills the double-jacket, ensuring proper heating performance and convenience.

USB Connectivity

Includes a USB connection for convenient download of HACCP data, software updates, and loading of custom cooking programs.

High Protection Level IPX5

Designed with an IPX5 protection level, making the unit resistant to water jets for easy and safe cleaning.

Adjustable Stainless Steel Feet

Features adjustable feet made of AISI 304 stainless steel, ensuring stability and proper leveling on any floor, with removable covers for hygiene.

Insulated and Balanced Lid

The lid is insulated with a double cover in AISI 304 stainless steel (20/10 thickness), featuring an ergonomic handle and balanced by gas springs for safe and effortless operation.

Specifications

Type Tilting Kettle with Mixer
Style Indirect Heating
Installation Type Floor Model (With Adjustable Feet)
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Jacket Material 304 Stainless Steel
Outer Cover Material 304 Stainless Steel
Capacity 48 Gallons
Vessel Diameter 27.5 Inches
Vessel Height 22.25 Inches
Heating Element INCOLOY-800 Alloy
Controls Programmable Digital Touch Screen
Mixer Torque 321 Nm
Mixer Power 1.50 kW
Mixing Speed 12-40 RPM
Pressure Switch Setting 8.7 PSI
Safety Valve Pressure 12.3 PSI
Cold Water Inlet Size 3/4 Inch
Hot Water Inlet Size 3/4 Inch
Water Pressure (Operating) 25-50 PSI
Chilling Water Inlet Size (Optional) 3/4 Inch
Chilling Water Outlet Size (Optional) 3/4 Inch
Chilling Water Pressure (Optional) 7-8 PSI
Phase 3-Phase
Hertz 60 Hz
Protection Level IPX5
Shipping Width 58 Inches
Shipping Depth 52 Inches
Shipping Height 53 Inches
Shipping Weight 1124.0 lb.
Selling Unit Each
Units Per Case 1

Overall Dimensions:

57.28"W x 51.57"D x 52.48"H

Product Weight:

1124.0 lb
Manufacturer Firex (Middleby)
Brand name Baskett
Height 52.48in
Width 57.28in
Depth 51.57in
Shipping Weight 1124.0lbs
Base quad-leg
Kettle Liner 316 stainless steel
Kettle Jacket full jacket
Capacity 46 - 49 gallon
Specifications Tilting Kettle with Mixer, electric, indirect heating, 48 gallon capacity, insulated lid with double cover, 2 arms mixing with 4 removable POM scrapers, tool, (5) cooking modes, cooling double-jacket, temperature control by means of two probes, multifunctional keyboard with touch screen, pressure controlled by means of pressure switch 8.7 PSI, safety valve (12.3 PSI), vacuum valve and analogic pressure gauge, ON/OFF switch, emergency button, double-jacket safety valve, (4) adjustable stainless steel feet, 316 stainless steel inner liner, 304 stainless steel construction,IPX5, ETL

Warranty & Protection

1-year parts and labor with a 10-year hemisphere warranty for kettles.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This tilting kettle has a generous capacity of 48 gallons, making it suitable for high-volume food production.
The kettle is operated via a sophisticated control system featuring a 7-inch resistive touch screen and a multifunctional keyboard, allowing for precise program and mixer settings.
Yes, the integrated 2-arm mixer with 4 POM scrapers can be completely removed from the kettle to facilitate thorough cleaning operations, and the scrapers themselves are easily removed via a snap-fit system.
The cooking vessel is made of high-quality AISI 316 stainless steel, specifically chosen for its durability and resistance to acidic products.
Yes, the kettle provides 5 distinct cooking modes, with an additional 6th mode available if the optional cooling double-jacket feature is installed.
Yes, it includes a USB connection for downloading HACCP data, updating software, and loading custom cooking programs, and can also be interrogated using MODBUS over RS485 serial interface.
