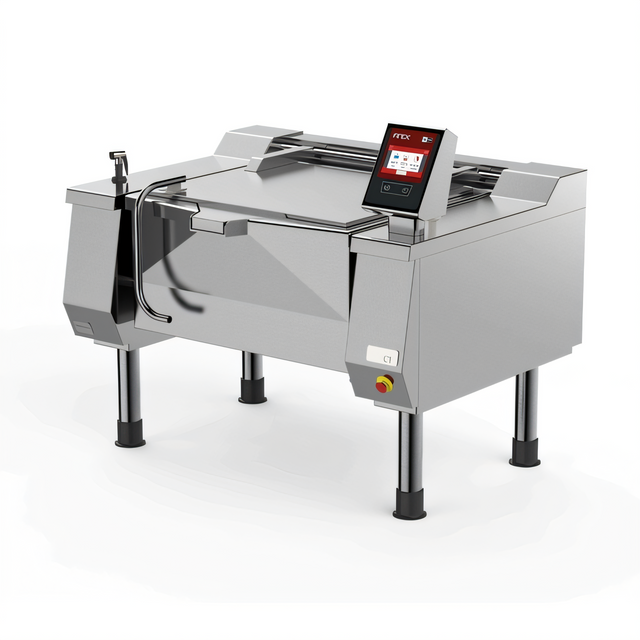

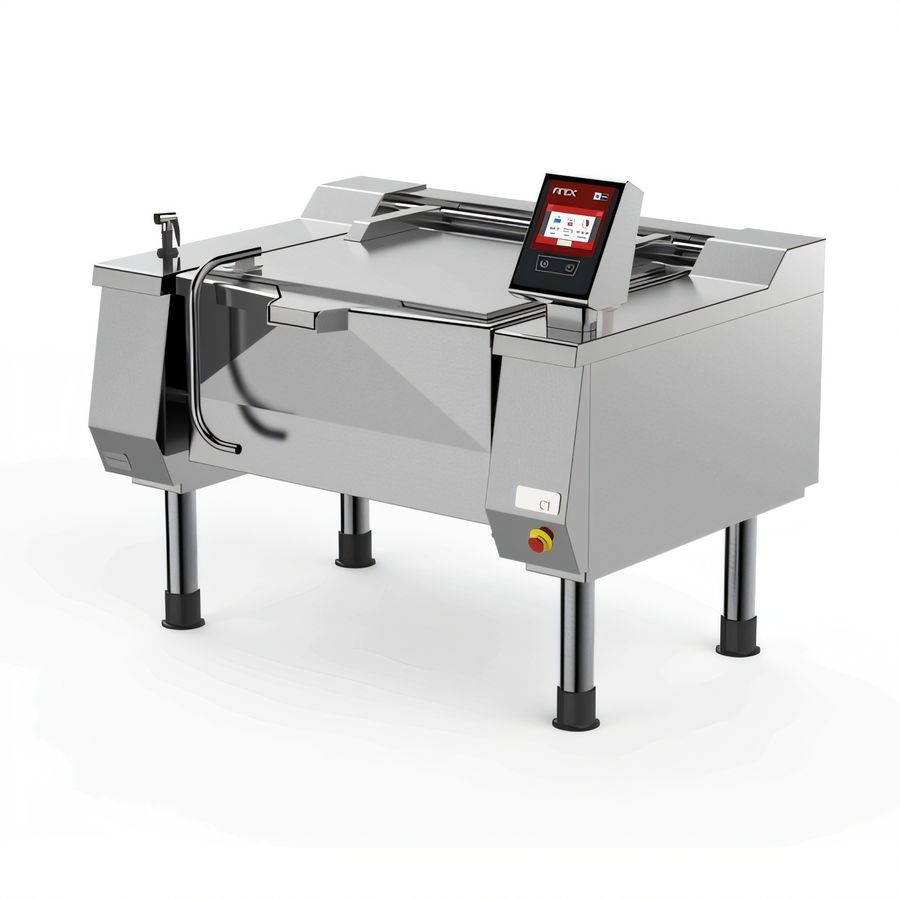

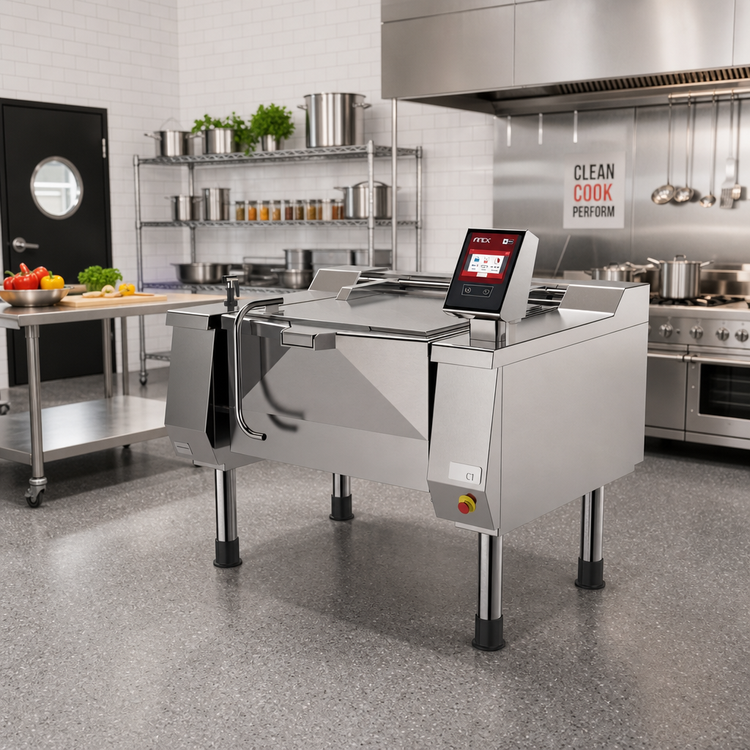

Betterpan UDBRE048V1 48 Gallon Electric Tilting Skillet Braising Pan
Betterpan UDBRE048V1 48 Gallon Electric Tilting Skillet Braising Pan
Programmable Touchscreen Controls, Stainless Steel Construction
The Betterpan UDBRE048V1 electric tilting skillet braising pan offers advanced programmable controls and robust construction to streamline high-volume cooking operations.
- Large 48-gallon capacity suitable for high-volume cooking needs.
- Features a 7-inch resistive touch screen with programmable electronic controls for precise cooking.
- Constructed from durable AISI 304 stainless steel for longevity and easy cleaning.
- Equipped with an electric tilting mechanism and anti-overflowing lip for safe and efficient emptying.
- Boasts an IPX5 protection level, ensuring resilience in demanding kitchen environments.
- Includes a USB connection for convenient HACCP data download, software updates, and program loading.
- Self-supporting frame and adjustable feet allow for stable installation and leveling.
Overall Dimensions:
78.75"W x 44.25"D x 50.63"HProduct Weight:

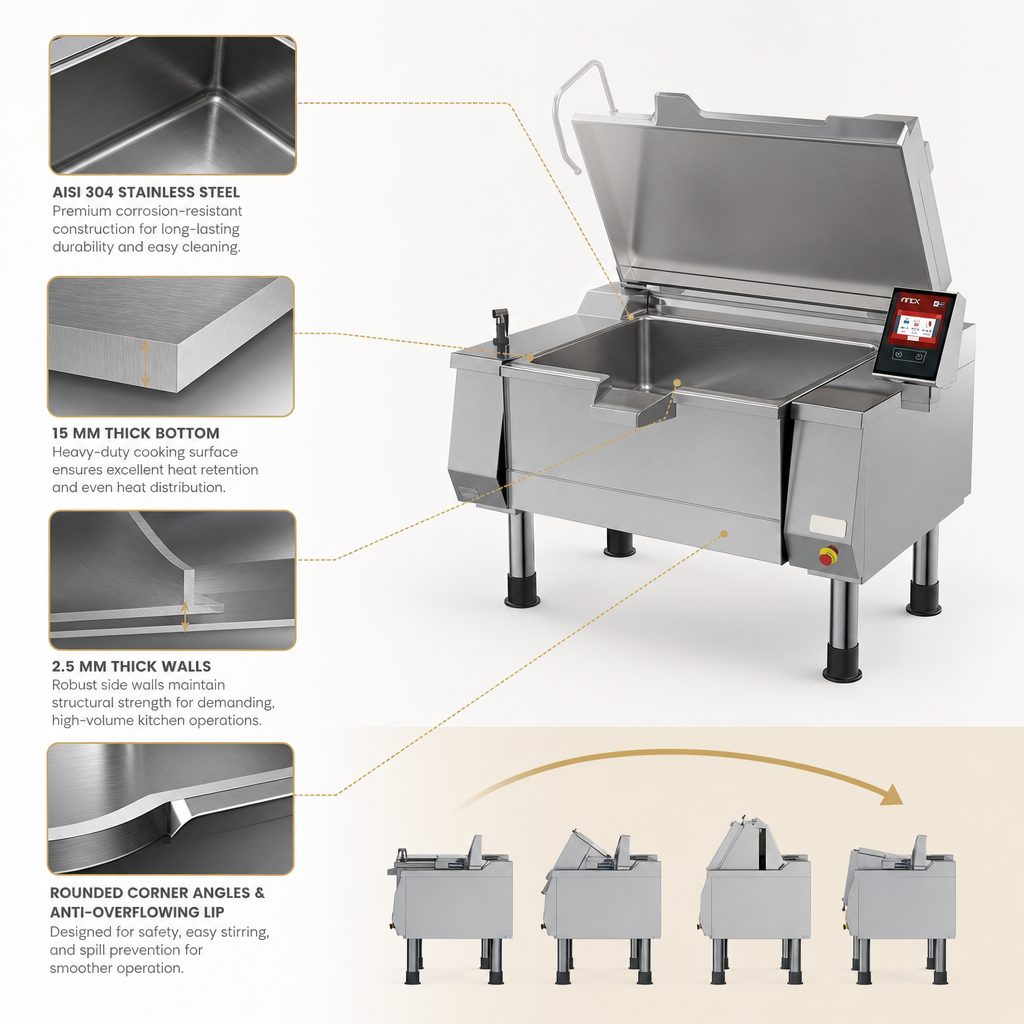

1135.0 lbHeavy-Duty Cooking Vessel
The cooking vessel is made of AISI 304 stainless steel with a 15 mm thick bottom and 2.5 mm thick walls, featuring rounded corner angles and an anti-overflowing lip for durability and ease of use. It is designed for electric tilting.

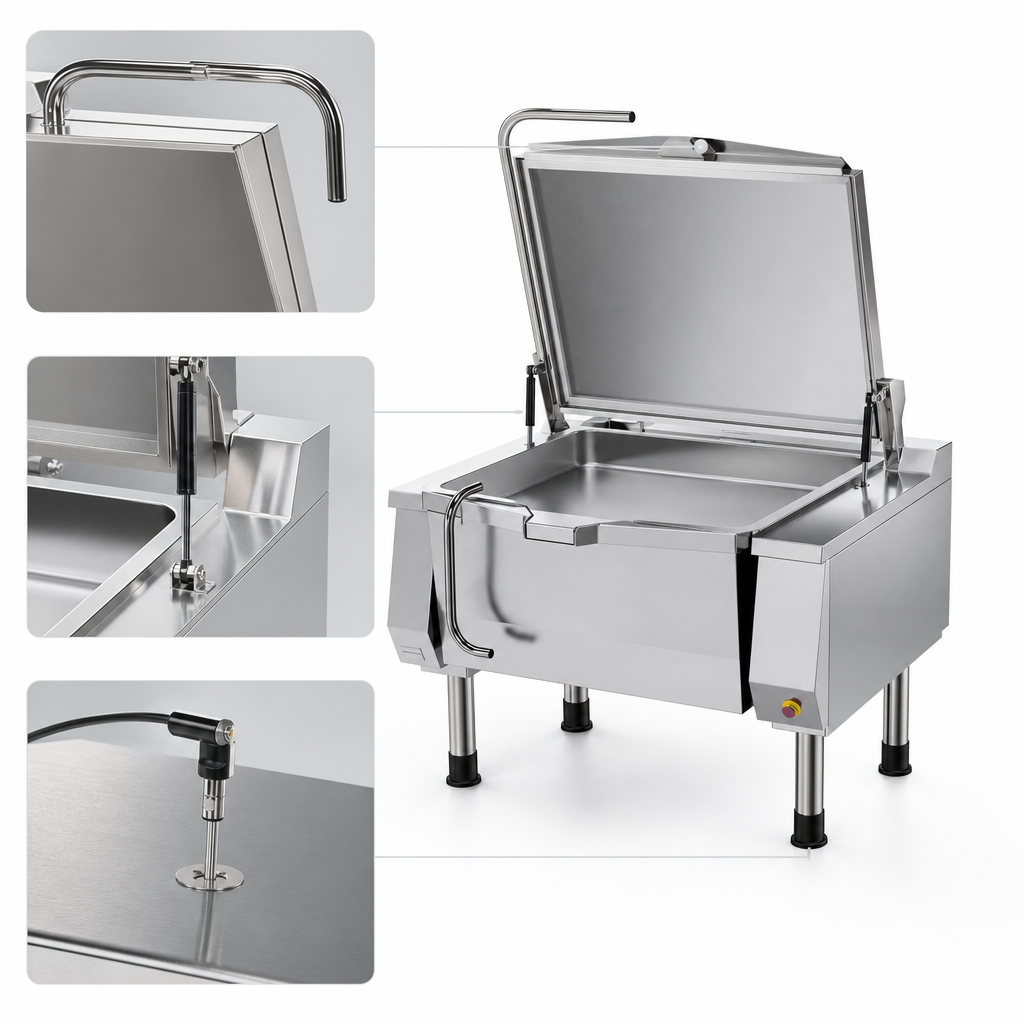

Insulated Spring-Balanced Lid
An insulated lid with a double cover of AISI 304 stainless steel (12/10 thickness) includes an ergonomic handle and is balanced by gas springs for smooth opening and closing. An optional core temperature probe can be fixed at the lid.
Robust Construction
Features a self-supporting frame in AISI 304 stainless steel (30-40/10 thickness) and an outer cover with a fine satin finish, also in AISI 304 stainless steel (12-15/10 thickness), ensuring stability and a professional appearance.
Adjustable & Easy-Clean Feet
Equipped with adjustable feet in AISI 304 stainless steel to ensure perfect leveling, with removable covers designed for easy cleaning operations.
Efficient Heating System
Heating is achieved through armored INCOLOY-800 elements in direct contact with a steel thermodiffuser plate fixed to the vessel bottom, providing uniform and effective heat distribution.
Precise Temperature Control
Temperature control is managed by a dual-probe system (product/bottom) for accurate and consistent cooking results.
Intuitive 7" Touch Screen Controls
Electronic control is provided via a multifunctional keyboard with a 7-inch resistive touch screen display, offering easy-to-understand messages and controls for various functions.
USB Connectivity
A USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs, enhancing operational efficiency and compliance.
Programmable Cooking Modes
Offers manual and program cooking modes, with the ability to create and edit multiphase cooking programs. Each phase allows setting cooking type, temperature, time, and text messages.
Automatic Water Load
Includes a tank water load setting for hot (up to 140°F) or cold water, with automatic liter measurements for precise recipe execution.
Comprehensive Safety Systems
Incorporates an emergency button, heating blockage for excess temperature with a manual resettable safety thermostat, and automatic heating interruption during vat tilting for operator safety.
IPX5 Protection Level
Certified with an IPX5 protection level, indicating resistance to water jets, which ensures durability and allows for thorough cleaning with water.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty.
