Firex (Middleby)

Cucimix UCBTE082ACV1 Electric Tilting Skillet Pressure Braising Pan, 82 Gallon

SKU: UCBTE082ACV1
$435,611.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Firex (Middleby) New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

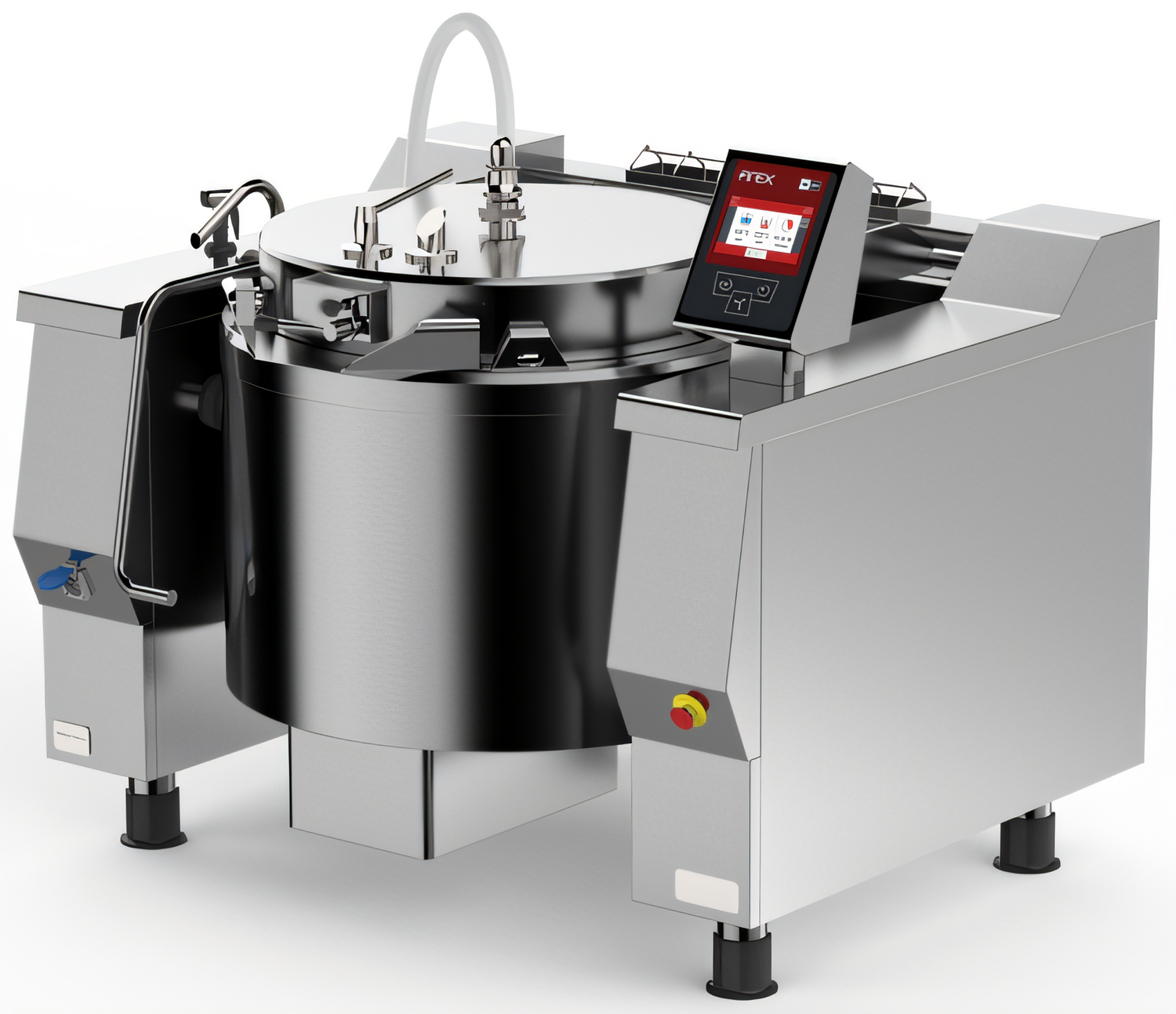

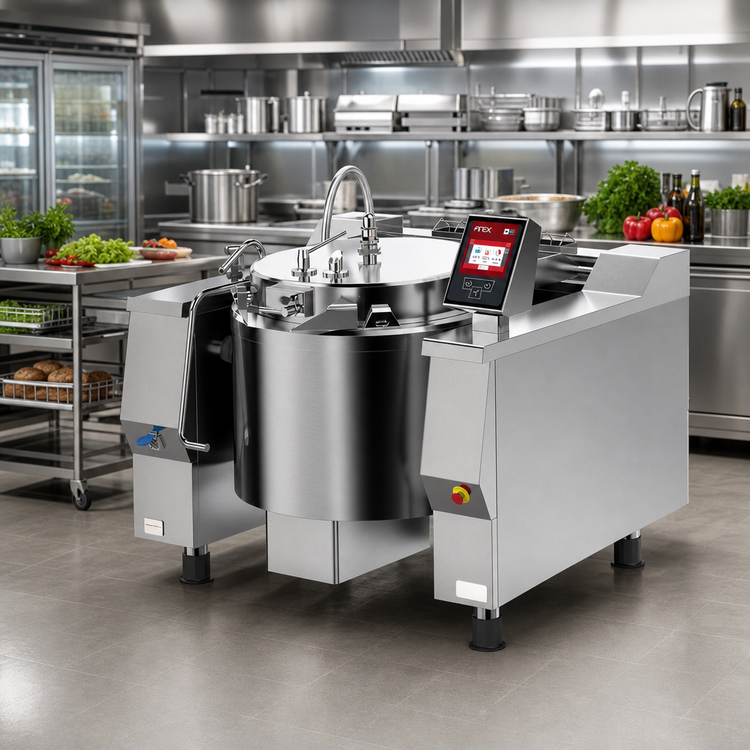

Cucimix UCBTE082ACV1 Electric Tilting Skillet Pressure Braising Pan, 82 Gallon

82 Gallon Capacity, Programmable Touch Screen Controls, Automatic Mixer

Revolutionize your kitchen's cooking process with the Cucimix UCBTE082ACV1, a versatile electric tilting skillet and pressure braising pan designed for high-volume commercial operations.

  • Large 82-gallon capacity ideal for high-volume pressure braising, stewing, and cooking.
  • Advanced 7-inch resistive touch screen controls for precise, programmable multiphase cooking.
  • Integrated automatic mixer with three removable arms and PTFE scrapers ensures consistent product quality.
  • Features pressure cooking with automatic air elimination and steam condensation for safe and fast lid opening.
  • Constructed from durable AISI 304 stainless steel with IPX5 protection for longevity and easy cleaning.
  • Electric tilting vessel allows for effortless and controlled product discharge.

Overall Dimensions:

69.13"W x 61.5"D x 50.63"H

Product Weight:

1433.0 lb

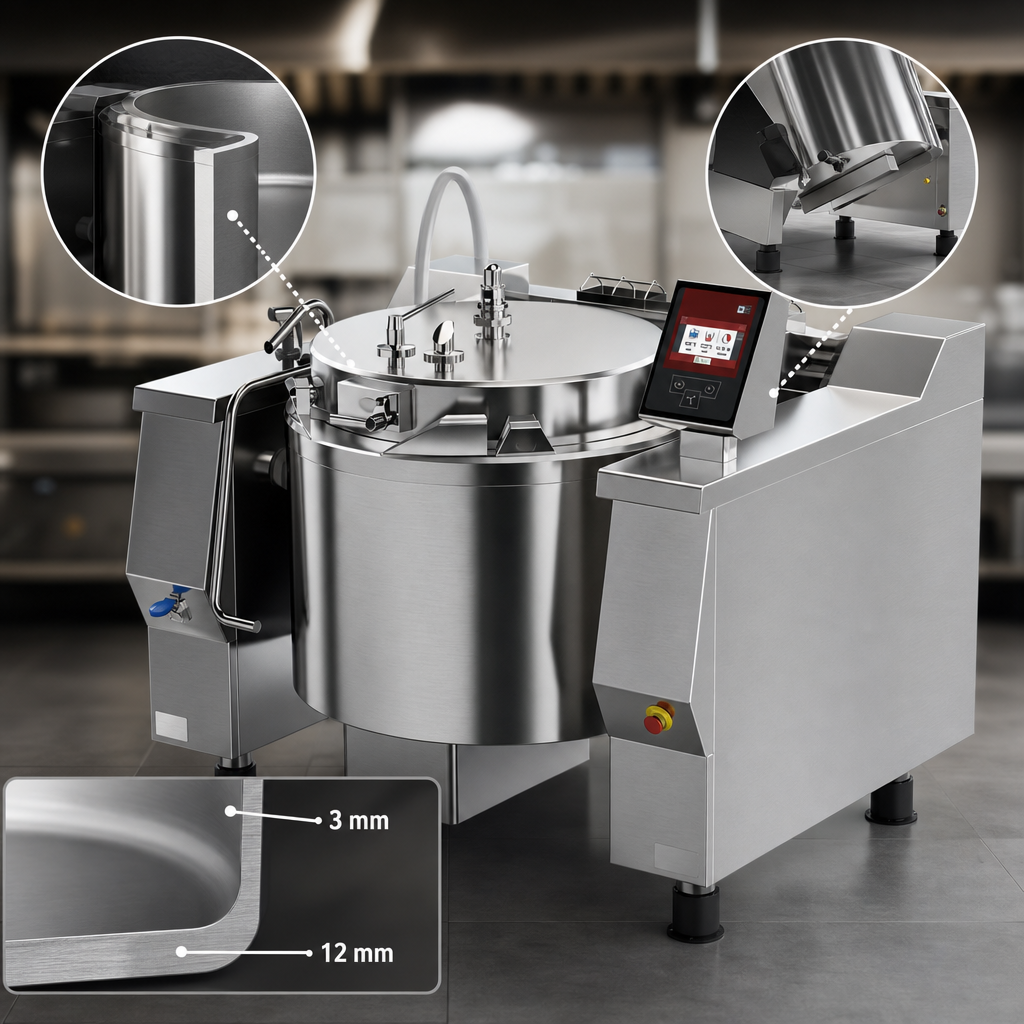

Heavy-Duty Cooking Vessel

Constructed from AISI 304 stainless steel with a 12 mm bottom thickness and 3 mm wall thickness, designed for electric tilting.

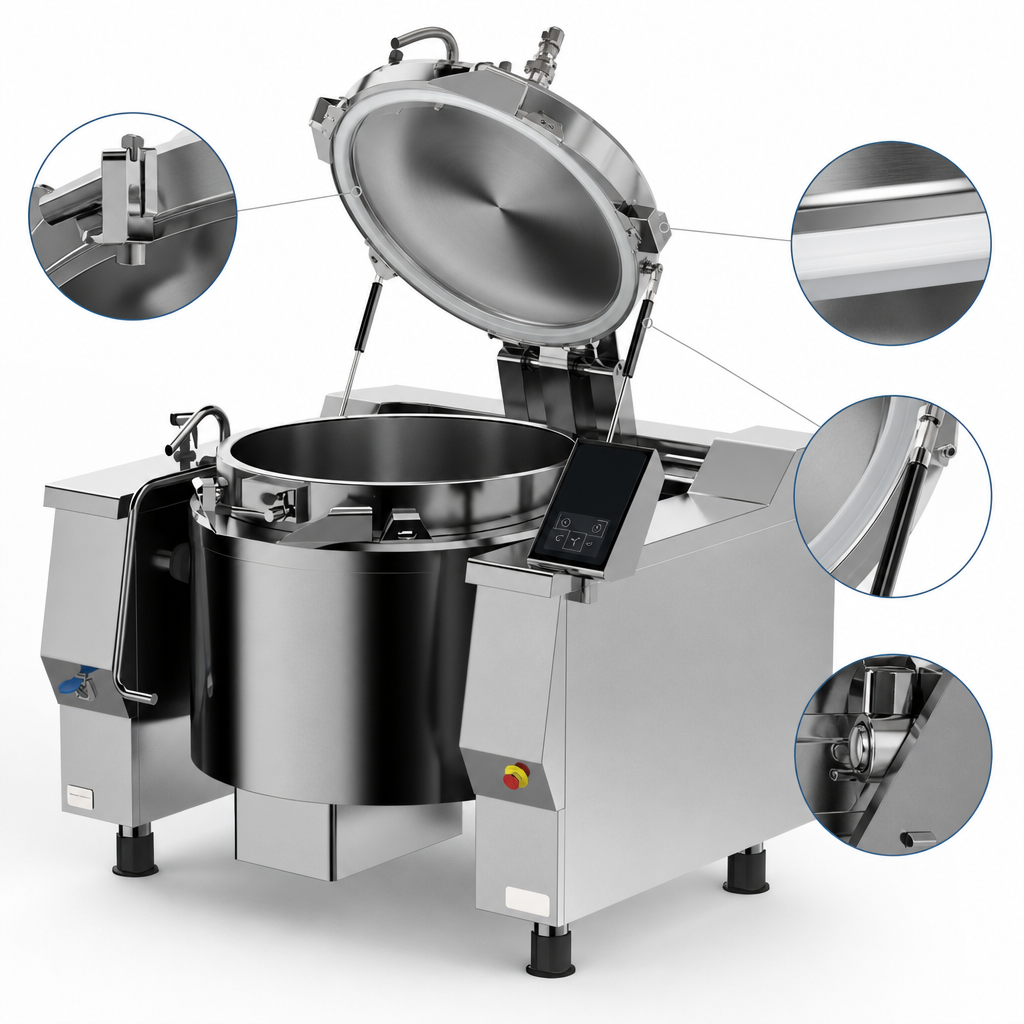

Secure, Balanced Lid

AISI 304 stainless steel lid with double cover, ergonomic handle, and a 4-point reinforced locking system. Balanced by gas springs with an alimentary silicone gummy gasket.

Robust Stainless Steel Frame

Self-supporting frame in AISI 304 stainless steel (30-40/10 thickness) provides stability and durability.

Adjustable Leveling Feet

Stainless steel AISI 304 adjustable feet ensure proper leveling and feature removable covers for easy cleaning.

Efficient Electric Heating

Heating via armored INCOLOY-800 alloy elements, controlled by an electronic board with two temperature probes (product/bottom).

Three-Band Wall Heating

Three band heaters activate from the bottom up for uniform tank wall heating, with wall temperature settings from 122-266°F and three adjustable levels.

Automatic Pressure Cooking System

Automatically eliminates air from the cooking container for saturated steam cooking and condenses steam after cooking for safe, fast lid opening.

Removable Automatic Mixer

Features three arms with PTFE scrapers and a vertical blade, fully removable for cleaning. Mixer settings (speed, rotation, pause times) are adjustable from the control panel.

Intuitive 7" Touch Screen Controls

Multifunctional resistive touch screen with easy-to-understand messages, offering 8 different cooking modes, manual and programmable operation, and multiphase program creation.

USB Connectivity

Allows for downloading HACCP data, updating software, and loading custom cooking programs.

Water Load Management

Settings for automatic hot (up to 140°F) or cold water loading into the tank with precise liter measurements.

Comprehensive Safety Systems

Includes an emergency button, heating block for over-temperature with manual resettable thermostat, mechanical lid lock under pressure, lid safety valve, and heating interruption during tilting.

IPX5 Protection Level

High water protection rating ensures durability and simplifies cleaning procedures.

Type Tilting Skillet Pressure Braising Pan
Style Floor Model (With Adjustable Feet)
Installation Type Freestanding
Material Stainless Steel AISI 304
Interior Finish Stainless Steel AISI 304
Capacity 82 Gallons
Working Pressure 4.3 PSI
Controls Programmable Electronic with 7" Touch Screen
Voltage 220-240 Volts
Phase 3-Phase
Hertz 60 Hz
Watts 33.90 kW
Amps 81.6 Amps
Water Inlet Size 3/4 Inch
Drain Connection Size 1 Inch
Water Connection Required
Drain Connection Required
Mixer Power 0.37 kW
Mixer Torque 353 Nm
Mixing Speed 4-10 RPM
Temperature Range 122-266°F (Wall Heating)
Protection Level IPX5
Selling Unit Each
Units Per Case 1
Shipping Width 70 Inches
Shipping Depth 62 Inches
Shipping Height 51 Inches
Shipping Weight 1433 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This unit has a substantial 82-gallon capacity, making it suitable for high-volume commercial cooking applications.
The Cucimix UCBTE082ACV1 is equipped with advanced programmable electronic controls via a 7-inch resistive touch screen, allowing for both manual operation and the creation of multiphase cooking programs.
Yes, it comes with an automatic mixing device featuring three arms and PTFE scrapers, complete with a vertical blade for wall scraping. This system is entirely removable for easy cleaning and its settings can be adjusted from the control panel.
Absolutely. It features a sophisticated pressure cooking system that automatically eliminates air for saturated steam cooking and condenses steam after cooking, ensuring fast and safe lid opening without steam dispersion.
The cooking vessel, lid, self-supporting frame, and outer cover are all constructed from high-quality AISI 304 stainless steel, ensuring durability and hygiene.
Yes, the unit's design prioritizes ease of cleaning with features like adjustable feet with removable covers, an entirely removable mixing device, and an IPX5 protection level for comprehensive washdowns.
