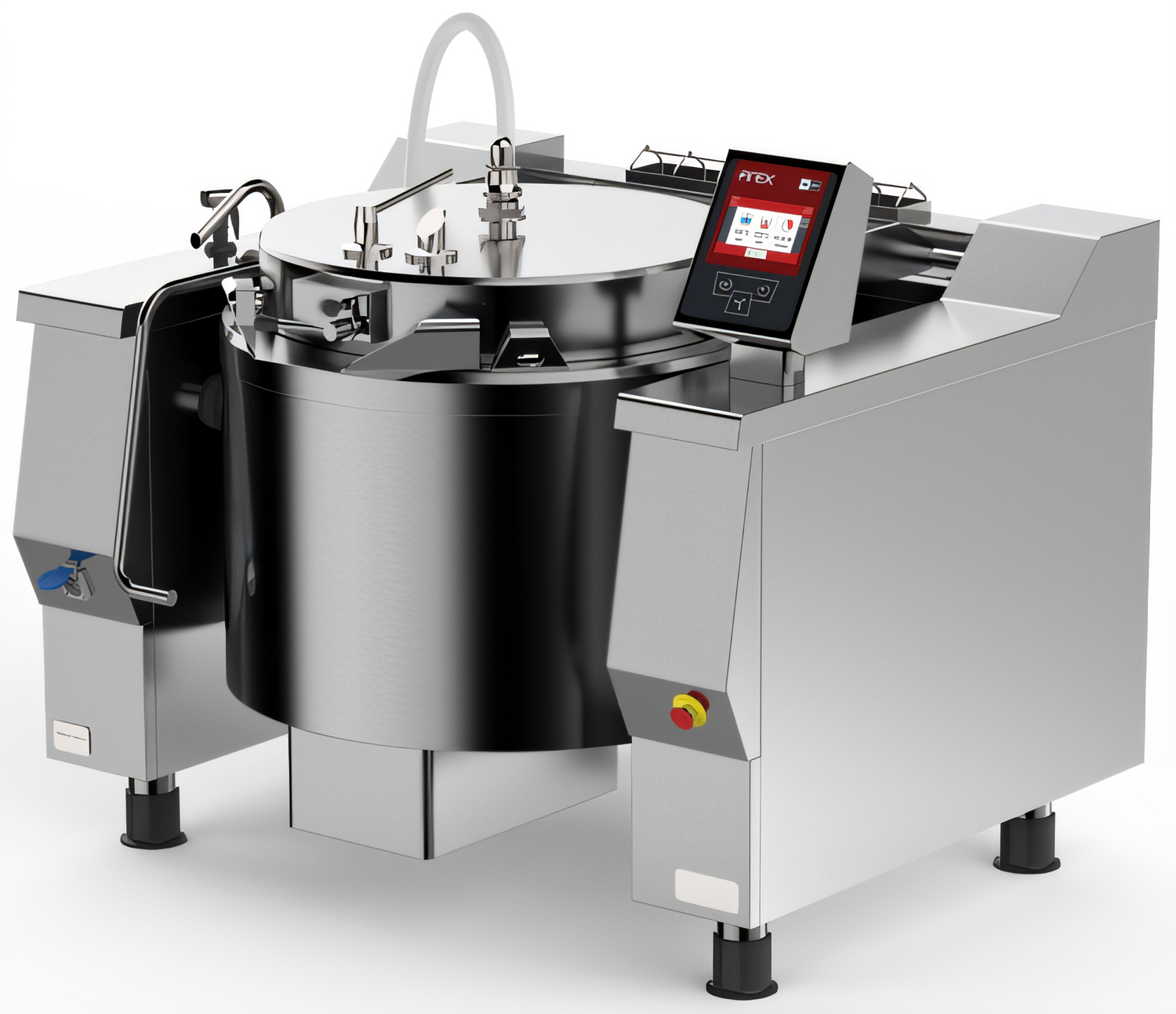

Firex Cucimix UCBTE048ACV1 Electric Tilting Skillet Pressure Braising Pan, 48 Gallon
Firex Cucimix UCBTE048ACV1 Electric Tilting Skillet Pressure Braising Pan, 48 Gallon
Full-Size, Electric, Programmable Touchscreen Controls, Automatic Mixer
Experience advanced, precise, and efficient cooking with the Firex Cucimix tilting skillet, featuring a 48-gallon capacity and innovative pressure braising capabilities.
- Large 48-gallon capacity ideal for high-volume commercial kitchens.
- Programmable electronic controls with a 7-inch touchscreen for intuitive operation.
- Automatic mixer with PTFE scrapers ensures consistent product mixing and prevents sticking.
- Pressure cooking system with automatic air elimination and steam condensation for fast, safe, and flavorful results.
- Durable AISI 304 stainless steel construction ensures longevity and easy cleaning.
- Integrated USB connection for HACCP data download, software updates, and program loading.
- Electric tilting vessel allows for safe and convenient product discharge.
Overall Dimensions:
65.25"W x 59.25"D x 50.5"HProduct Weight:

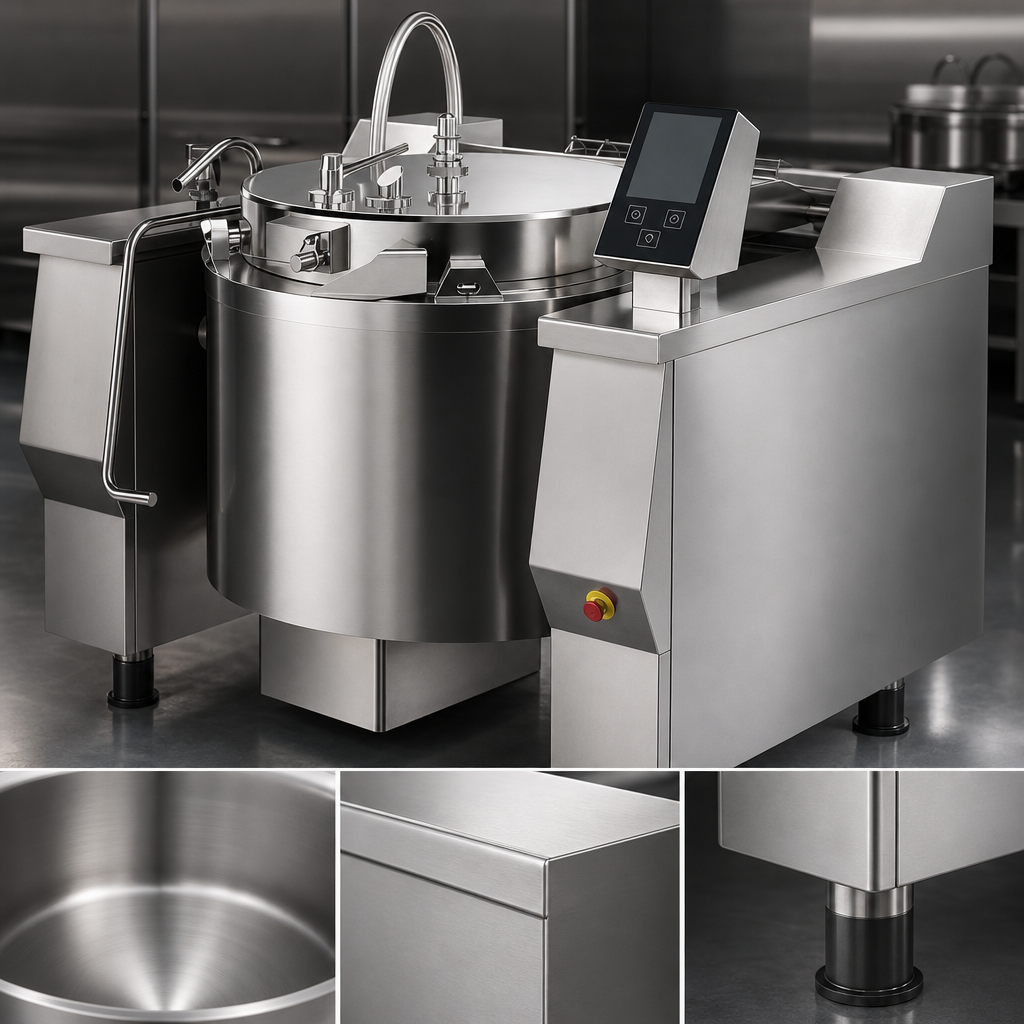

1301.0 lbHeavy-Duty Construction
Cooking vessel, self-supporting frame, and outer cover are made of durable AISI 304 stainless steel, with a 12mm thick bottom and 3mm thick walls for the cooking vessel, ensuring longevity and robust performance.

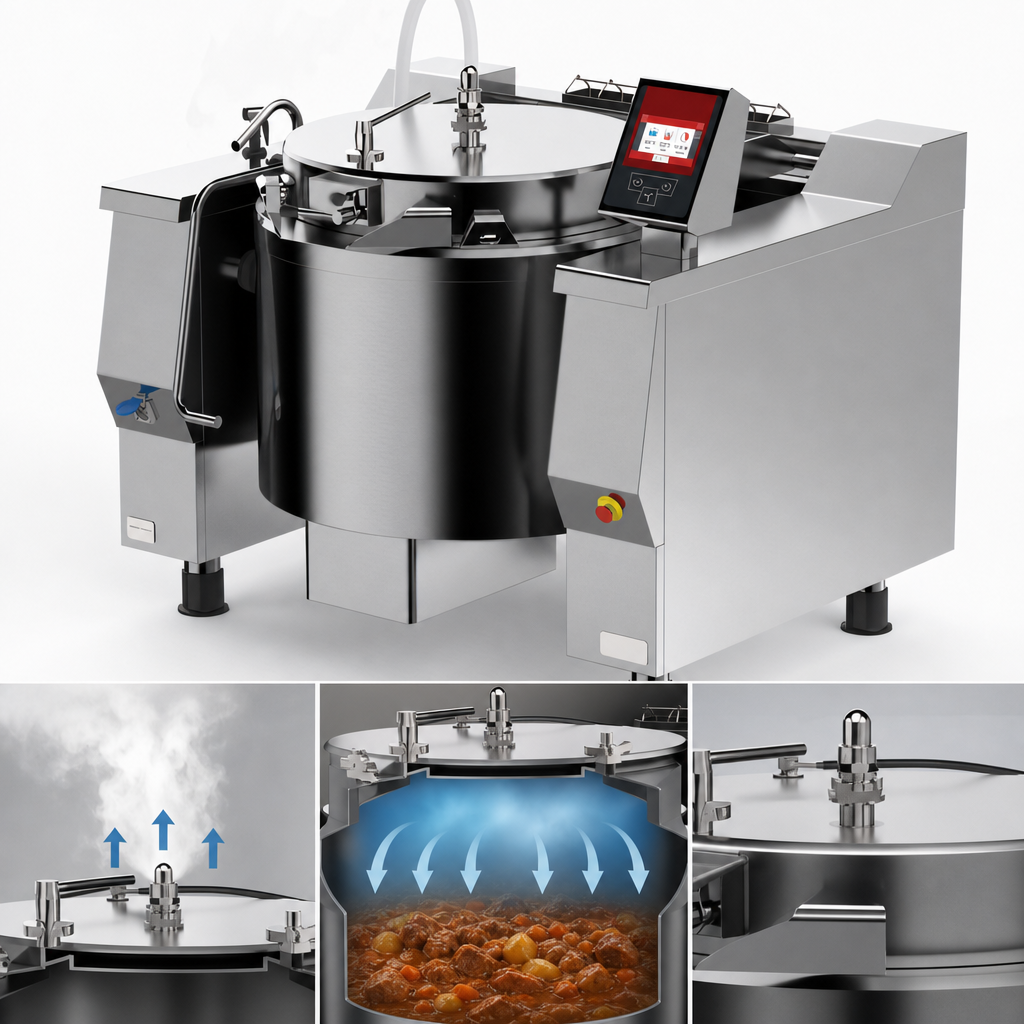

Advanced Pressure Cooking System
Features automatic air elimination from the cooking container for saturated steam cooking and automatic steam condensation post-cooking, enabling fast and safe lid opening without steam dispersion.
Integrated Automatic Mixer
Equipped with a three-arm mixing device, PTFE scrapers, and a vertical blade for wall scraping, entirely removable for easy cleaning. Mixer speed and rotation times are adjustable via the control panel.
Intuitive Touch Screen Controls
A 7-inch resistive touch screen panel with multifunctional keyboard allows for easy selection of 8 cooking modes, temperature setting, manual/program cooking, and creation of multiphase programs.
Electrically Tilting Vessel
The cooking vessel electrically tilts on the front part, facilitating easy and controlled pouring of product. The mixer can operate at minimum speed during tilting to aid discharge.
Reinforced Spring-Balanced Lid
The lid is made of AISI 304 stainless steel with a double cover, ergonomic handle, and a 4-point reinforced locking system with lever-type control bolts, ensuring safety and preventing opening under pressure.
Versatile Heating System
Heating is achieved through armored INCOLOY-800 alloy elements. The tank walls are heated by three band heaters, activatable from the bottom up, with adjustable wall temperatures between 122-266° F.
USB Connectivity and HACCP Support
A USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs, enhancing operational efficiency and compliance.
Adjustable Stainless Steel Feet
Stainless steel AISI 304 adjustable feet ensure easy leveling of the unit and feature removable covers for thorough cleaning.
Comprehensive Safety Systems
Includes an emergency button, heating blockage for excess temperature with a manual resettable thermostat, mechanical lid opening lock under pressure, lid safety valve, and heating interruption during vat tilting.
Certifications & Compliance
Warranty & Protection
1-year parts and 1-year labor warranty
