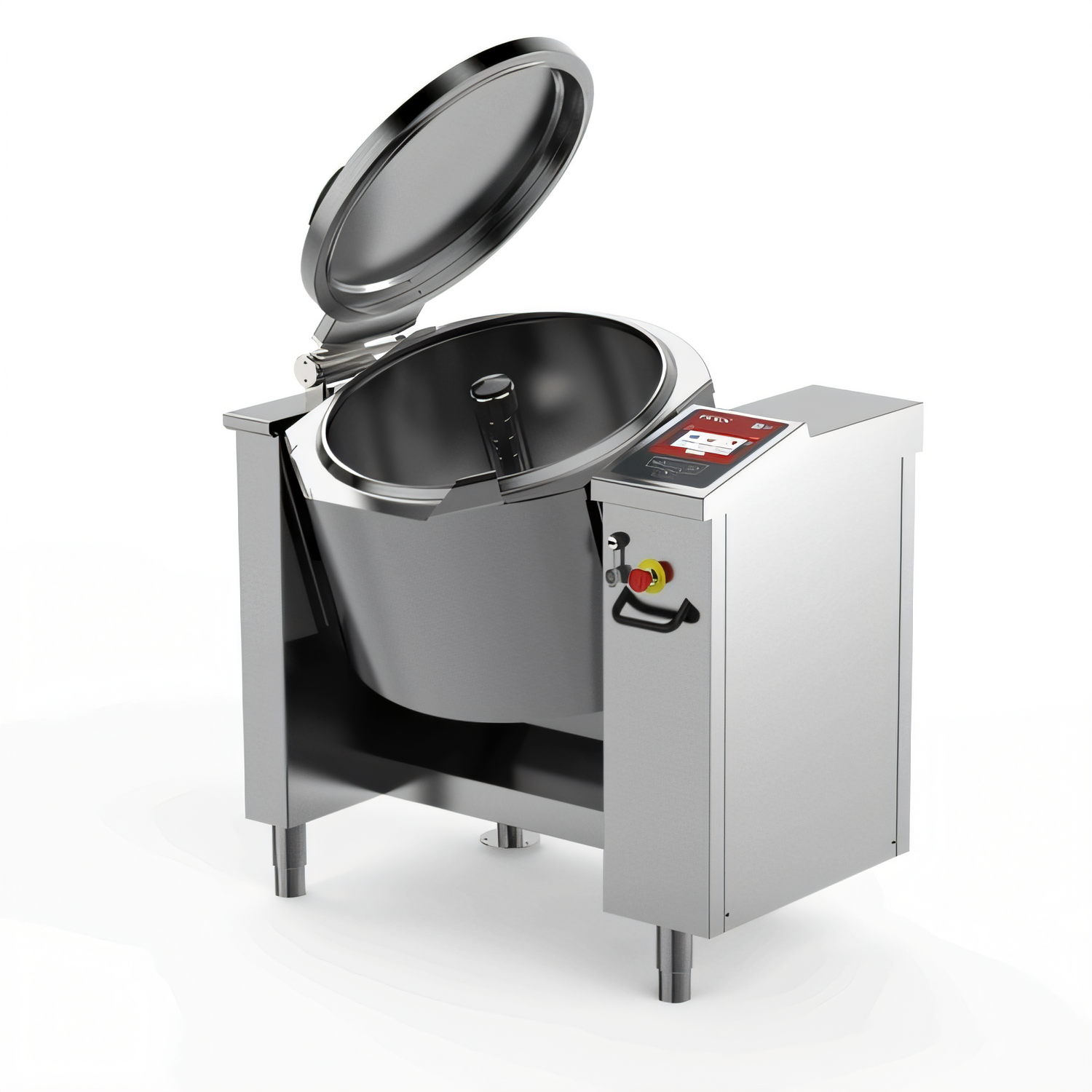

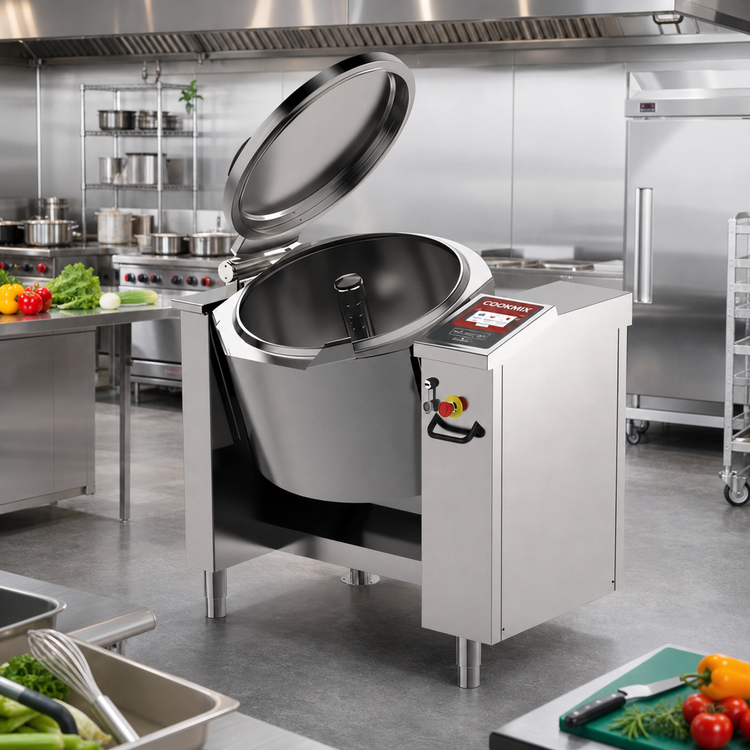

Cucimix UCBTE018V1 18 Gallon Electric Tilting Skillet Braising Pan with Automatic Mixer
Cucimix UCBTE018V1 18 Gallon Electric Tilting Skillet Braising Pan with Automatic Mixer
Full-Size, Electric, Console Base
Automate and perfect your large-volume cooking with the Cucimix UCBTE018V1, featuring programmable controls and an automatic mixer for consistent results every time.
- 18 gallon capacity ideal for large-scale production of stews, braises, sauces, and more.
- Integrated automatic mixing device with three arms and PTFE/PEEK scrapers ensures even cooking and prevents scorching.
- Programmable electronic controls with a 7-inch resistive touch screen for intuitive operation and custom recipe creation.
- Electric tilting vessel for safe and effortless product pouring.
- Robust AISI 304 stainless steel construction for durability and easy cleaning.
- USB connection allows for HACCP data download, software updates, and program transfers.
Overall Dimensions:
42.63"W x 28.25"D x 41.75"HProduct Weight:

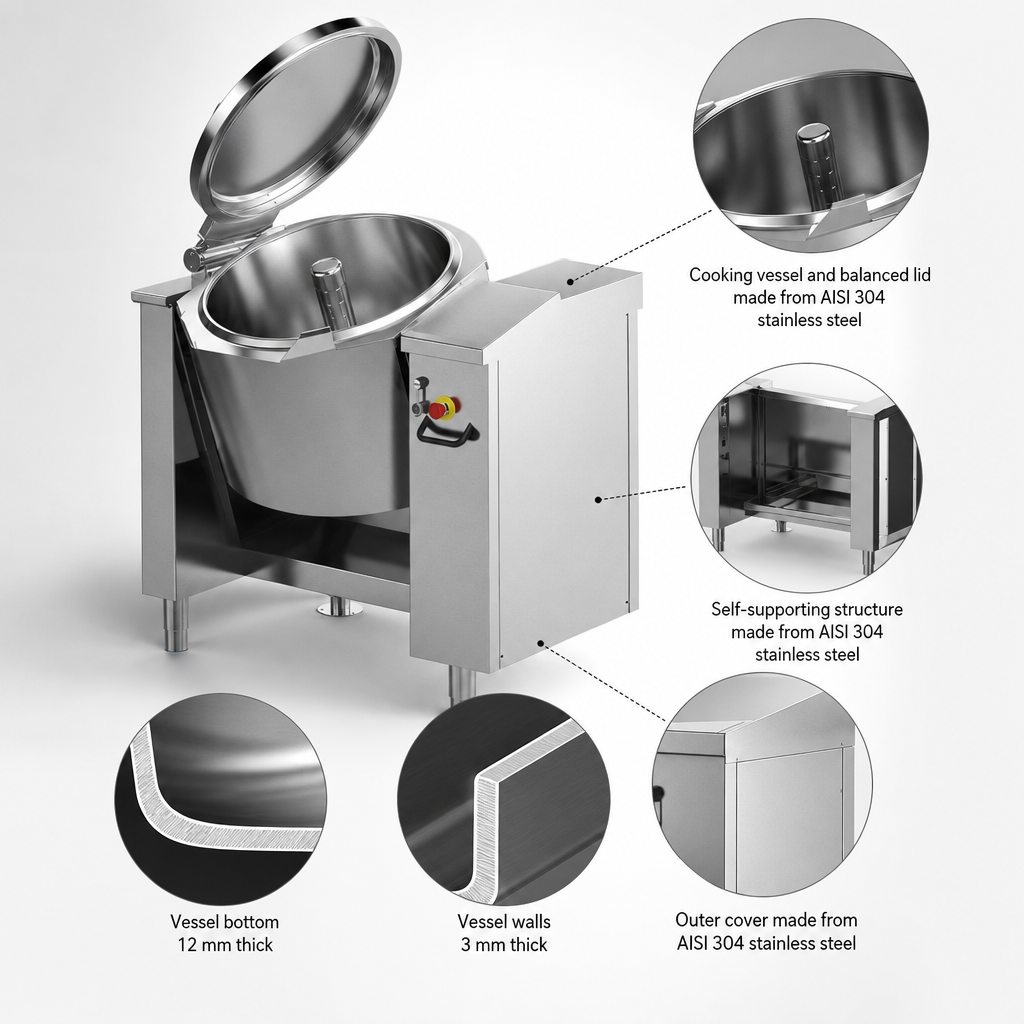

948.0 lbHeavy-Duty Construction
Cooking vessel, balanced lid, self-supporting structure, and outer cover are all made from AISI 304 stainless steel, ensuring durability and hygiene. The vessel bottom is 12 mm thick and walls are 3 mm thick.

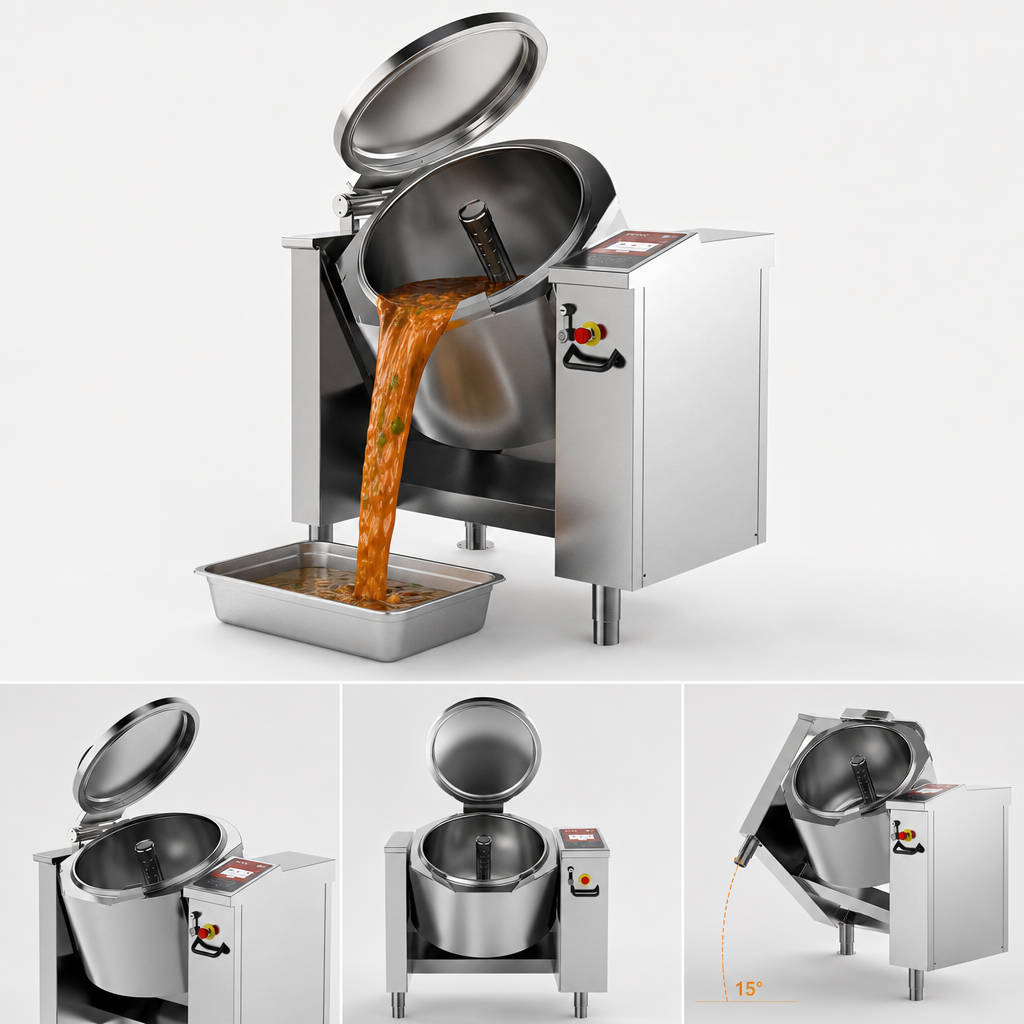

Electric Tilting Vessel
The cooking vessel features electric tilting on the front part, allowing for easy and safe emptying of contents. Cooking can even occur with the basin tilted up to 15°.
Advanced Electronic Controls
Equipped with a multifunctional keyboard and a 7-inch resistive touch screen, offering intuitive control over 5 different cooking modes, temperature, and time settings. Supports manual and multiphase program cooking.
Automatic Mixing Device
Features a completely removable automatic mixer with three arms and PTFE/PEEK scrapers, including a vertical blade for wall scraping, adjustable directly from the control panel for optimal product processing. Can activate at minimum speed during tilting.
Optimized Heating System
Heating is achieved by armored INCOLOY-800 alloy elements, controlled by an electronic board. Temperature is precisely controlled by a system with two probes (product/bottom) and features 3-zone wall heating.
Programmable Cooking
Create and edit multiphase cooking programs, setting cooking type, parameters (temperature and time), mixer settings, wall heating levels, and custom text messages for each phase.
USB Connectivity
A USB connection is provided for downloading HACCP data, updating software, and transferring cooking programs between units, enhancing operational efficiency and compliance.
Delayed Cooking Function
Allows for setting delayed cooking cycles with specific dates and times, providing flexibility for kitchen operations.
Adjustable Feet
Stainless steel AISI 304 adjustable feet ensure easy leveling and stable installation on any floor.
IPX5 Protection
The unit offers an IPX5 protection level, indicating resistance to water jets for easy cleaning and enhanced durability in commercial kitchen environments.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty.
