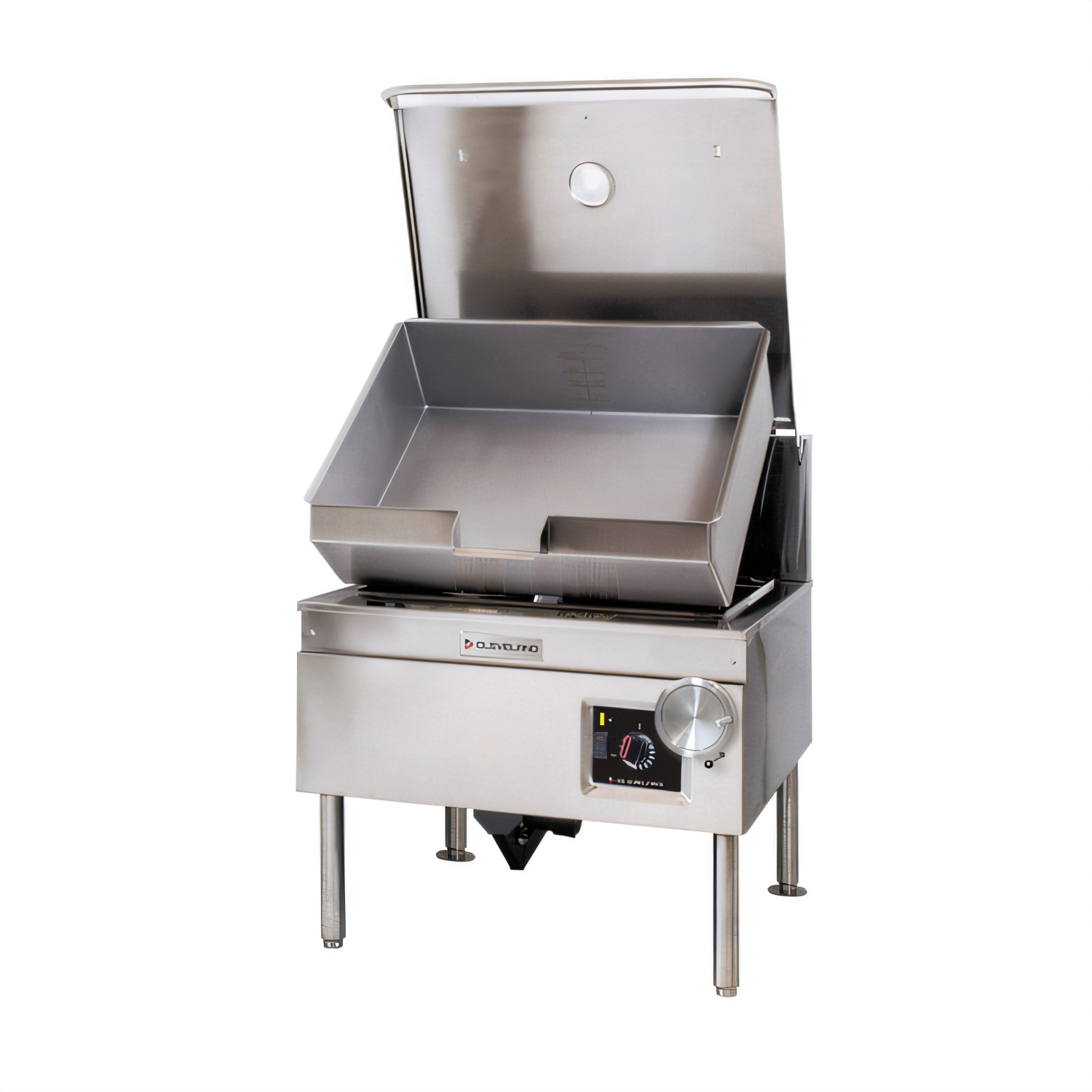

Cleveland Range DuraPan 40-Gallon Natural Gas Tilting Skillet with Hydraulic Hand Tilt and Modular Open Base

Built for high-volume kitchens, this 40-gallon natural gas skillet delivers fast, even heating and controlled pouring with a hydraulic hand tilt.

  • 40-gallon capacity is ideal for large-batch braising, sautéing, simmering, and pan-frying.
  • Hydraulic hand tilt with quick lowering feature makes emptying and cleanup easier.
  • Adjustable electronic thermostat controls heat from 100°F to 425°F.
  • 130,000 BTU natural gas heating system and electronic spark ignition support fast start-up and recovery.
  • All stainless steel construction with a spring-assisted cover and coved pan corners helps with durability and cleanup.
  • IPX6 water rating and level-adjustable feet are built for demanding commercial kitchens.

Overall Dimensions:

48.0"W x 40.0"D x 42.0"H

Product Weight:

528.0 lb

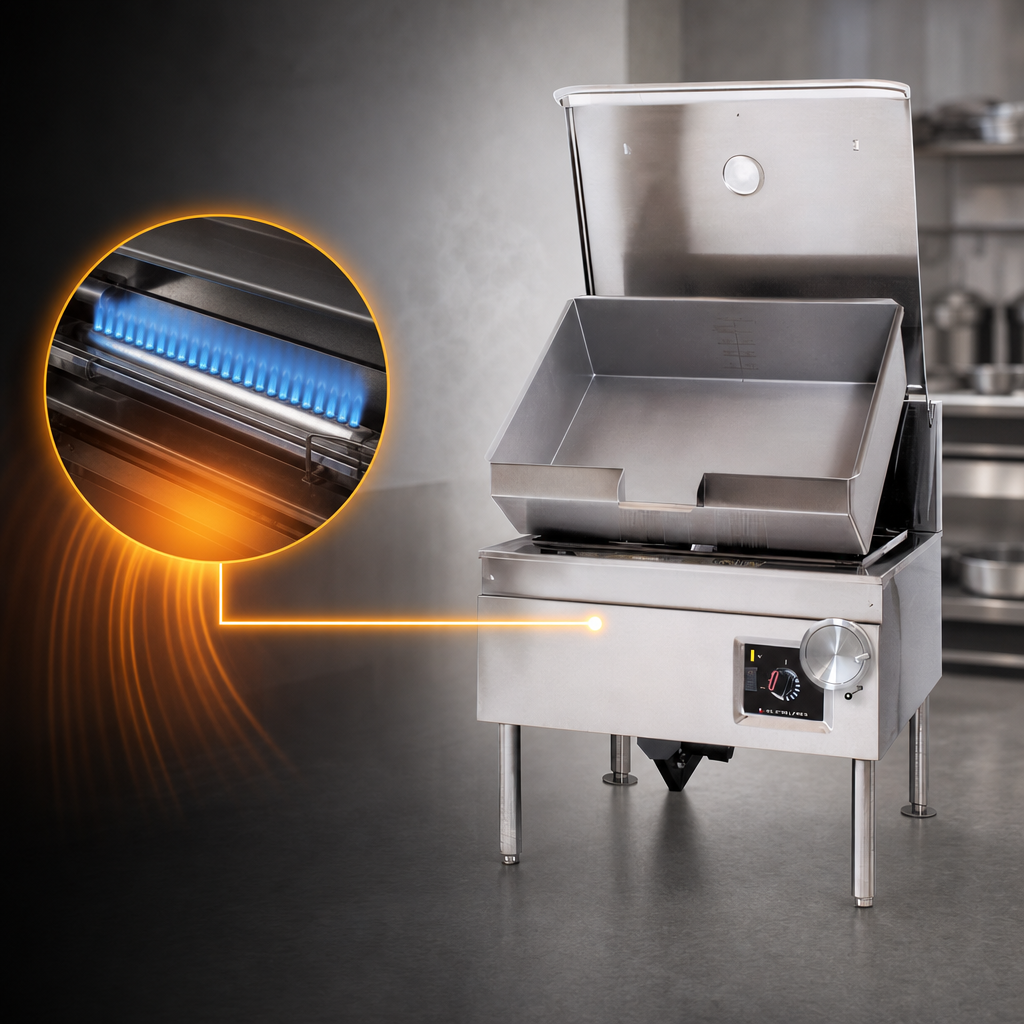

High-Output Natural Gas Heat

130,000 BTU gas heating provides the power needed for efficient batch cooking.

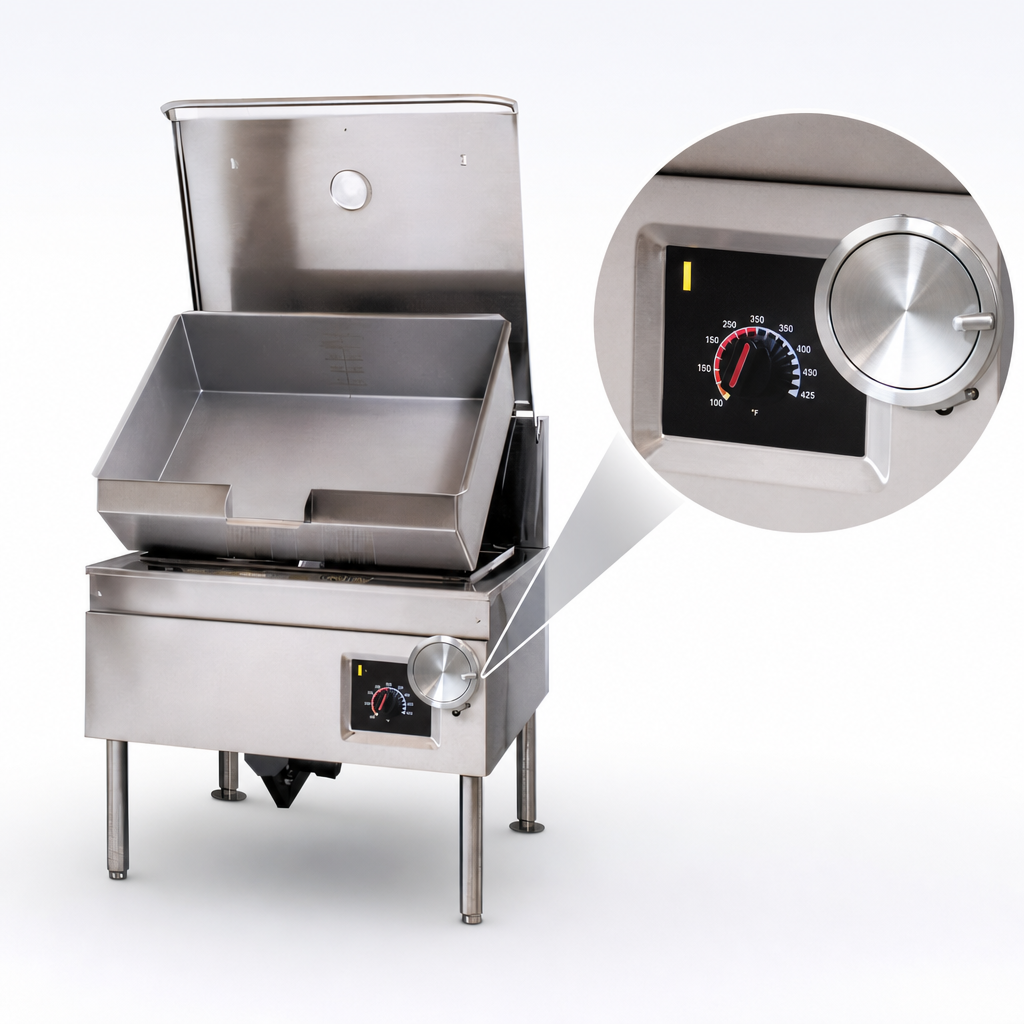

Electronic Thermostat Control

Adjustable control range from 100°F to 425°F for precise cooking.

High-Efficiency Heating System

Designed for even heat distribution with fast heat-up and recovery times.

Electronic Spark Ignition

Supports reliable ignition for gas start-up.

Hydraulic Hand Tilt

Quick lowering feature helps control the pour and speeds cleanup.

Spring-Assist Cover

Includes an adjustable vent and full-width handle for easier operation.

Stainless Steel Clad Cooking Surface

5/8-inch cooking surface is designed to resist warping.

Coved Stainless Steel Pan

Pan includes gallon and liter markings for convenient batch measurement.

All Stainless Steel Construction

Durable build is made for long-term use and easier cleaning.

Level-Adjustable Feet

Four stainless steel feet with rear flanges support leveling and bolting.

IPX6 Water Rating

Built to meet IPX6 water-rating requirements for added protection in busy kitchens.

High Limit Safety Device

Safety device is set to 475°F for added protection.

Modular Open Base

Open base design provides accessible space below the unit.

Type Tilting Skillet
Style Manual Tilt
Installation Type Floor Model
Capacity 40 Gallons
Material Stainless Steel
Controls Electronic Thermostat
Temperature Range 100°F to 425°F
BTU 130,000 BTU
Gas Type Natural Gas
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type Cord And Plug
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 528 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 40-gallon capacity, which is about 150 liters.
It uses a hydraulic hand tilt with a quick lowering feature.
The adjustable electronic thermostat ranges from 100°F to 425°F.
It is supplied with 120V/60Hz/1-phase controls and a cord with plug.
Available options include a sliding drain drawer, power tilt with hand tilt override, pantry faucets, skillet fillers, a pre-rinse spray head, food strainers, vegetable steamers, poaching pans, pan carriers, and a 2-inch tangent draw-off valve.
Yes, the unit meets IPX6 water-rating requirements.
