Champion

Champion 86 PRO-HR High Temperature 2-Tank Electric Rack Conveyor Dishwasher with Heat Recovery

SKU: 86 PRO-HR
$90,013.94
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Champion Commercial Dishwashers Conveyor Dishwashers Conveyor Dishwashers Dishwashers New Arrivals Restaurant Equipment

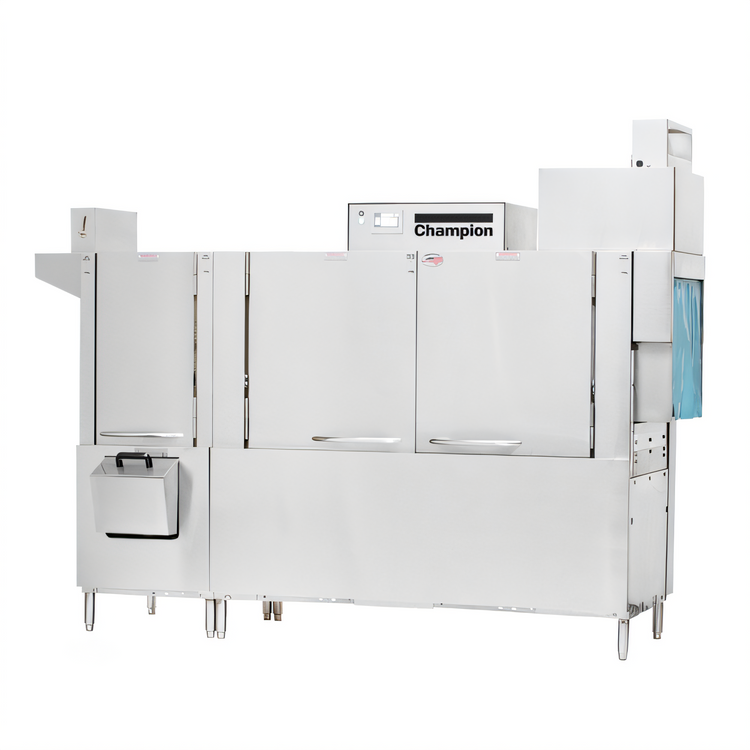

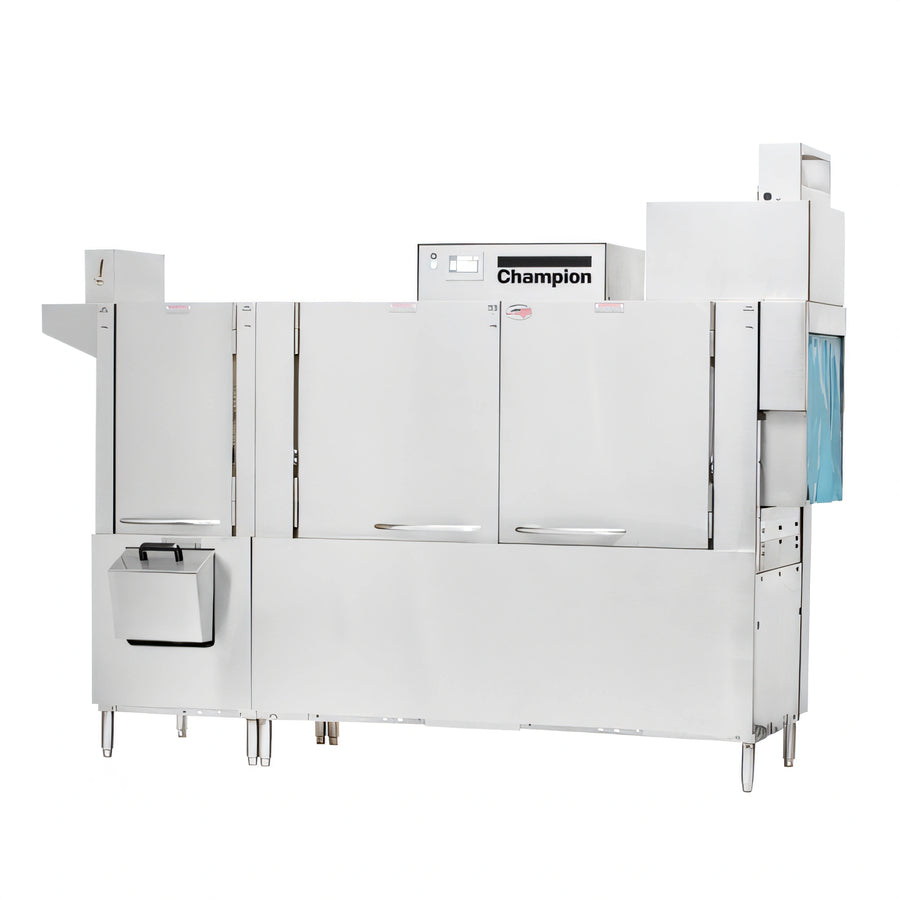

Champion 86 PRO-HR High Temperature 2-Tank Electric Rack Conveyor Dishwasher with Heat Recovery

22" Prewash, 348 Racks/Hour, 21 kW Booster

This heat-recovery rack conveyor delivers high-temp sanitation and 348 racks per hour while helping reduce energy and water use in busy dishrooms.

  • 2-tank high-temperature rack conveyor with a 22" prewash section and 348 racks per hour capacity.
  • Exhaust air energy recovery preheats incoming water to help lower energy use.
  • Prodigy HMI touchscreen controls with proactive maintenance software and onboard diagnostics.
  • Progressive anti-jam drive system, automatic tank fill, and auto delime simplify operation.
  • 20" vertical clearance accommodates 18" x 26" sheet pans, and 180° insulated doors improve access.
  • Heavy-gauge stainless steel construction with a single-piece hood and stainless wash arm manifolds.
  • Built-in 21 kW booster and proportional rinse support consistent high-temp performance.

Product Weight:

1200.0 lb

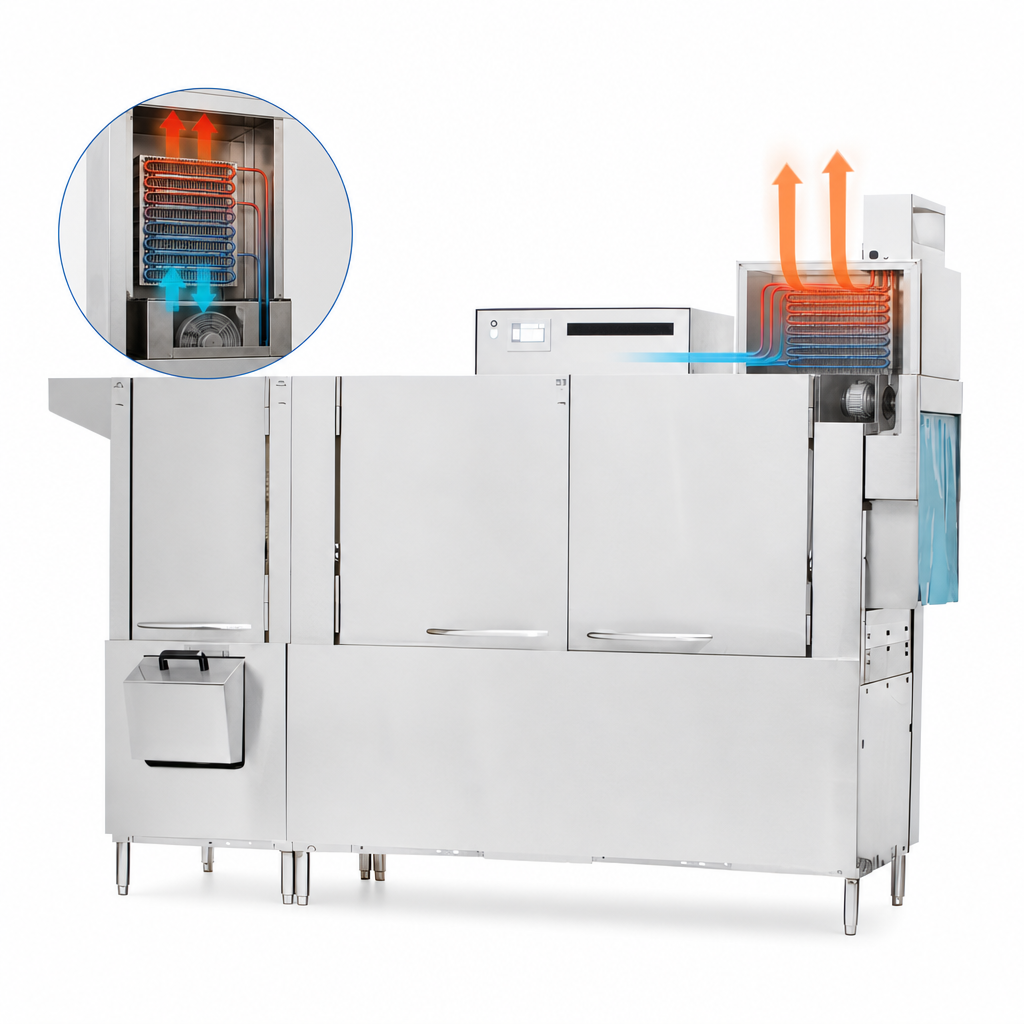

Heat Recovery System

Exhaust air energy recovery reuses waste heat to preheat incoming water and improve efficiency.

Heat Recovery System

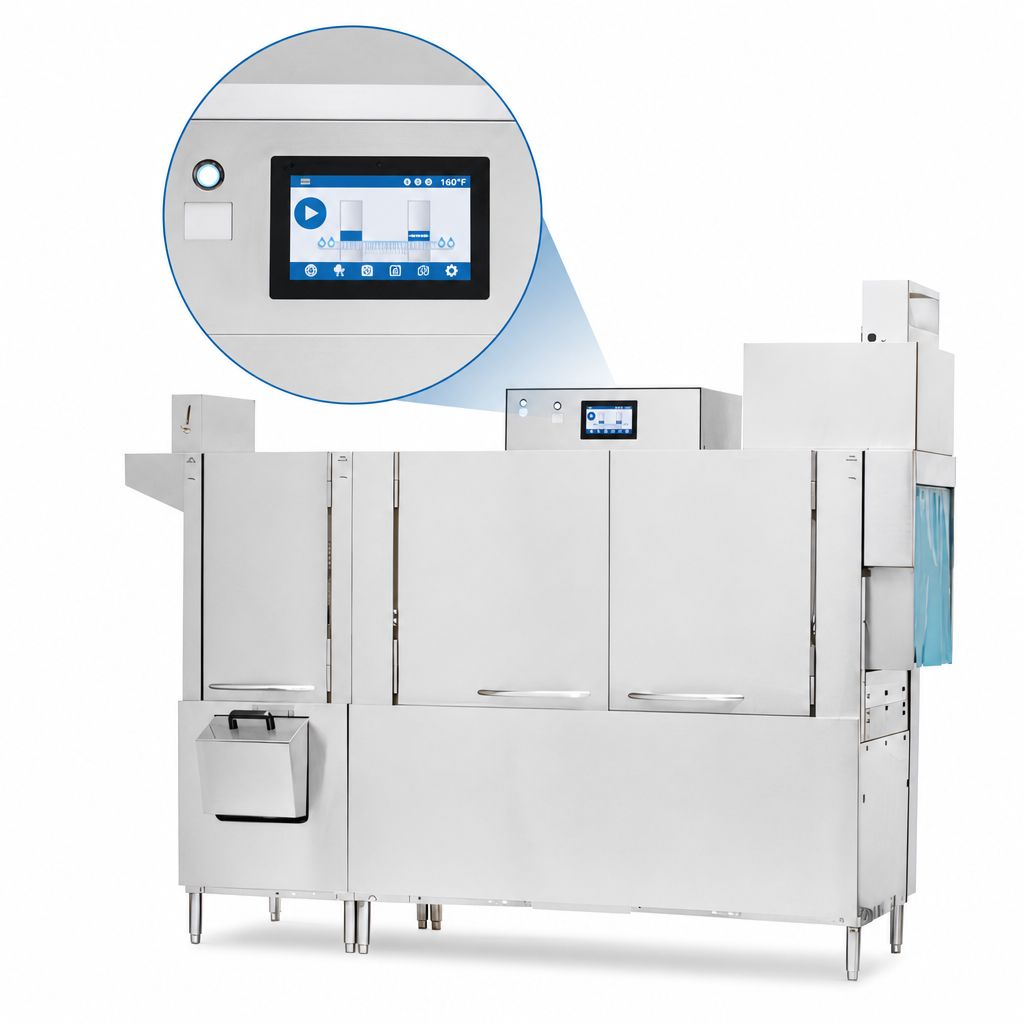

Prodigy HMI Touchscreen Controls

Top-mounted interface provides intuitive operation, visual guidance, multilingual prompts, and proactive maintenance software.

Prodigy HMI Touchscreen Controls

Progressive Anti-Jam Drive System

Digital jam monitoring and mechanical drive protection help reduce downtime in high-volume operation.

Energy Sentinel Proportional Rinse

Idle pump shut-off and proportional rinse help conserve water; the unit uses 100 gallons per hour.

Automatic Tank Management

Automatic tank fill and automated delime function streamline startup and routine maintenance.

High-Capacity 2-Tank Layout

Includes a 22-inch prewash section and processes up to 348 racks per hour.

Sheet Pan Compatibility

20-inch standard vertical clearance accommodates 18" x 26" sheet pans.

Heavy-Duty Stainless Construction

Single-piece hood, stainless steel upper and lower wash arm manifolds, removable scrap basket and screens, and insulated 180° access doors support durability and cleaning.

Built-In High-Temp Booster

Internal 21 kW booster heater is included to support high-temperature final rinse performance.

Type Rack Conveyor Dishwasher
Style High Temperature
Installation Type Floor Model
Tank Design 2-Tank with Prewash
Heat Recovery Yes
Capacity 348 Racks Per Hour
Water Consumption 100 Gallons Per Hour
Controls Touchscreen
Material Stainless Steel
Phase 3-Phase
Hertz 60 Hz
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Steam spec sheet PDF Download

Frequently Asked Questions

It is rated for 348 racks per hour (NSF rated).
Yes. The electric version includes an internal 21 kW booster heater.
It has 20-inch standard vertical clearance and accommodates 18" x 26" sheet pans.
It ships as a dual-point electrical connection standard and can be converted to a single-point connection by a qualified electrician.
Available electrical ratings are 208, 240, 480, and 575 Volts, all 3-phase and 60 Hz.
It includes automatic tank fill, an automated delime function, onboard diagnostics, and proactive maintenance software.
