Key specifications

Phase
3-Phase
Dimensions
102.0"W × 32.5"D × 65.25"H
Type
Conveyor Dishwasher
Style
Front Feed
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Champion SKU: 86 PRO-FF

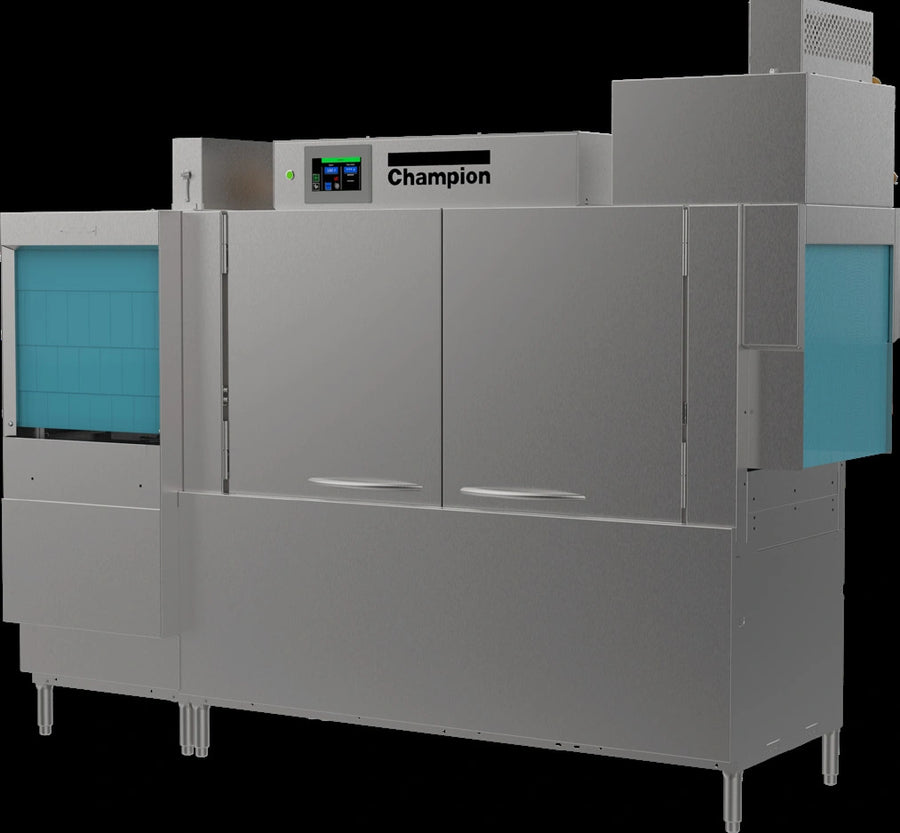

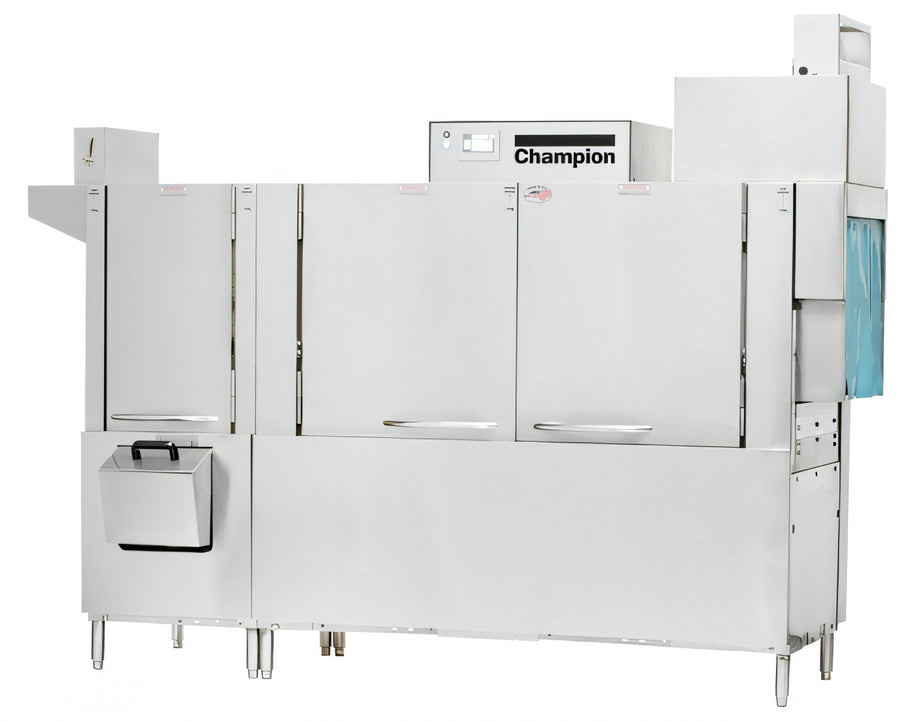

Champion 86 PRO-FF 2-Tank Front-Feed Conveyor Dishwasher

$83,649.69
/each
Estimated to ship in 41–44 business days Free Shipping
ElectricalRequired
Conveyor directionRequired
Booster heater
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $7,738/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Dishwasher
Style Front Feed
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Capacity 348 Racks/Hour
Tank Configuration 2 Tanks with Prewash
Prewash Length 22 Inches
Rack Size 20 x 20 Inches
Vertical Clearance 20 Inches
Wash Tank Capacity 17 US Gallons
Power Rinse Tank Capacity 17 US Gallons
Prewash Tank Capacity 8 US Gallons
Controls HMI User Interface
Temperature Type High Temperature
Tank Heat Electric, 15 kW
Power Rinse Heat Electric, 10 kW
Voltage 208/240/480/575 Volts
Hertz 60 Hz
Phase 3-Phase
Water Consumption 0.28 Gallons/Rack
Maximum Water Consumption 100 US Gallons/Hour
Conveyor Speed 9.6 Feet/Minute
Pump Horsepower 2 HP Prewash, Wash, and Power Rinse
Door Opening 180°

Description

The Champion 86 PRO-FF is a high-temperature electric rack conveyor dishwasher with a front-feed 22-inch prewash section and a 64-inch main section.

It provides an NSF-rated capacity of 348 racks per hour, with proportional rinse, energy sentinel idle pump shut-off, automatic tank fill, and automatic drains.

  • Top-mounted HMI control panel with proactive maintenance software
  • Stainless steel heavy-gauge construction with base and legs
  • 20-inch vertical clearance for 18 x 26-inch sheet pans
  • Insulated access doors opening 180° for cleaning access

Overall Dimensions:

102.0"W x 32.5"D x 65.25"H

Product Weight:

1200.0 lb

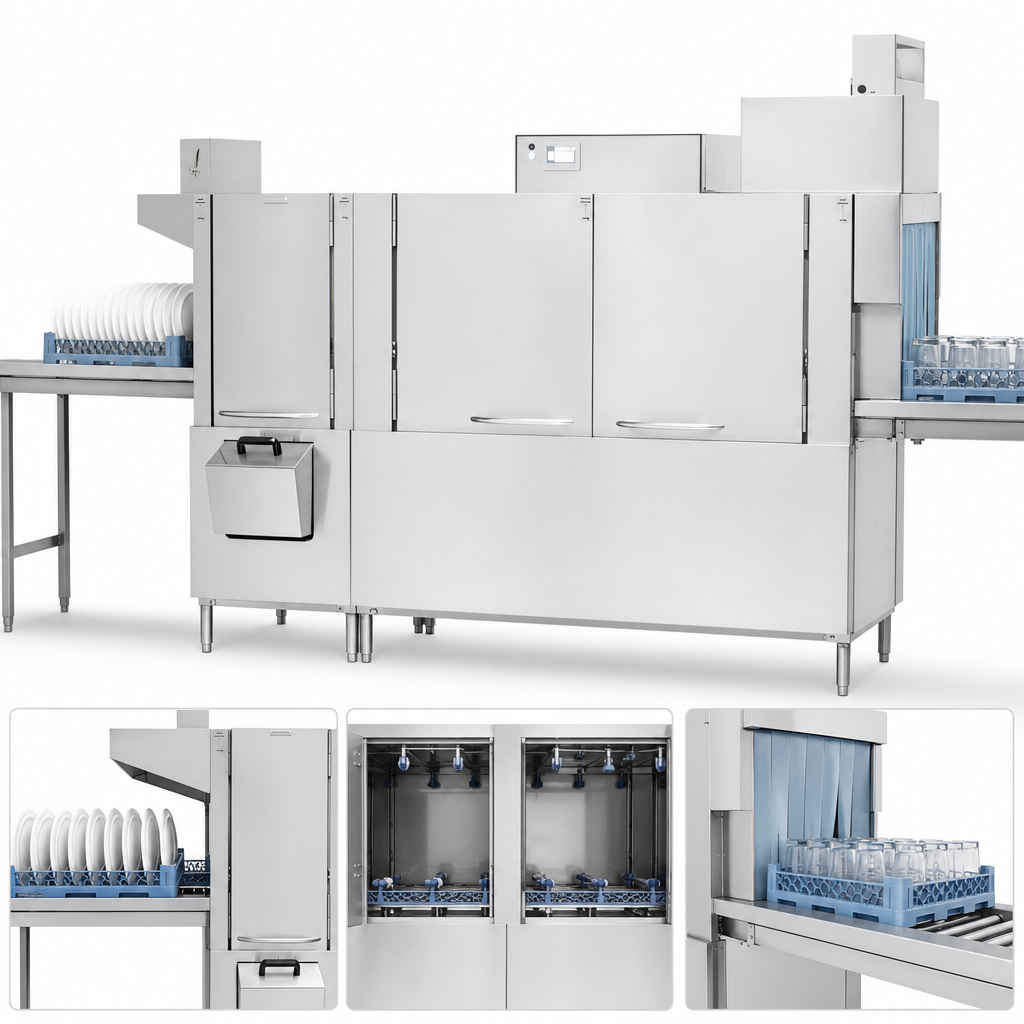

Front-Feed Prewash

Includes a 22-inch front-feed prewash section with a removable scrap basket.

Rack Throughput

Processes up to 348 NSF-rated racks per hour.

HMI Controls

Top-mounted HMI user interface with proactive maintenance software and condition alerts.

Progressive Anti-Jam Drive

Uses a progressive anti-jam drive system for rack advancement.

Proportional Rinse

Includes proportional rinse operation.

Wash Arms

Single-piece stainless steel upper and lower wash arm manifolds.

Access Doors

Leak-proof insulated hinged access doors open 180° for cleaning access.

Automatic Functions

Automatic tank fill, leak-proof automatic drains, door safety switches, and vent fan control.

Stainless Steel Construction

Heavy-gauge stainless steel construction includes the base and legs.

Frequently Asked Questions

The dishwasher is rated for 348 NSF-rated racks per hour.
Yes. It has a 22-inch front-feed prewash section with a removable scrap basket.
The product measures 102 inches wide by 32.5 inches deep by 65.25 inches high.
The cutsheet lists 208, 240, 480, and 575 volt, 60 Hz, 3-phase electrical configurations. The machine ships with a dual-point electrical connection standard.
The product document specifies a one-year parts and labor warranty.
