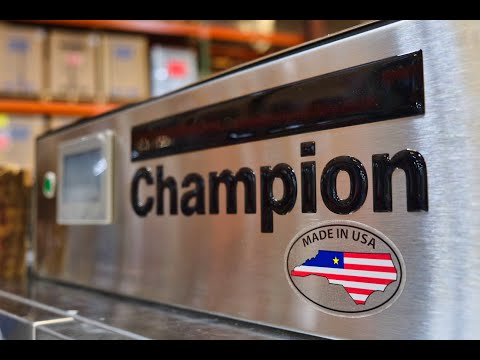

Champion 44 PRO-HR Pro Series High Temperature Electric Rack Conveyor Dishwasher with Heat Recovery
Champion 44 PRO-HR Pro Series High Temperature Electric Rack Conveyor Dishwasher with Heat Recovery
44-Inch Wide, 209 Racks/Hour, Built-In 21 kW Booster, Single-Point Electrical Connection
Built for high-volume dish rooms, this heat-recovery rack conveyor dishwasher combines 209 racks per hour with energy-saving idle pump shut-off and a built-in booster heater.
- High-temperature rack conveyor design with exhaust air energy recovery to help preheat incoming water and reduce energy use.
- Processes up to 209 racks per hour while using only 100 gallons per hour maximum and 0.48 gallons per rack.
- Proportional rinse, progressive anti-jam drive, and digital jam monitoring help keep racks moving smoothly.
- 20-inch vertical clearance accommodates 18" x 26" sheet pans, and NSF pot & pan mode is included.
- Heavy-gauge stainless steel construction, insulated 180° doors, and one-piece wash arm manifolds support durability and easy cleaning.
- Ships with one 20" x 20" peg rack and one 20" x 20" flat rack; single-point electrical connection is standard.
Product Weight:
600.0 lbHeat Recovery System
Exhaust air energy recovery reuses waste heat to preheat incoming water, helping lower operating costs.
High-Volume Throughput
Rated for up to 209 racks per hour with 100 gallons per hour maximum water use and 0.48 gallons per rack.
Proportional Rinse and Energy Sentinel
Proportional rinse improves wash efficiency while Energy Sentinel shuts off the pump during idle periods to save water and energy.
Touchscreen HMI Controls
Top-mounted HMI user interface includes proactive maintenance software, condition alerts, and user-friendly operation guidance.
Anti-Jam Drive Protection
Progressive anti-jam drive system includes digital jam monitoring and mechanical drive protection for smoother rack advancement.
Heavy-Duty Stainless Steel Build
Constructed with heavy-gauge stainless steel throughout, including the base, legs, feet, enclosure panels, hood, and wash arm manifolds.
Sheet Pan and Pot & Pan Capability
20-inch standard vertical clearance accommodates 18" x 26" sheet pans, and NSF-certified pot & pan mode is available.
Integrated Heating and Pumping
Includes electric tank heat, a built-in 21 kW booster heater, and a 2 HP wash pump with stainless steel impeller.
Service-Friendly Design
Features automatic tank fill, automatic drain valve, single removable scrap screen, full 180° insulated hinged doors, and vent fan control.
Included Rack Complement
Ships with one 20" x 20" peg rack and one 20" x 20" flat rack.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
