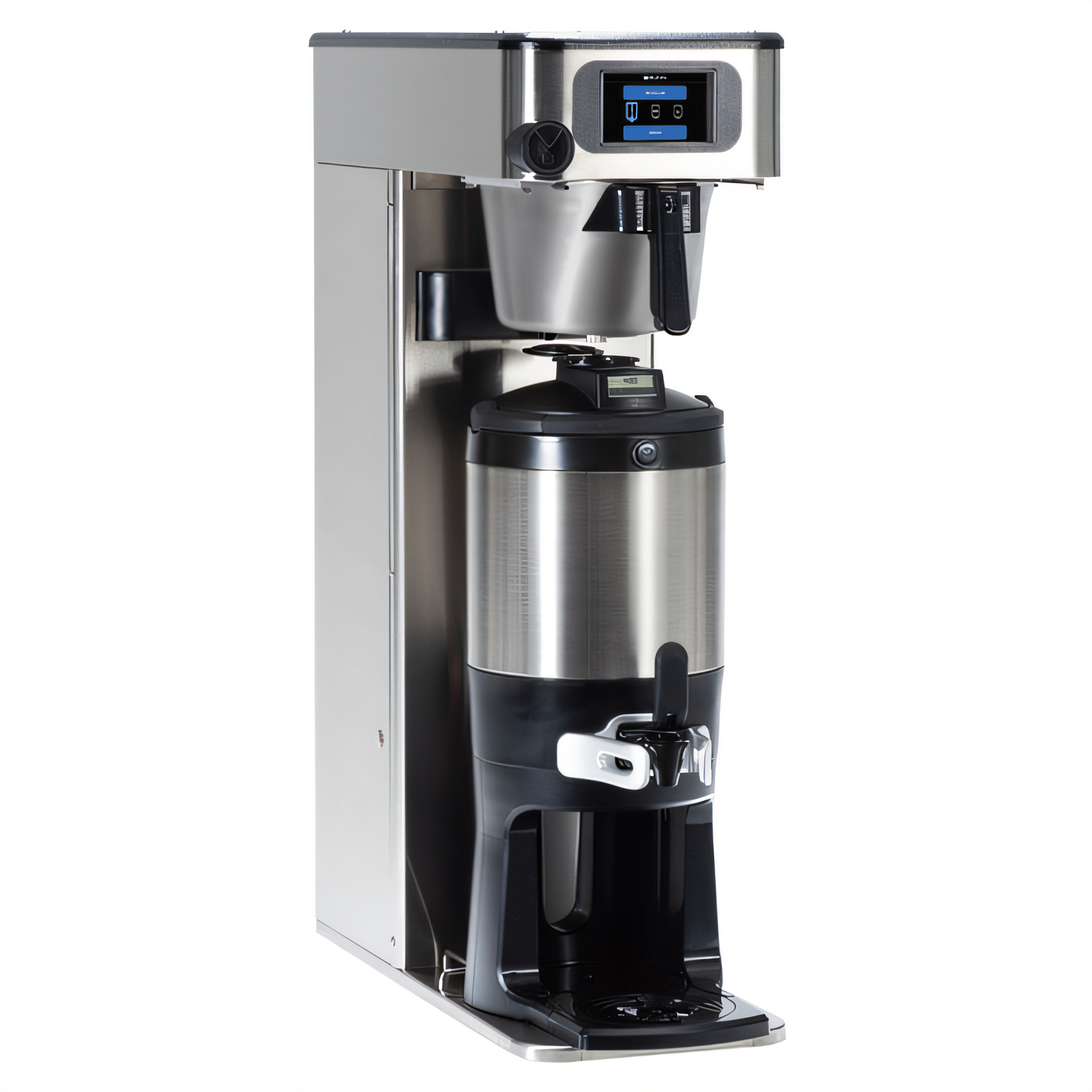

BUNN 54000.0100 Infusion Series® Coffee Brewers
Description
BUNN Infusion Series® ITCB-DV HV PE Tea & Coffee Brewer
Model 54000.0100 | Dual-Volt, High-Volume PerformancePower through peak periods with BUNN’s most versatile counter-top brewer. The Infusion Series® ITCB-DV HV PE delivers large-batch coffee, iced tea, cold brew concentrate or ready-to-drink cold brew – all from one compact, plumb-in unit engineered for cafés, QSRs, c-stores and banquet operations that refuse to compromise on flavor or speed.
Why you’ll love it
- 4.3" full-color touchscreen for intuitive recipe management, diagnostics and custom screen-saver branding.

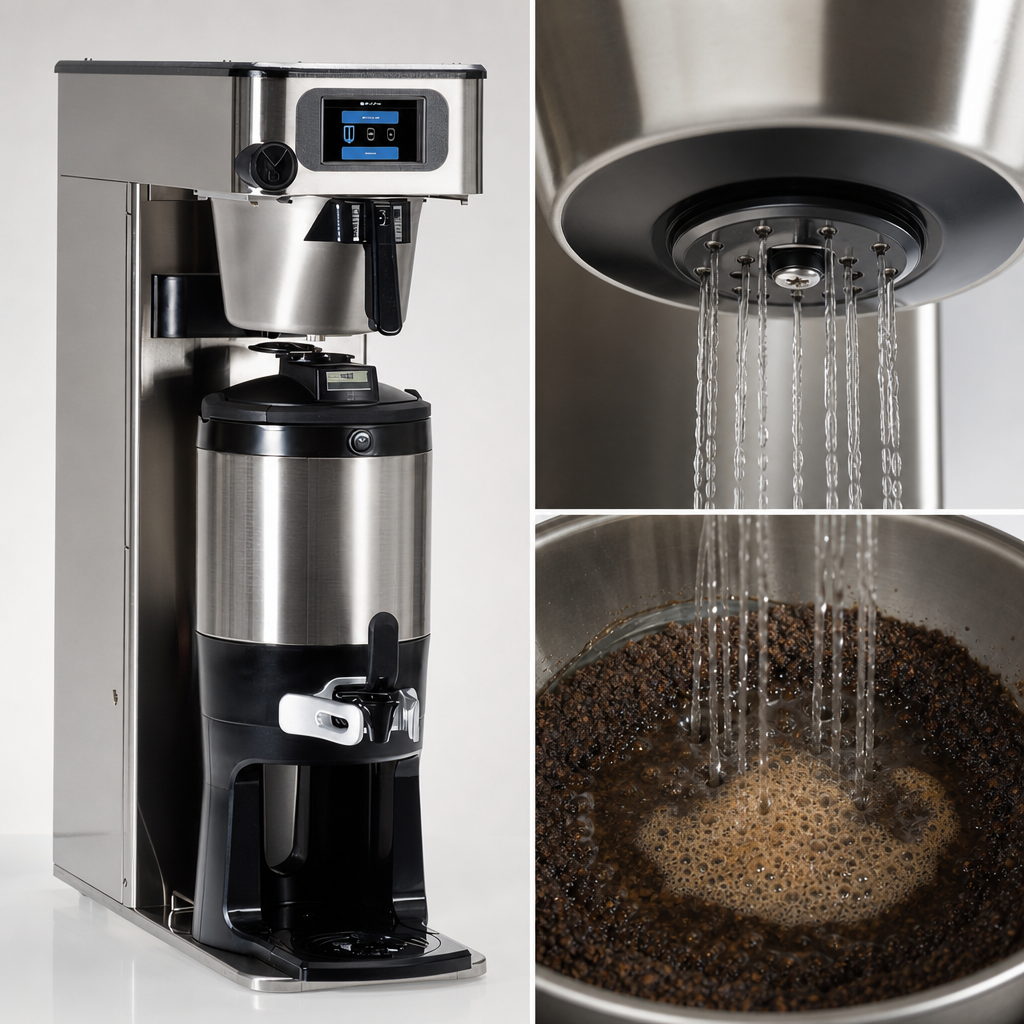

- SmartWAVE sprayhead optimizes extraction and reduces lime scale build-up for lower maintenance costs.
- BrewWISE® intelligence with programmable pre-infusion and pulse brew unlocks maximum flavor.
- Cold Brew mode produces concentrate or ready-to-drink batches in minutes – no overnight steeping.
- Integrated dilution nozzle and software provide true iced-tea brewing without extra plumbing.
- Optional Bubble Tea Kit (54165.1018) lets you add on-trend beverages with zero additional footprint.
- Energy-saver mode automatically lowers tank temperature during idle periods to cut utility costs.
- Large 3 gal (11.4 L) internal tank supports continuous back-to-back brews.
- Ships with both funnels: stainless steel (coffee) & translucent plastic (tea).
- Optional BUNNlink® kit enables remote recipe updates and real-time fleet monitoring.
Technical specifications
| Brewing capacities | 82, 136 or 183 8 oz (236 ml) cups/hr (120 V, 120/208 V, 120/240 V respectively) |
|---|---|
| Tank size | 3 gal / 11.4 L |
| Electrical | 120 V 1-ph 1700 W 14 A (NEMA 5-15P cord attached) Field convertible to 120/208 V 2900 W 14 A (direct-wire) or 120/240 V 4050 W 17 A (direct-wire) |
| Dimensions (H × W × D) | 35.0" × 10.0" × 24.3" (88.9 × 25.4 × 61.7 cm) |
| Water connection | Plumbed; 20-90 psi (138-621 kPa); 3⁄8" male flare; 1.25 GPM |
| Weight | 78.4 lb / 35.6 kg (shipping) |
| Construction | Stainless steel exterior |
| Certifications | UL NSF |
Compatible servers & dispensers (sold separately)
Brews directly into 1.5 gal & 1 gal BUNN ThermoFresh® coffee servers and TD4T, TDO, TDO-N tea dispensers. A full range of airpots and TF mechanical/DSG servers is also available.
Warranty coverage
2-year parts / 1-year labor on the brewer, plus 3-year parts & labor on electronic control boards. See BUNN’s commercial warranty for complete terms.
