$1,144.80

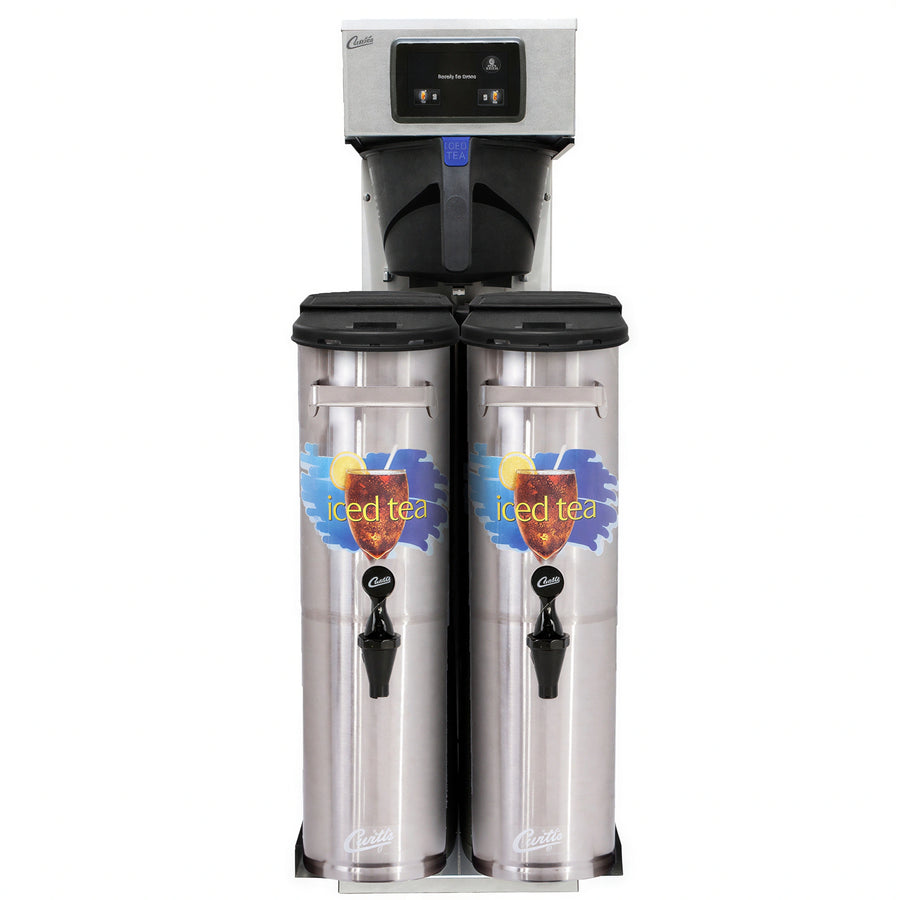

The Curtis G4RTB is an automatic double tea brewer with a rotating brew basket and 3-gallon capacity per side.
- Digital controls: Generation Four digital control module with a 4.3-inch touch screen and icon-driven interface.
- Brewing flexibility: Adjust brew time, volume, and temperature, or select the fast brew option.
- Brewing system: Rotating brew basket with dual dilution spouts and cold water brew lockout.
- Diagnostics: Built-in self-diagnostic system.
- Utilities: 120 V, 50/60 Hz, single-phase electrical operation at 13.8 amps and 1,650 watts; water connection requires 20–90 psi and 1 GPM.
Dispensers are not included.
Overall Dimensions:
13.16"W x 22.91"D x 34.29"HProduct Weight:
41.0 lbRotating brew basket
Rotating brew basket supports brewing multiple teas from one brewer.
Digital touch screen
Generation Four digital control module with a 4.3-inch touch screen.
Icon-driven interface
Provides an icon-driven control interface.
Adjustable brew controls
Adjust brew time, volume, temperature, and other settings.
Fast brew option
Includes a fast brew setting.
Dual dilution spouts
Equipped with dual dilution spouts.
Cold water brew lockout
Includes a cold water brew lockout.
Self-diagnostic system
Built-in self-diagnostic system helps monitor brewer operation.
Brewer type
Double
Design
Automatic
Brew method
Rotating brew basket
Capacity per side
3 gal
Brewed output
12 gal/hr
Tank volume
1.6 gal
Controls
Digital touch screen with icon-driven interface
Screen size
4.3 in
Brew options
Fast brew
Adjustable settings
Time, volume, and temperature
Cold water brew lockout
Yes
Self-diagnostic system
Built-in
Electrical voltage
120 V
Electrical phase
1 ph
Frequency
50/60 Hz
Current
13.8 A
Power
1650 W
Wire
2W+G
Minimum circuit
15 A
Water pressure
20–90 psi
Water flow rate
1 GPM
Water connection
1/4 in flare fitting
Frequently Asked Questions
The G4RTB has a 3-gallon capacity per side.
The specified brewed output is 12 gallons per hour.
It uses a Generation Four digital control module with a 4.3-inch touch screen and icon-driven interface.
Yes. Brew time, volume, and temperature can be adjusted.
It requires 20–90 psi water pressure, a minimum flow rate of 1 GPM, and a 1/4-inch flare fitting.
No. The dispenser is not included and is sold separately.
