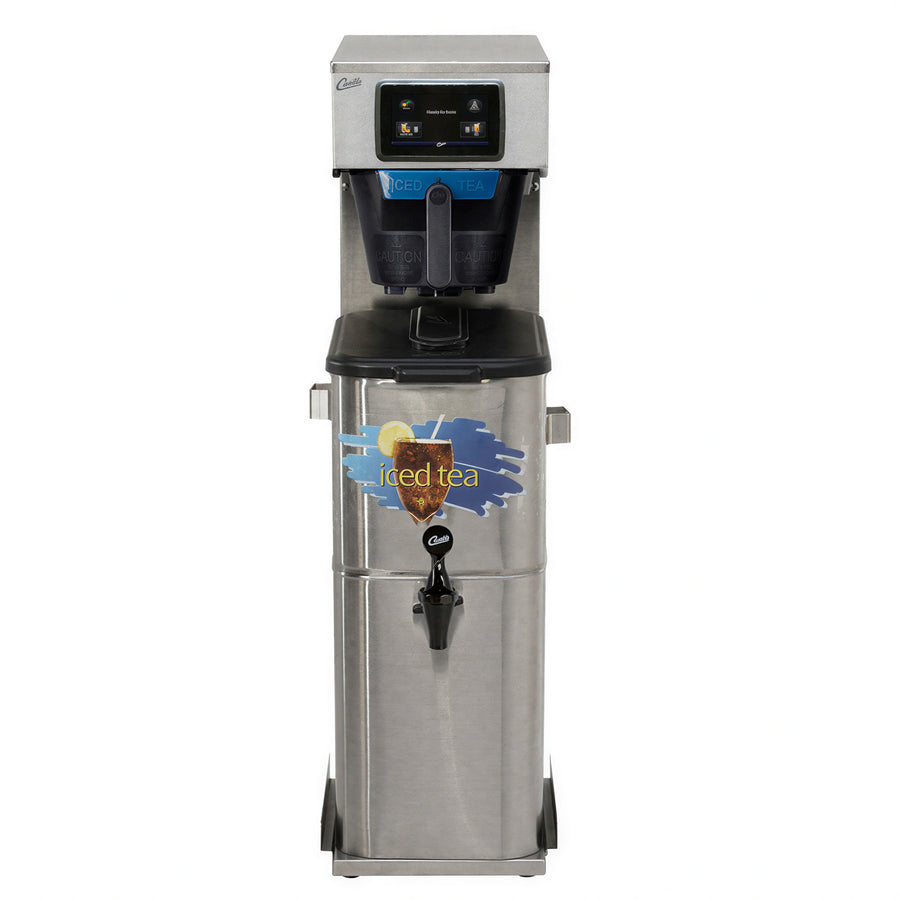

Curtis G4 G4STB Automatic Single Commercial Sweet Tea Brewer, 3–5 Gallon Capacity, Digital Touchscreen

SKU: G4STB
$1,398.60

Want to speak to an expert?

The Curtis G4STB is an automatic single sweet tea brewer with a 3.0–5.0 gallon brew capacity, 12.0 gallons-per-hour brew rate, and digital touchscreen control.

  • 4.3-inch icon-driven touchscreen interface
  • Selectable regular or sweet tea programs
  • Fast brew option
  • Adjustable brew time, volume, and temperature
  • Cold water brew lock-out and built-in self-diagnostic system

The brewer includes a cord and plug and requires a 120 V, single-phase electrical connection and a 1/4-inch flare water connection. Dispenser sold separately. Special order.

Overall Dimensions:

10.11"W x 22.82"D x 34.29"H

Product Weight:

48.0 lb

Digital touchscreen control

Generation Four digital control module with a 4.3-inch icon-driven touchscreen interface.

Selectable brew programs

Program selection for regular or sweet tea.

Fast brew option

Includes a selectable fast brew option.

Adjustable brew settings

Adjust brew time, volume, temperature, and other settings.

Cold water brew lock-out

Helps prevent brewing with cold water through the cold water brew lock-out feature.

Self-diagnostic system

Built-in self-diagnostic system.

Electric pump

Equipped with an electric pump.

Brew capacity 3.0–5.0 gal
Brew rate 12.0 gal/hr
Tank volume 1.6 gal
Controls 4.3-inch digital touchscreen
Electrical 120 V, 13.8 A, 1650 W, 50/60 Hz, 1 phase
Minimum circuit 15 A
Heater 1 x 1600 W
Wiring 2W+G
Water pressure 20–90 psi
Water flow rate 1.0 GPM
Water connection 1/4-inch flare fitting

Frequently Asked Questions

The G4STB has a 3.0–5.0 gallon brew capacity.
The specified brew rate is 12.0 gallons per hour.
No. The dispenser is not included and is sold separately.
It uses a 4.3-inch digital touchscreen with an icon-driven interface.
The brewer requires a 1/4-inch flare fitting, with 20–90 psi water pressure and a 1.0 GPM minimum flow rate.
Yes. The authoritative product specification identifies the G4STB as Special Order.
