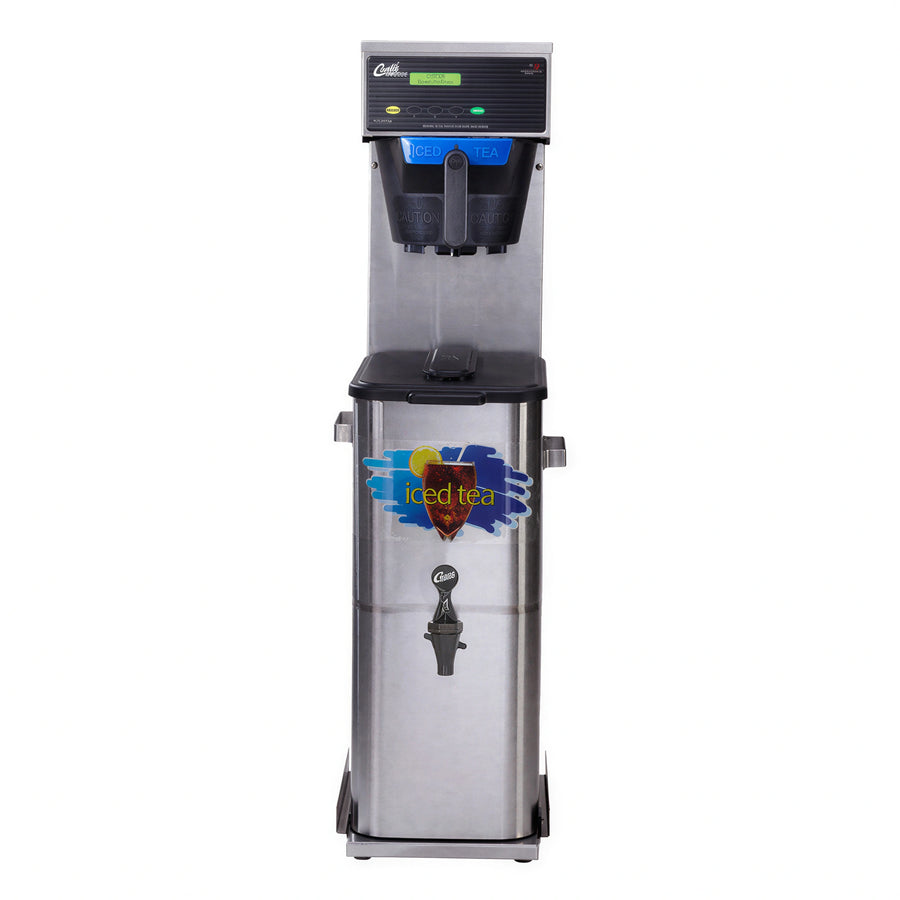

The Curtis G3 TBT is a tall, single, pour-over tea brewer with a 3 to 5 gallon capacity and 12 gallons-per-hour output.
It features digital LCD scroll-through programming for adjusting time, volume, temperature, and brew functions. The stainless steel brewer operates on 120 V power and includes cold water brew lock-out and on-board self-diagnostics.
- Dispenser sold separately.
- Requires a 1/4-inch flare water connection, 20 to 90 psi water pressure, and 1 GPM minimum flow.
Overall Dimensions:
10.13"W x 22.88"D x 38.5"HProduct Weight:
43.0 lbDigital control module
Provides control for pulse brewing, delay, and other brewing functions.
Scroll-through programming
The LCD display supports adjustment of time, volume, temperature, and brew functions.
Fast Brew option
A selectable program option that allows concentrate and dilution cycles to run at the same time.
Dual precision valves
Separate valves control concentrate brewing and dilution cycles.
Cold water brew lock-out
Prevents brewing when water temperature is below the set level.
On-board self-diagnostics
The G3 system senses brewing operation and displays a service phone number and error code when technical assistance is required.
Stainless steel construction
Tall format
The TBT is identified as a tall tea brewer; the dispenser is sold separately.
