BUNN 52500.0100 Infusion Series® Coffee Brewers
Description

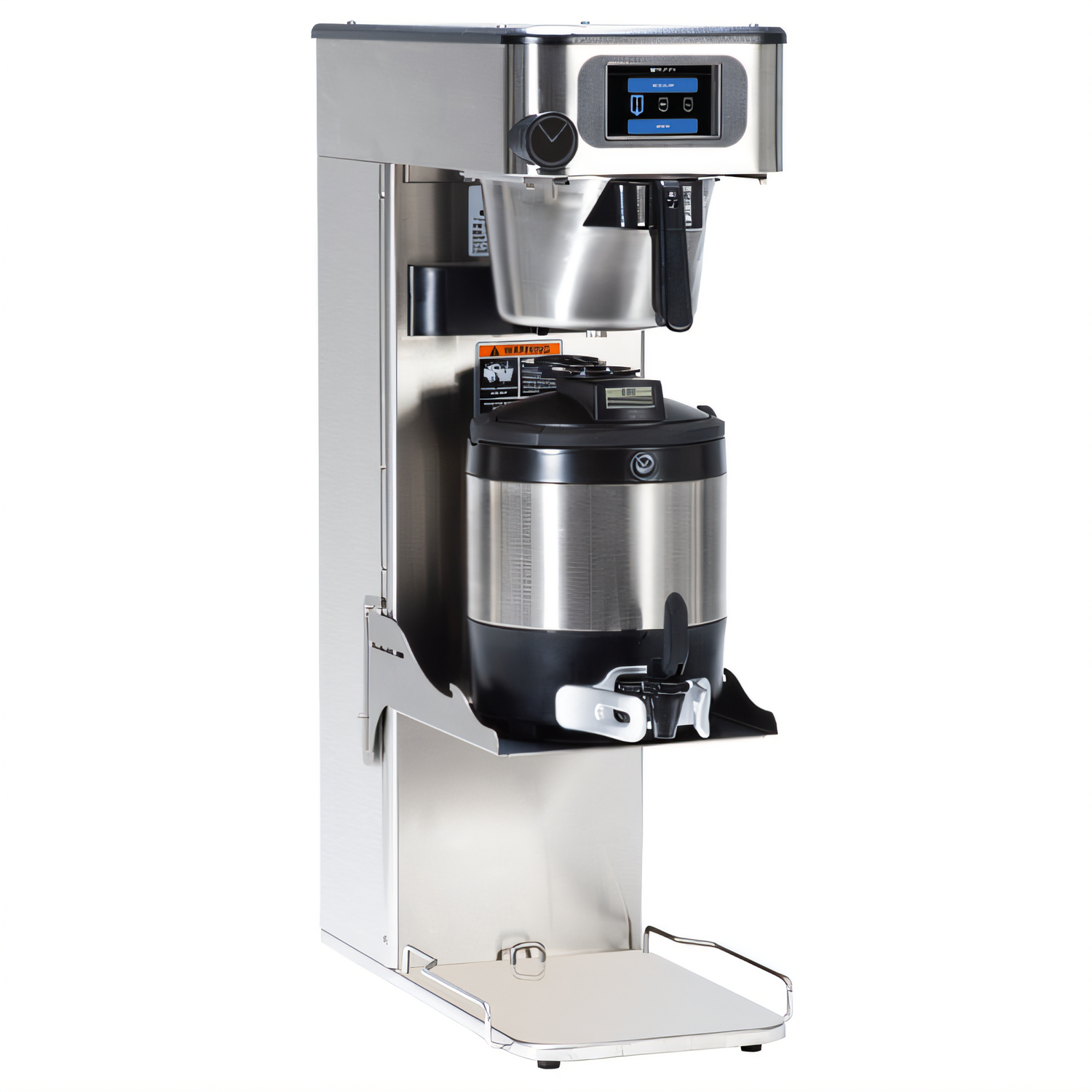

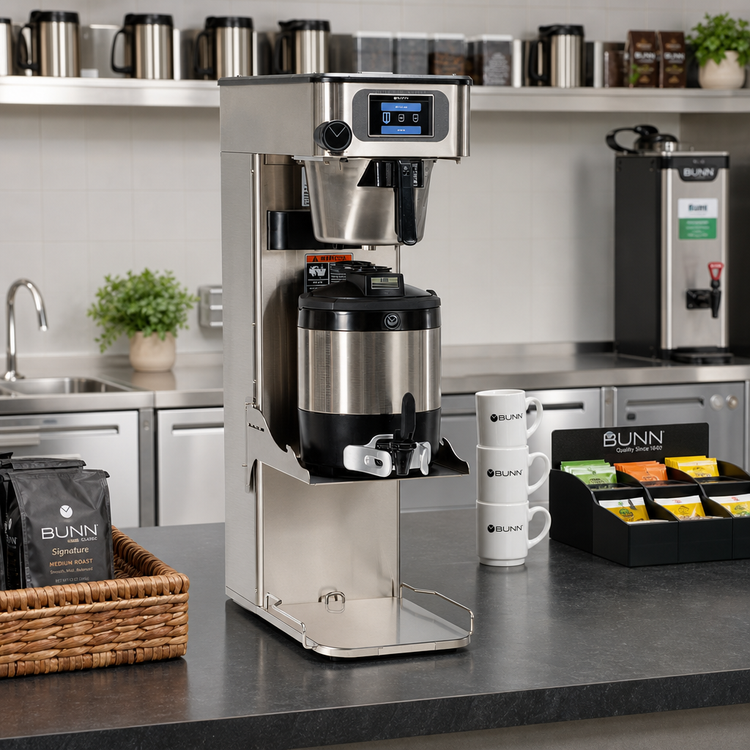

BUNN Infusion Series® ITCB-DV PE Tea/Coffee Brewer – 52500.0100
Cold Brew • Hot Coffee & Tea • Dual-Voltage AdaptableBrew anything from piping-hot signature coffee to on-demand cold brew concentrate—all from a single, space-saving footprint. The BUNN ITCB-DV PE pairs a powerful 4.3" color touchscreen with industry-leading SmartWAVE sprayhead technology to give cafés, bakeries, convenience stores and restaurants unmatched menu flexibility and extraction consistency.
Key Features
- Cold Brew mode produces ready-to-drink or concentrate batches in minutes.

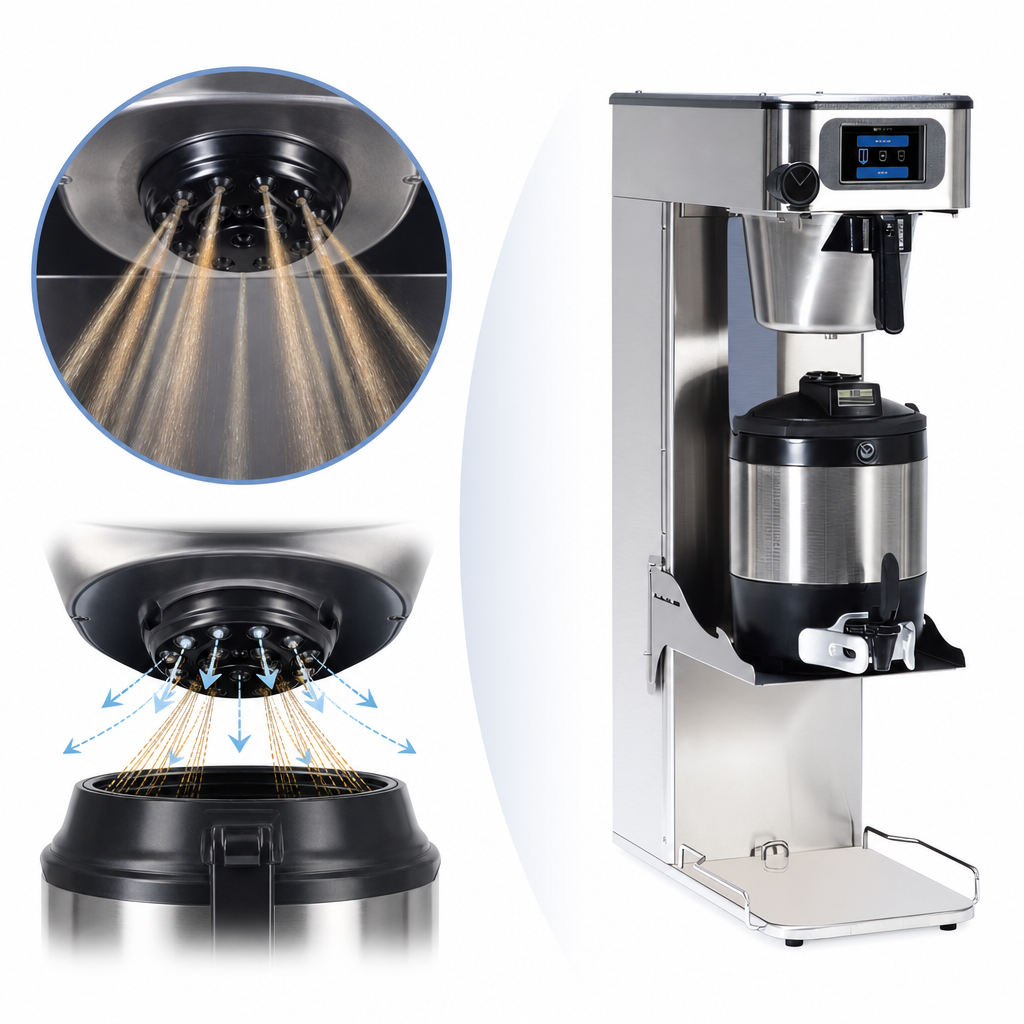

- Exclusive Peak Extraction™ 17-hole sprayhead plus pre-infusion & pulse brew for smoother flavor.

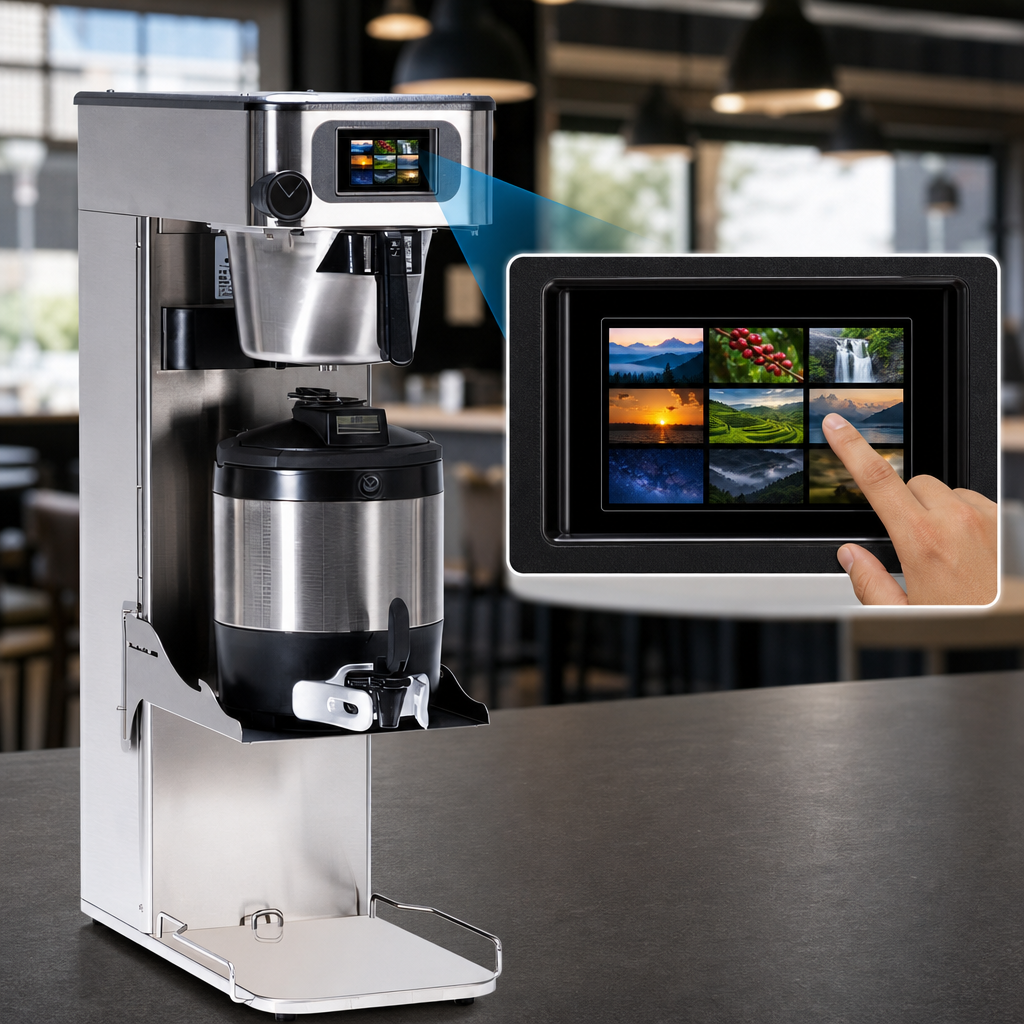

- 4.3" full-color touchscreen for recipe programming, user prompts and up to 10 custom screen-saver ads.
- Integrated 3-position flip tray fits thermal carafes, airpots & BUNN tea dispensers—no additional stands required.
- Dual funnels included: stainless-steel coffee funnel & translucent plastic tea funnel.
- Energy-saver mode lowers tank temperature during idle periods to cut utility costs.
- Electronic funnel lock stops premature funnel removal, eliminating messy drip-offs.
- Built-in wireless interface and USB port for recipe uploads and optional BUNNlink® remote monitoring.
- Dual-voltage adaptable: ships with NEMA 5-15P plug (120 V) or field-convert to 120/208 V-240 V direct-wire.
Performance & Electrical
| Voltage / Phase | 120 V / 1-ph (cord & plug) – field convertible to 120/208 V or 120/240 V direct wire |
|---|---|
| Wattage | 1,700 W @120 V • 2,650 W @120/208 V • 3,500 W @120/240 V |
| Amps | 14 A • 13 A • 15 A (respectively) |
| Production (8 oz cups/hr) | 80 @120 V • 123 @120/208 V • 163 @120/240 V |
| Plug | NEMA 5-15P (120 V only) |
Dimensions & Plumbing
| Overall Dimensions | 35.0" H × 11.6" W × 22.5" D (88.9 × 29.5 × 57.2 cm) |
|---|---|
| Shipping Weight | 41.6 lb (18.9 kg) |
| Water Inlet | ¼" male flare – plumbed |
| Water Pressure | 20–90 psi (138–621 kPa) |
| Minimum Flow | 1.25 GPM (4.7 L/min) |
What’s Included
- ITCB-DV PE brewer with 3-position flip tray
- Stainless steel Smart Coffee funnel
- Translucent quick-brew tea funnel
- Factory-installed cord & NEMA 5-15P plug (120 V)
Compatible Servers & Accessories
- BUNN 1 G & 1.5 G TF thermal servers
- 2.5 L–3.8 L Lever-Action or Push-Button airpots
- TDO/TDS tea dispensers (3–5 gal)
- Bubble Tea Kit (part # 54165.1018)
- EQHP and WEQ series water-filtration systems
Warranty
Commercial warranty: 2 years parts / 1 year labor on the brewer, plus 3 years on electronic control boards.
Full terms available at the BUNN warranty portal.
