BUNN 52300.0100 Coffee Brewers
Description

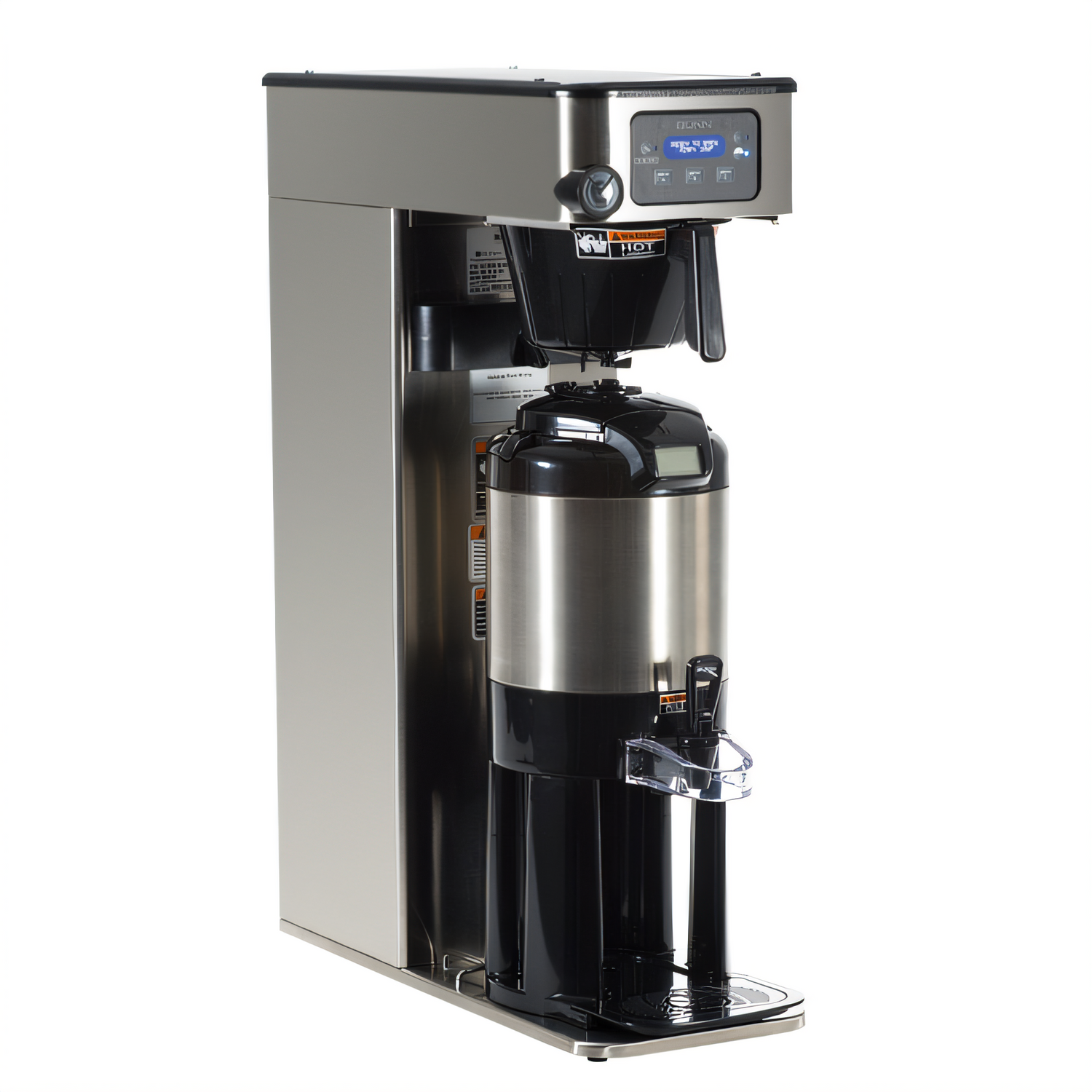

BUNN ITCB-DV HV Infusion Series™ Brewer

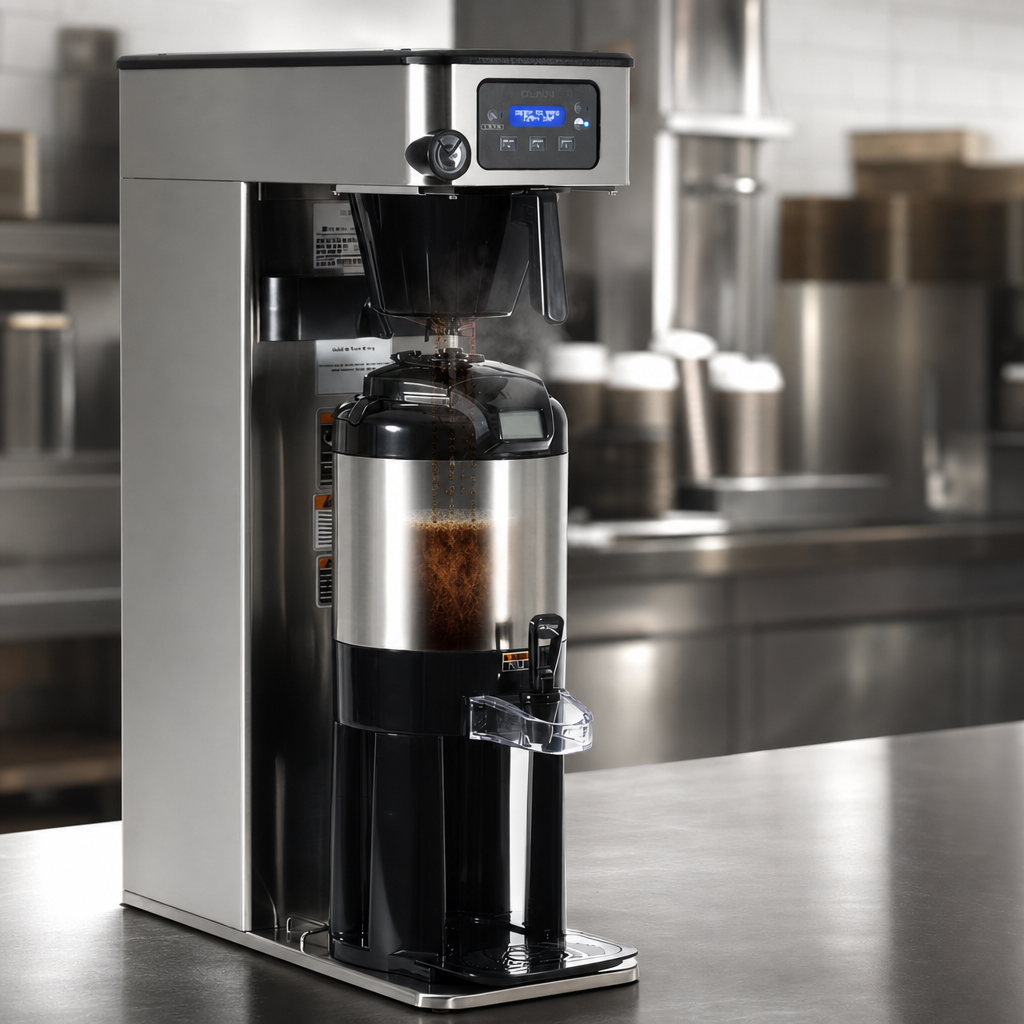

Model 52300.0100 • Dual-Voltage High-Volume Tea & Coffee BrewerBrew up to 1.5 gallons of fresh coffee or iced tea from one sleek, space-saving footprint. Packed with BUNN’s Infusion Series™ technology, the ITCB-DV HV delivers recipe flexibility, Peak Extraction™ flavor, and USB-friendly programming—perfect for busy cafés, restaurants, and c-stores that demand consistency with every batch.
Why You’ll Love It
- 3 programmable brew buttons & 2 batch sizes for multiple coffee or tea recipes.
- Integrated tea dilution nozzle and dedicated Quick Brew tea funnel—no add-ons needed.
- Exclusive 17-hole Peak Extraction™ sprayhead ensures even saturation and full flavor.
- Pre-infusion, pulse brew, cold-brew lockout, and digital temperature control maximize quality.
- Multilingual digital display (English/Spanish/French) simplifies staff training.
- Energy-saver mode lowers tank temperature during idle periods to cut utility costs.
- Electronic funnel lock prevents removal until drip-through is complete—no mess, no burns.
- USB port for fast recipe uploads and firmware updates; on-board brew counter tracks usage.
- Overlay kit included so you can brand the control panel to match your concept.
Commercial-Grade Build
- Brushed stainless steel cabinet with modern rounded edges—built to endure rush-hour traffic.
- Plumbed-in design with hot-water faucet connection (faucet supplied for custom install).
- NSF & UL Listed for peace of mind and health-code compliance.
Specifications
| Product Number | 52300.0100 |
|---|---|
| Brewer Type | Infusion Series™ Coffee & Tea |
| Batch Sizes | 1.0 gal (3.8 L) & 1.5 gal (5.7 L) |
| Brewing Capacity | Up to 181 cups/hr (8 oz / 236 mL) |

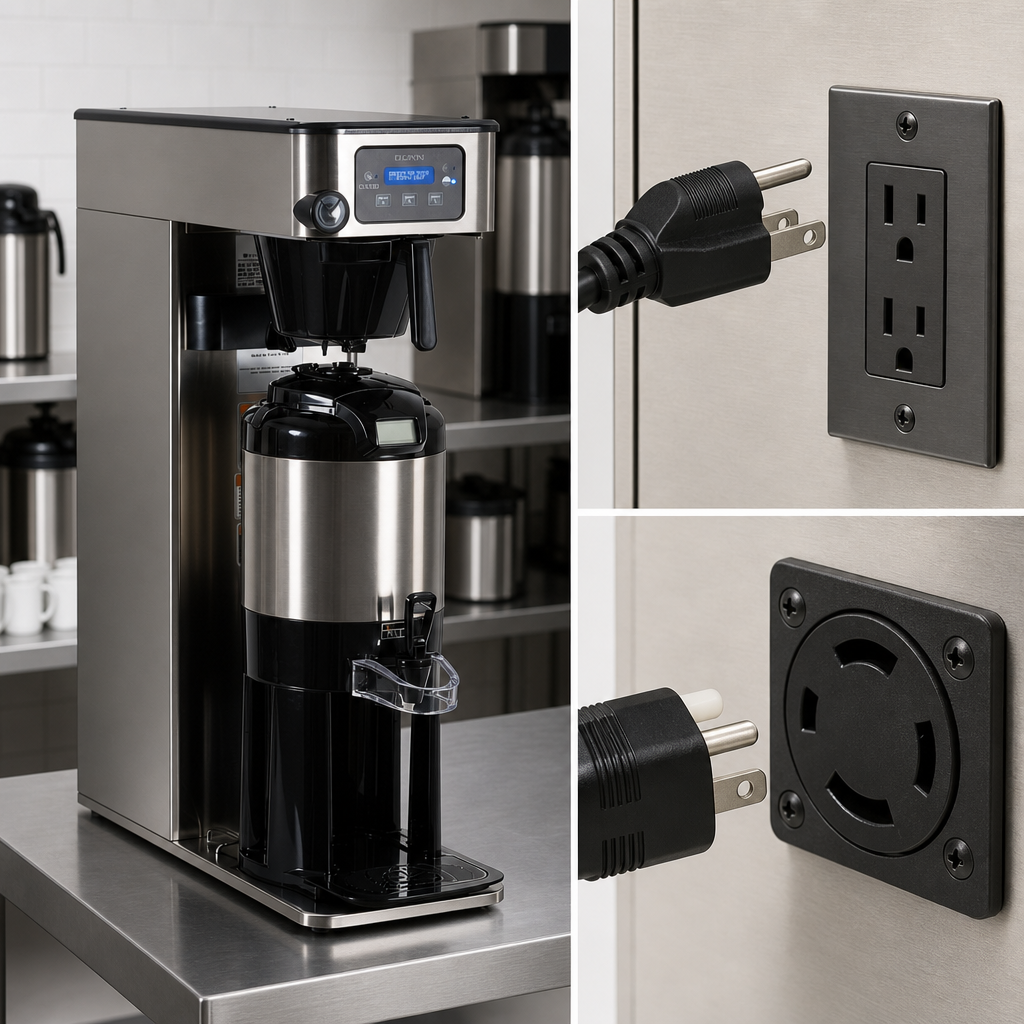

| Electrical |
120 V / 14 A / 1,700 W (NEMA 5-15P plug) 120/208 V / 14 A / 2,900 W (hard-wire) 120/240 V / 17 A / 4,050 W (hard-wire) |
| Phase / Hertz | Single Phase, 60 Hz |
| Dimensions (W × D × H) | 10.0 in × 24.3 in × 35.0 in (25.4 cm × 61.7 cm × 88.9 cm) |
| Unit Weight | 58.4 lb (26.5 kg) |
| Water Connection | 3/8 in male flare; 20-90 PSI (138-621 kPa); 1.25 GPM |
| Finish | Stainless Steel |
Compatible Servers & Dispensers (sold separately)
- BUNN ThermoFresh® Servers – 1.0 gal & 1.5 gal models
- TDO, TD4T & TDO-N Tea Dispensers – 3 to 5 gal
- 2.5 L – 3.8 L Lever Airpots for remote coffee service
- Standard 1.9 L Thermal Carafes for low-volume satellite stations
Warranty
Backed by BUNN’s commercial warranty: 2 years parts, 1 year labor, and 3 years on electronic control boards.
