Key specifications

Dimensions
86.5"W × 31.6"D × 74.0"H
Type
Conveyor Dishwasher
Style
High-Temperature
Installation Type
Floor Model
Material
Stainless Steel
Capacity
340 Racks/Hour
Blakeslee SKU: RC86 HR

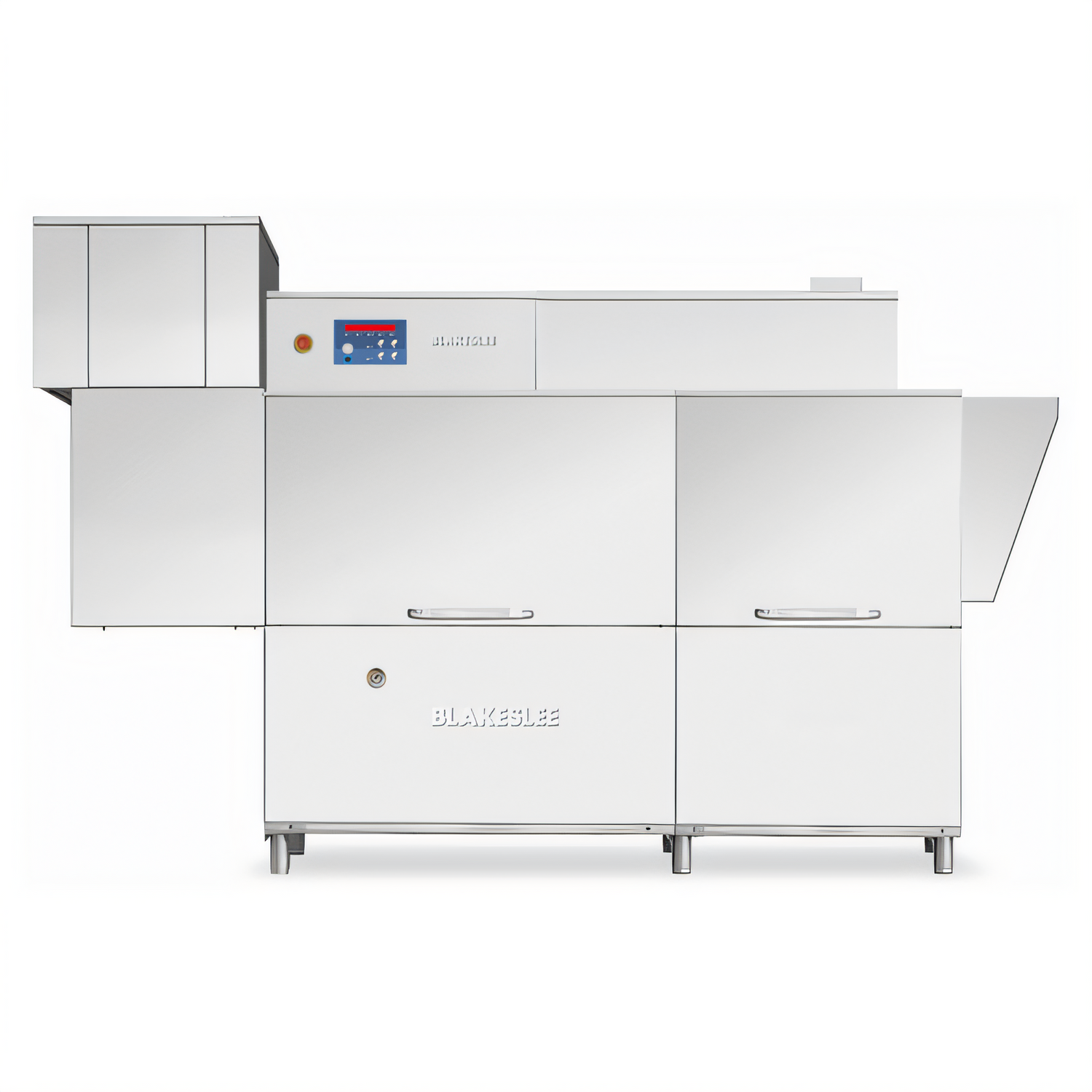

Blakeslee RC86 HR Double-Tank Conveyor Dishwasher, 340 Racks/Hour

$29,955.05
/each
Estimated to ship in 16–19 business days
Included: Blakeslee warranty 1-year parts and labor warranty against defective materials and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,771/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Dishwasher
Style High-Temperature
Installation Type Floor Model
Material Stainless Steel
Capacity 340 Racks/Hour
Tank Capacity 22.45 Gallons
Tank Configuration Double Tank
Temperature Type High Temperature
Controls Electronic Soft Touch
Tank Heat Electric
Tank Heat Power 14 kW
Booster Power 42 kW
Wash System Prewash and Double Rinse
Heat Recovery Included
Wash Pump Self-Cleaning
Wash Arm Material Stainless Steel
Tank Filter Material Stainless Steel
Tank Material 316 Stainless Steel
Booster Material 316 Stainless Steel
Door Type Insulated Double Skin
Clutch Built-In
Vacuum Breaker Included
Basket Inclusion Included

Description

The Blakeslee RC86 HR is a high-temperature conveyor dishwasher with prewash, double rinse, a double-tank design, and heat recovery.

  • Throughput: 340 racks per hour.
  • Controls: Electronic soft touch control panel with auto timer.
  • Wash system: Self-cleaning wash pump, built-in clutch, vacuum breaker, stainless steel washing arms, and stainless steel tank filters.
  • Construction: Stainless steel construction with a 316 stainless steel tank and boosters.
  • Door: Insulated double skin door.
  • Heat: 14 kW electric tank heat and 42 kW booster power.
  • Included: Baskets.

Overall Dimensions:

86.5"W x 31.6"D x 74.0"H

Product Weight:

1420.0 lb

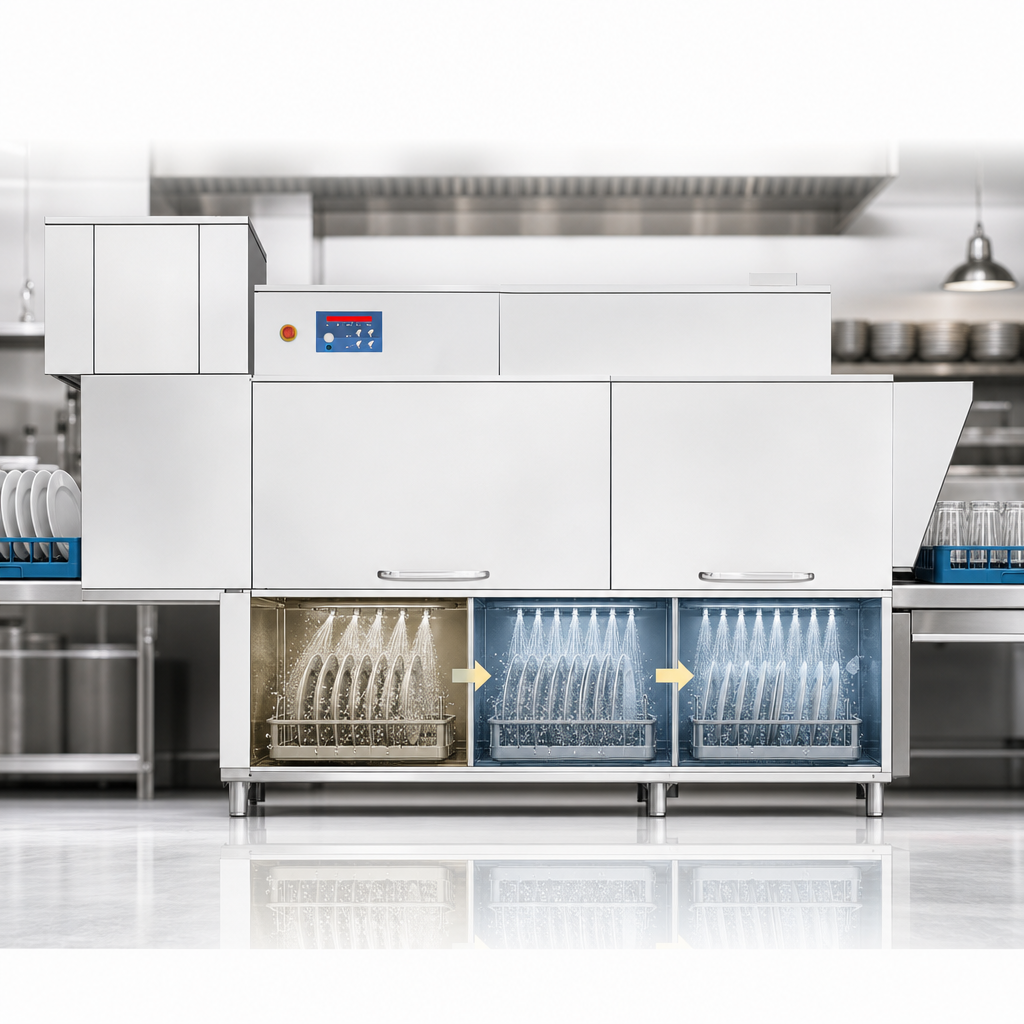

Prewash and Double Rinse

The conveyor wash system includes prewash and double rinse functions.

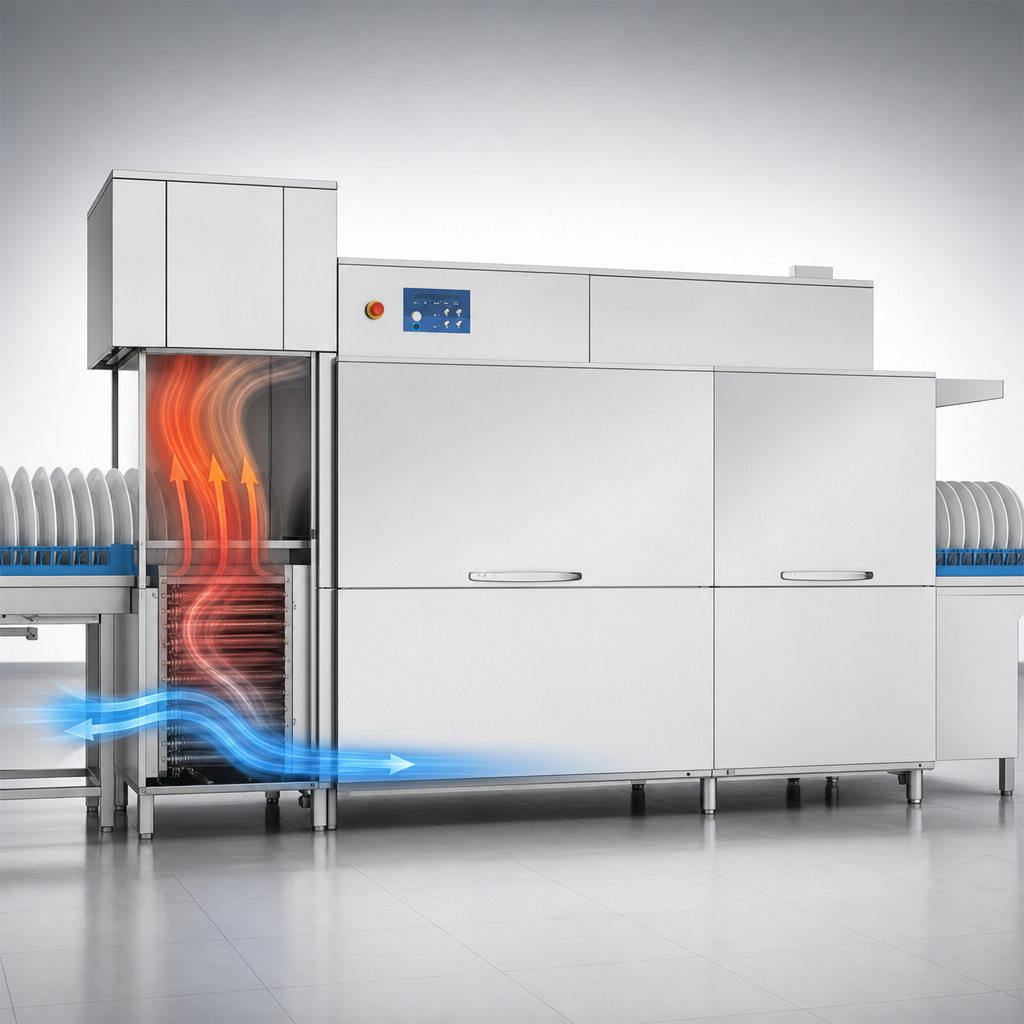

Heat Recovery System

A heat recovery system is built into the dishwasher.

Double-Tank Design

The dishwasher has two tanks and a 22.45-gallon wash tank capacity.

Electronic Soft Touch Controls

An electronic soft touch control panel provides machine controls.

Automatic Timer

An auto timer is included.

Self-Cleaning Wash Pump

The wash system includes a self-cleaning wash pump.

Stainless Steel Wash Components

The unit includes stainless steel washing arms and tank filters, plus a 316 stainless steel tank and boosters.

Included Baskets

Baskets are included.

Frequently Asked Questions

The dishwasher processes 340 racks per hour.
Yes. It has prewash and double rinse functions.
It has 14 kW electric tank heat and 42 kW booster power.
Yes. A heat recovery system is included.
Yes. Baskets are included.
The product is 86.5 inches wide, 31.6 inches deep, and 74.0 inches high, with a listed weight of 1,420 pounds.
