Key specifications

Dimensions
110.0"W × 31.6"D × 74.0"H
Type
Conveyor Dishwasher
Style
High Temperature
Installation Type
Floor Model
Material
Stainless Steel
Rack Capacity
340 Racks/Hour
Spec sheet
Blakeslee SKU: RC86 D69

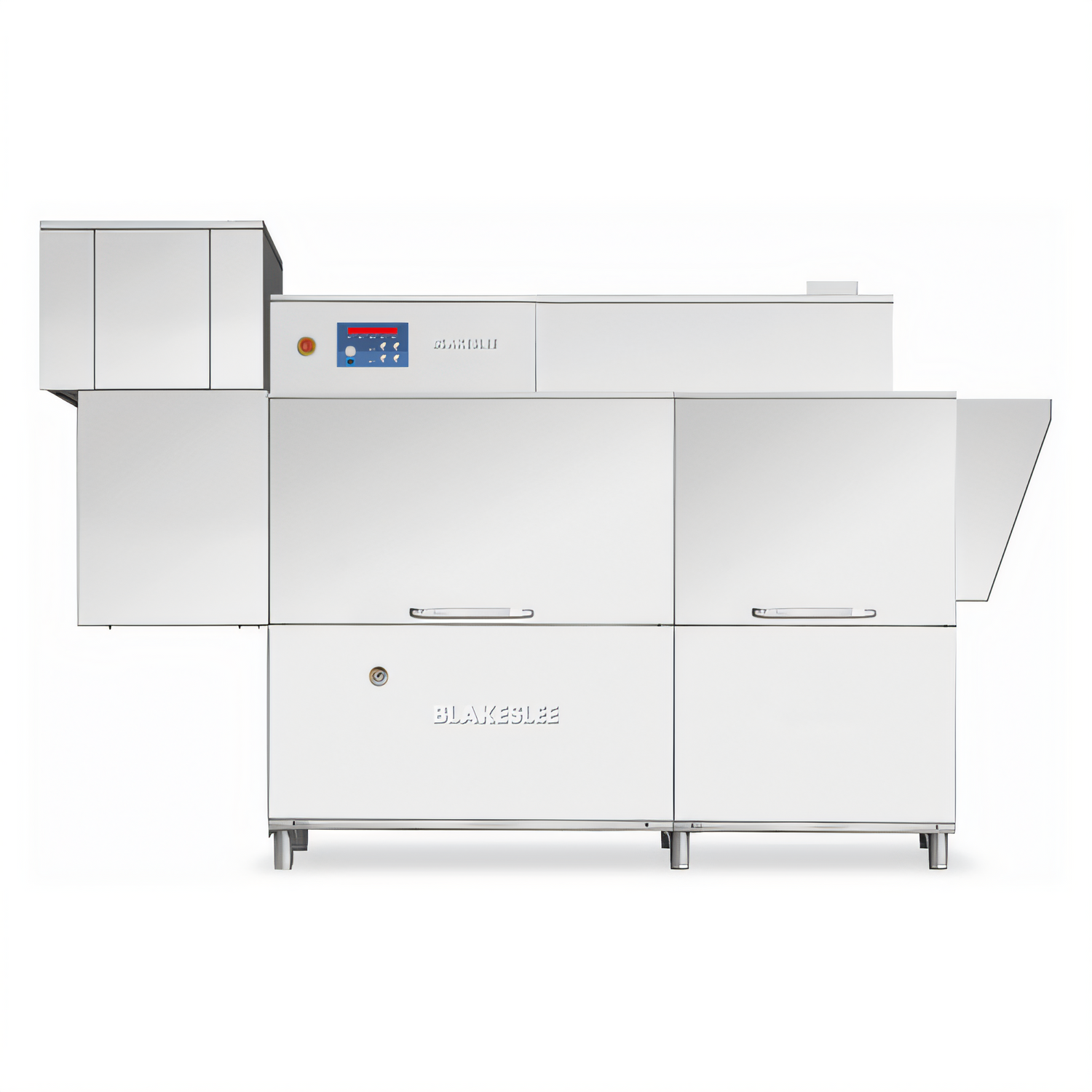

Blakeslee RC86 D69 110-Inch Double-Tank Conveyor Dishwasher

$34,524.00
/each
Estimated to ship in 16–19 business days
Width
Heat recovery
Electrical
Included: Blakeslee warranty 1-year parts and labor warranty against defective materials and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $3,193/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Dishwasher
Style High Temperature
Installation Type Floor Model
Material Stainless Steel
Rack Capacity 340 Racks/Hour
Capacity 22.45 Gallons
Tank Configuration Double Tank
Rinse System Double Rinse
Prewash Included
Controls Electronic Soft Touch
Tank Heat Electric
Tank Heating Power 14 kW
Drying System Blow Dryer
Pump Type Self-Cleaning
Tank Material 316 Stainless Steel
Booster Material 316 Stainless Steel
Door Type Insulated Double Skin
Washing Arm Material Stainless Steel
Tank Filter Material Stainless Steel
Included Items Baskets

Description

The Blakeslee RC86 D69 is a high-temperature conveyor dishwasher with a 110-inch conveyor, double tank, prewash, and double rinse system. It processes 340 racks per hour and has a 22.45-gallon wash tank capacity.

It features 14 kW electric tank heat, an electronic soft touch control panel, an auto timer, a blow dryer system, a self-cleaning wash pump, a built-in clutch, and a vacuum breaker.

The dishwasher has an insulated double skin door, stainless steel washing arms and tank filters, 316 stainless steel tank and boosters, stainless steel construction, and includes baskets.

Overall Dimensions:

110.0"W x 31.6"D x 74.0"H

Product Weight:

1300.0 lb

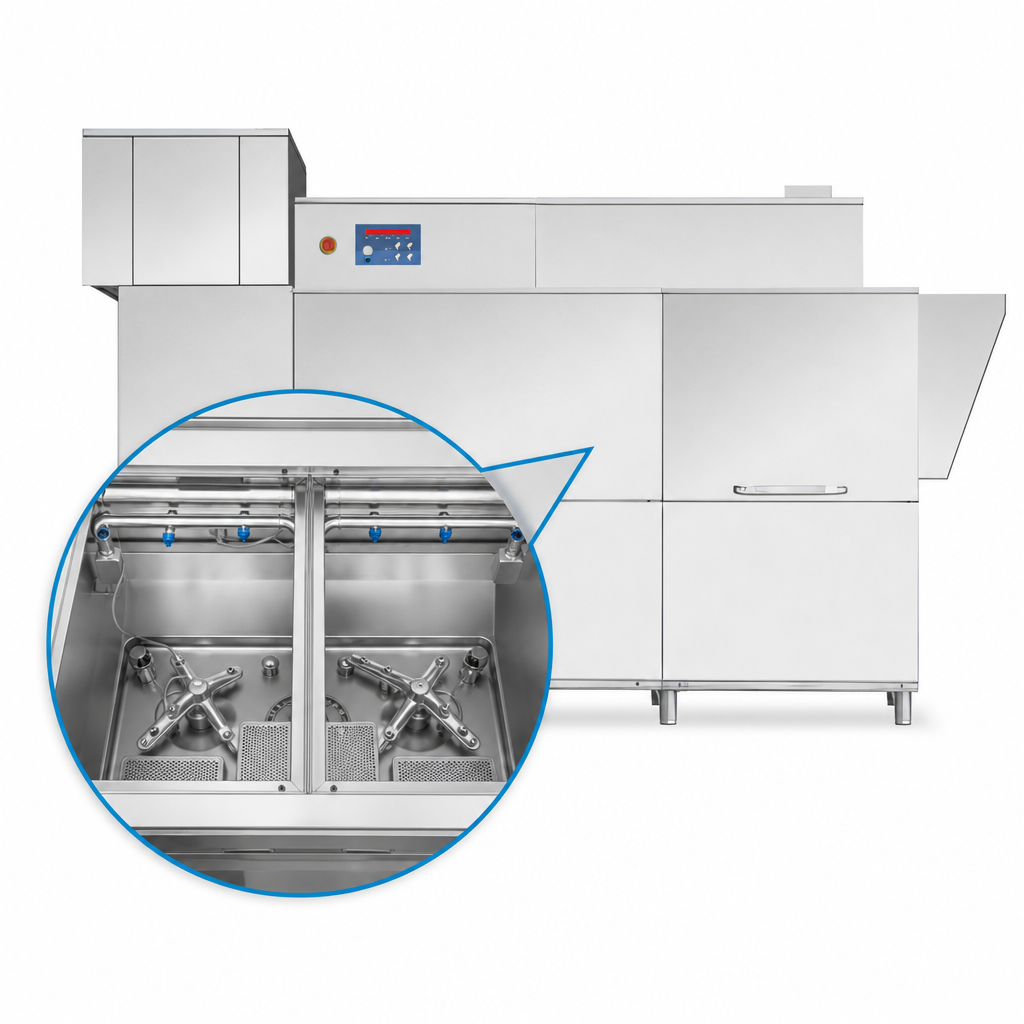

Double Tank Prewash and Double Rinse

Provides double-tank operation with prewash and double rinse.

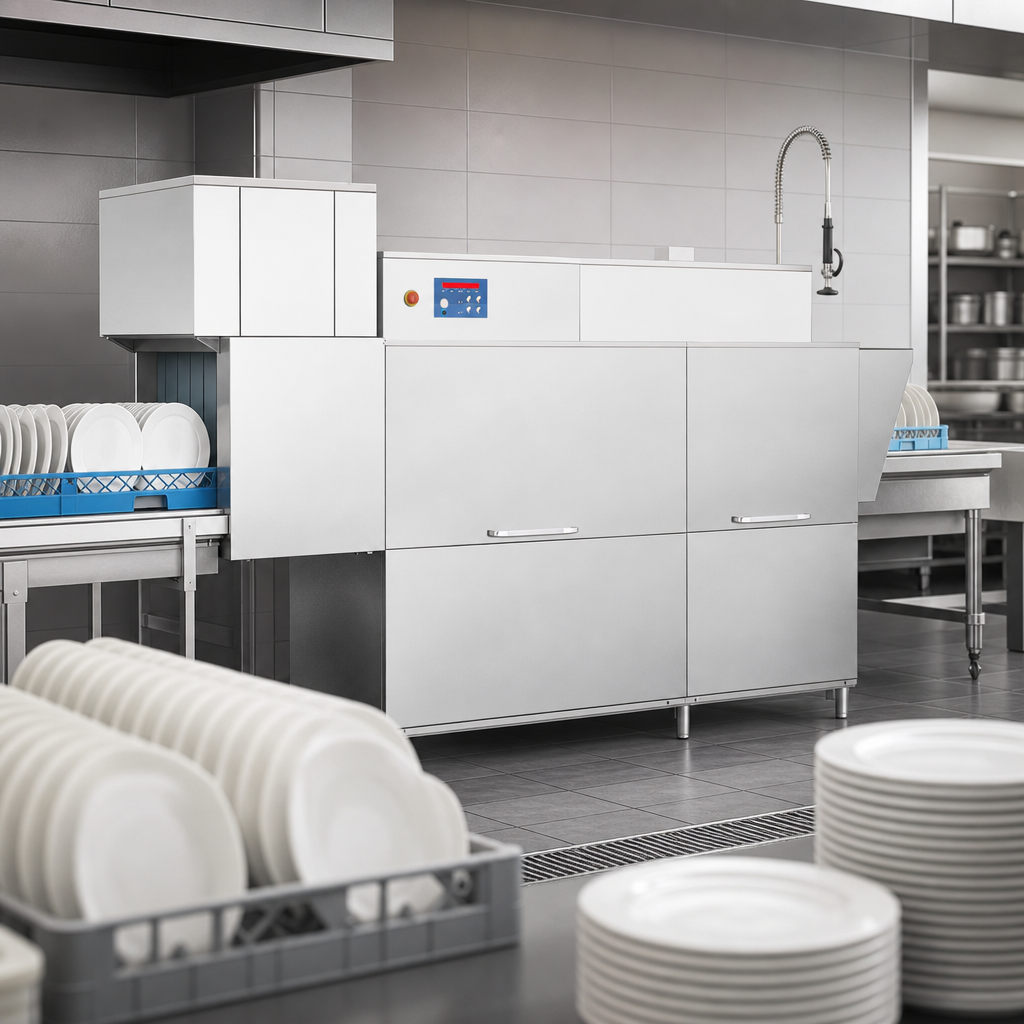

High-Volume Throughput

Processes 340 racks per hour.

Electronic Soft Touch Controls

Uses an electronic soft touch control panel with an auto timer.

Blow Dryer System

Includes a blow dryer system.

Self-Cleaning Wash Pump

Includes a self-cleaning wash pump.

Built-In Clutch

Includes a built-in clutch.

Vacuum Breaker

Includes a vacuum breaker.

Insulated Double Skin Door

Uses an insulated double skin door.

Stainless Steel Washing Components

Includes stainless steel washing arms and tank filters.

316 Stainless Steel Tank and Boosters

The tank and boosters are made of 316 stainless steel.

Included Baskets

Baskets are included.

Electric Tank Heat

Uses 14 kW electric tank heat.

Frequently Asked Questions

The dishwasher processes 340 racks per hour.
The wash tank capacity is 22.45 gallons.
Yes. It uses 14 kW electric tank heat.
It uses an electronic soft touch control panel with an auto timer.
Yes. Baskets are included.
The product is 110 inches wide, 31.6 inches deep, and 74 inches high, with a listed weight of 1,300 pounds.
