Key specifications

BTU
40,000 BTU
Amps
0.6 Amps
Phase
1-Phase
Dimensions
20.0"W × 23.5"D × 34.0"H
Type
Vertical Broiler
Style
Economy
Spec sheet
American Range SKU: AVB-2

American Range AVB-2 2-Burner Gas Vertical Broiler, 65 lb

$2,375.00
/each
Estimated to ship in 11–14 business days Free Shipping
Gas typeRequired
Gas Connector
Included: American Range warranty Two-year limited warranty covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $220/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Vertical Broiler
Style Economy
Installation Type Countertop
Material Stainless Steel
Country of Origin USA
Capacity Up to 65 lb
Pan Size 15 in Diameter
Burner Count 2
BTU 40,000 BTU
Controls Manual Valves
Skewer Positions 6 Position
Voltage 120 Volts
Amps 0.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 15-5

Description

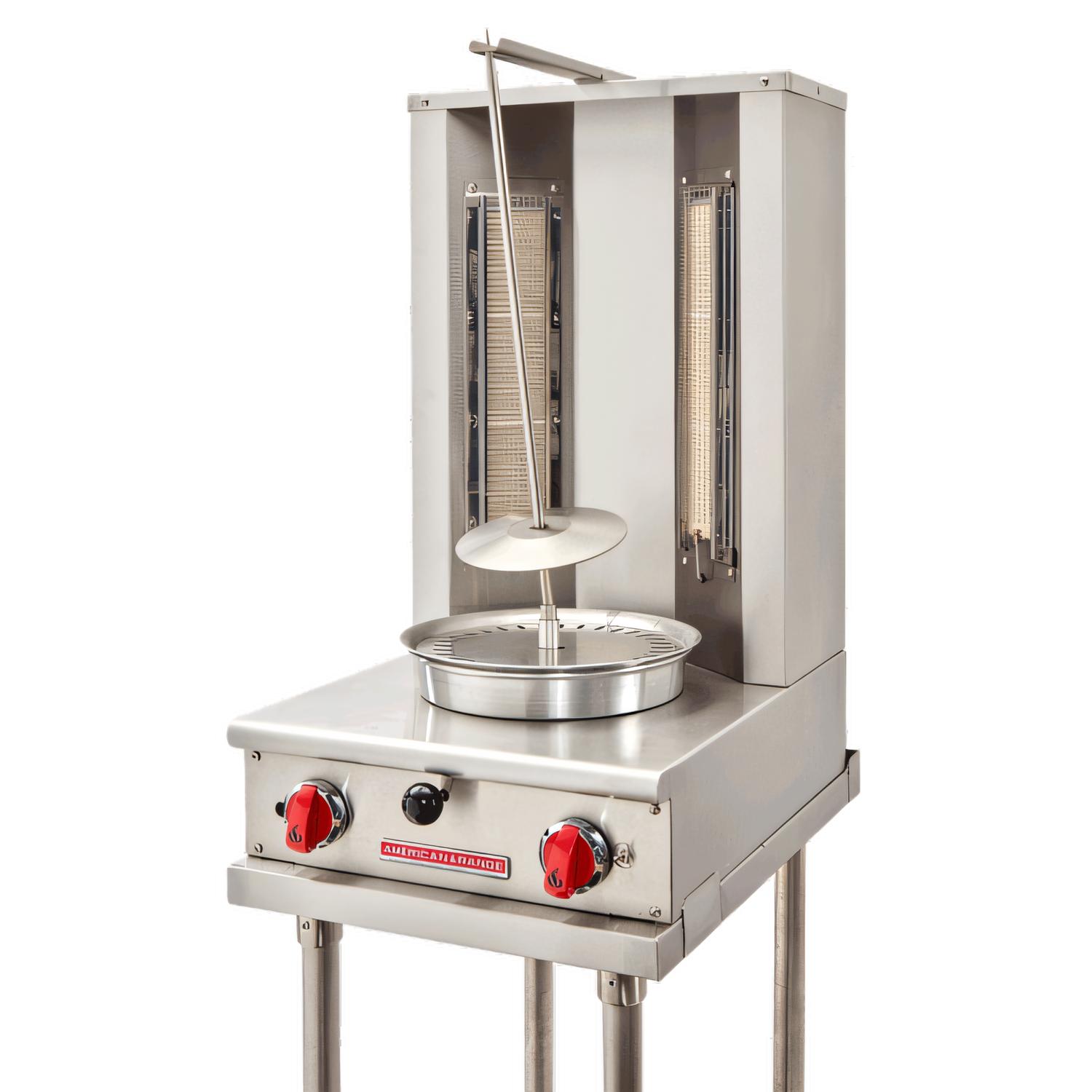

The American Range AVB-2 is a countertop gas vertical broiler with two 20,000 BTU/hr burners and individual manual valve controls.

Its front-to-back adjustable skewer has six positions and holds up to 65 lb. of product. A 15-inch-diameter grease pan slides front to back, while the stainless steel front, sides, and top support commercial kitchen use.

  • 40,000 BTU/hr total input
  • Front-panel toggle on/off switch
  • Gear motor for skewer rotation
  • 120 VAC electrical connection

Overall Dimensions:

20.0"W x 23.5"D x 34.0"H

Product Weight:

125.0 lb

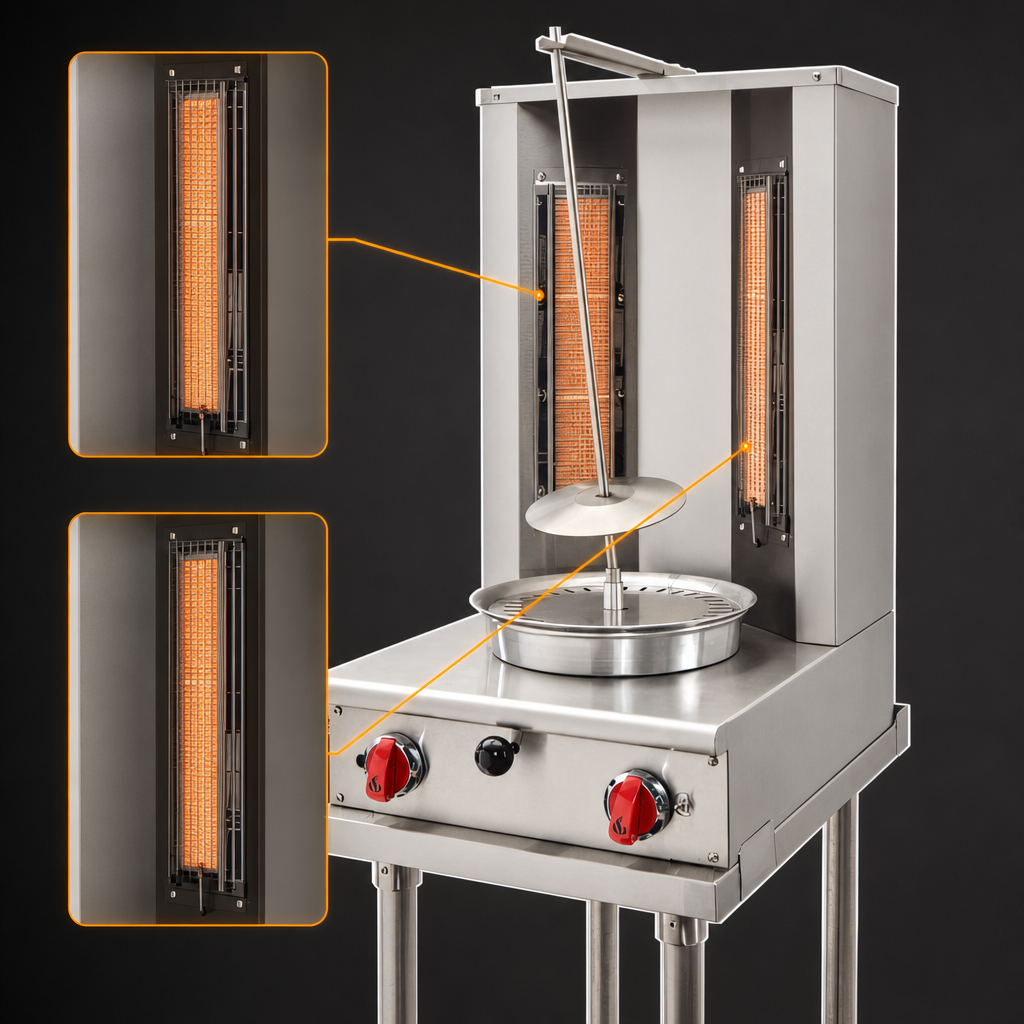

Dual Burner Design

Two gas burners rated at 20,000 BTU/hr each provide 40,000 BTU/hr total input.

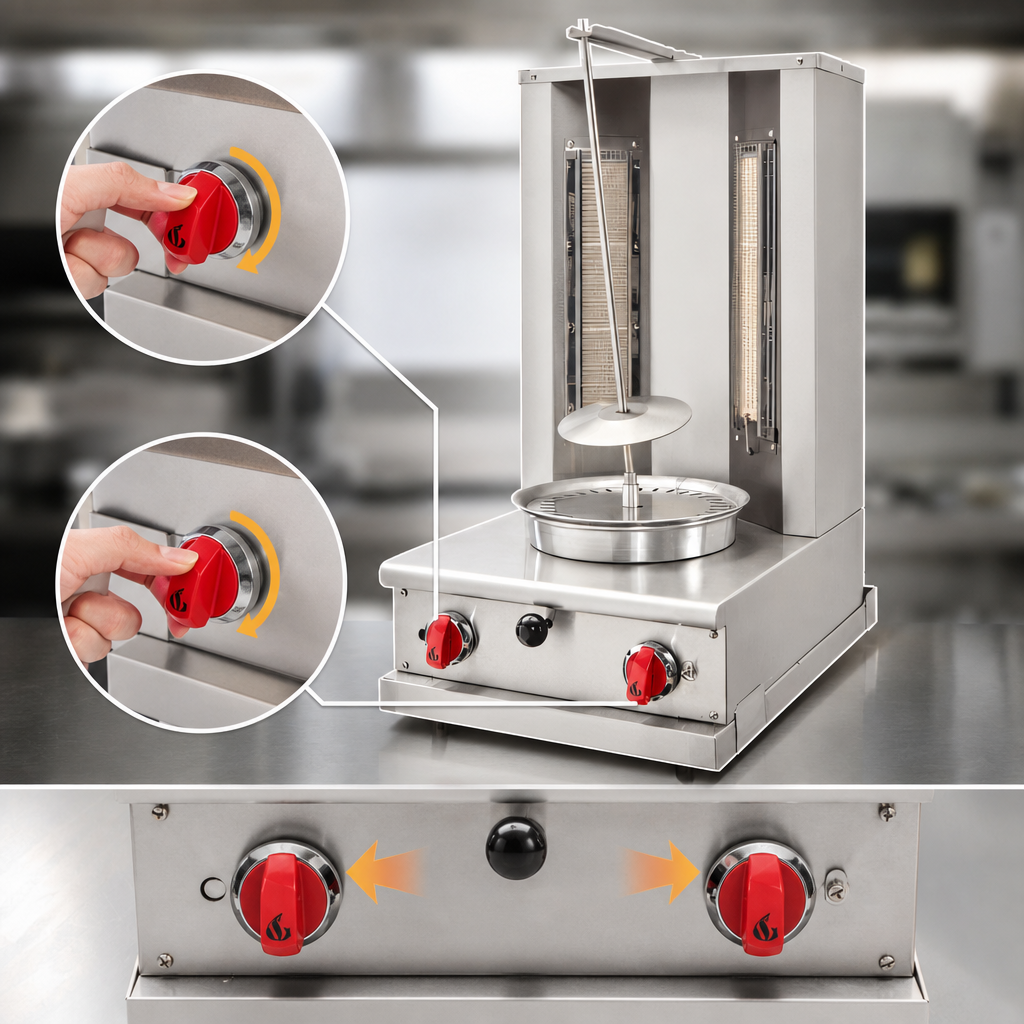

Manual Valve Controls

Each burner has its own manual valve control.

Six-Position Adjustable Skewer

The front-to-back skewer adjusts to six positions and holds up to 65 lb. of product.

Sliding Grease Pan

The 15-inch-diameter grease pan slides front to back.

Skewer Rotation

A gear motor provides skewer rotation.

Countertop Installation

The compact design is intended for counter installation.

Frequently Asked Questions

The skewer holds up to 65 lb. of product.
It has two gas burners, each rated at 20,000 BTU/hr.
Each burner has an individual manual valve control, and the front panel has a toggle on/off switch.
The unit is listed at 120 VAC, 0.6 amp, single phase, and 60 Hz, with a three-prong grounded NEMA 15-5 power cord.
The documentation identifies natural gas and LP gas options, but it does not specify a selected gas type for this product record.
The AVB-2 is 20 inches wide, 23.5 inches deep, and 34 inches high, with a listed weight of 125 lb.
