Key specifications

BTU
47,770 BTU
Gas Type
Natural Gas
Phase
1-Phase
Dimensions
23.0"W × 31.0"D × 47.0"H
Type
Vertical Broiler
Installation Type
Floor Model
Spec sheet
MVP Group SKU: AX-VB4

MVP Group Axis AX-VB4 4-Burner Vertical Broiler with 36" Spit

$2,197.69
/each
Estimated to ship in 4–7 business days
Gas Connector

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $203/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Vertical Broiler
Installation Type Floor Model
Material Stainless Steel
Gas Type Natural Gas
BTU 47,770 BTU
Burner Count 4
Burner Type Infrared
Controls Individual Burner Controls
Spit Length 36 Inches
Rotation Dual Direction
Drip Pan Size 24 x 31 Inches
Drip Pan Shape Octagonal
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

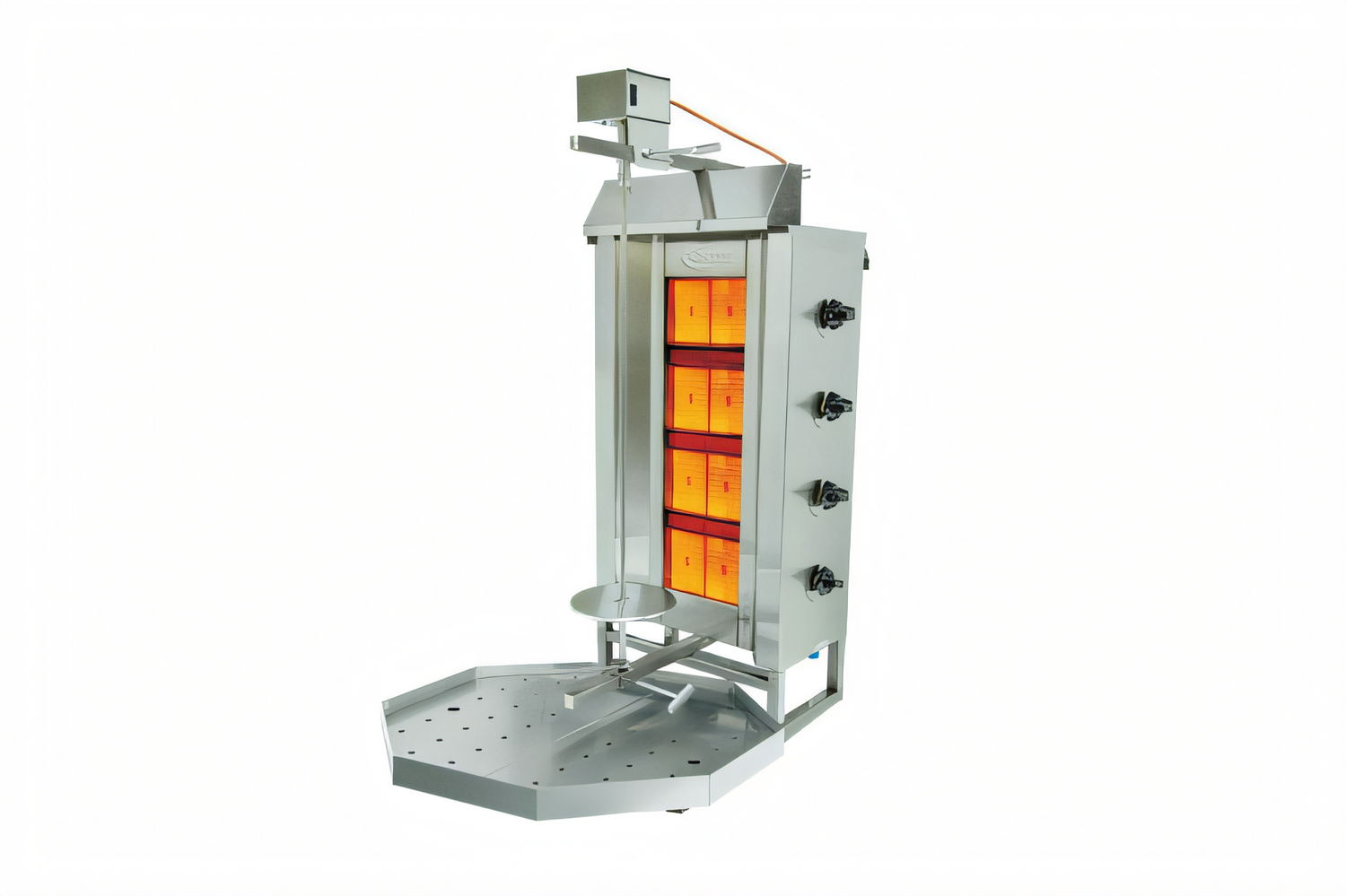

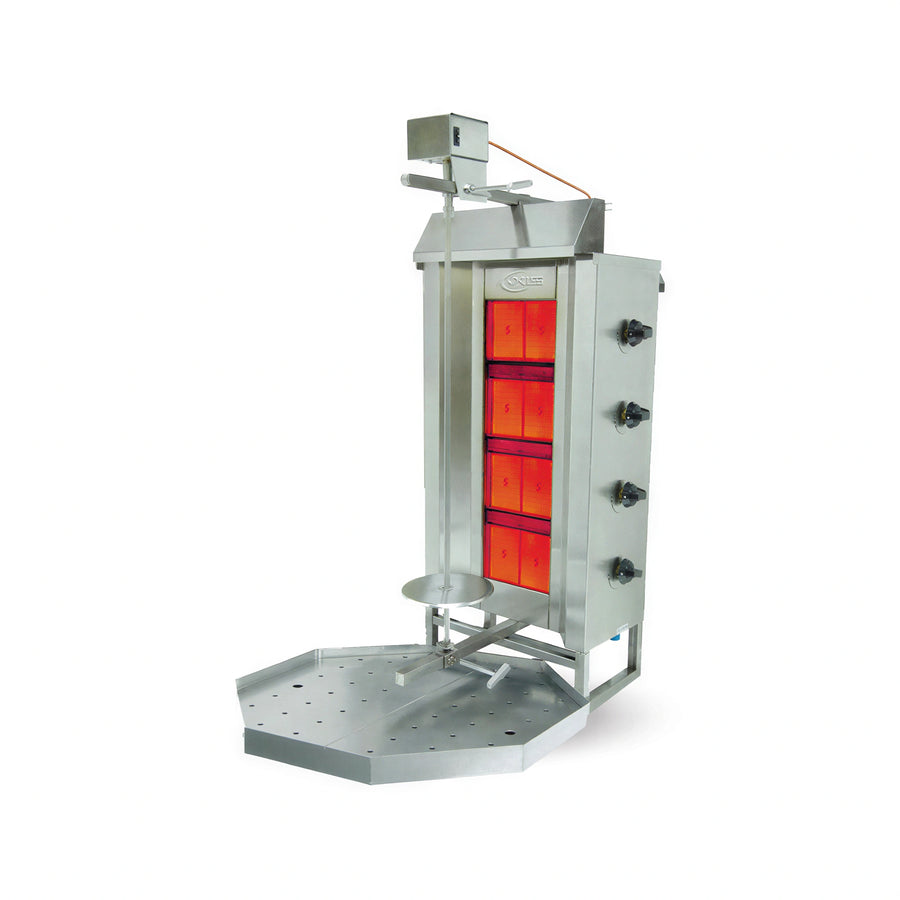

The AX-VB4 is a natural gas vertical broiler with four individually controlled infrared burners and a 36-inch adjustable rotating spit.

Its stainless steel body includes adjustable left and right heat deflectors, dual rails, a removable drip tray, and an enclosed motor. The unit includes a 24 x 31-inch octagonal drip pan and an LP conversion kit.

Electrical connection is 115 volts, 60 Hz, single phase, with a NEMA 5-15P cord.

Overall Dimensions:

23.0"W x 31.0"D x 47.0"H

Product Weight:

86.0 lb

Individual Infrared Burners

Four infrared burners operate independently with individual controls.

Adjustable Rotating Spit

The 36-inch spit is adjustable and supports dual-direction rotation.

Heat Deflectors

Adjustable heat deflectors are provided on the left and right sides.

Stainless Steel Body

The broiler has a stainless steel body.

Drip Management

A removable drip tray is included, along with a 24 x 31-inch octagonal drip pan.

Enclosed Motor

The motor is enclosed.

LP Conversion

An LP conversion kit is included.

Electrical Connection

The unit uses 115 volts, 60 Hz, single phase, with a NEMA 5-15P cord.

Frequently Asked Questions

The unit is specified for natural gas and includes an LP conversion kit. The cutsheet states that it can operate with LPG or natural gas.
It has four individually controlled infrared burners.
The adjustable rotating spit is 36 inches long.
The unit uses 115 volts, 60 Hz, single phase, and includes a cord with a NEMA 5-15P plug.
The unit includes a 24 x 31-inch octagonal drip pan and an LP conversion kit.
The product is listed with NSF and cETLus certifications.
