American Range ARGF-36G-4B-126L Gas Ranges
American Range ARGF-36G-4B-126L Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARGF-36G-4B-126L Gas Ranges
Description
American Range Green Flame 60" Gas Range
36" manual griddle • 4 open burners • standard + space-saver ovensBuilt in the USA for kitchens that won’t compromise on throughput or footprint, the Green Flame 60" range delivers 242,000 BTU of pilot-free power, precision-tuned for energy savings and faster recovery times. A heavy 1" thick griddle, four high-output burners, and two independent ovens give chefs the flexibility to sear, sauté, grill, bake, and roast from a single, rock-solid platform.
Top-side firepower

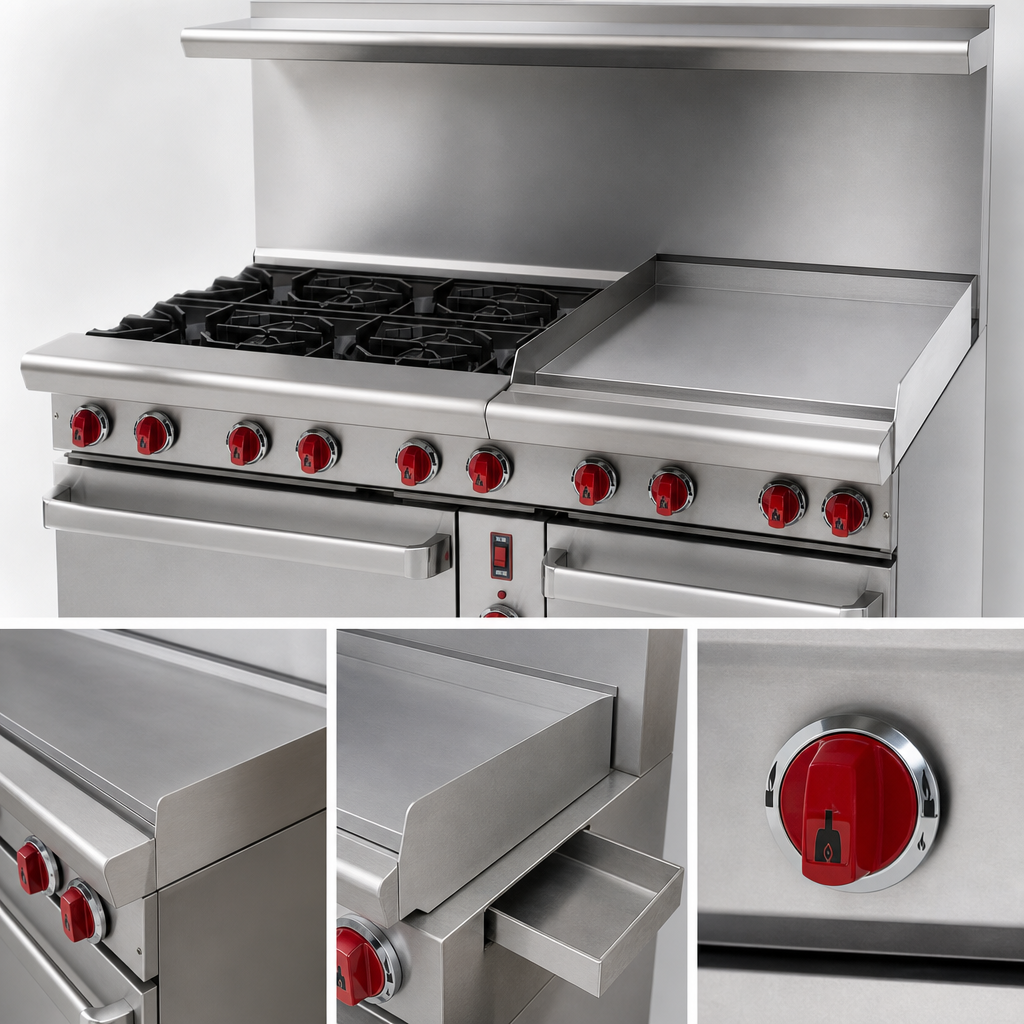

- 36" manual griddle with 1" thick steel plate & 3" grease trough
- (3) griddle burners – one every 12" – 20,000 BTU/hr each

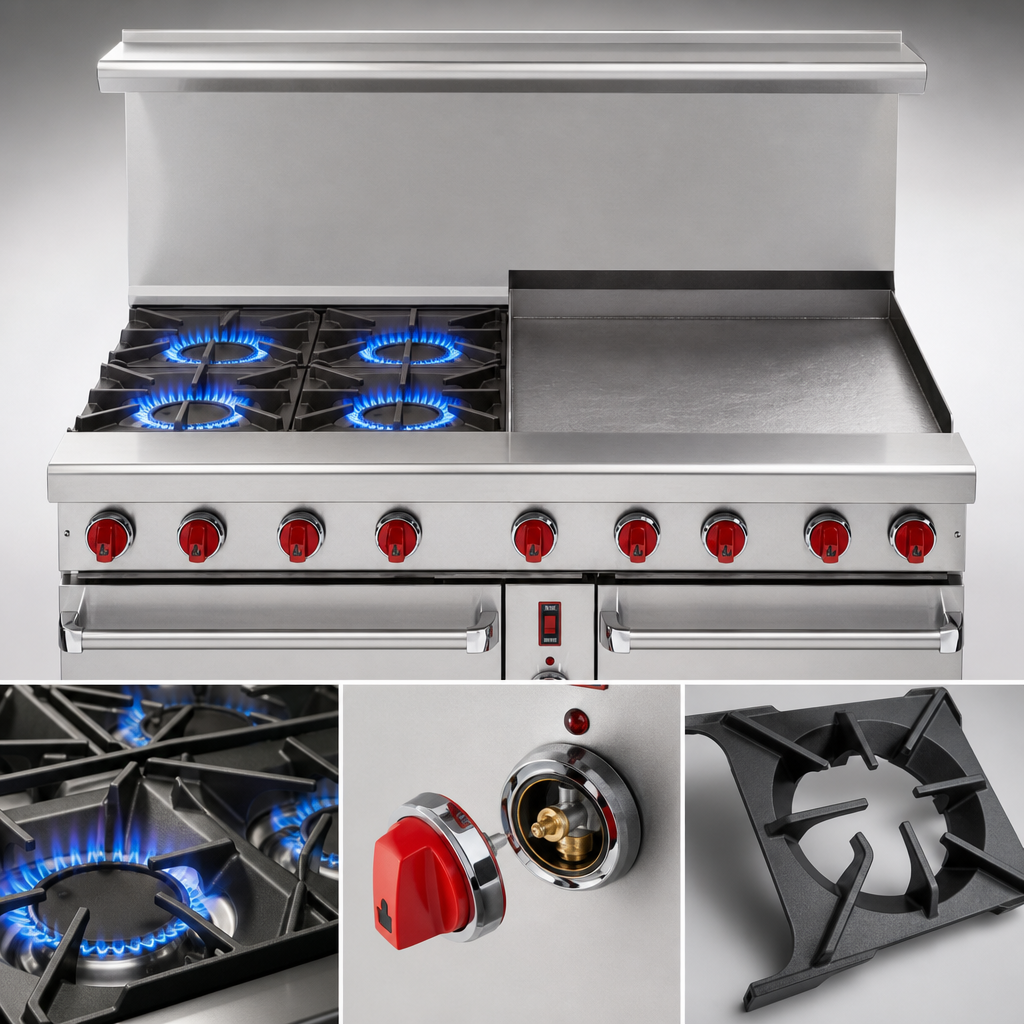

- (4) 25,000 BTU/hr open burners with 12" × 12" cast-iron grates
- Pilot-less electronic ignition on all burners for lower gas consumption & a cooler kitchen
- Full-width pull-out crumb/drip tray simplifies cleanup
Dual-oven versatility
- Left: 26-1/2" standard oven, 35,000 BTU/hr steel burner
- Right: 20" space-saver standard oven, 27,000 BTU/hr steel burner
- Thermostatic control 250 °F – 500 °F (121 °C – 260 °C)
- Porcelain enamel interiors & inside door panels for easy wipe-down
- Spring-assisted, counter-balanced doors – stay open at any angle
- (2) chrome-plated racks supplied per oven; multiple slide positions
- 100 % safety gas shut-off & electronic ignition – no standing pilots
Kitchen-ready construction
- All-stainless front, sides & 6" deep landing ledge
- 6" adjustable chrome-plated legs (casters optional)
- Choose your backsplash at no extra charge: 6" stub back, 20" low riser, or 24" high riser with shelf
- Rear ¾" NPT gas connection; pressure regulator supplied
- Pilotless ignition system requires one 120 V, 1-ph, 15 A receptacle (cord included)
Performance & dimensions
| Total input | 242,000 BTU/hr • 71.0 kW |
|---|---|
| Width × Depth | 60" (1524 mm) × 32-1/2" (826 mm) |
| Cooking surface height | Approx. 36" (914 mm) with legs levelled |
| Shipping weight | ≈ 765 lb (347 kg) |
| Gas pressures | Natural 5.0" W.C. | LP 10.0" W.C. |
| Gas inlet size | ¾" NPT (rear, right-hand side) |
| Electrical | 120 V / 1 ph / 15 A (electronic ignition) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & built in the USA |
Why Green Flame?
- Pilot-free ignition slashes idle gas usage up to 35 %* and keeps kitchens cooler
- Cool-touch burner knobs and stay-lit indicator LEDs improve crew safety
- Same legendary American Range build quality—just greener and more economical
*Based on internal laboratory testing versus traditional standing-pilot ranges.
Warranty
Backed by a two-year parts & labor warranty and supported by a nationwide network of authorized service agents. Register your unit within 90 days of shipment to unlock additional coverage.
