American Range  |  SKU: ARGF-12G-2B

American Range ARGF-12G-2B Gas Ranges

$7,082.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

American Range Green Flame 24" Gas Range – 12" Griddle & 2 Open Burners

Model ARGF-12G-2B | Natural or LP Gas

Pack maximum productivity into a 24-inch footprint. The American Range Green Flame series merges a heavy-duty 1" thick griddle, two high-performance open burners, and a full-size space-saver oven—delivering 97,000 BTU of total output with pilot-less electronic ignition throughout.

Highlights

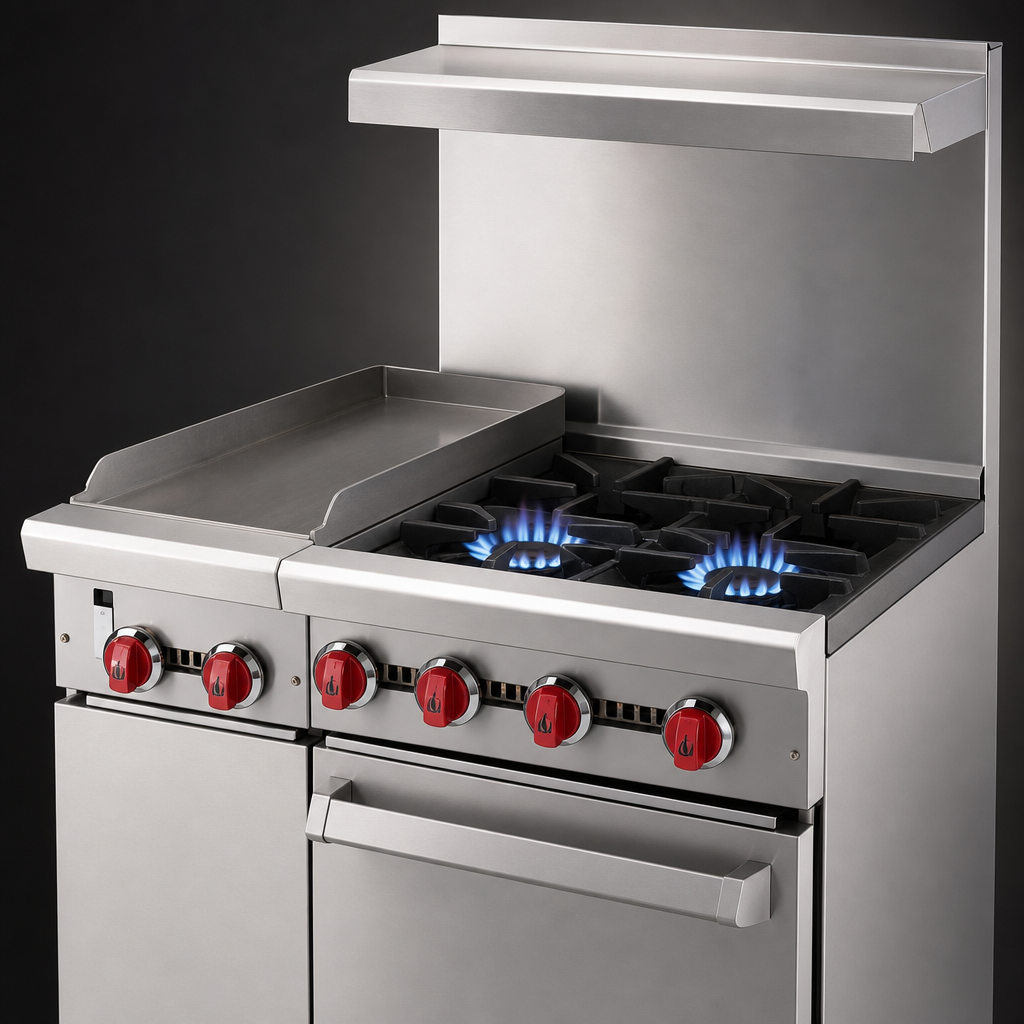

  • Two 25,000 BTU open burners with electronic ignition & lift-off cast-iron grates.

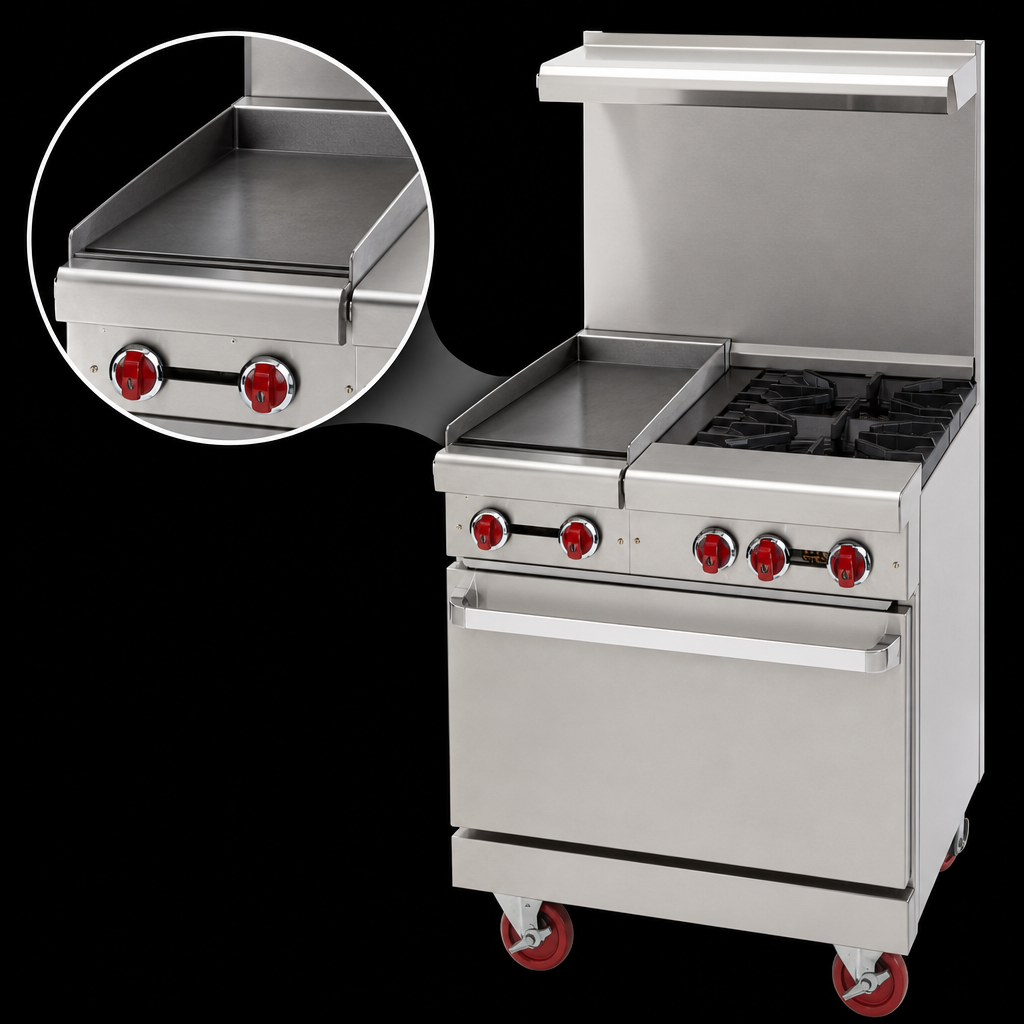

  • 12" × 24" griddle plate (1" thick) on the left; 20,000 BTU burner every 12".
  • Standard 20" oven, 27,000 BTU, thermostatic 250 °F–500 °F; porcelain interior for easy cleaning.
  • Includes two chrome-plated oven racks; four rack positions.
  • Manual front-panel gas valves with signature red die-cast knobs.
  • Stainless steel front, sides, landing ledge & kick plate—built to withstand daily commercial use.
  • Choice of 20" high shelf & riser, 6" high riser, or 6" stub-back at no extra charge.
  • 6" chrome-plated, adjustable legs for quick leveling.
  • Certified cETLus & ETL-Sanitation; designed and built in the USA.
  • Backed by a two-year limited parts & labor warranty.
Power Breakdown
  • Open burners: 2 × 25,000 BTU = 50,000 BTU
  • Griddle: 20,000 BTU
  • Standard oven: 27,000 BTU
  • Total input: 97,000 BTU/hr (28.0 kW)
Specifications
Width 24" / 610 mm
Depth (overall) 34" / 864 mm
Cook-top height 36" / 914 mm with 6" legs
Overall height 56" / 1,422 mm with 20" riser
Griddle size 12" W × 24" D × 1" thick steel
Oven cavity 20" W × 23" D × 13-1/2" H; porcelain-coated
Rack positions 4 (2 racks supplied)
Gas connection 3/4" NPT rear; 5" WC Nat / 10" WC LP
Electrical 115 V, 1-phase, 15 A (3-prong cord included) – electronic ignition
Shipping weight Approx. 330 lb / 150 kg
Popular Options & Accessories
  • Set of four 6" swivel casters (front two locking)
  • Full storage-cabinet base in place of oven
  • Additional chrome oven racks
Important: Specify gas type (Natural or Propane) and altitude (over 2,000 ft) when ordering. Unit must be installed under an approved ventilation system and in accordance with local codes.

Need a custom configuration? Contact American Range for build-to-order solutions.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

36.0in

Width

24.0in

Depth

32.5in

Shipping Weight

245.0lbs

Base

(1) space saver oven

Vent

backriser with hi-shelf

Top

(2) open burners, (1) 12" griddle

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Specifications

Green Flame Range, gas, 24", (1) 12" griddle on left, 1" thick plate, manual controls, (2) 22,000 BTU open burners, (1) 20" standard space saver oven, (2) racks, pilotless burner, griddle and oven ignition systems, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 28.0kW, 97,000 BTU, cETLus, ETL-Sanitation, Made in USA
