Wells (Middleby)  |  SKU: WVU-96

Wells (Middleby) WVU-96 Ventless Hood Systems

$67,809.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Extended warranty Warranty Approval application Getting started check list Owner's manual Middleby financial flyer Demonstration form Warranty sheet
Related Searches
Hoods & Ventilation Ventless Hood Systems

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

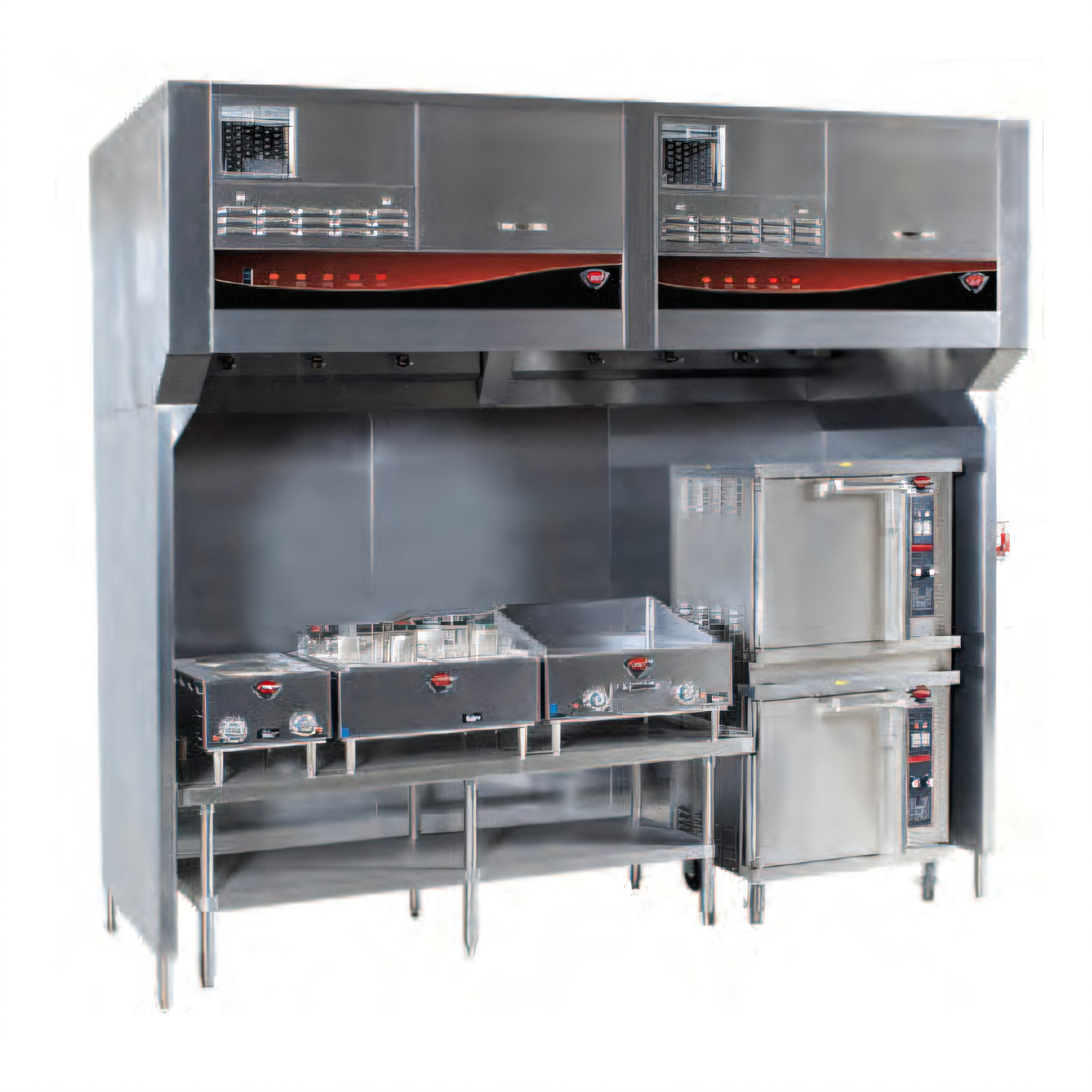

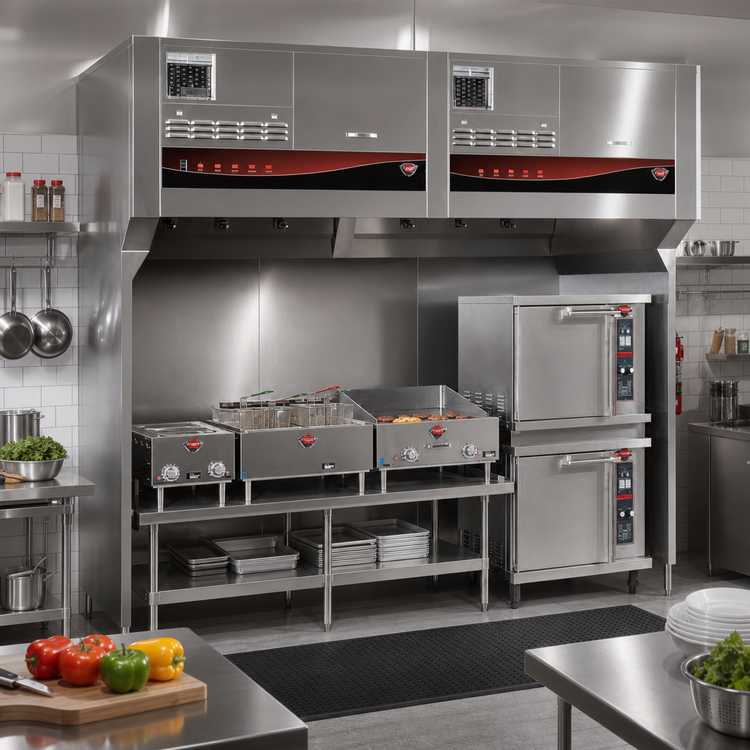

Wells WVU-96 Universal Ventless Hood

96" cooking zone • 4-stage recirculating filtration • Built-in ANSUL® R-102

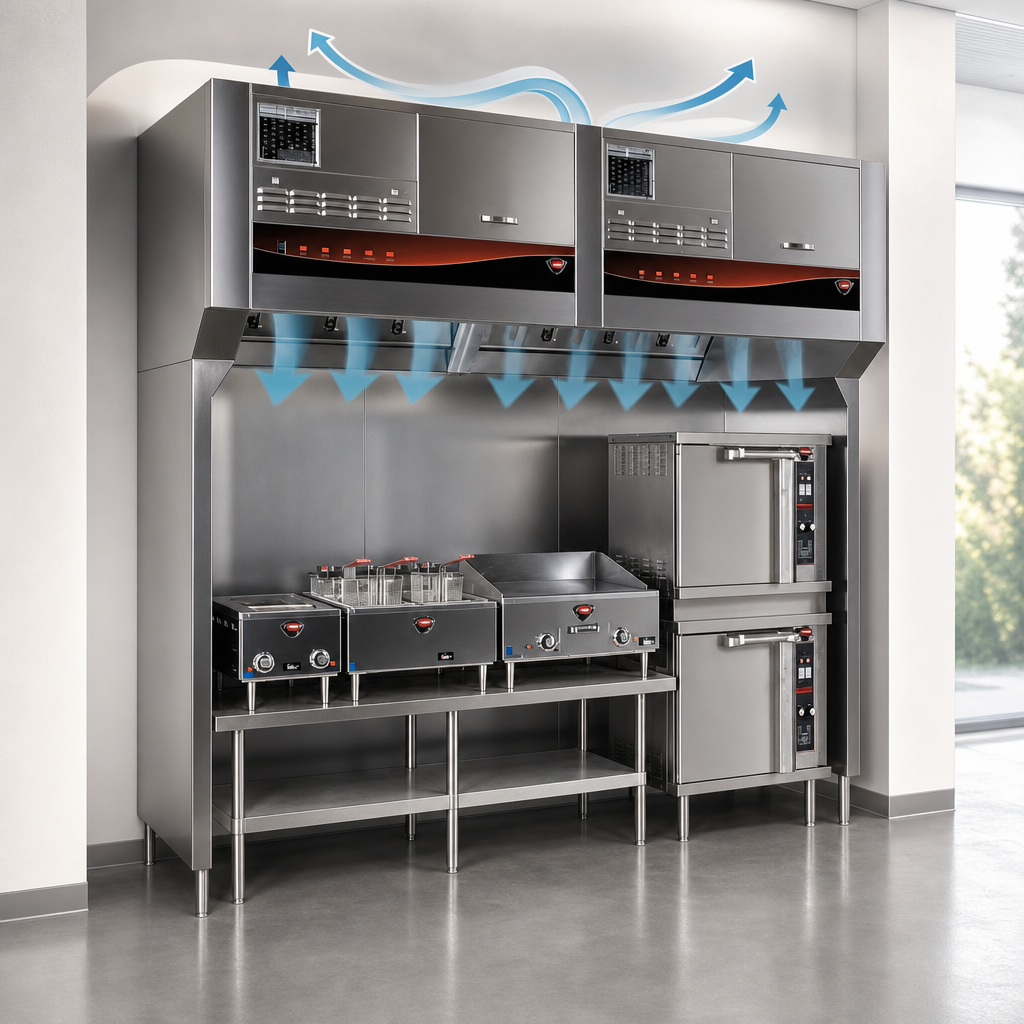

Bring a code-compliant kitchen anywhere—no roof penetrations, no costly duct work. The Wells WVU-96 delivers 3,000 CFM of Type-1 certified ventilation in a single, self-contained package complete with fire suppression and intelligent safety interlocks.

Key Features
  • UL 710B & NSF/ANSI 2 certified Type-1 recirculating hood – no external exhaust required.

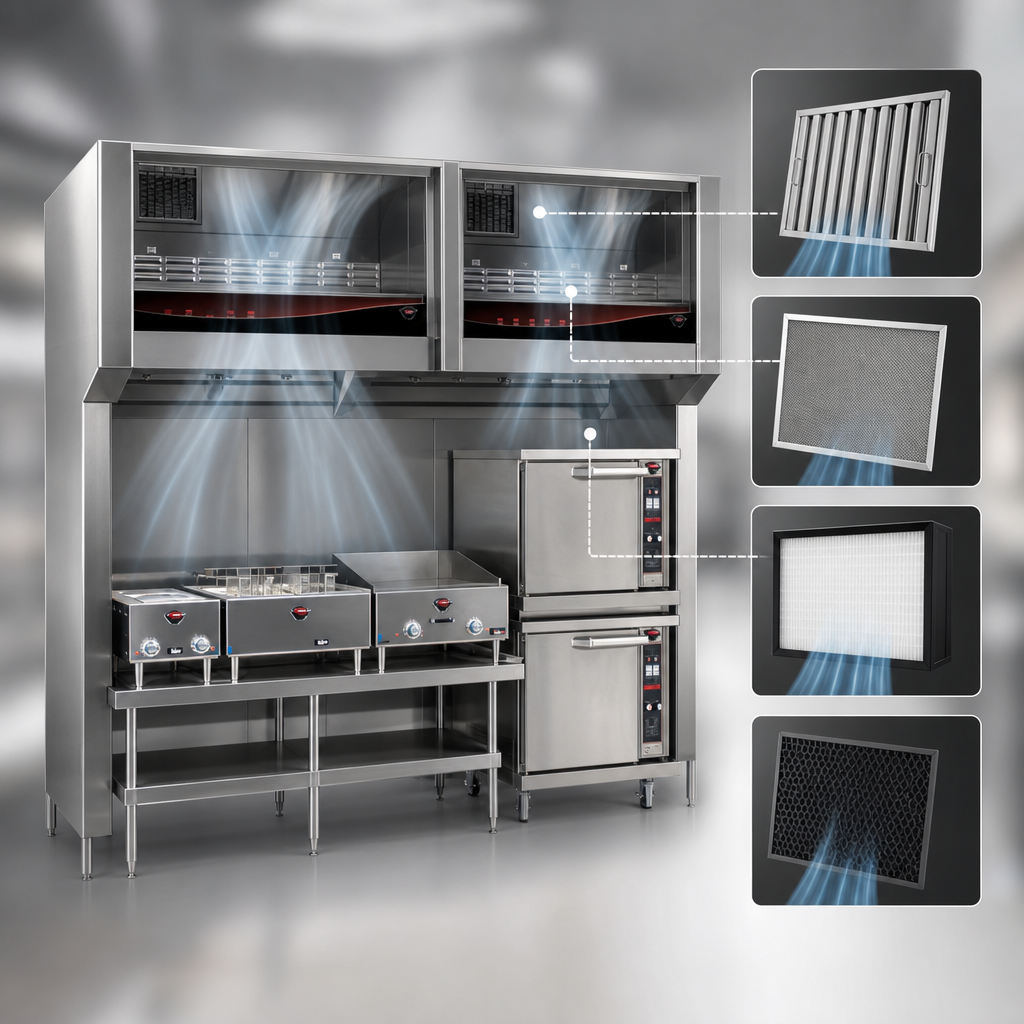

  • 4-stage filtration: stainless grease baffle, fiberglass pre-filter, true HEPA filter, and activated-carbon pack.
  • Factory-installed ANSUL® R-102 system with manual pull station and appliance-shutoff interface.
  • Airflow sensors disable cooking equipment if airflow drops or a filter is missing.
  • 3,000 CFM horizontal discharge (field-convertible to vertical in minutes).
  • (6) cool-white LED work lights (≈3,000 lumens total, 6000 K) brighten the entire cooking zone.
  • All-stainless construction, sanitary welded seams, and 6"–8" adjustable legs.
  • Ships through a standard 36" doorway; stand is movable—perfect for leased spaces.
  • Accepts multiple electric appliances such as fryers, griddles, ovens, combis & more (see manual).
Specifications
Model WVU-96
Cooking zone width 96 in (2.44 m)
Electrical 208/240 V, 1-phase, 60 Hz, 8 A
Motor power 1.5 HP
Airflow 3,000 CFM (recirculating)
Grease emissions ≤ 0.024 lb/hr/ft² (EPA 202)
Filtration stages Grease baffle • Pre-filter • HEPA • Carbon
Lighting 6 × 495 lm LED, 6000 K
Discharge Horizontal (factory) – field convertible to vertical
Overall dimensions 120" W × 60" D × 73.5" H (3048 × 1524 × 1869 mm)
Installed weight 1,366 lb (553 kg)
Shipping weight 2,004 lb (911 kg)
Certifications UL Classified • cULus • NSF/ANSI 2 • UL 710B
Warranty 1-year parts & labor (extend to 2-years with part #UVWARR or approved Middleby equipment)
Replacement Filters
  • Pre-filter – part #22618 (4 required)
  • HEPA/Carbon filter pack – part #23312 (2 required)

The control panel’s illuminated indicator notifies you when filters need service.

What’s Included
  • Ventless hood assembly with blower, filters & electronic control panel
  • Stainless-steel stand with 6"–8" adjustable legs
  • Uncharged ANSUL® R-102 fire suppression system (tank, cartridge, piping, nozzles, sensors, pull station)
  • Installation/operation manual
Installation & Compliance Notes
  • Electric appliances only; gas charbroilers & smokers are not permitted under ventless hoods.
  • A licensed ANSUL® distributor must charge & tag the fire system after installation.
  • Provide ≥1,600 CFM of make-up air to the room for optimal odor dilution.
  • Owner is responsible for permits, clearances, electrical interlocks & local code compliance.
NON-RETURNABLE: Each Wells ventless hood is built to order. Confirm equipment compatibility and local code requirements prior to purchase—all sales are final.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus Classified, UL Classified

Height

120.0in

Width

113.9in

Depth

50.0in

Shipping Weight

2004.0lbs

Specifications

Universal Ventless Hood, 96" cooking zone, horizontal air discharge, 4-stage filtration: grease filter, pre-filter, HEPA filter and charcoal filter, (6) LED lights, stainless steel stand, self contained ANSUL® R-102 system, Certified Type-1 compliant, 1-1/2 HP, UL Classified, cULus Classified, US (NON-RETURNABLE Item) (For replacement filters, this model requires (4) Pre-filters (22618) & (2) HEPA Charcoal Filter Packs (23312)) (Note: field convertible to vertical air discharge)
