Moffat VH32 Ventless Hood Systems

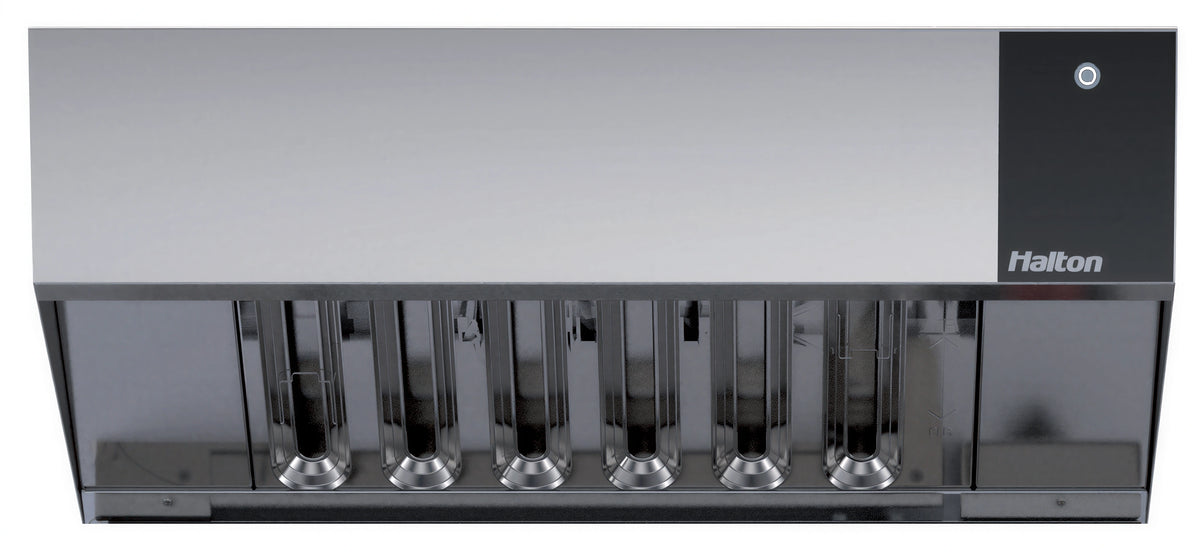

Turbofan VH32 Ventless Condensing Hood

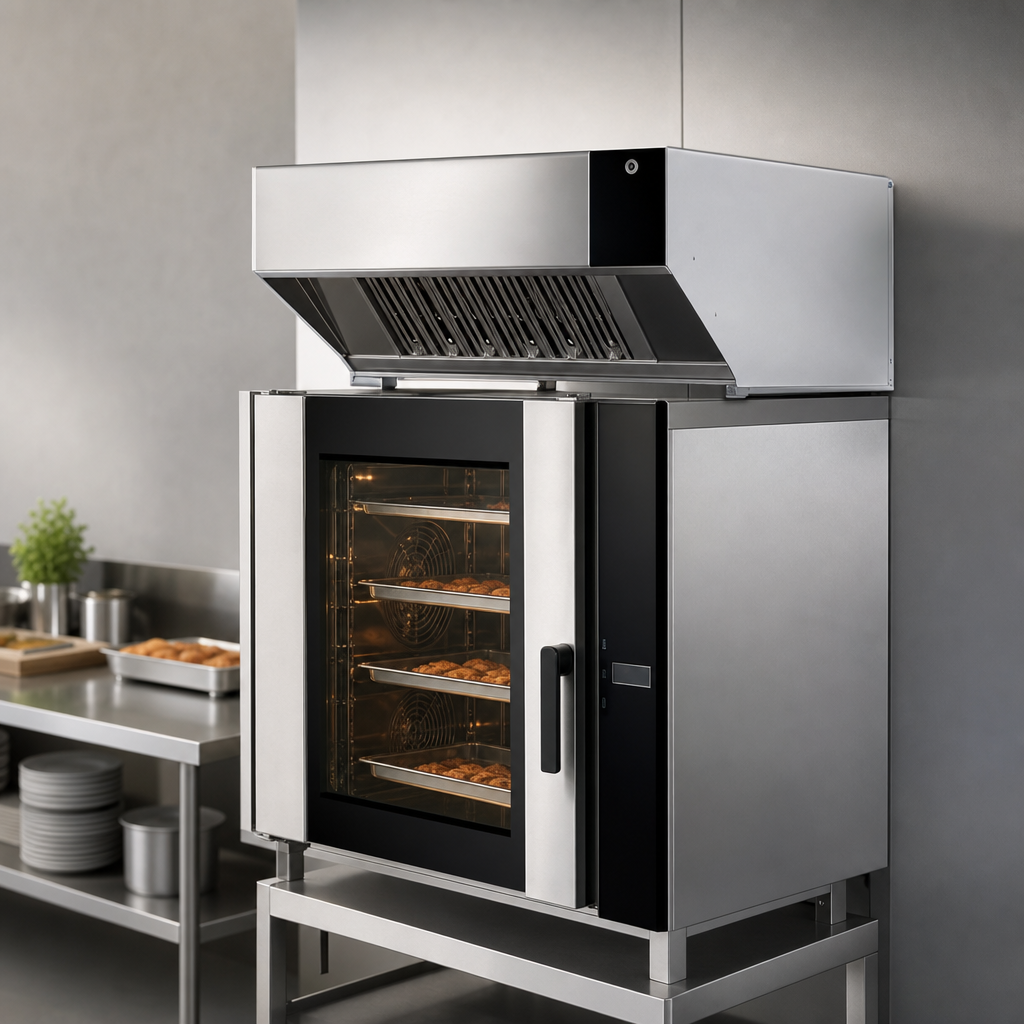

Bring the power of a full commercial hood wherever you install your Turbofan E32D5. The VH32 Ventless Condensing Hood captures grease, steam and odors right at the oven, eliminating the need for costly ductwork while keeping your kitchen cooler, cleaner and fully code-compliant.

Key Benefits

• Ventless design removes the cost and space of a traditional canopy.
• EPA 202 compliant < 5 mg/m³ grease-laden effluent.
• UL 197 & NSF/ANSI 2 certified for assured health and safety compliance.
• Triple-stage filtration: removable grease baffle, removable mesh filter, replaceable charcoal odor filter.
• Integrated condensing heat exchanger reduces heat emissions into the kitchen.
• Self-contained condensate pan—no water line needed.
• Remote drain option with 6 ft (1.8 m) hose for hands-free condensate disposal.
• Automatic two-speed extraction fan:
  • Low speed during baking for quieter, energy-efficient operation.
  • High speed when the oven door opens or 10 s before the cook cycle ends.
• Oven-to-hood interlock: the E32D5 will not operate unless the hood is running.
• All-stainless-steel construction—manufactured by Halton exclusively for Moffat.
• Plug-and-play 110–120 V, 1-phase connection (NEMA 5-15P cordset included).

What’s Included

• VH32 Ventless Condensing Hood
• VHIK32 installation kit:
  • Oven interlock wiring harness
  • Four 4 in. oven feet
  • Condensate collection pan & housing
  • Rear shroud and stand securing plate
• 6 ft (1.8 m) 3/8 in. OD condensate drain hose
• Installation & user manual

Technical Specifications

Replacement charcoal filter: part #H11715
