Summit Commercial HC24WWADA Under Cabinet Range Hood, 24 in, ADA Compliant, Convertible, White, 270 CFM

SKU: HC24WWADA
$225.50
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Equipment Facility & Ventilation Equipment Home Chef Kitchen Appliances New Arrivals Residential Range Hood Summit Commercial

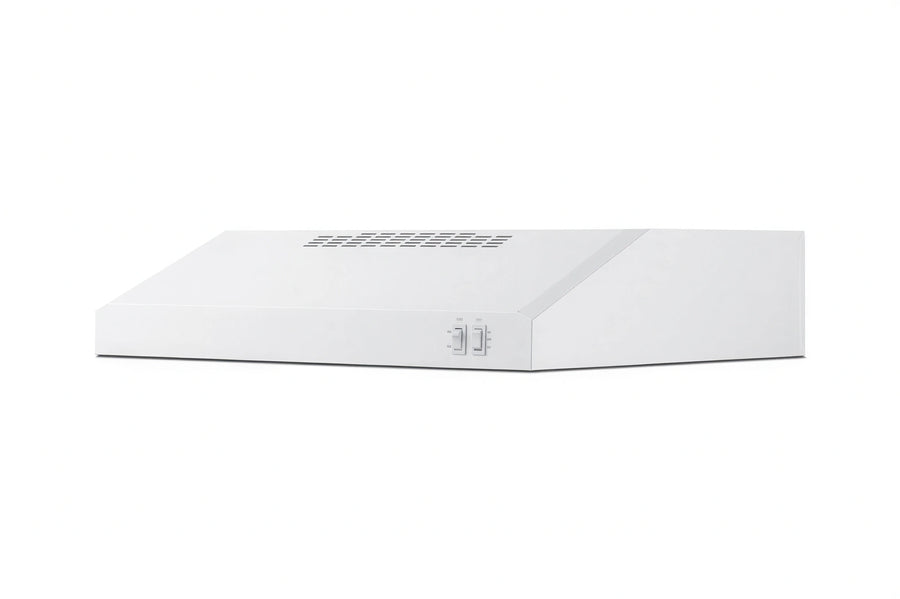

The Summit Commercial HC24WWADA is a white under-cabinet range hood designed for ADA-compliant use over 24-inch cooking surfaces. Its convertible design supports ducted or recirculating ventilation, with a 270 CFM blower and flexible venting options.

  • ADA-compliant design with wall-switch operation for improved accessibility
  • Convertible for ducted or recirculating installation
  • Combination charcoal and aluminum mesh filter
  • Multi-speed fan and rocker switch controls
  • Designed to be hard-wired
  • Incandescent light bulb required; bulb is not included

Overall Dimensions:

23.88"W x 20.0"D x 5.5"H

Product Weight:

15.0 lb

ADA-compliant design

Designed for operation from a wall switch for improved accessibility.

Convertible ventilation

Supports ducted ventilation to the exterior or recirculating operation.

Flexible venting

Accepts 3-1/4-inch x 10-inch vertical or horizontal exterior venting, or 7-inch round vertical venting with a transition.

270 CFM blower

Provides maximum air movement of 270 CFM.

Filtration

Uses a combination charcoal and aluminum mesh filter.

Multi-speed fan

Provides multi-speed fan operation.

Hard-wired installation

Designed to be hard-wired.

Lighting

Uses an incandescent light bulb, which is not included.

Installation Under cabinet
Operation Convertible: ducted or recirculating
Airflow 270 CFM
Venting 3-1/4 in x 10 in vertical or horizontal exterior; 7 in round vertical with transition
Filter Combination charcoal/aluminum mesh
Fan speeds Multi-speed
Controls Rocker switch
Lighting Incandescent bulb; not included
Electrical 115 V / 60 Hz / 1 phase
Current 1.7 A
Finish White
Application Residential
Country of manufacture Made in North America
Trade compliance TAA compliant
Noise level 6 sones

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product page PDF Download

Frequently Asked Questions

Yes. It supports ducted ventilation to the exterior or recirculating operation.
It supports 3-1/4-inch x 10-inch vertical or horizontal exterior venting, or 7-inch round vertical venting with a transition.
It has rocker switch controls and an ADA-compliant design intended for wall-switch operation.
The blower provides 270 CFM maximum air movement.
No. An incandescent light bulb is required and is not included.
Yes. The product is designed to be hard-wired.
