Description

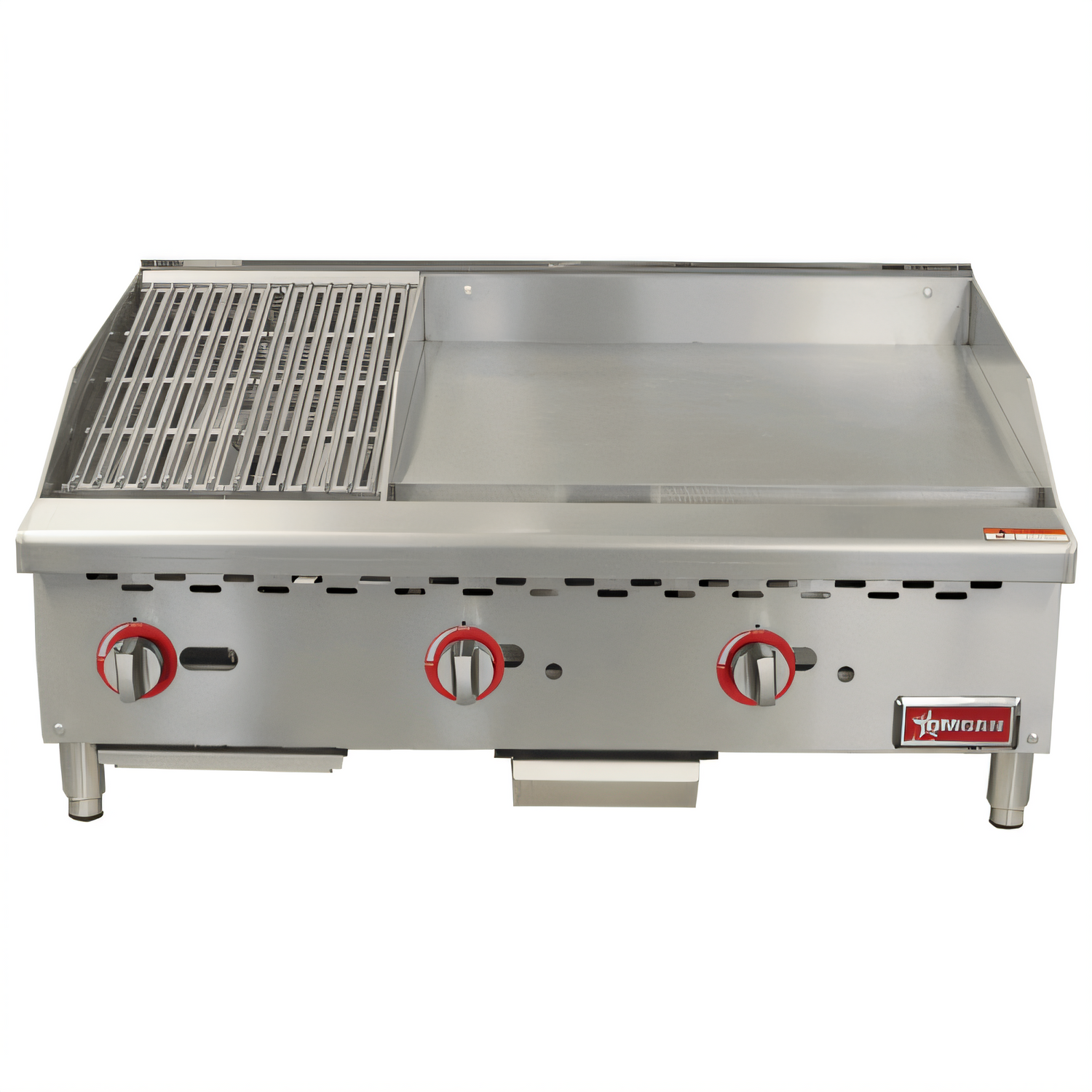

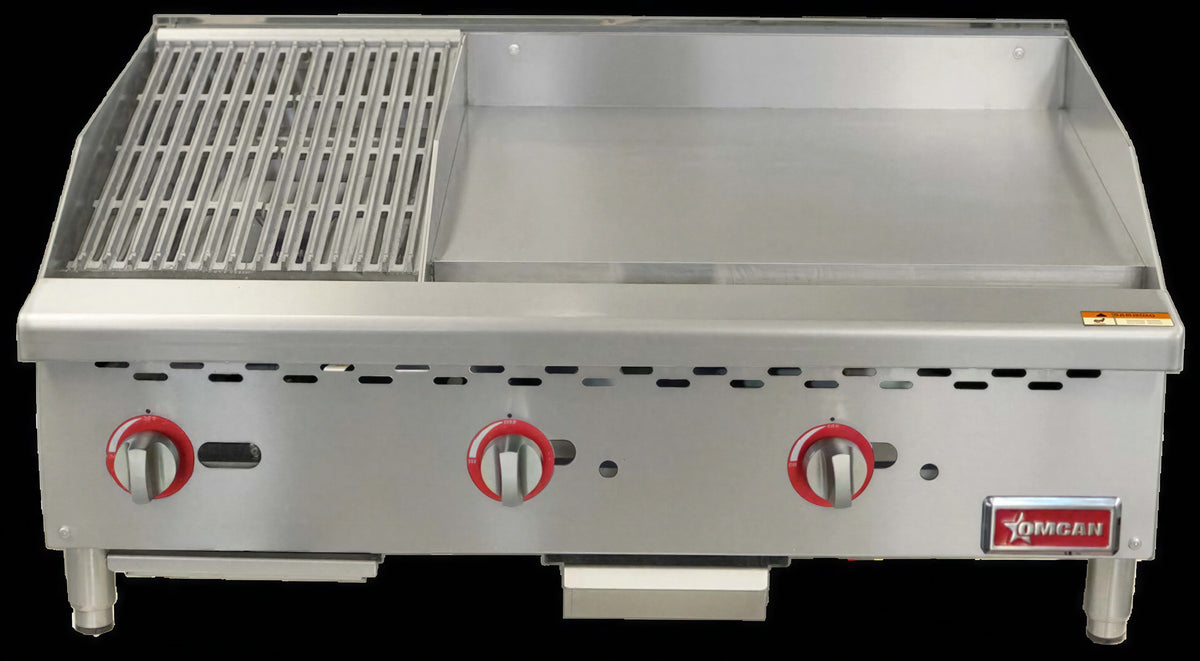

Omcan CE-CN-12C24G Countertop Gas Griddle & Charbroiler Combo – 36"

95,000 BTU • Natural Gas • cCSAus & CSA-Sanitation Certified

Double your cooking capacity without sacrificing a single inch of line space. The Omcan CE-CN-12C24G marries a powerful 24" steel griddle with a 12" cast-iron charbroiler, allowing you to sear, grill, and griddle — all at once, right from the countertop.

Key advantages

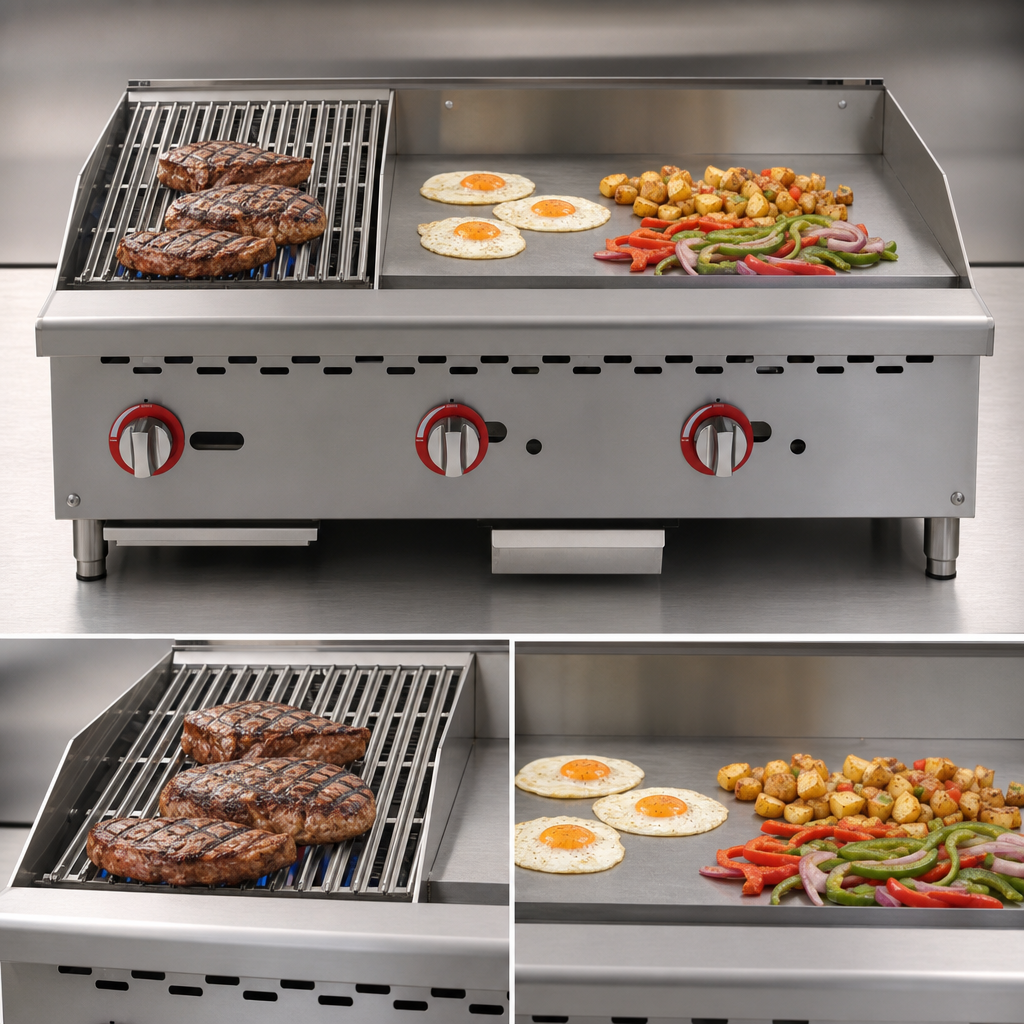

  • Two zones in one unit: 24" griddle + 12" charbroiler.
  • High-output burners provide a combined 95,000 BTU for rapid heat recovery.

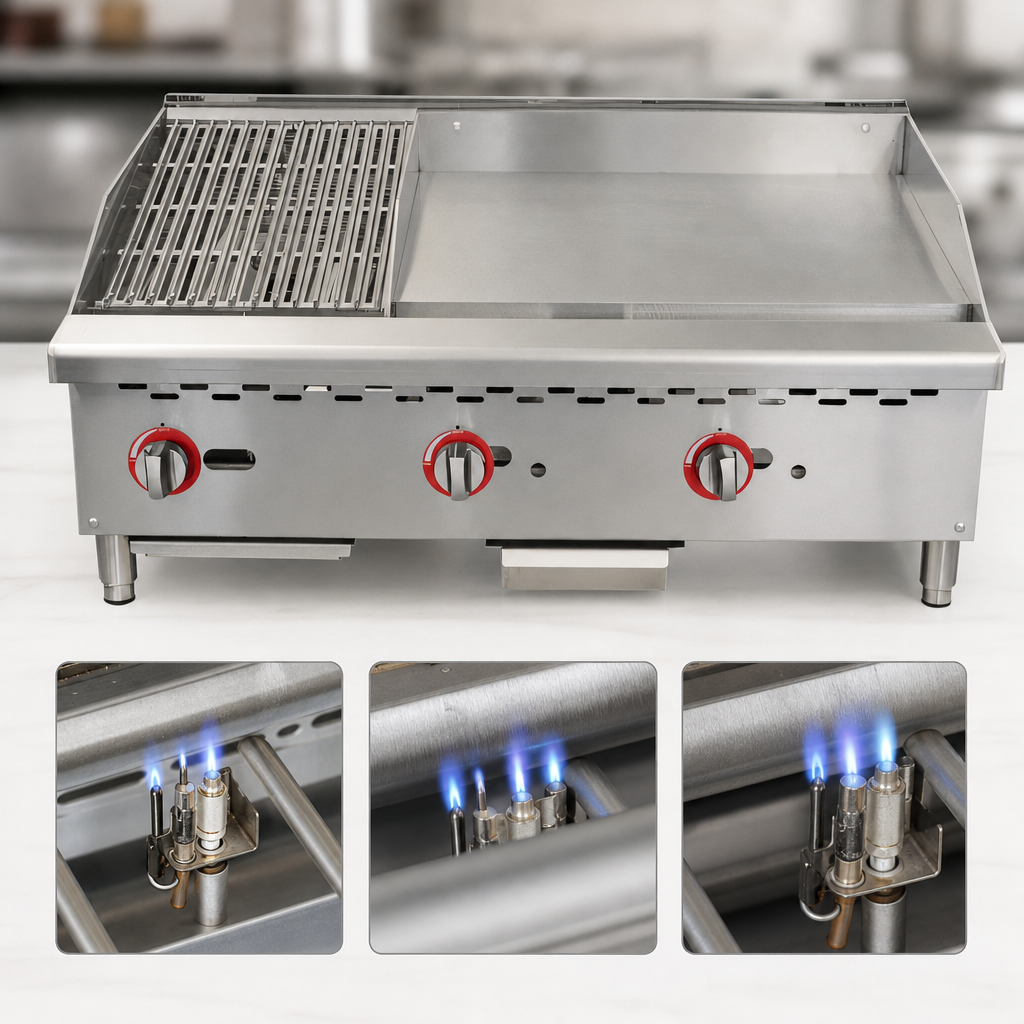

  • Standing pilot ignition with front-access adjustable pilot light for quick start-ups.
  • Three independent manual controls let you fine-tune each burner.
  • Cool-to-the-touch stainless front edge enhances operator safety.
  • Adjustable stainless steel non-skid feet keep the unit level and secure.
  • Ships ready for natural gas; simple orifice swap converts to LP—no kit required.
  • Fully certified: cCSAus, CSA Flame, CSA Star, and CSA-Sanitation.

Specifications

Model / Item # CE-CN-12C24G / 48296
Cooking surfaces Griddle: 24" × 20.6"
Charbroiler: 12" × 20.6"
Total BTU 95,000 BTU/h
Burners / Controls 3 manual controls, standing pilot
Gas connection Natural Gas, ¾" NPT rear (convertible to LP)
Exterior dimensions 35.8" W × 28.8" D × 15.5" H (910 × 731 × 394 mm)
Net weight 209 lb (95 kg)
Construction Stainless steel front & sides, cast-iron grates, steel griddle plate
Certifications cCSAus, CSA Flame, CSA Star, CSA-Sanitation
Warranty 1 year parts & labour

Perfect for

  • Restaurants & bistros with limited line space
  • Food trucks & concession stands
  • Hotel, resort & banquet kitchens
  • Breakfast diners looking to speed up ticket times

Optional NG/LP orifices (AI783, AI784, AI799, AI800) sold separately.

Features & Specs

Manufacturer

Omcan USA

Certifications

cCSAus, CSA-Sanitation, CSA Star, CSA Flame

Height

16.0in

Width

36.0in

Depth

29.0in

Shipping Weight

265.0lbs

Griddle Plate Finish

steel

Griddle Area

24"W x 21"D griddle area

Width (side - side) OA

36"

Griddle Controls

manual controls

Broiler area

12"W x 21"D broiler area

Specifications

(CE-CN-12C24G) Griddle/Char-Broiler Combination, countertop, natural gas, 36" wide x 29" deep frame, (1) 24" x 20-3/5" griddle plate, (1) 12" x 20-3/5" charbroil surface, standing pilot ignition system, adjustable front pilot light, stainless steel front edge, adjustable stainless steel non-skid feet, (3) manual controls, 95,000 BTU, cCSAus, CSA-Sanitation, CSA Flame, CSA Star
