Micro Matic USA UCM-4-SSKR Draft Beer & Wine Dispensers
$1,182.65
Unit price
/
Unavailable
Description

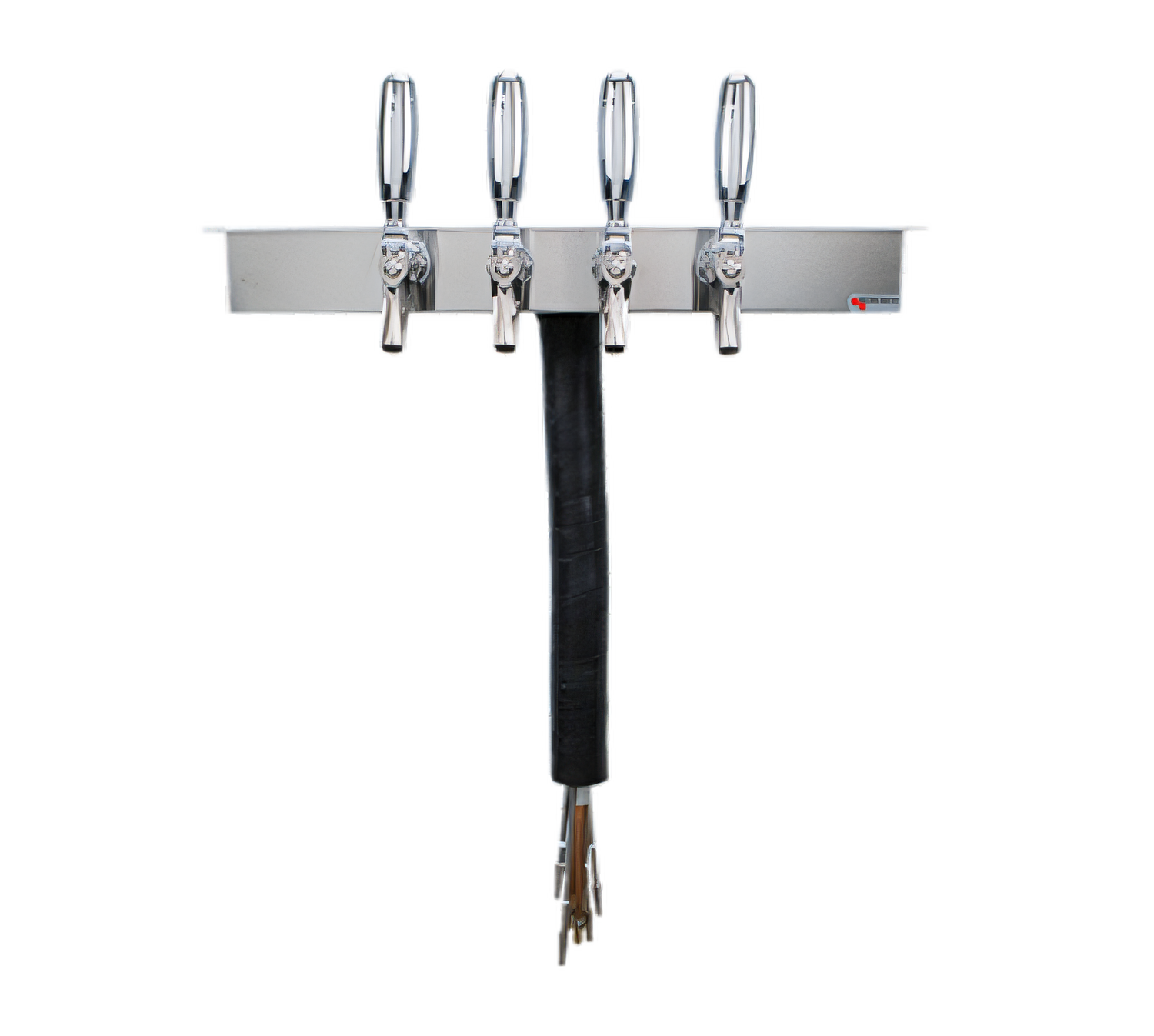

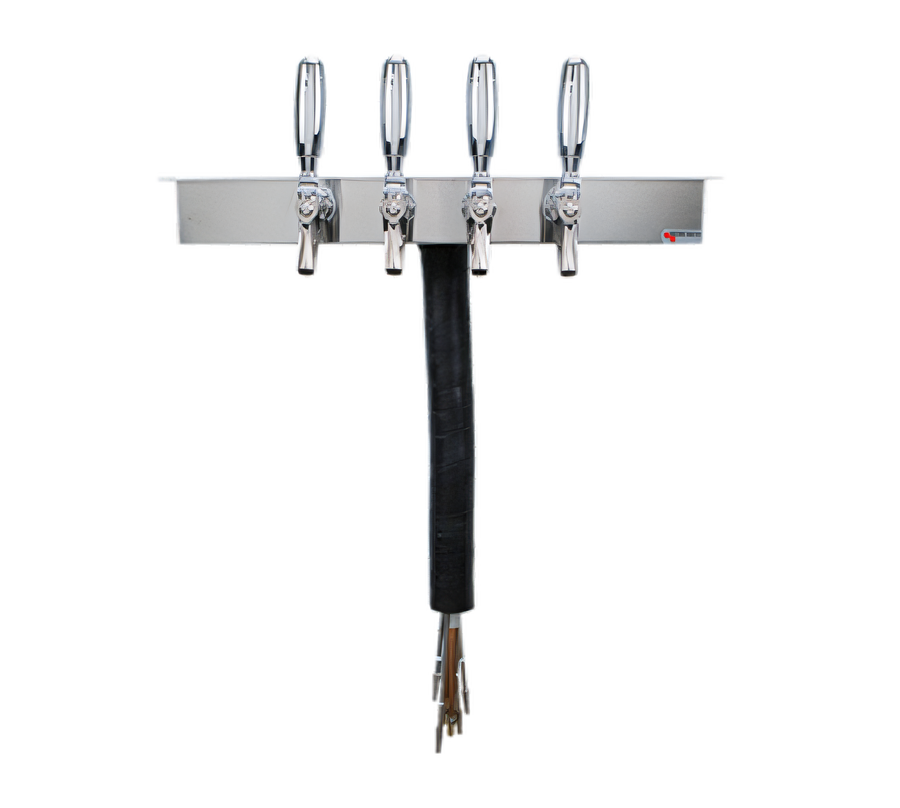

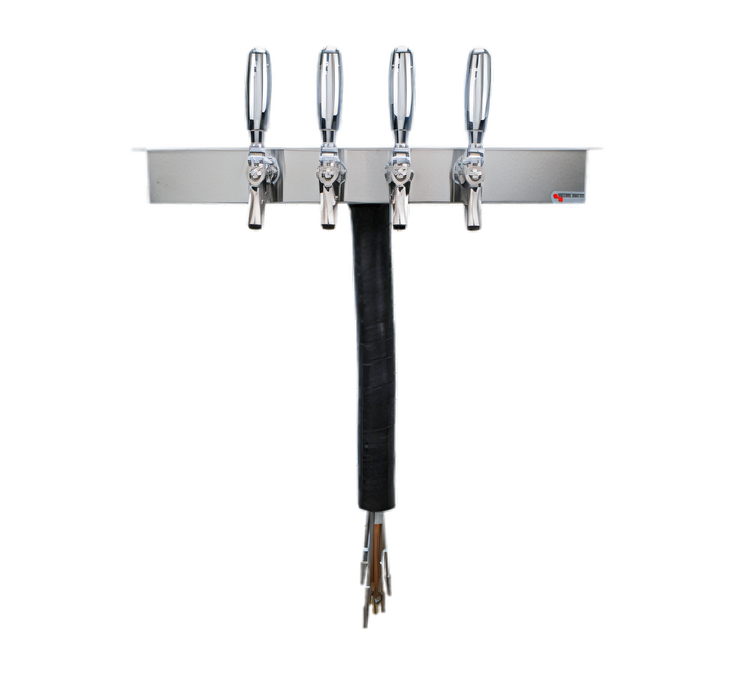

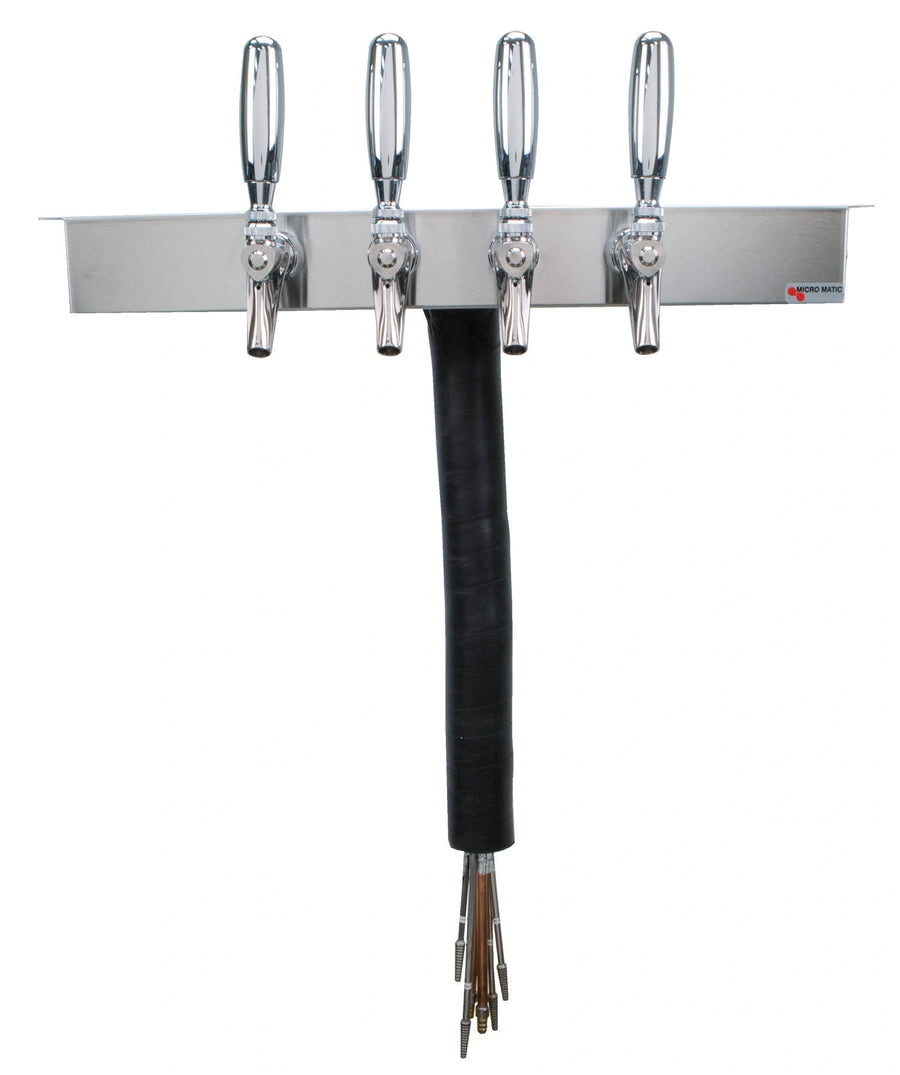

Micro Matic UCM-4-SSKR Undercounter Draft Beer Dispenser
4-faucet | Kool-Rite™ glycol-cooled | brushed 304 stainless steelFree up precious bar-top real estate without sacrificing pour quality. The UCM-4-SSKR mounts discreetly beneath the counter, delivering perfectly chilled beer through four stainless-steel faucets while keeping your service area sleek and clutter-free.
Why You’ll Love It

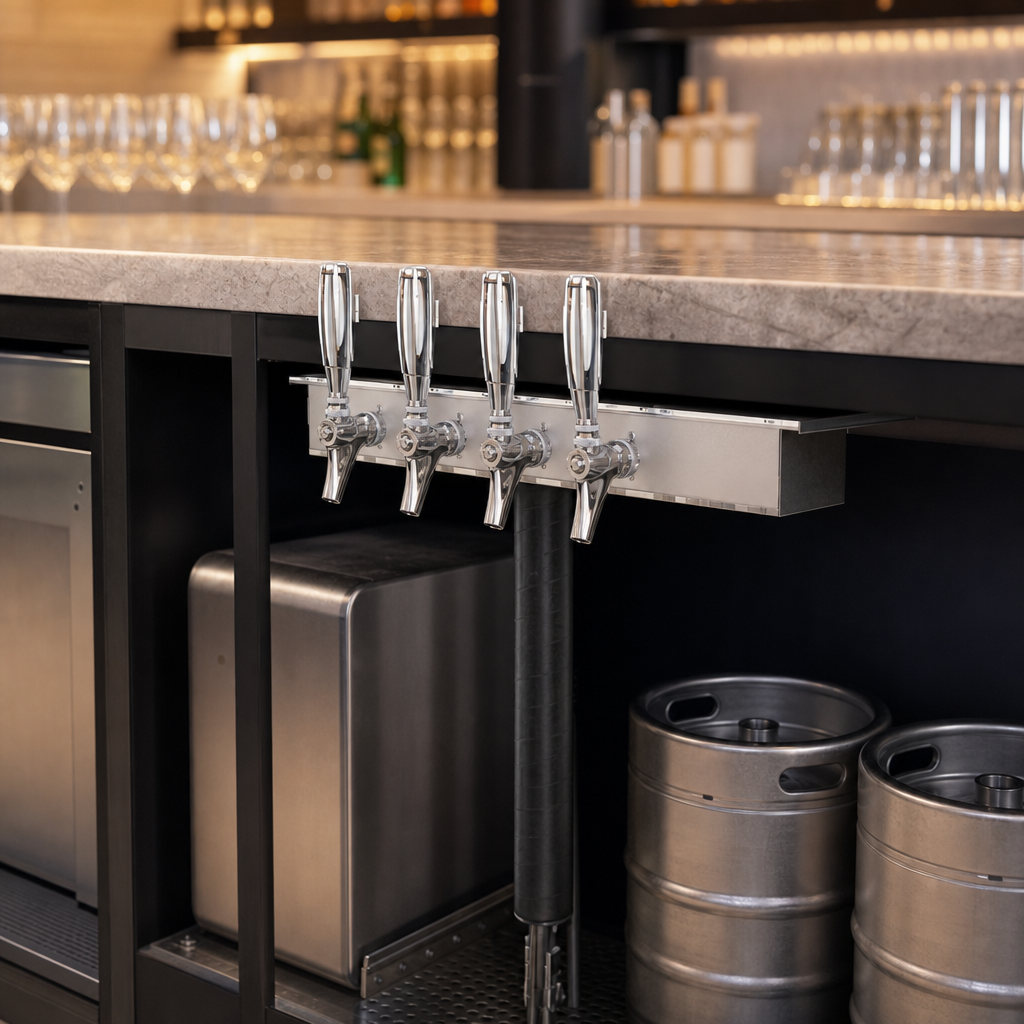

- Space-saving 2 ½ in. body height installs flush to the underside of the bar.
- Kool-Rite™ glycol cooling module maintains beer temperature right at the point of dispense for consistently crisp pours.
- Full 304 stainless-steel beer contact—faucets, lines and leak-proof shanks—for unbeatable purity and corrosion resistance.
- Four stainless faucets on 3 in. centers maximize serving speed during peak hours.
- 36 in. factory-assembled product lines minimize on-site labor—just plug ‘n’ pour.
- Integrated mounting flanges simplify installation and ensure a rigid, wobble-free tower.
- Durable brushed stainless finish hides fingerprints and matches modern bar décor.
Technical Specifications
| Model | UCM-4-SSKR |
|---|---|
| Total Faucets | 4 × 304 SS (handles not included) |
| Cooling Method | Kool-Rite™ glycol-cooled integrated module |
| Overall Width | 21 ½ in. (547 mm) |
| Body Height | 2 ½ in. (64 mm) |
| Center-to-Center Faucet Spacing | 3 in. (76 mm) |
| Beer Lines (factory installed) | 4 × 36 in. ¼ in. O.D. 304 SS with ¼–⅜ in. tapered barbs |
| Coolant Lines | 3⁄8 in. O.D. copper with 3⁄8 in. barbs (glycol loop) |
| Construction / Finish | Brushed 304 stainless steel body, flange & cover plate |
| Mounting | Undercounter with integrated stainless flanges (hardware not included) |
| Warranty | 1-year limited manufacturer warranty |
Quick Installation Guide
- Position tower under bar and secure through pre-drilled flange holes.
- Connect glycol trunk line to 3⁄8 in. copper coolant loop.
- Attach product lines to keg couplers and perform pressure/leak test.
- Flush, sanitize, and you’re ready to pour.
Faucet handles, keg couplers, regulators, and glycol chiller sold separately.
Features & Specs
Features & Specs
Manufacturer
Micro Matic USA
Cooling Type
glycol cooled
Column Finish
stainless steel
Column Qty
1 column
Faucet Capacity
4 faucets
Mounting
underbar
Specifications
Draft Beer Dispenser, underbar, 21-1/2"W x 2-1/2"H, glycol-cooled (Kool-Rite™ integrated module), (4) 304 stainless steel faucets (handles not included), 3" OC, 304 stainless steel product lines & leak-proof shanks, copper coolant lines, includes integrated mounting flanges, brushed stainless steel finish
