Micro Matic USA D7743PVDKR T Style Draft Beer & Wine Dispensers
$1,221.86
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Micro Matic USA D7743PVDKR T Style Draft Beer & Wine Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Micro Matic USA D7743PVDKR T Style Draft Beer & Wine Dispensers
$1,221.86
Unit price
/
Unavailable
Description

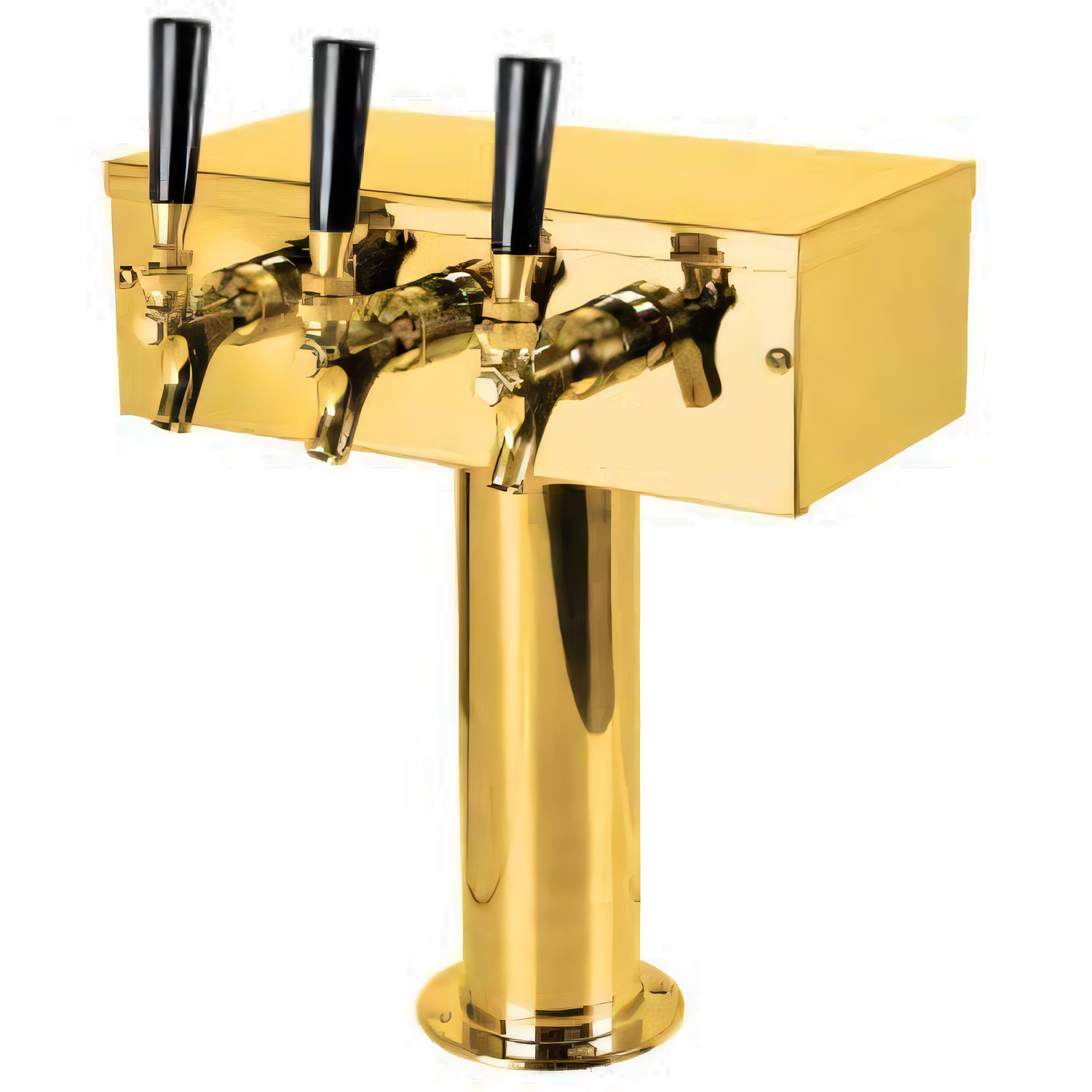

T Style 3-Faucet Draft Beer Tower – PVD Brass, Glycol-Cooled
Model D7743PVDKR | Kool-Rite™ Integrated ModuleShowcase three varieties on tap with brilliant brass flair and rock-solid chilling performance. Engineered by Micro Matic, this slim 12" T-box and 3" column command attention while delivering the purest pour.

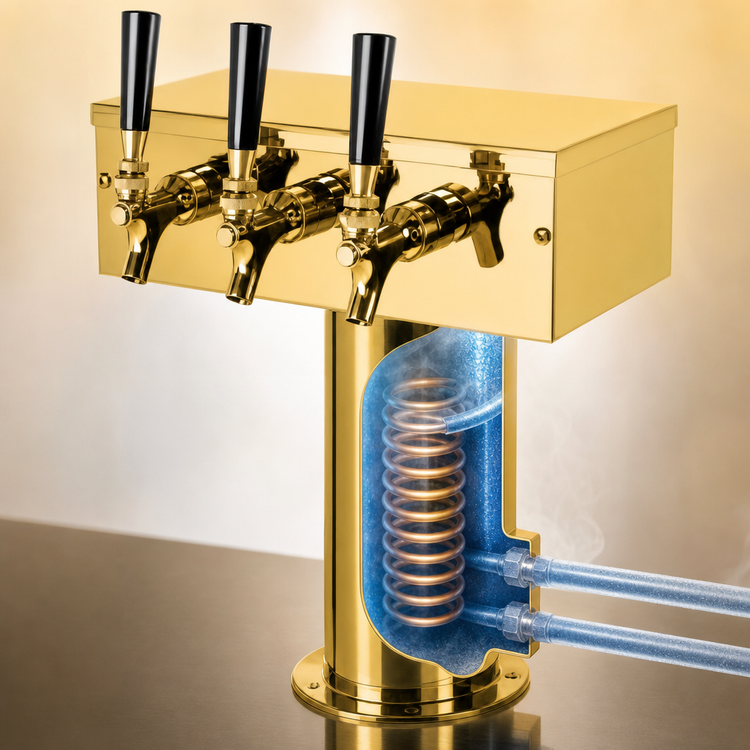

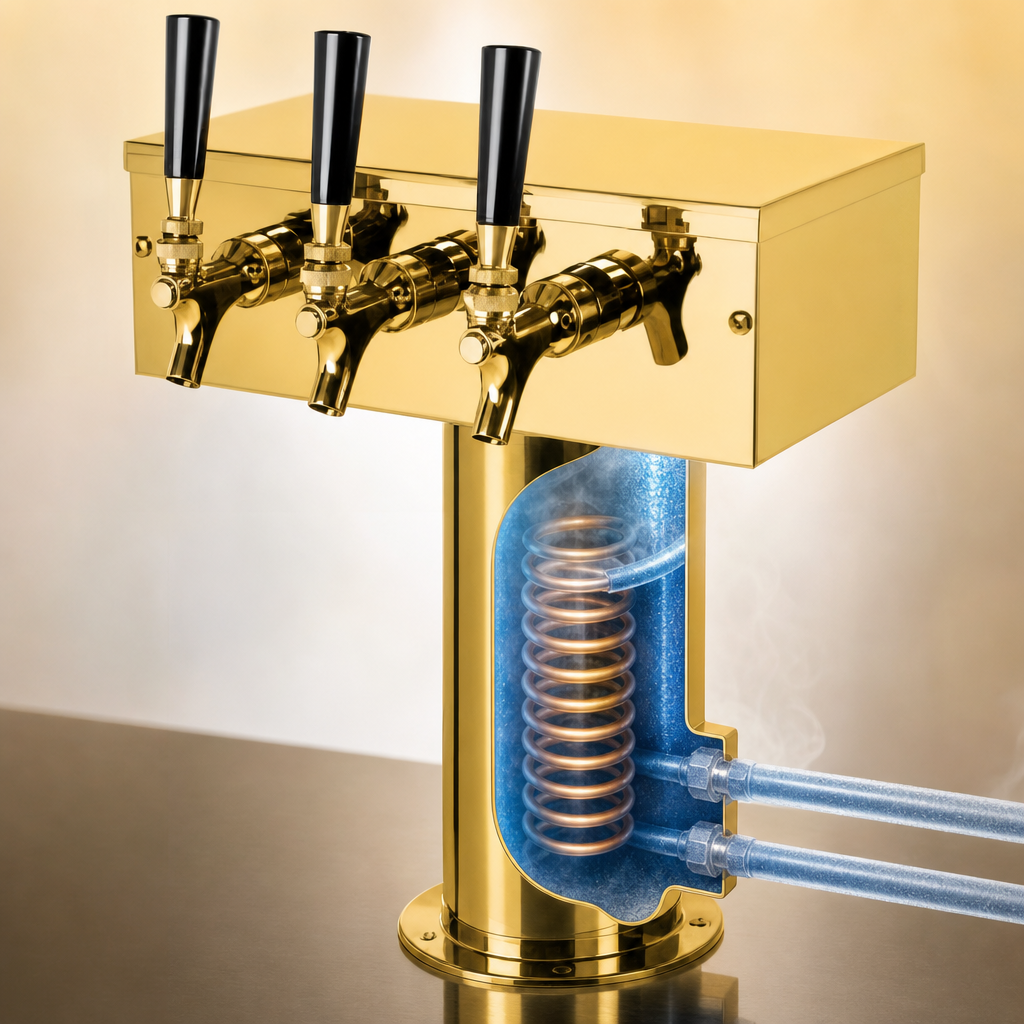

- Factory-installed Kool-Rite™ glycol module keeps beer ice-cold to the last drop.
- Three 304 stainless steel faucets with PVD brass exterior—maximum draft purity, zero tarnish.
- Sleek 3" column and compact T-box maximize tap visibility without crowding your bar top.
- Tarnish-free, fingerprint-resistant PVD finish for years of low-maintenance shine.
- Modular “Plug-n-Pour” construction ships pre-assembled for lightning-fast installation.
- NSF-certified and lead-free compliant for commercial peace of mind.
Dimensions
| Overall height | 14-3/4" (373 mm) |
|---|---|
| Faucet box width | 12" (305 mm) |
| Column diameter | 3" (76 mm) | Base Ø 4-1/4" (115 mm) |
| Faucet centers | 3" (76 mm) on center |
| Faucet clearance | 11-1/4" (266 mm) above bar top |
Technical Specifications
| Dispense system | Glycol-cooled | Kool-Rite™ integrated block |
|---|---|
| Faucets | 3 × PVD brass-plated 304 SS (handles not included) |
| Beer lines | ¼" O.D. stainless steel w/ 5⁄16"–3⁄8" barbs |
| Coolant lines | ⅜" O.D. copper w/ ⅜" barbs |
| Mounting pattern | 3" center hole, 4-½" bolt circle | gasket & hardware included |
| Finish | PVD brass, tarnish-free |
| Certifications | NSF, lead-free compliant |
| Shipping weight | 24 lb (11 kg) | Box 49" L × 24" W × 14" H |
What’s Included
- T Style draft tower with integrated Kool-Rite™ cooling block
- (3) PVD brass-plated stainless steel faucets
- Pre-run stainless steel beer lines & copper glycol lines
- Mounting gasket, bolts & washers
- Installation & maintenance guide
Note: Faucet handles and external glycol chiller are sold separately.
Backed by Micro Matic’s limited 1-year warranty and industry-leading technical support.
Features & Specs
Features & Specs
Manufacturer
Micro Matic USA
Brand_name
T Style
Cooling Type
glycol cooled
Mounting
countertop
Column Finish
brass
Faucet Capacity
3 faucets
Column Qty
1 column
Specifications
T Style Draft Beer Tower, countertop, 12"W x 14-3/4"H, glycol-cooled (Kool-Rite™ integrated module) (3) PVD brass-plated 304 stainless steel faucets (handles not included), 3" OC, 11-1/4" faucet clearance, 3" dia. column with 4-1/4" dia. base, stainless steel product line & leak-proof shanks, includes cooling block & copper coolant lines, mounting gaskets & hardware provided, PVD brass finish
