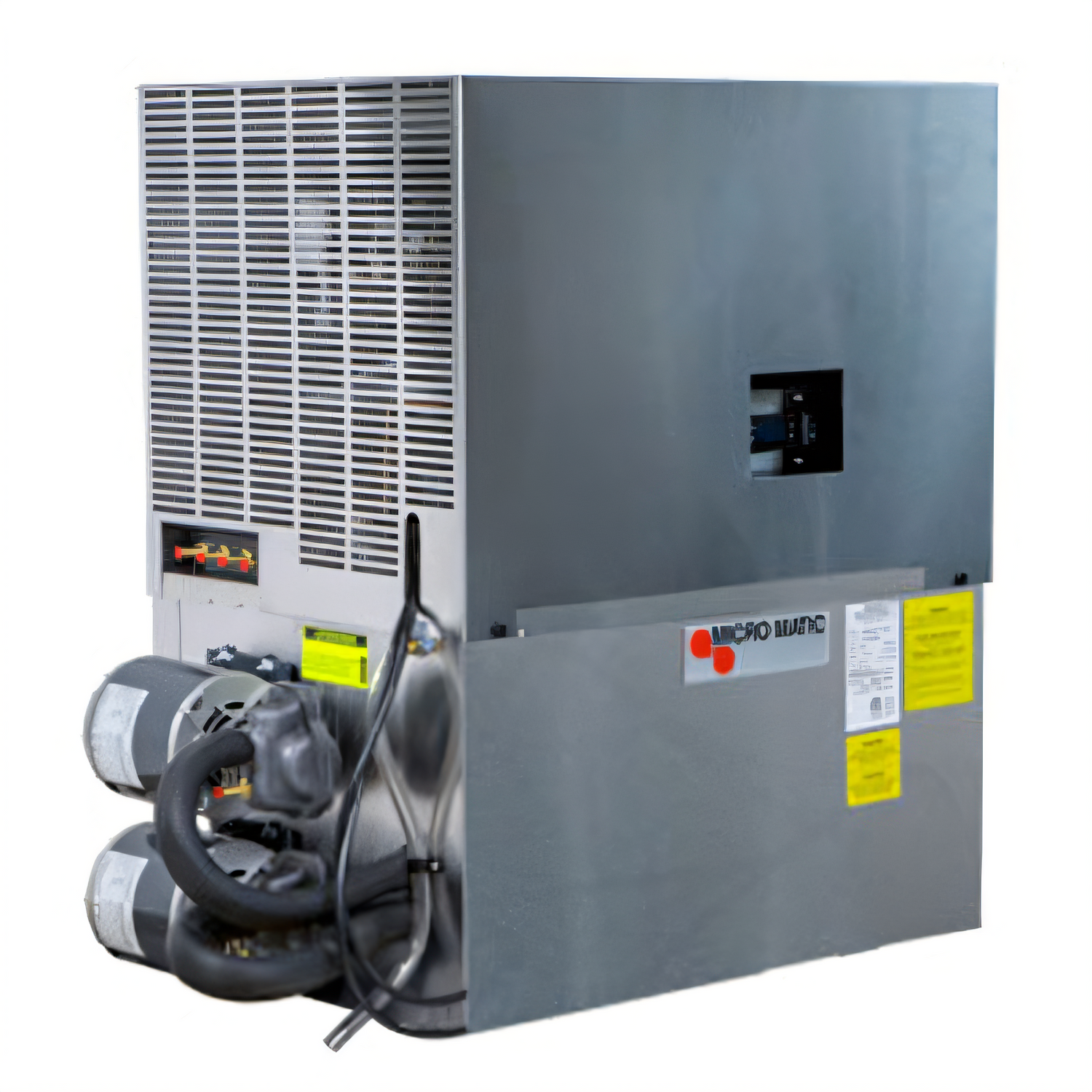

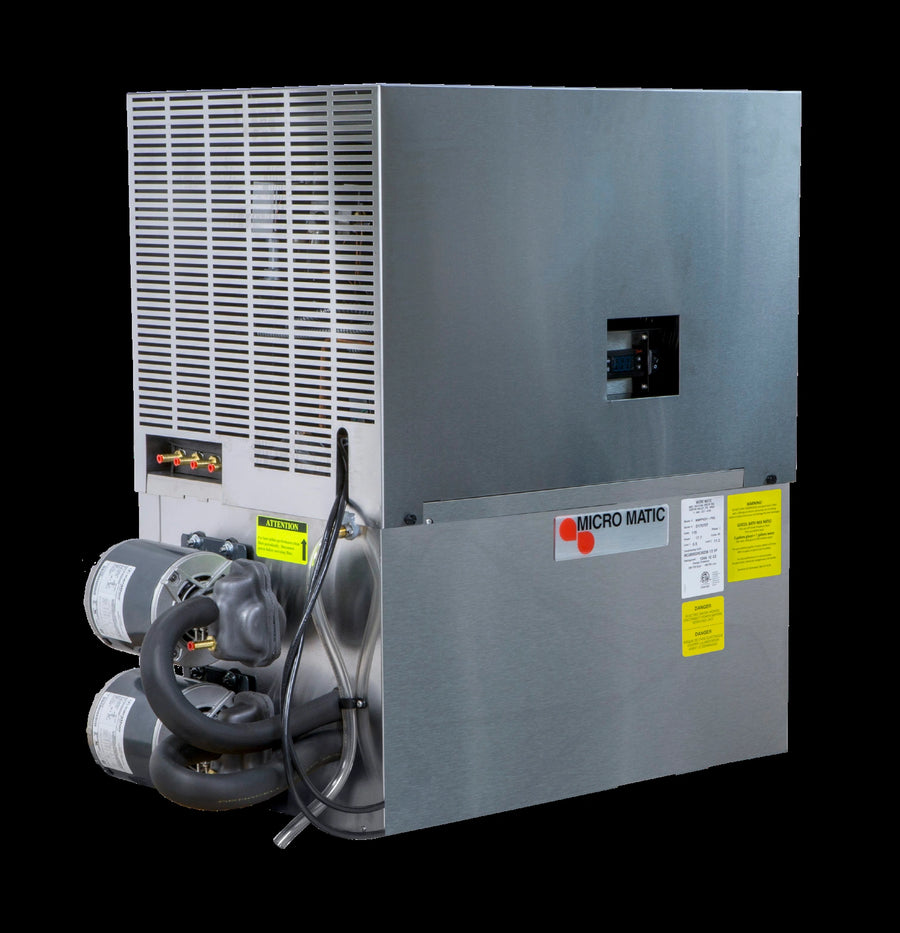

Pro-Line Air-Cooled 2-Pump Draft Beer System Power Pack with 11.5-Gallon Glycol Bath

SKU: MMPP4307-PKG
$7,588.87
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

Pro-Line Air-Cooled 2-Pump Draft Beer System Power Pack with 11.5-Gallon Glycol Bath

208/230V, 1-1/2 HP Compressor, 11,500 BTU/Hr

Keep draft beer lines chilled and ready with an air-cooled power pack that combines dual pumps, a digital thermostat, and a large glycol bath for reliable temperature control.

  • Air-cooled draft beer system power pack designed for consistent beverage line cooling.
  • Includes two rotary vane circulating pumps with 1/3 HP motors each.
  • 11.5-gallon glycol bath and exterior sight glass help maintain and monitor coolant levels.
  • Digital thermostat provides accurate temperature control.
  • 1-1/2 HP compressor delivers 11,500 BTU/Hr of cooling performance.
  • Insulated stainless steel cabinet with cover helps retain temperature and reduce condensation.
  • 208/230V, 60 Hz, single-phase operation with NEMA 6-20P plug.

Overall Dimensions:

38.0"W x 20.0"D x 36.0"H

Product Weight:

295.0 lb

Air-Cooled Design

Uses air-cooled operation for draft beer system cooling.

Dual Rotary Vane Pumps

Includes two 80 gph vane circulating pumps with 1/3 HP motors each.

Digital Thermostat

Provides accurate glycol bath temperature control.

11.5-Gallon Glycol Bath

Offers a substantial cooling reservoir and includes an exterior sight glass for quick level checks.

Insulated Stainless Steel Cabinet

Expanded urethane foam insulation helps maintain temperature and minimize condensation; cabinet includes a cover.

1-1/2 HP Compressor

Delivers 11,500 BTU/Hr of cooling capacity for draft beer applications.

Anti-Vibration Pads

Helps reduce motor noise during operation.

Type Draft Beer System Power Pack
Style Air Cooled
Controls Digital
Capacity 11.5 Gallons
BTU 11,500 BTU/Hr
Voltage 208/230 Volts
Amps 11.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Refrigerant Type R-404A
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 20 Inches
Shipping Height 36 Inches
Shipping Weight 295 lb.

Certifications & Compliance

Warranty & Protection

1-year limited product warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two rotary vane circulating pumps with 1/3 HP motors each.
This is an air-cooled power pack.
The unit operates on 208/230 Volts, 60 Hz, single-phase power and draws 11.5 Amps.
It uses R-404A refrigerant.
The glycol bath capacity is 11.5 gallons.
Yes, the cabinet uses expanded urethane foam insulation and includes a cover to help maintain temperature and reduce condensation.
