Pro-Line Air-Cooled Draft Beer System Power Pack with 11.5-Gallon Glycol Bath, Dual Pumps, 115V

SKU: MMPP4302-PKG
$3,653.10
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories Micro Matic USA New Arrivals Restaurant Equipment Restaurant Equipment Parts

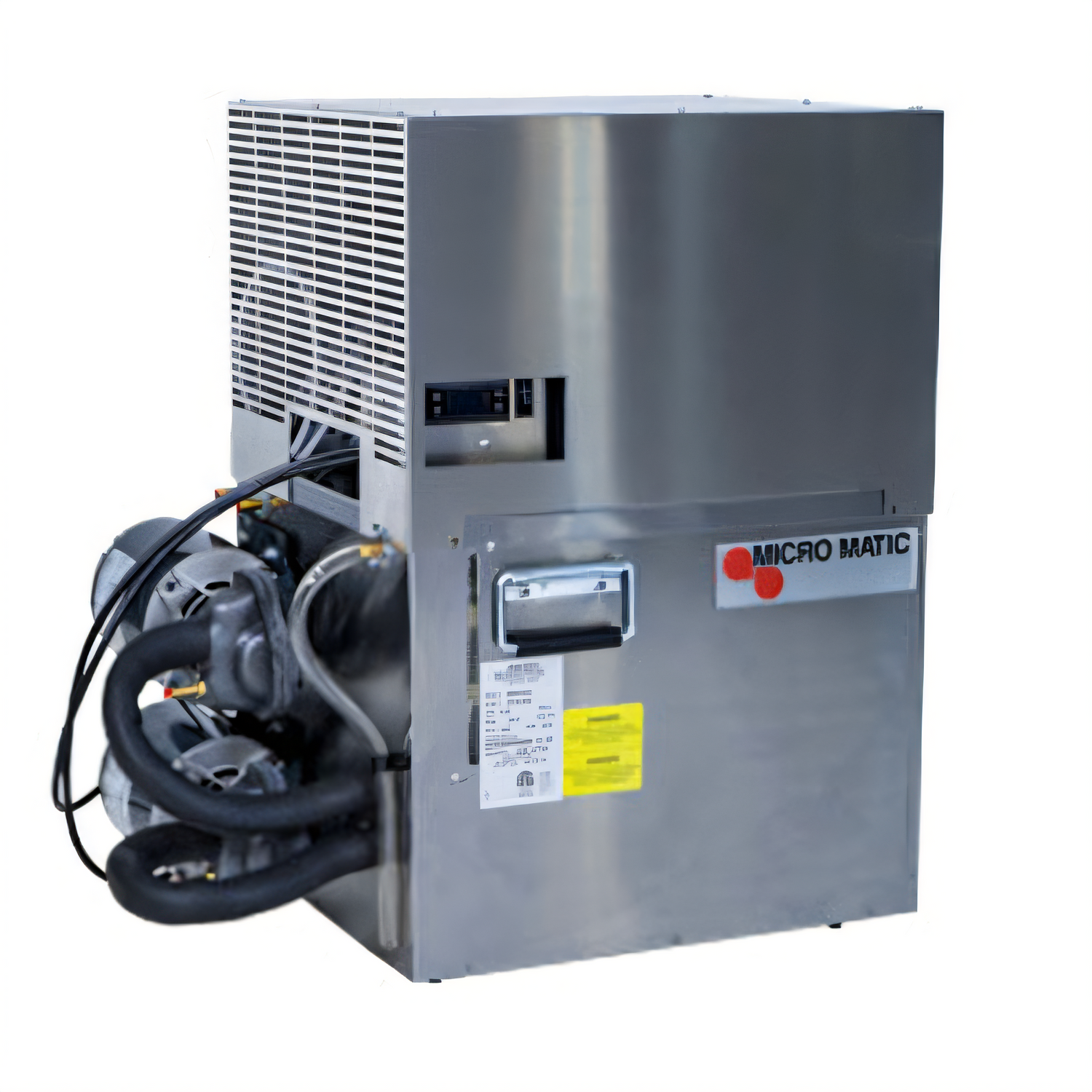

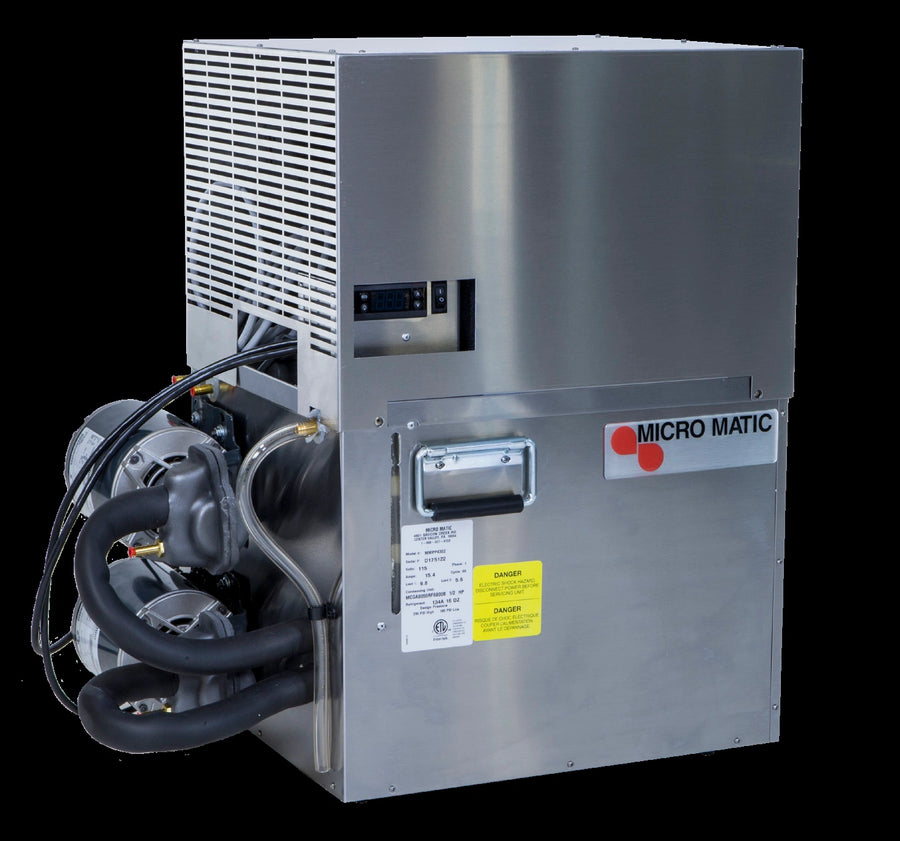

Pro-Line Air-Cooled Draft Beer System Power Pack with 11.5-Gallon Glycol Bath, Dual Pumps, 115V

30 x 18 x 29-3/4 Inches, R134a, 3,600 BTU

Keep draft beer lines cold and stable with a compact, air-cooled power pack built around dual circulating pumps, a digital thermostat, and a high-capacity glycol bath.

  • Air-cooled draft beer system power pack designed for reliable glycol circulation in remote draft applications.
  • Includes two 80 GPH vane circulating pumps with 1/3 HP motors each for consistent line cooling.
  • 11.5-gallon glycol bath with exterior sight glass makes monitoring levels easy.
  • Digital thermostat and insulated cabinet with cover help maintain stable operating temperatures.
  • 3,600 BTU cooling capacity with a 1/2 HP compressor for dependable performance.
  • 115V, 60 Hz, single-phase operation with NEMA L5-30P plug simplifies electrical planning.

Overall Dimensions:

30.0"W x 18.0"D x 29.75"H

Product Weight:

157.0 lb

Air-Cooled Design

Uses air cooling to support the refrigeration system.

Dual Circulating Pumps

Two vane circulating pumps deliver 80 GPH each and use 1/3 HP motors.

11.5-Gallon Glycol Bath

Provides a sizable bath capacity for maintaining cold beverage lines.

Exterior Sight Glass

Lets operators check glycol level at a glance.

Digital Thermostat

Offers electronic temperature control for easier setup and monitoring.

Insulated Cabinet With Cover

Helps retain cold temperatures and protects the system components.

R134a Refrigerant System

Features R134a refrigerant, a 3,600 BTU cooling rating, and a 1/2 HP compressor.

Type Draft Beer System Power Pack
Style Air Cooled
Installation Type Freestanding
Capacity 11.5 Gallons
Controls Digital
Refrigeration Type Air Cooled
Refrigerant Type R134a
BTU 3,600 BTU
Compressor Horsepower 1/2 HP
Pump Count 2
Pump Horsepower 1/3 HP Each
Pump Flow Rate 80 GPH Each
Voltage 115 Volts
Amps 21 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L5-30P
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 30 Inches
Shipping Weight 157 Pounds

Certifications & Compliance

Warranty & Protection

1-year limited product warranty.

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two 80 GPH vane circulating pumps, each with a 1/3 HP motor.
The glycol bath capacity is 11.5 gallons.
It operates on 115V, 60 Hz, single-phase power and uses a NEMA L5-30P plug.
This unit uses R134a refrigerant.
Micro Matic offers a limited product warranty for one year from the date of sale unless otherwise specified.
