Micro Matic USA  |  SKU: DPT412PVD-3

Micro Matic USA DPT412PVD-3 Draft Beer & Wine Dispensers

$2,273.83
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

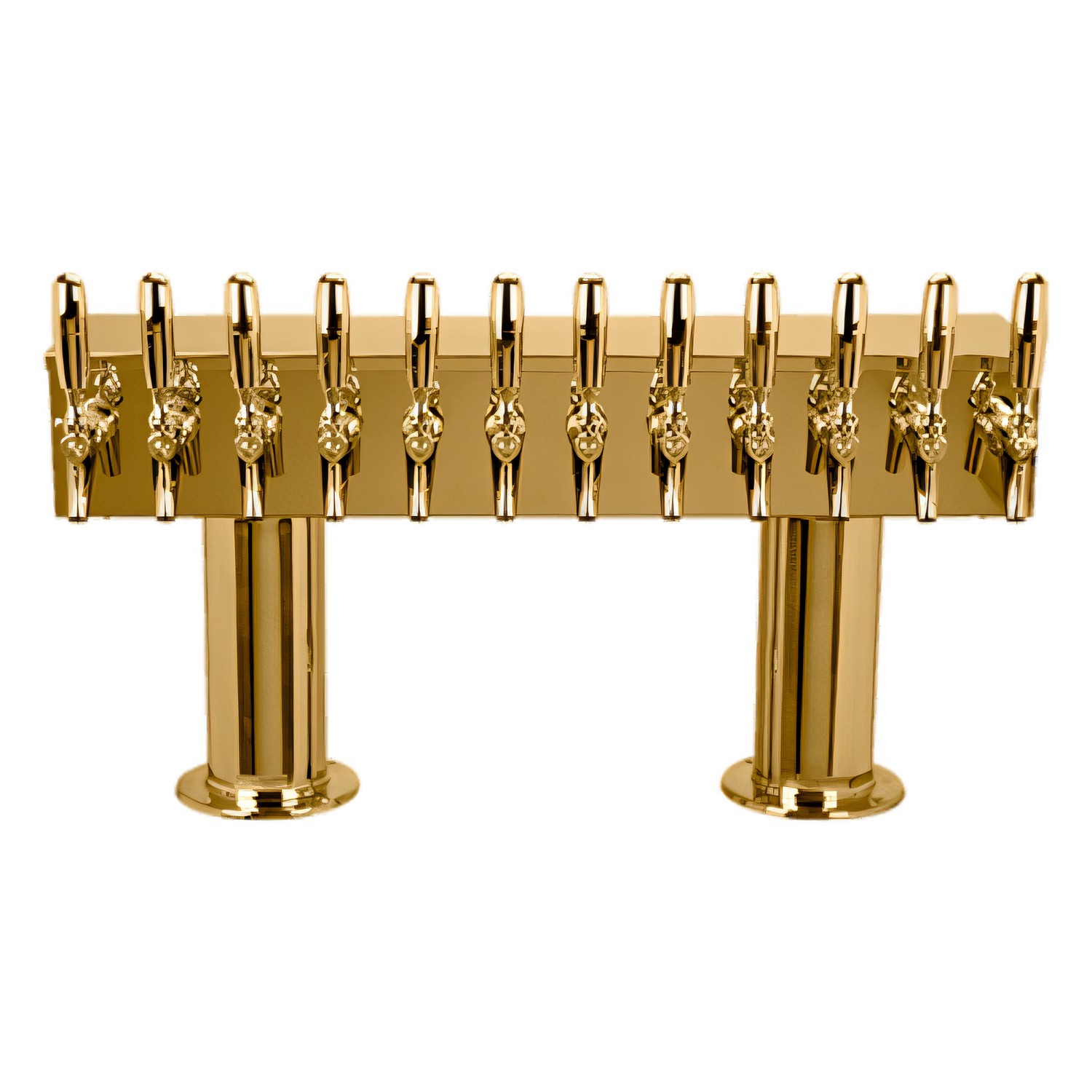

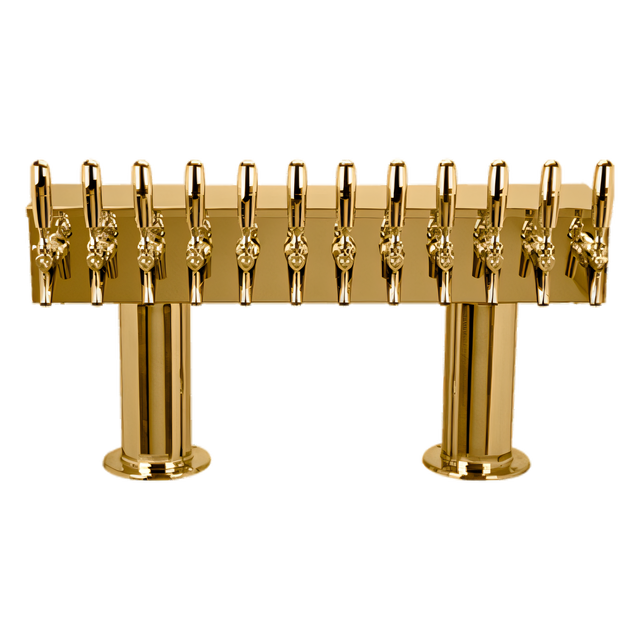

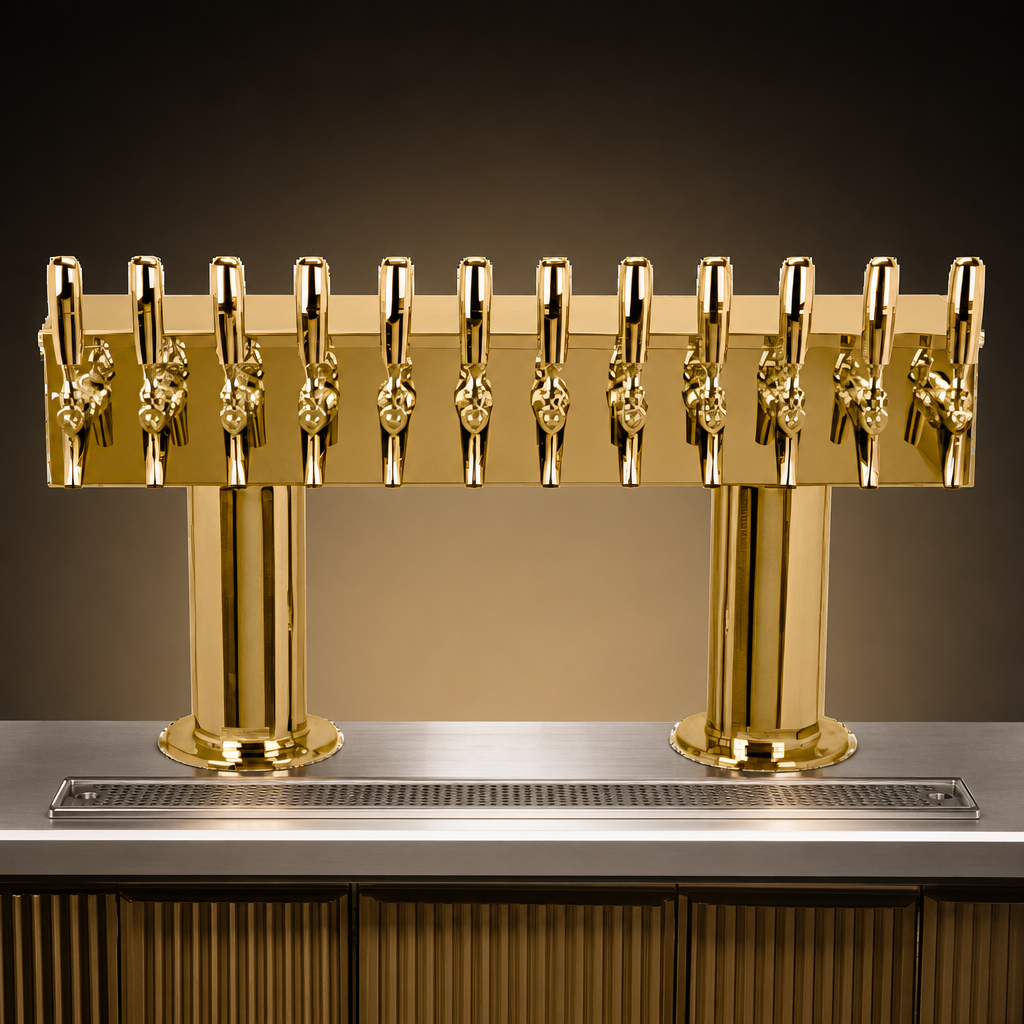

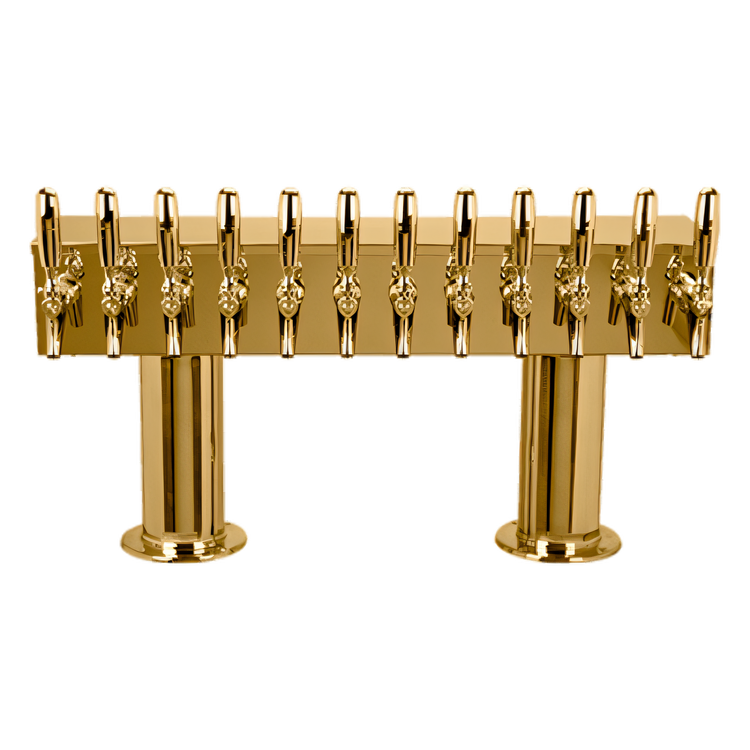

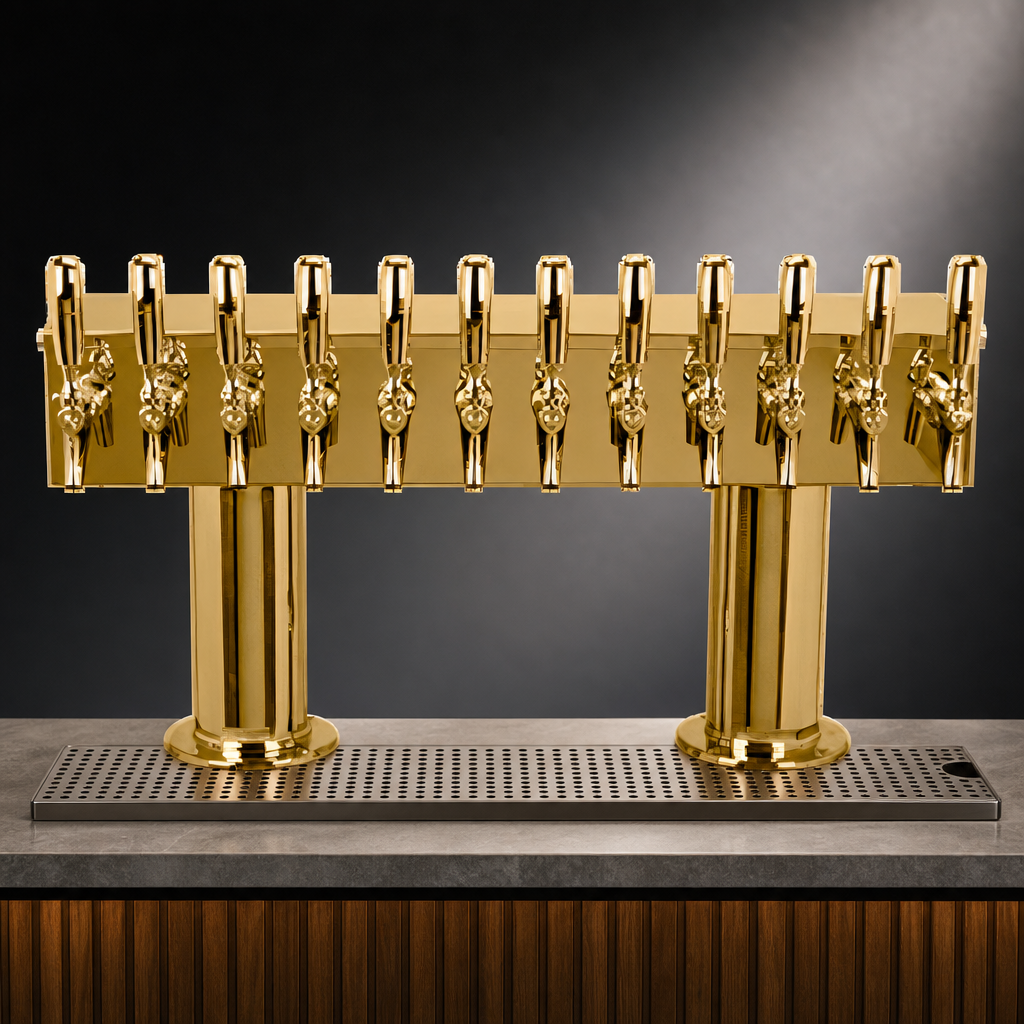

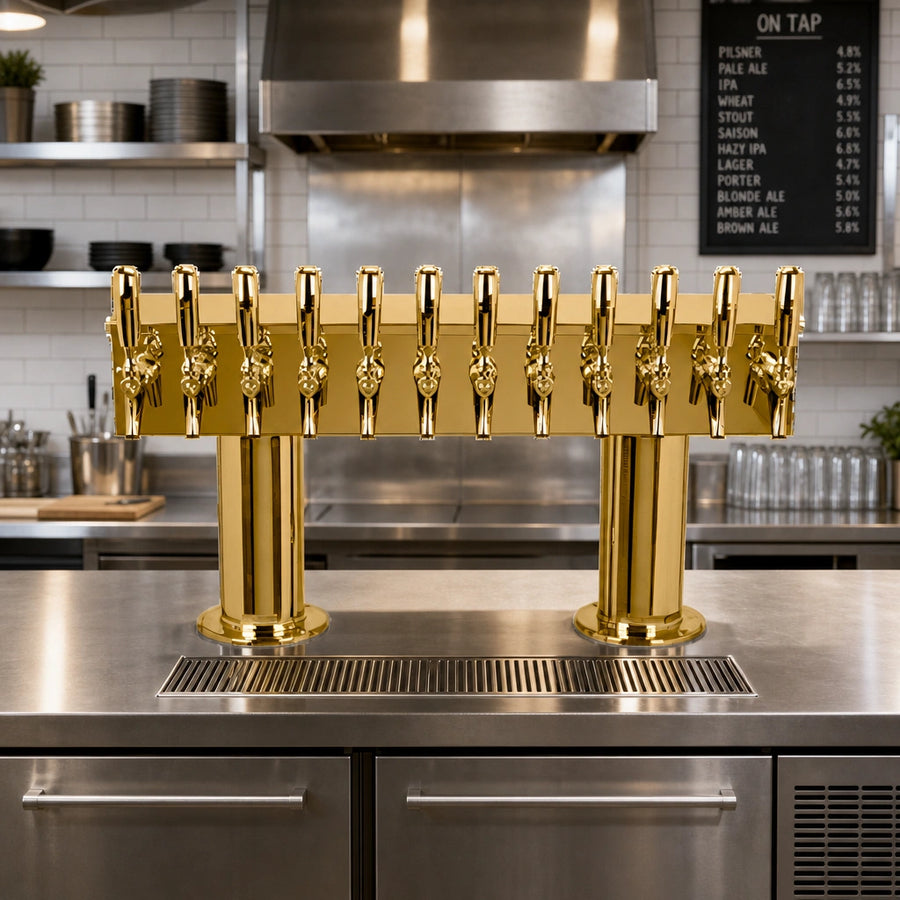

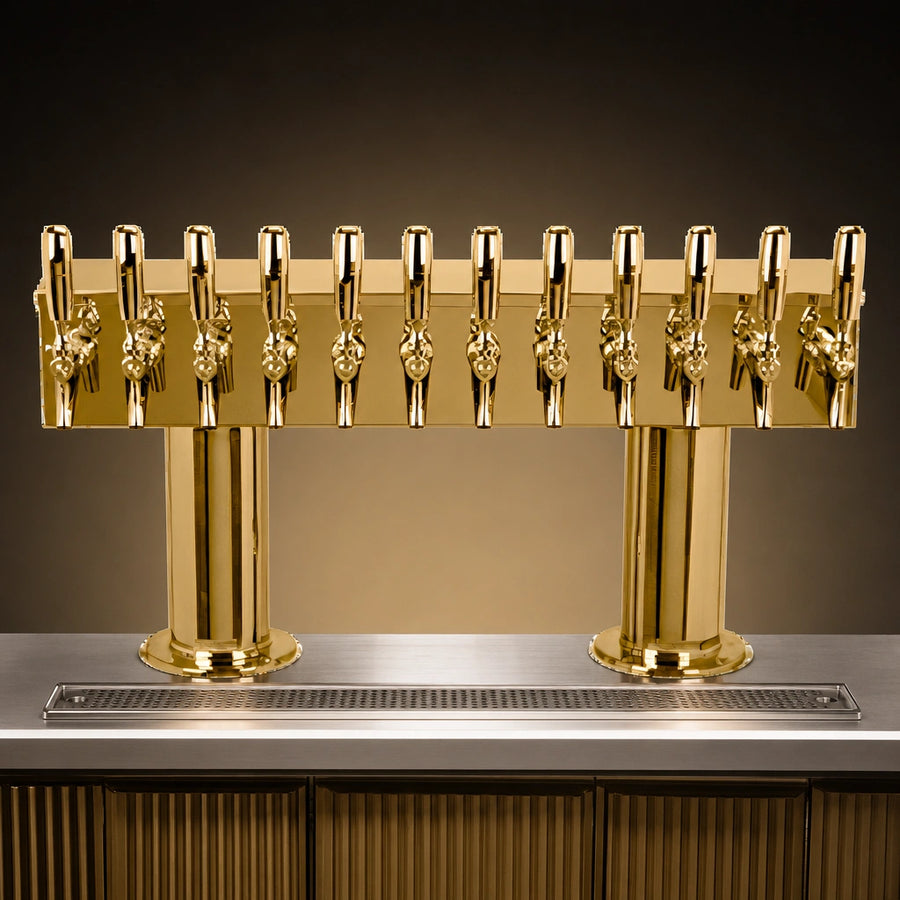

Double Pedestal Draft Beer Tower – 12 Faucets, PVD Brass

36" Countertop | Air-Cooled | Made by Micro Matic USA

Elevate your draft program with a tower that pours as brilliantly as it shines. This Micro Matic double-pedestal tower delivers twelve perfectly chilled taps in a compact, 36-inch footprint while its rich PVD brass finish turns every pour into a showpiece.

Why You’ll Love It
  • Display up to 12 draft selections in one sleek, space-saving unit.
  • Air-cooled design integrates with standard keg boxes or remote refrigeration—no glycol needed.
  • PVD brass exterior resists scratches, fingerprints and tarnish for long-lasting luster.
  • All stainless-steel beer contact safeguards flavor purity and meets NSF standards.
  • (2) rugged 4" O.D. columns with 6" diameter bases keep the tower rock-steady at the bar.
  • 3" on-center faucet spacing and 11-5/8" clearance accommodate tall glassware.
  • Includes mounting gaskets & hardware—just “Plug-n-Pour.”
  • Backed by Micro Matic’s one-year limited warranty.
Technical Specifications
Model Double Pedestal – 12 Faucets (PVD Brass)
Overall Width 36" (914 mm)
Overall Height 15-9/16" (395 mm)
Faucet Clearance 11-5/8" (295 mm)
Faucet Spacing 3" on center
Number of Faucets 12 brass body faucets (handles not included)
Cooling Method Air-cooled
Column / Base Diameter 4" O.D. column  |  6" O.D. base (each pedestal)
Beer Tubing 1/4" O.D. stainless steel with 1/4"–3/8" tapered barbs
Finish PVD brass
Shipping Weight 58 lb (26 kg)
Box Dimensions 46" L × 37" W × 16" H
Certification NSF – all stainless beer contact surfaces

Faucet handles, tap lines, and CO₂ equipment are sold separately.

Installation Tip: For foam-free pours, be sure to maintain a steady flow of cold air from the refrigeration unit to the tower—seal any gaps in the chase and avoid warm air infiltration.

Need help designing your draft system? Call our draft specialists at 1-866-327-4159 or email support@micromatic.com.

Features & Specs

Manufacturer

Micro Matic USA

Faucet Capacity

12

Mounting

countertop

Column Qty

2

Column Finish

brass

Cooling Type

air cooled

Specifications

Double Pedestal Draft Beer Tower, countertop, 36"W x 15-9/16"H, air-cooled, (12) brass faucets (handles not included), 3" OC, 11-5/8" faucet clearance, (2) 4" columns with 6" dia. bases, mounting gaskets & hardware provided, PVD brass finish
