Micro Matic USA 1739-S Draft Beer & Wine Dispensers
Description

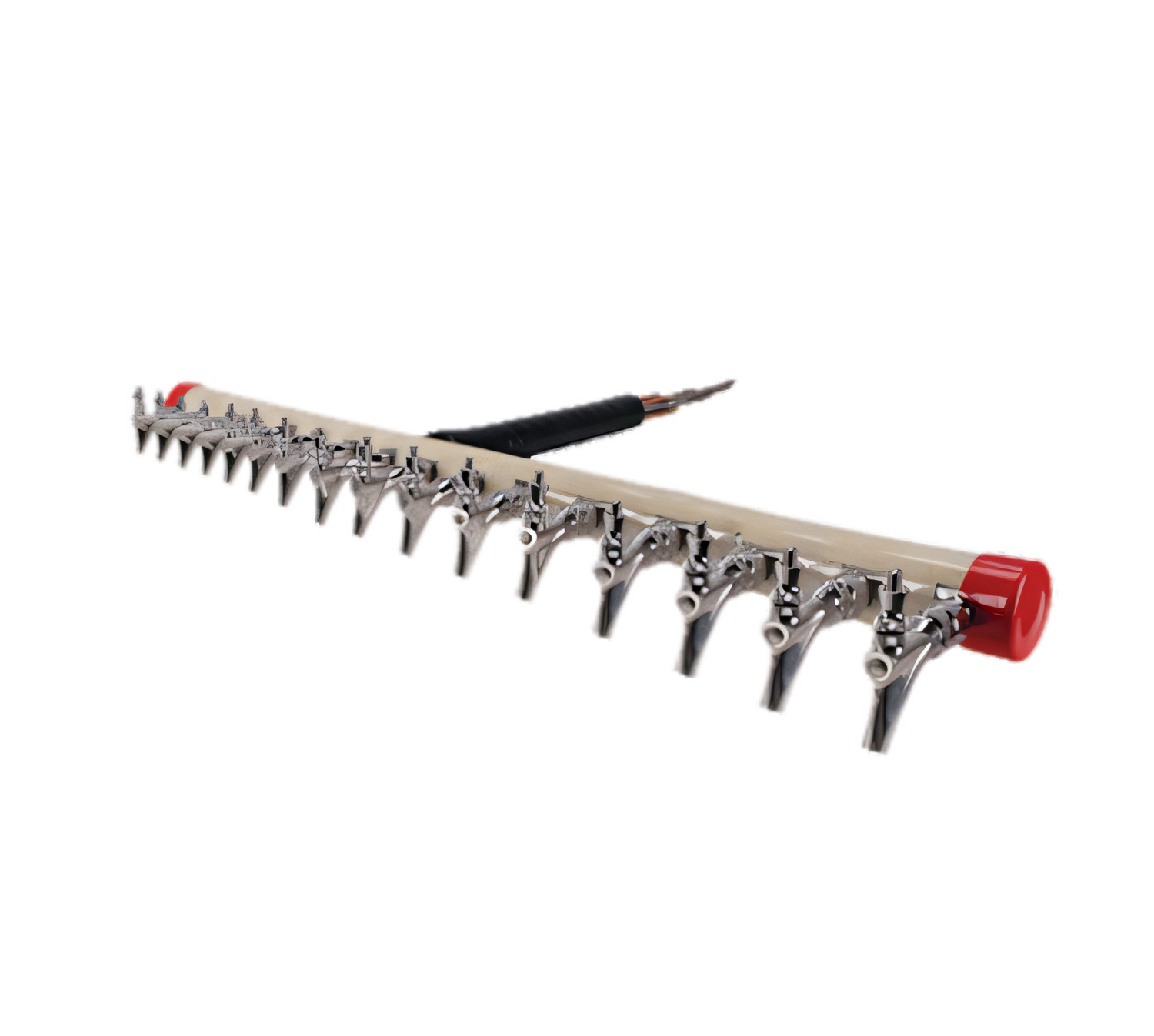

Kool-Rite™ Insert Module – 16 Faucet, 48" (Short Shanks)
Build the custom draft tower you’ve always wanted—without sacrificing pour quality.Designed by Micro Matic USA, the Kool-Rite™ insert combines NSF-approved construction, patented cooling technology and 100 % stainless steel beer contact in one ready-to-drop-in package. Simply slide the module into your bar-top, cabinetry or themed tower shell and start serving up to sixteen perfectly chilled beverages.
Why you’ll love it

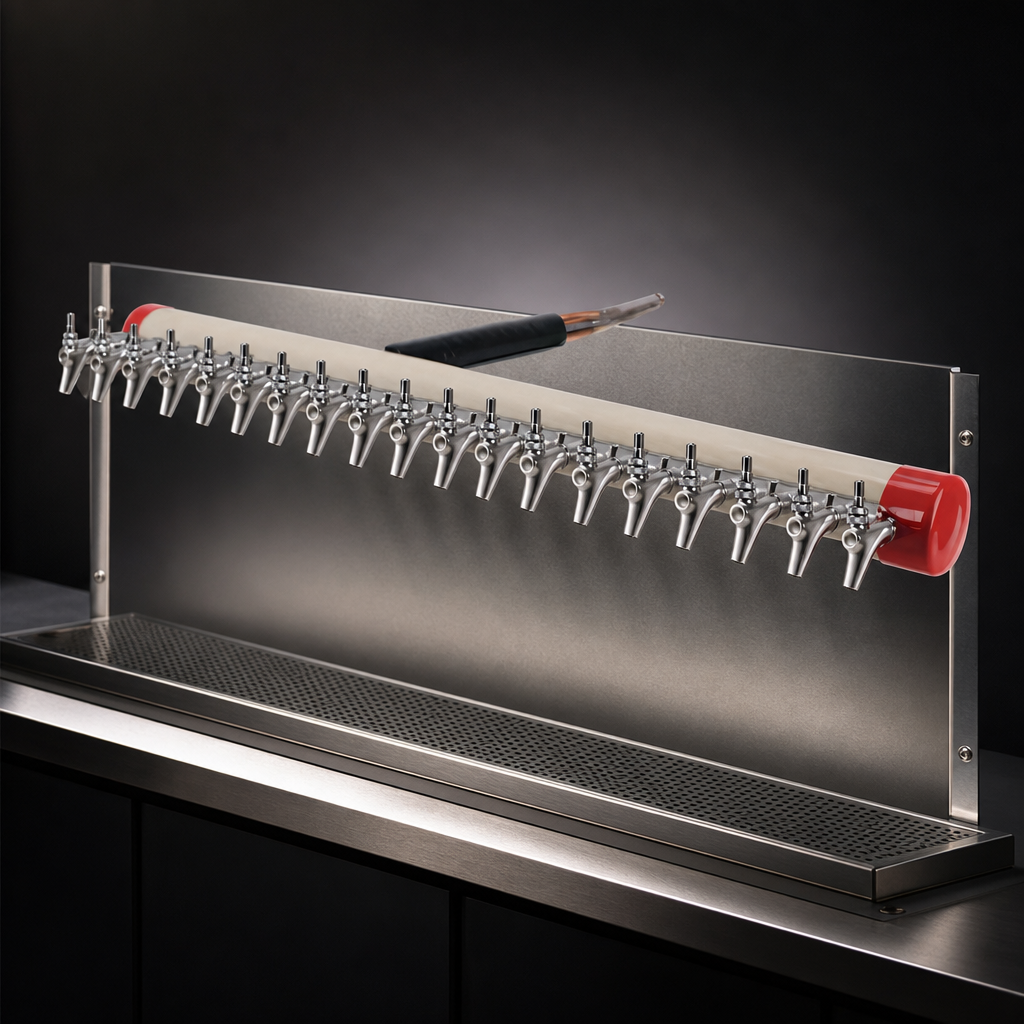

- 16 × 304 stainless steel faucets for high-volume, corrosion-free dispensing.
- Patented Kool-Rite™ cooling block keeps each shank refrigerated all the way to the faucet—no warm spots, less foam.

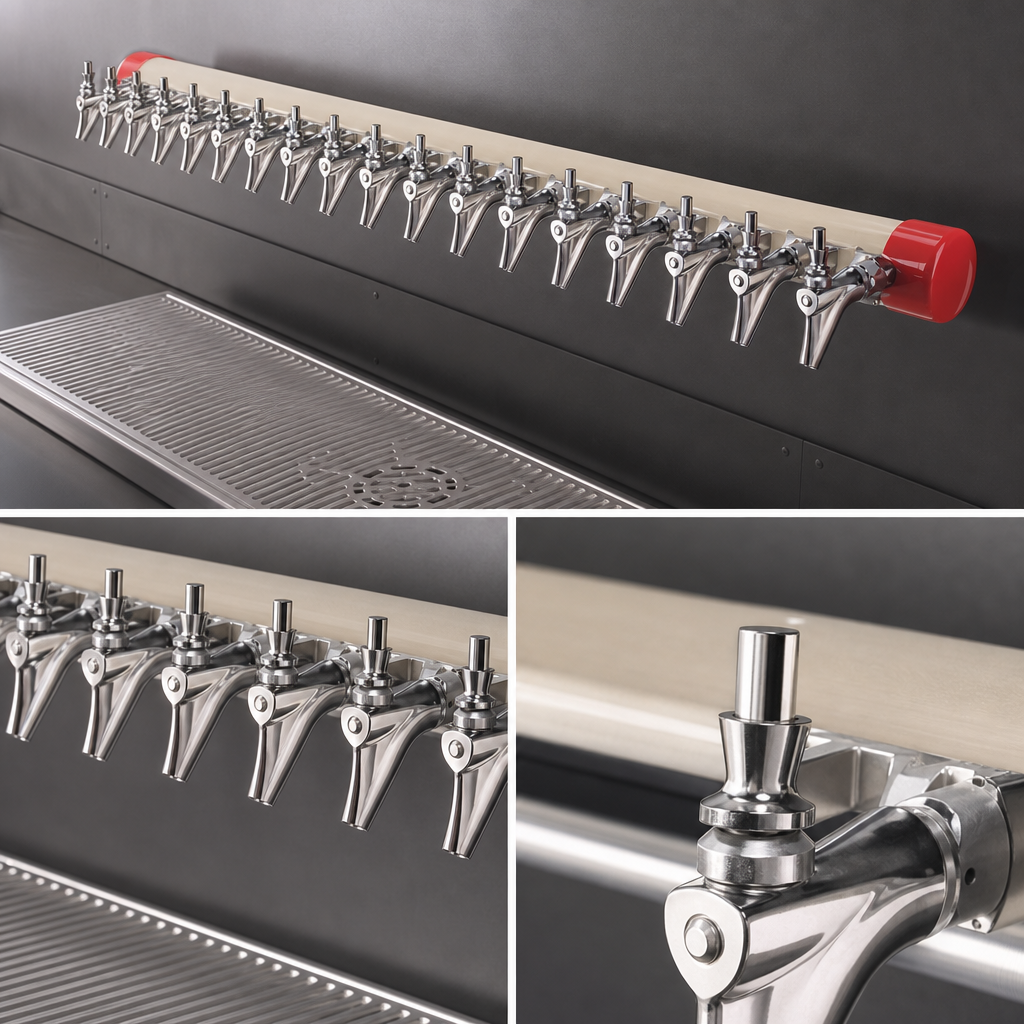

- Short, 1-5/8" leak-proof stainless steel shanks permanently bonded to the beer tubes; eliminates compression gaskets and leaks.
- Full stainless steel product lines (¼" OD) for uncompromised flavor and easy sanitation.
- Dual ⅜" OD copper glycol lines with ⅜" barbs for quick tie-in to an existing chiller loop.
- Comfortable 3" on-center faucet spacing (48" overall width) fits bartenders’ hands—even during a rush.
- Pre-insulated & taped—drop straight into a wood, metal or stone tower shell of your own design.
- NSF/ANSI Standard 18 certified for commercial foodservice installations.
Technical specifications
| Part number | 1739-S |
|---|---|
| Faucet count | 16 |
| Overall width | 48" / 1219 mm |
| Faucet spacing | 3" on-center |
| Shank length | 1-5/8" (short) |
| Beer lines | ¼" OD 304 stainless steel with ¼"-3⁄8" tapered barbs |
| Glycol lines | 3⁄8" OD copper with 3⁄8" barbs |
| Cooling system | Kool-Rite™ glycol (dual line through cooling block) |
| Materials in product contact | 304 stainless steel |
| Certification | NSF/ANSI 18 |
| Shipping weight | 39 lb / 18 kg |
Pair it with
- DP-332ELD-16-3 extra-long drip tray (matches 48" faucet layout).
- Micro Matic Pro-Line™ GLY Series glycol power packs.
- Tap handles, keg couplers and cleaning kits (sold separately).
Backed by Micro Matic’s one-year limited warranty. See full terms at micromatic.com.
