Micro Matic USA 1739-L Draft Beer & Wine Dispensers
Description

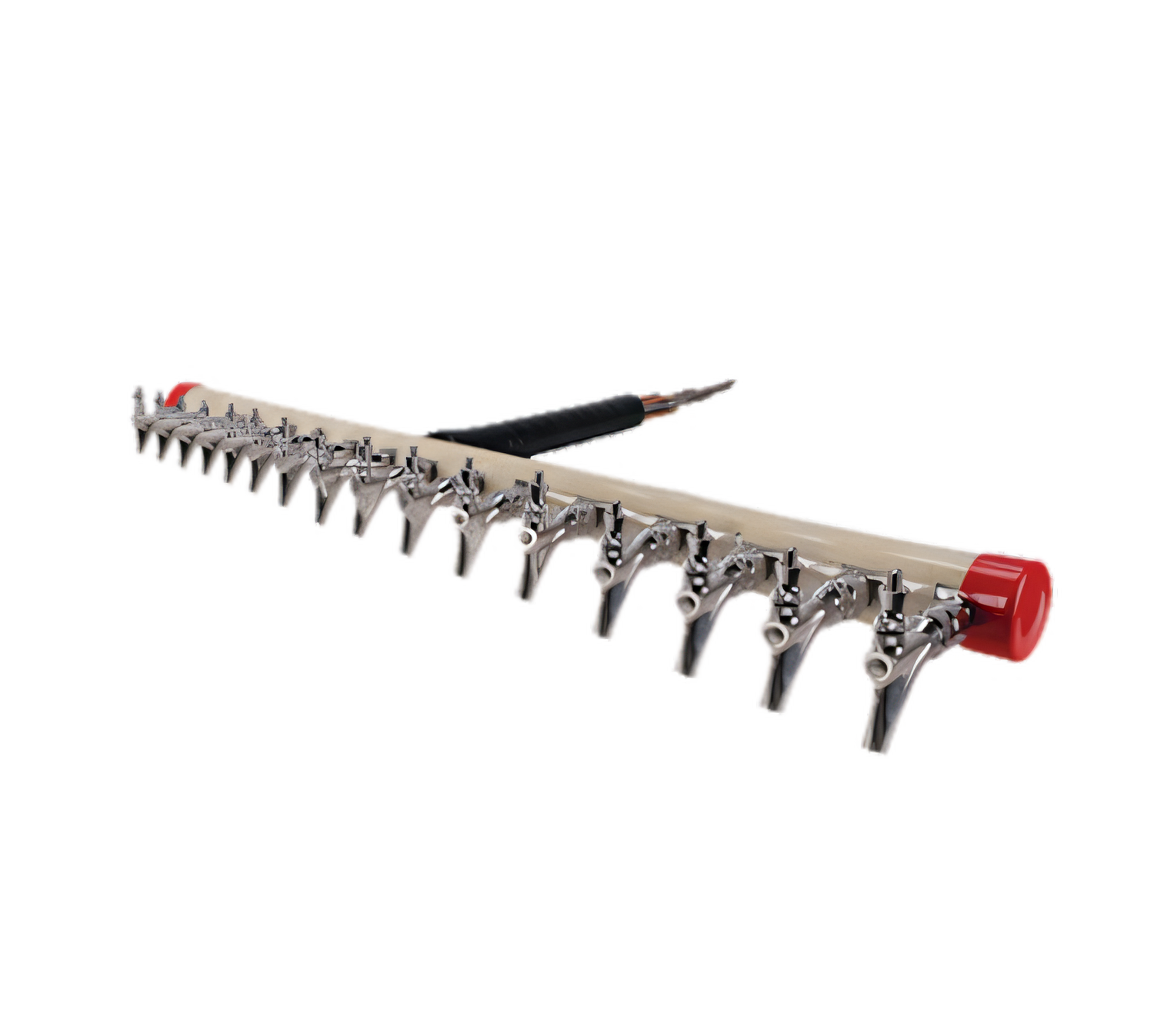

Kool-Rite™ Insert Module — 48" | 16 Faucets | Long Shanks
Micro Matic Model 1739-L · NSF CertifiedBuild your own statement draft tower without compromising pour quality. The Micro Matic Kool-Rite™ insert combines industry-leading glycol cooling, an all-stainless product path, and leak-proof shanks in one ready-to-mount assembly—perfect for high-volume bars, taprooms, and event venues.
Key Features

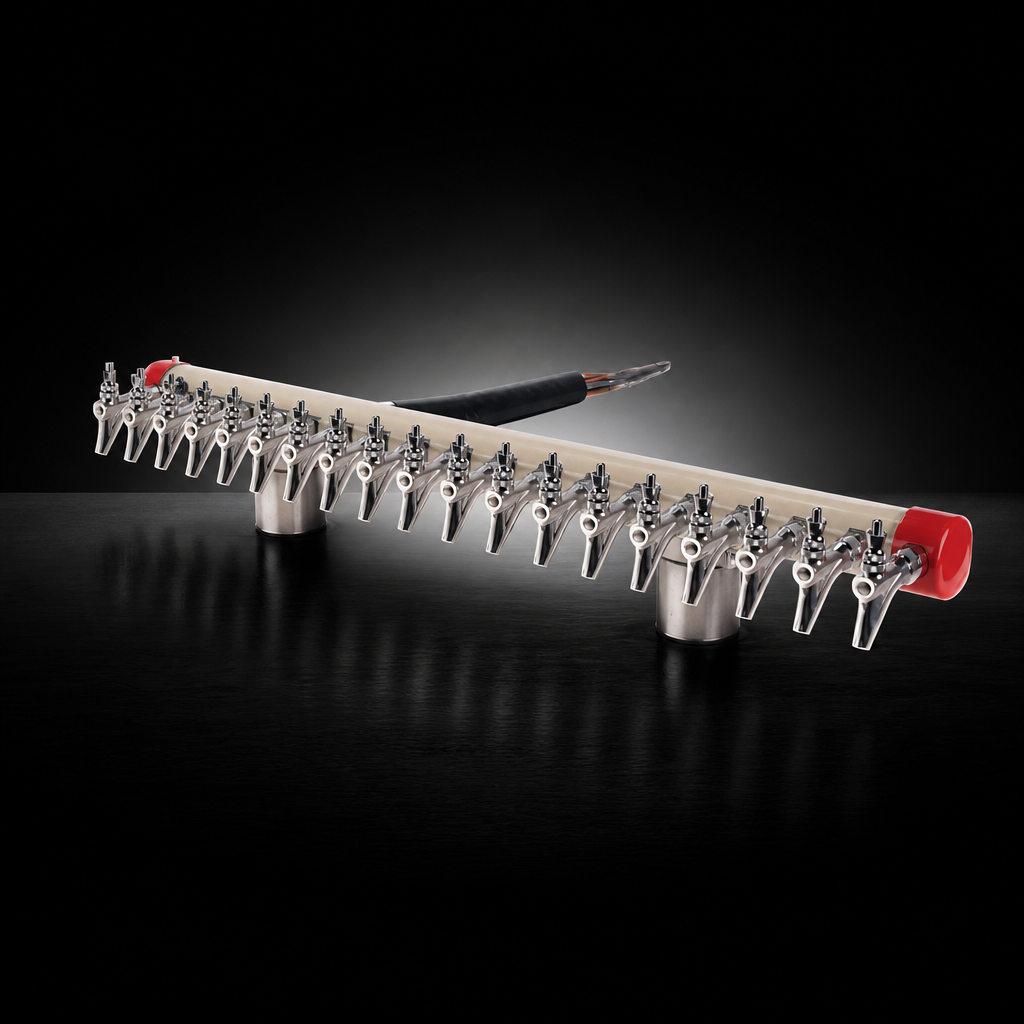

- 16 × 304 SS faucets on 2-5/8" long, leak-proof stainless steel shanks

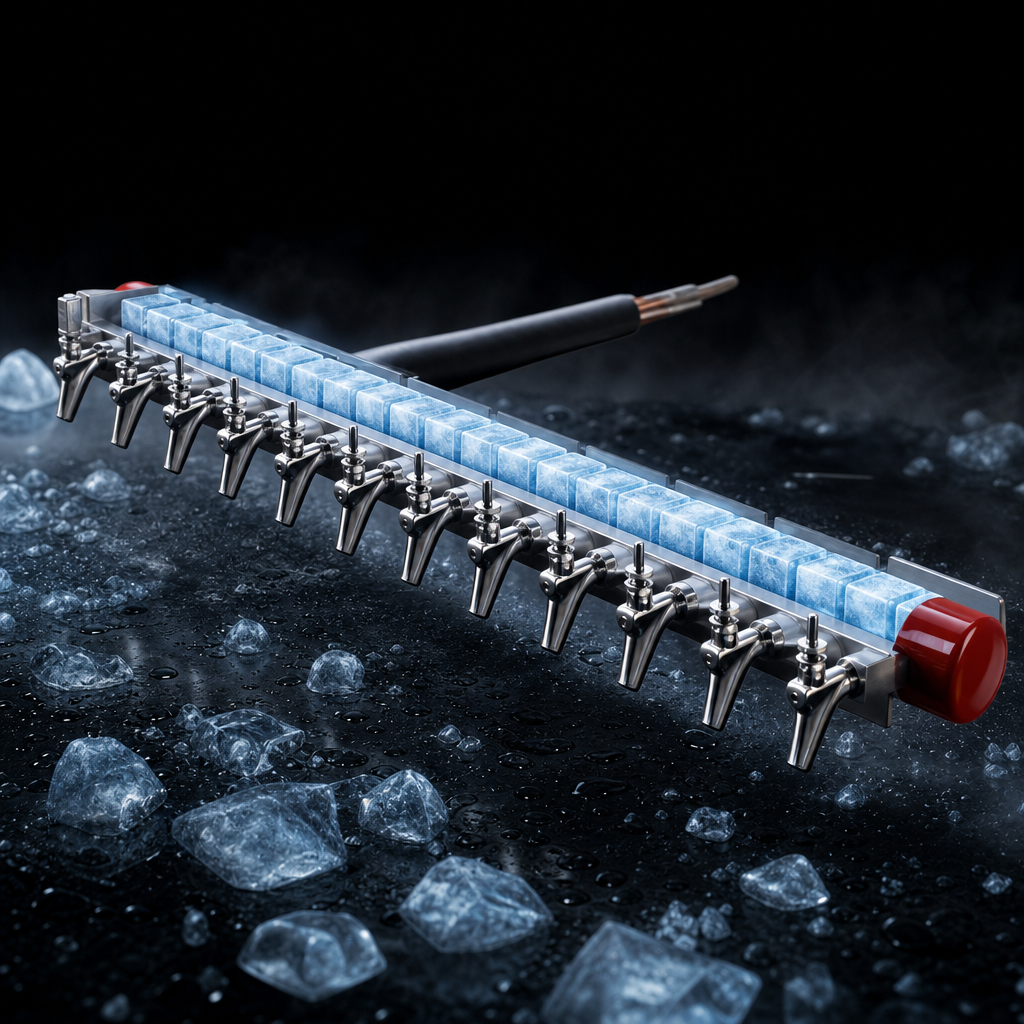

- Patented Kool-Rite™ cooling blocks for ice-cold product right to the faucet
- 100 % stainless steel beer contact—no brass, no plastic, no flavor transfer
- 3" on-center spacing in a compact 48" (1219 mm) wide footprint
- Pre-installed 3/8" O.D. copper coolant lines for quick connection to a glycol power pack
- 1/4" O.D. stainless product lines with 1/4"–3/8" tapered barbs
- Includes insulation wrap and mounting hardware for fast, professional installation
- NSF listed for commercial food-service applications
Technical Specifications
| Part Number | 1739-L |
|---|---|
| Overall Width | 48" / 1219 mm |
| Faucets | 16 × 304 stainless steel |
| Shank Length | Long – 2-5/8" stainless steel |
| Faucet Spacing | 3" on centers |
| Beer Lines | 1/4" O.D. stainless with 1/4"–3/8" tapered barbs |
| Coolant Lines | 3/8" O.D. copper with 3/8" O.D. barbs |
| Dispense System | Kool-Rite™ glycol-cooled |
| Shipping Weight | 39 lb / 18 kg |
| Certification | NSF |
Need a drip tray? Pair this insert with the DP-332ELD-16-3 stainless tray (sold separately).
Why Choose a Kool-Rite™ Insert?
- Design freedom—finish the outer tower in wood, stone, tile, or metal to match any décor.
- Lower operating costs—factory-sealed lines and cooling blocks reduce foaming and waste.
- Quick installations—slide the module into your custom housing, tighten a few connections, and pour.
- Easy maintenance—individual faucets and shanks are field-replaceable without dismantling the bar.
