Micro Matic USA 1738-S Draft Beer & Wine Dispensers
Description

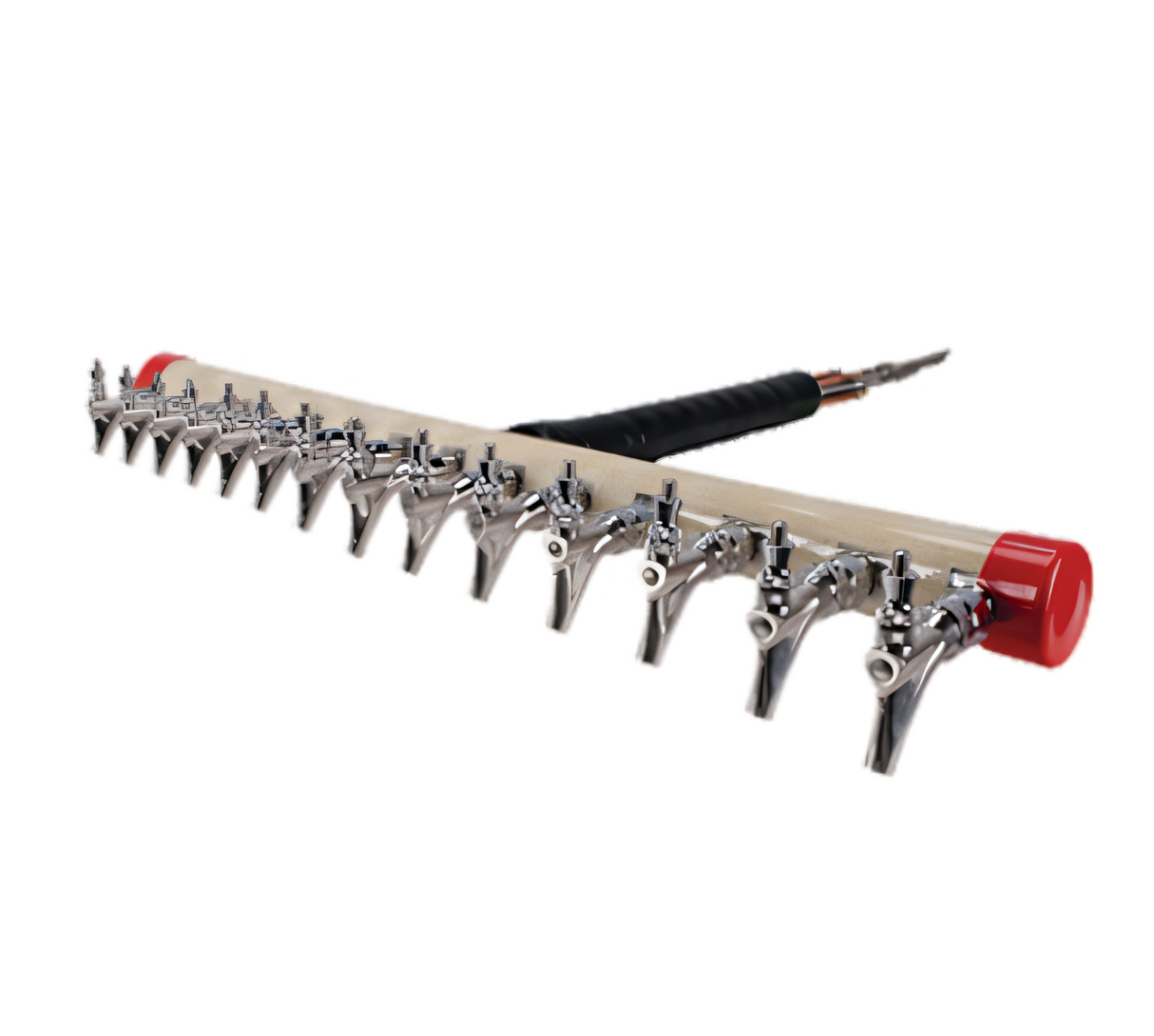

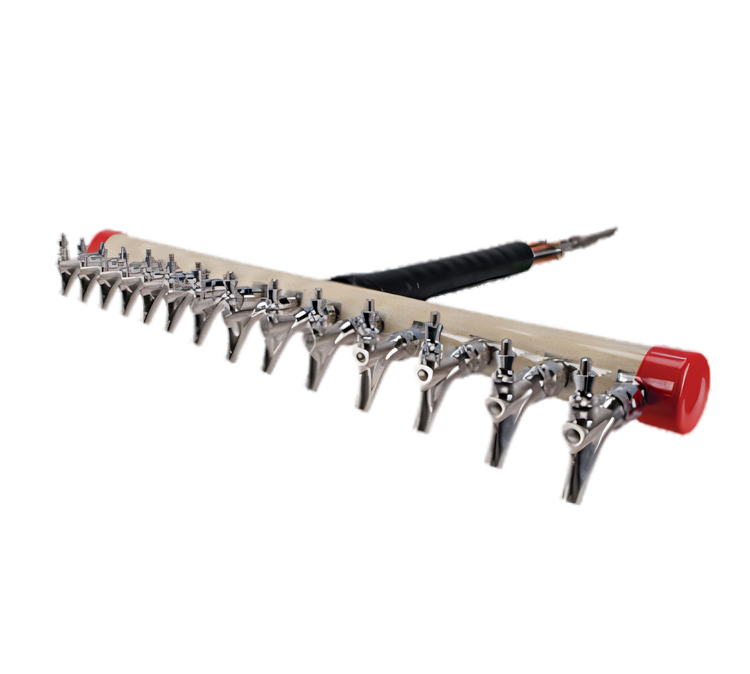

Kool-Rite™ 14-Faucet Insert Module – Short Shank, 42" W
Model 1738-S | Micro Matic USABuild the draft tower you’ve always imagined without compromising temperature or purity. The Kool-Rite™ insert drops straight into your custom enclosure, serving ice-cold, foam-free beer from fourteen 304 stainless-steel faucets – ideal for high-volume bars, restaurants and stadium service lines.
Key Features
- 14 factory-installed 304 stainless-steel beer faucets
- 1 - 5/8" Kool-Rite leak-proof stainless-steel short shanks – no internal o-rings to fail

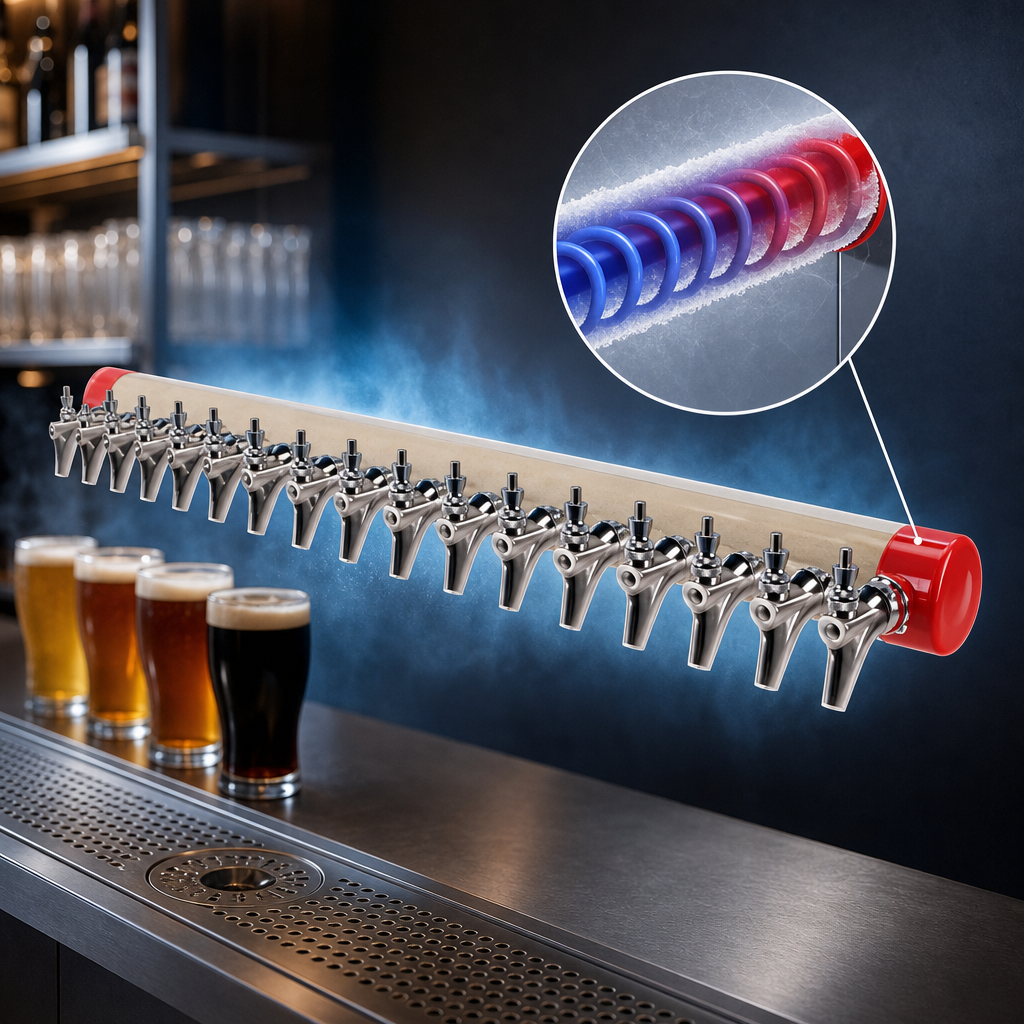

- Patented aluminum Kool-Rite cooling block keeps shanks & beer refrigerated right to the faucet
- 3" on-center faucet spacing across a compact 42" (1066 mm) width
- 100 % stainless-steel beer contact for ultimate flavor protection and corrosion resistance
- Pre-run 1/4" O.D. stainless-steel product lines with 1/4"-3/8" tapered barbs – ready to connect
- Dual 3/8" O.D. copper glycol supply/return lines for reliable recirculation
- Delivered fully assembled, pressure-tested and insulated for fast installation
- NSF listed for commercial draft applications
Technical Specifications
| Part number | 1738-S |
|---|---|
| Total faucets | 14 |
| Overall width | 42" / 1066 mm |
| Shank length (style) | 1-5/8" short, Kool-Rite leak-proof |
| Faucet spacing | 3" / 76 mm on-center |
| Beer lines | 1/4" O.D. 304 SS with 1/4"-3/8" tapered barbs |
| Glycol lines | 3/8" O.D. copper with 3/8" barbs |
| Construction | Stainless-steel shanks & faucets, aluminum cooling block |
| Dispense system | Kool-Rite™ (remote glycol) |
| Shipping weight | 37 lb / 17 kg |
| Certification | NSF |
Looking for a matching drip tray? Pair this insert with Micro Matic model DP-332ELD-14-3 for a clean, integrated finish (sold separately).
Why Choose Kool-Rite™ Technology?
- Faucet bodies stay as cold as the keg, cutting foam waste and maximizing yield
- Factory-sealed joints eliminate field soldering and leak headaches
- Modular insert design lets you create signature towers that match any décor
