Micro Matic USA 1737-S Draft Beer & Wine Dispensers

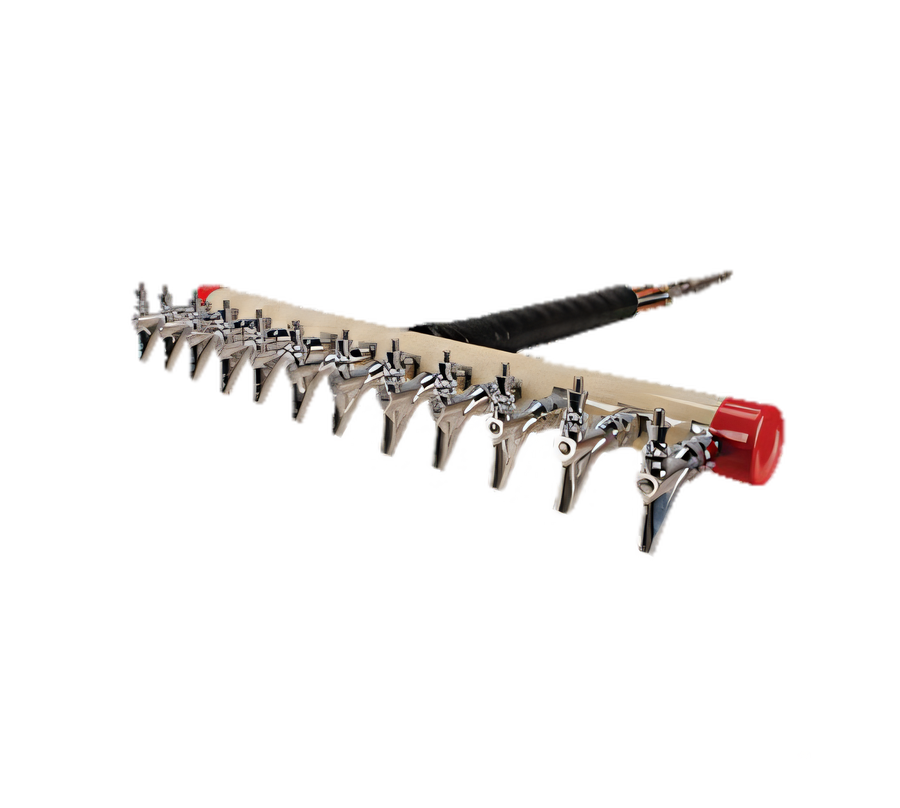

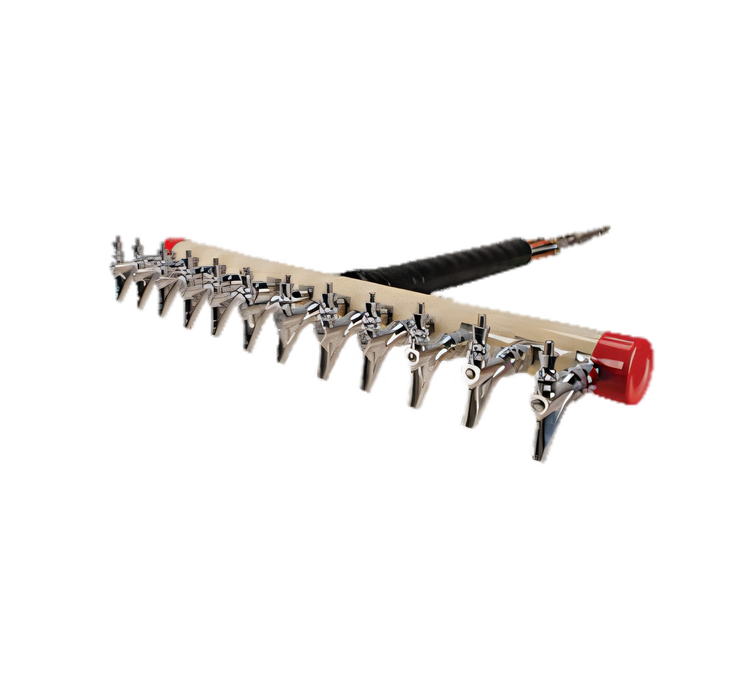

Kool-Rite™ 12-Faucet Insert Module – 36" Short Shank

Design the draft tower your bar deserves, then drop in this fully-assembled Kool-Rite™ insert to deliver ice-cold, flavor-pure pours from twelve 304 stainless steel faucets. Patented cooling blocks, leak-proof shanks and all-stainless product contact ensure reliability service after service.

Key Features

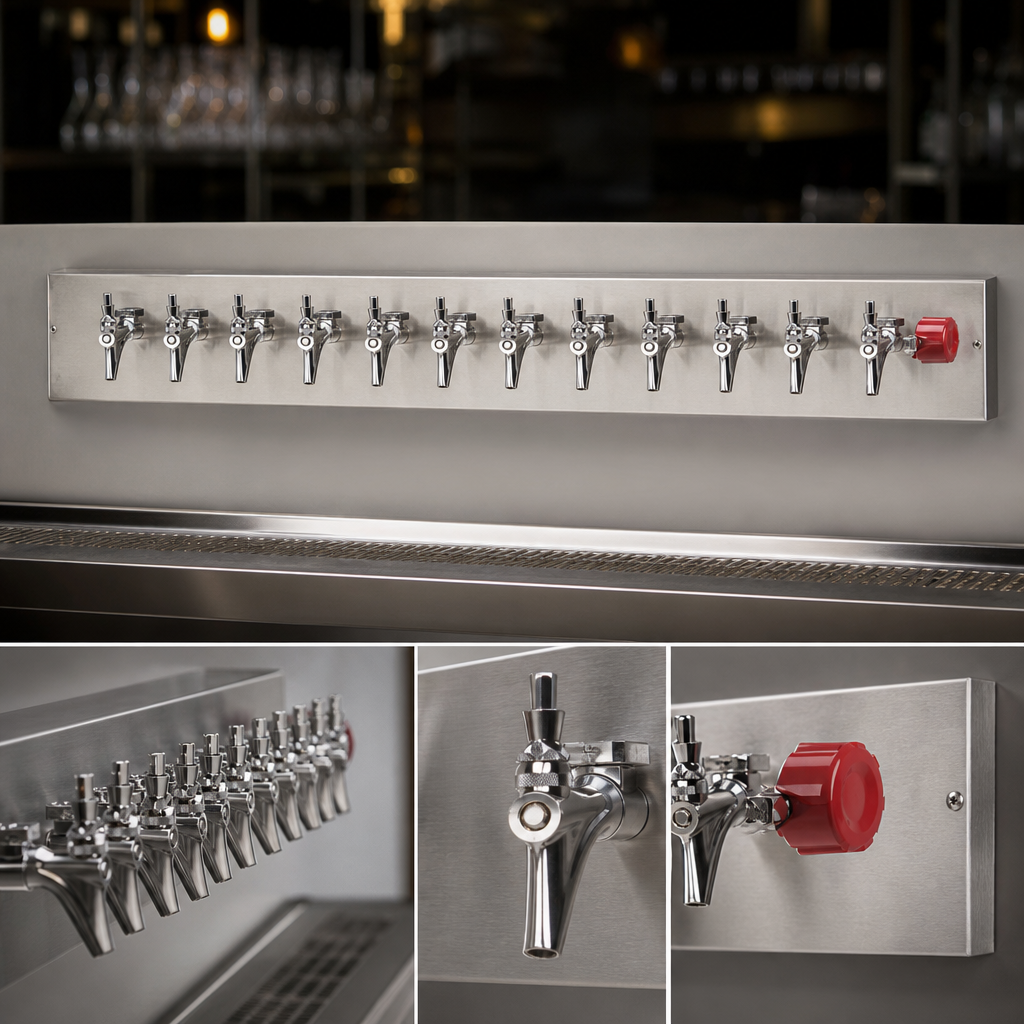

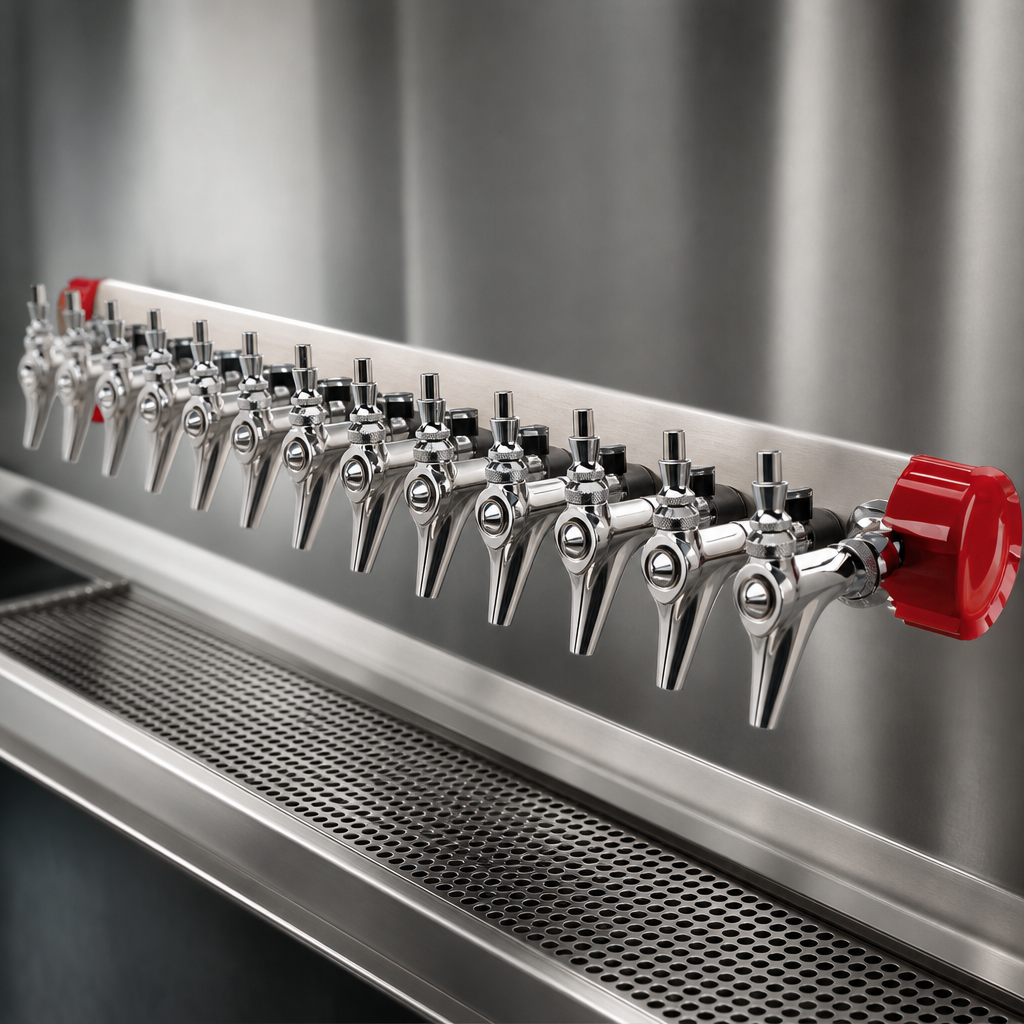

• 12 × 304 stainless steel faucets mounted on 1-5/8" Kool-Rite™ short shanks
• Patented Kool-Rite™ cooling block for rock-solid product temperature control
• All beer-contact surfaces are stainless steel for maximum draft purity
• Leak-proof shank design helps prevent tower condensation and product loss
• Space-saving 3" on-center faucet spacing—ideal for high-volume bars
• Glycol ready: 3/8" O.D. copper coolant lines with 3/8" barb fittings
• 1/4" O.D. stainless steel product lines with 1/4"–3/8" tapered barbs
• NSF listed for commercial safety and sanitation
• Ships pressure-tested and insulated—install, connect and pour

Typical Applications

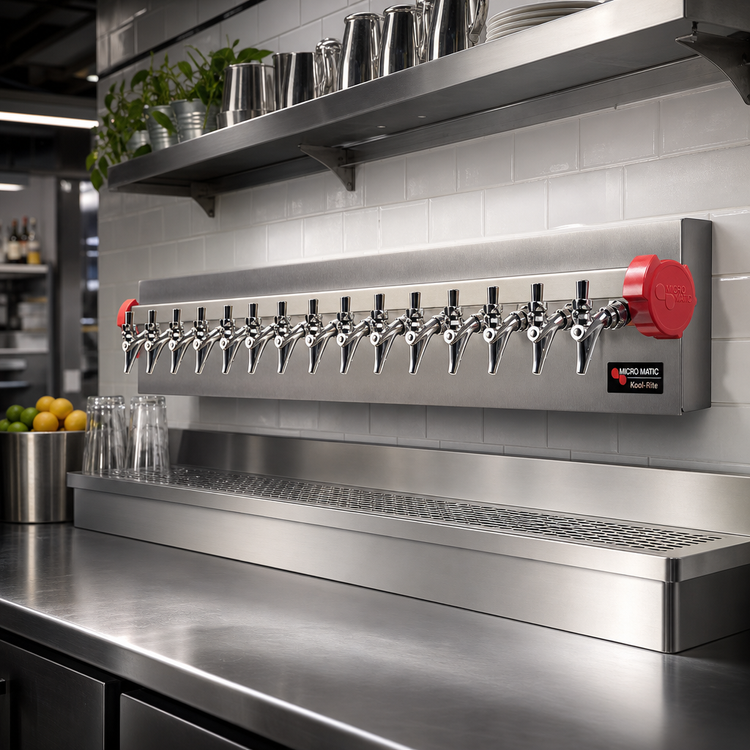

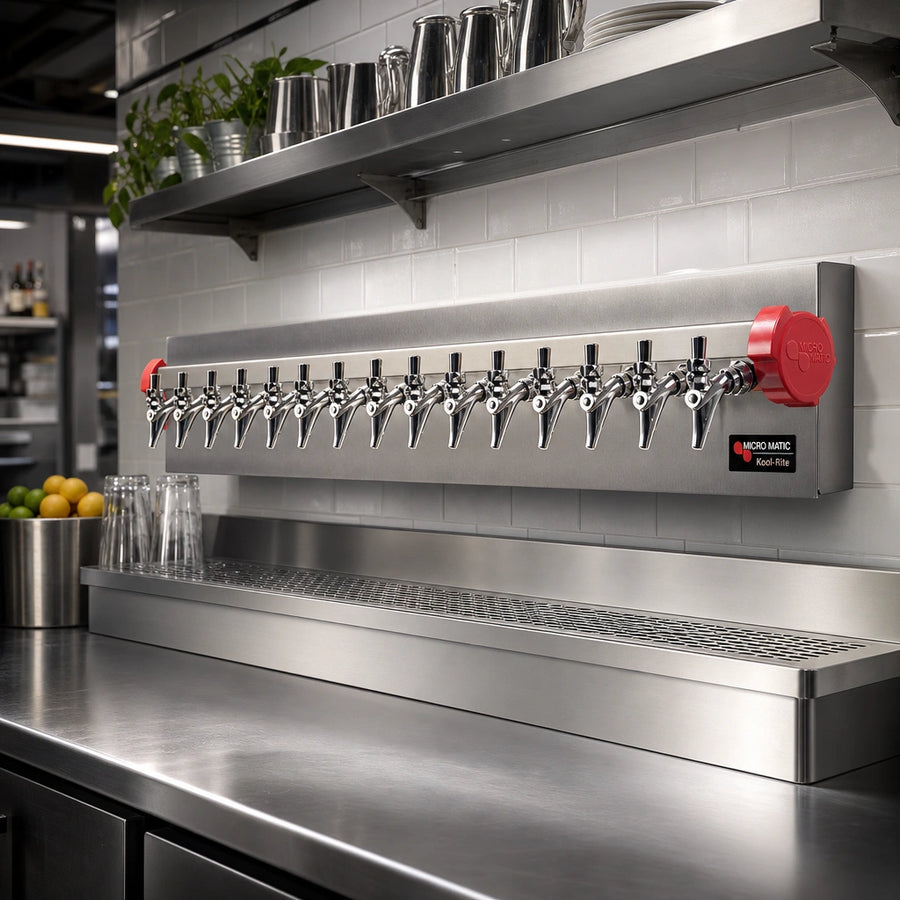

• Custom bar‐top or wall‐mount draft towers
• Taproom, brewery or restaurant build-outs
• Portable festival or event draft carts
• Retrofit projects requiring minimal downtime

Specifications

What’s Included

• 12-tap Kool-Rite™ insert module (36")
• Pre-mounted faucets & short shanks
• Stainless product tubing & copper coolant tubing
• Integrated cooling block & insulation wrap

Looking for a drip tray? Pair this insert with Micro Matic model DP-332ELD-12-3 (sold separately).
