Micro Matic USA 1736-S Draft Beer & Wine Dispensers
Description

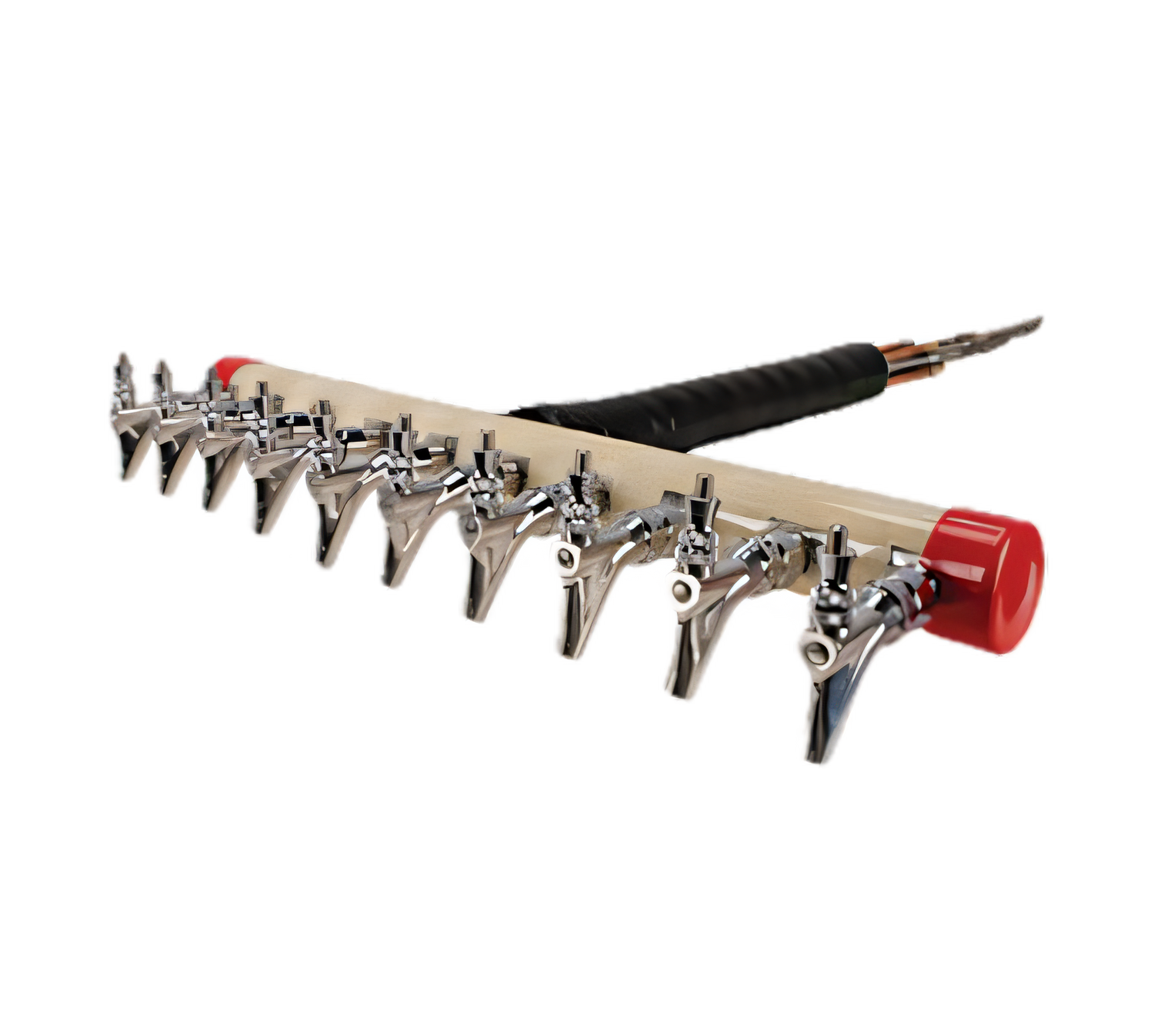

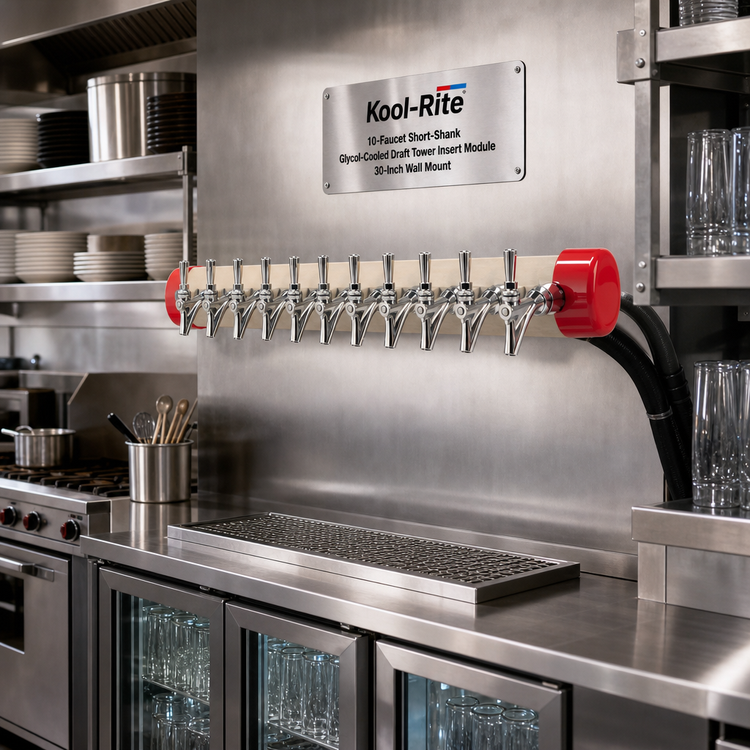

Kool-Rite™ 10-Faucet Insert Module – Short Shanks, 30" Wide
Model 1736-S | NSF Certified | For Remote Glycol SystemsBuild the exact draft tower your concept deserves. The Micro Matic Kool-Rite™ insert drops seamlessly into a custom enclosure, delivering ultra-consistent temperature control and leak-proof performance across ten taps—all while keeping every ounce of beer in 304 stainless steel contact.
Key Features

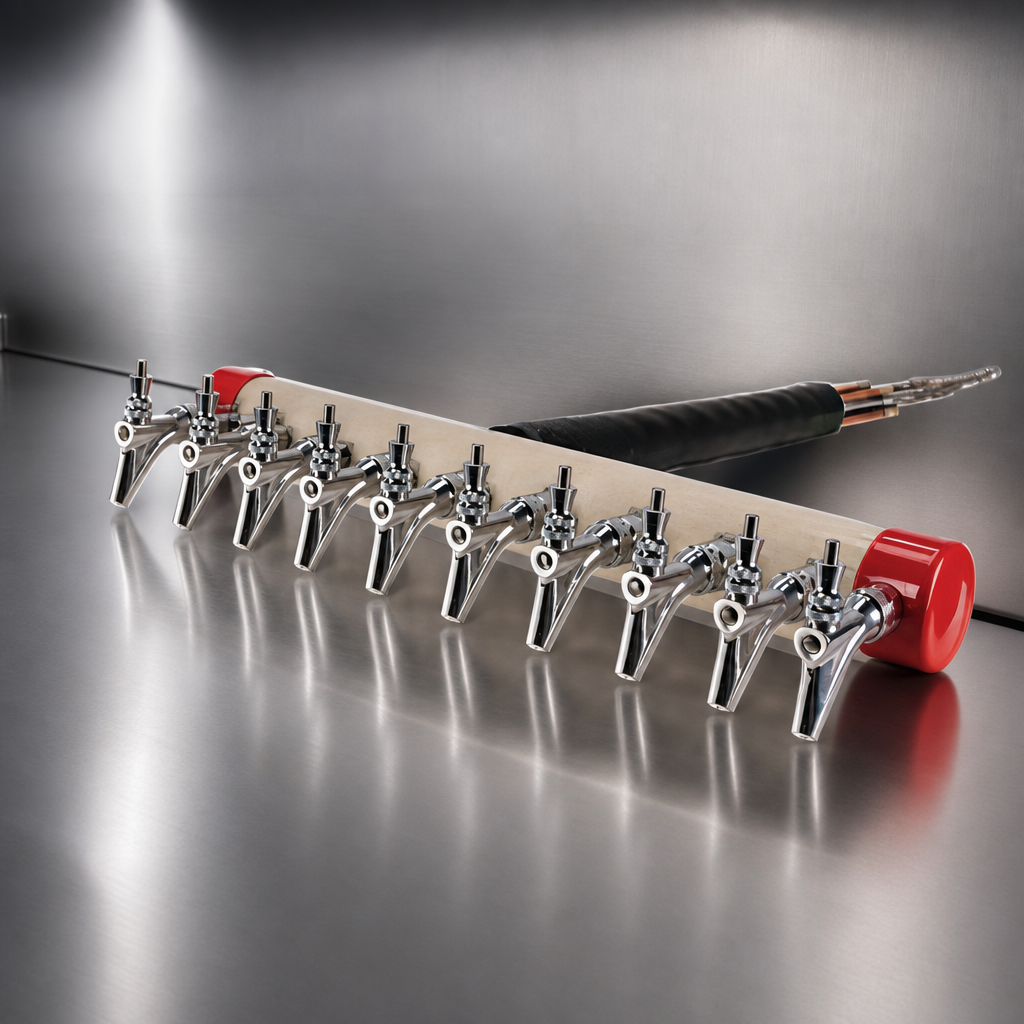

- Ten (10) Micro Matic 304 stainless steel faucets for uncompromised flavor purity.

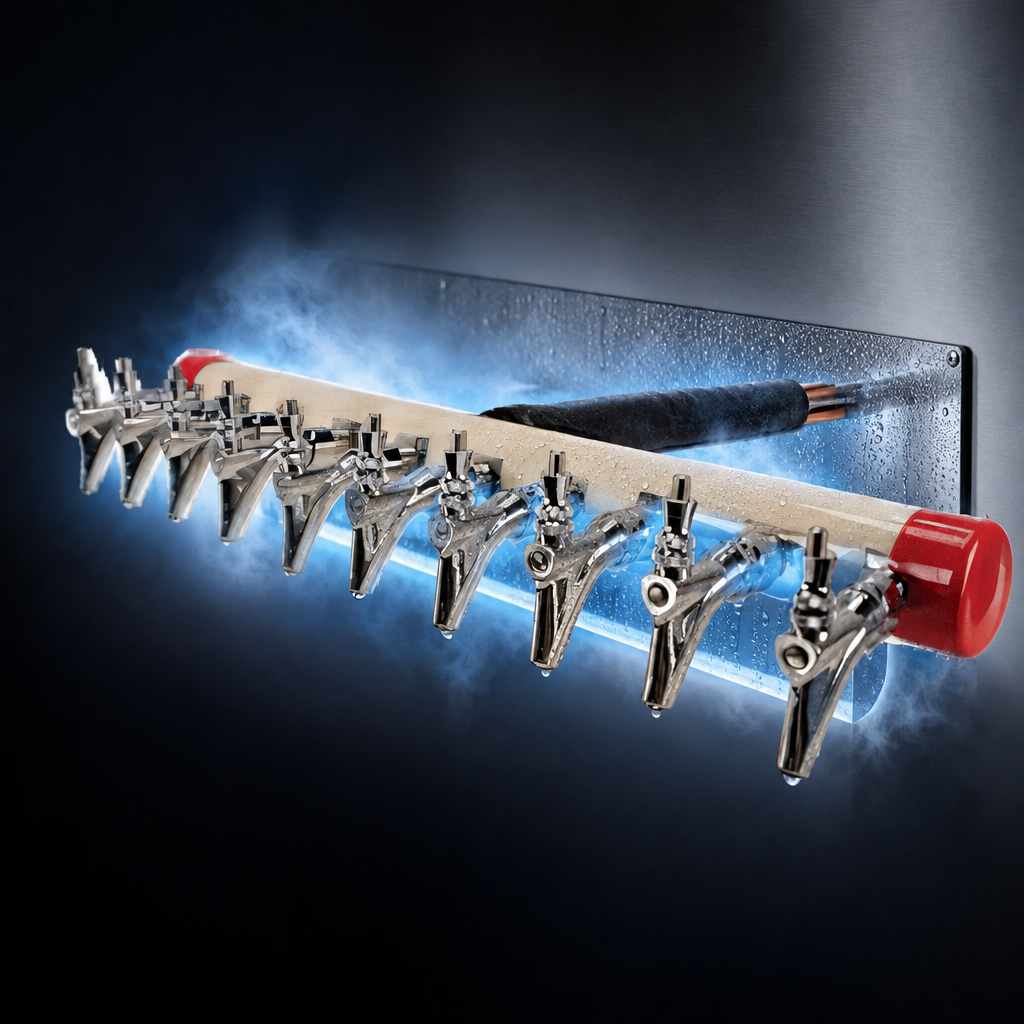

- Patented Kool-Rite™ aluminum cooling block keeps beverages at serving temperature right to the faucet.
- 1-5/8" leak-proof stainless steel shanks—short profile fits slim or shallow tower bodies.
- 3" on-center faucet spacing provides comfortable handle clearance.
- All stainless steel beer lines (1/4" O.D.) with 1/4"–3/8" tapered barbs.
- 3/8" O.D. copper coolant lines with 3/8" barbs—ready for glycol recirculation.
- NSF/ANSI 18 listed and backed by Micro Matic’s 1-year limited warranty.
- Design freedom—simply add the outer shell and drip tray of your choice.
Technical Specifications
| Part Number | 1736-S |
|---|---|
| Total Faucets | 10 × 304 stainless steel |
| Shank Length | Short – 1-5/8" (41 mm) |
| Module Width | 30" (762 mm) |
| Faucet Spacing | 3" (76 mm) on center |
| Beer Lines | 1/4" O.D. stainless steel tubing, 1/4"–3/8" tapered barbs |
| Coolant Lines | 3/8" O.D. copper tubing, 3/8" barbs |
| Cooling Technology | Kool-Rite™ aluminum cooling block |
| Certification | NSF / ANSI 18 |
| Shipping Weight | 33 lbs (15 kg) |
| Warranty | 1-year limited parts & workmanship |
Perfect For
- Bars and restaurants designing signature draft towers.
- High-volume taprooms pouring multiple styles at once.
- Remote cooler installs that rely on glycol chilled trunk lines.
- Operators demanding 100% stainless steel product contact.
Questions about fitment or lead times? Call our draft experts at 1-866-327-4159 or chat with us online— we’re here to help!
