Maxximum

Maxx Ice Intelligent Series 60 Inch Wide Half Dice Air-Cooled Modular Ice Machine with 580 lb Storage Bin

SKU: MIM370NH-B580N
GTIN: 845035036835
$5,399.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Machines with Bins Ice Makers & Bins Maxximum New Arrivals Restaurant Equipment

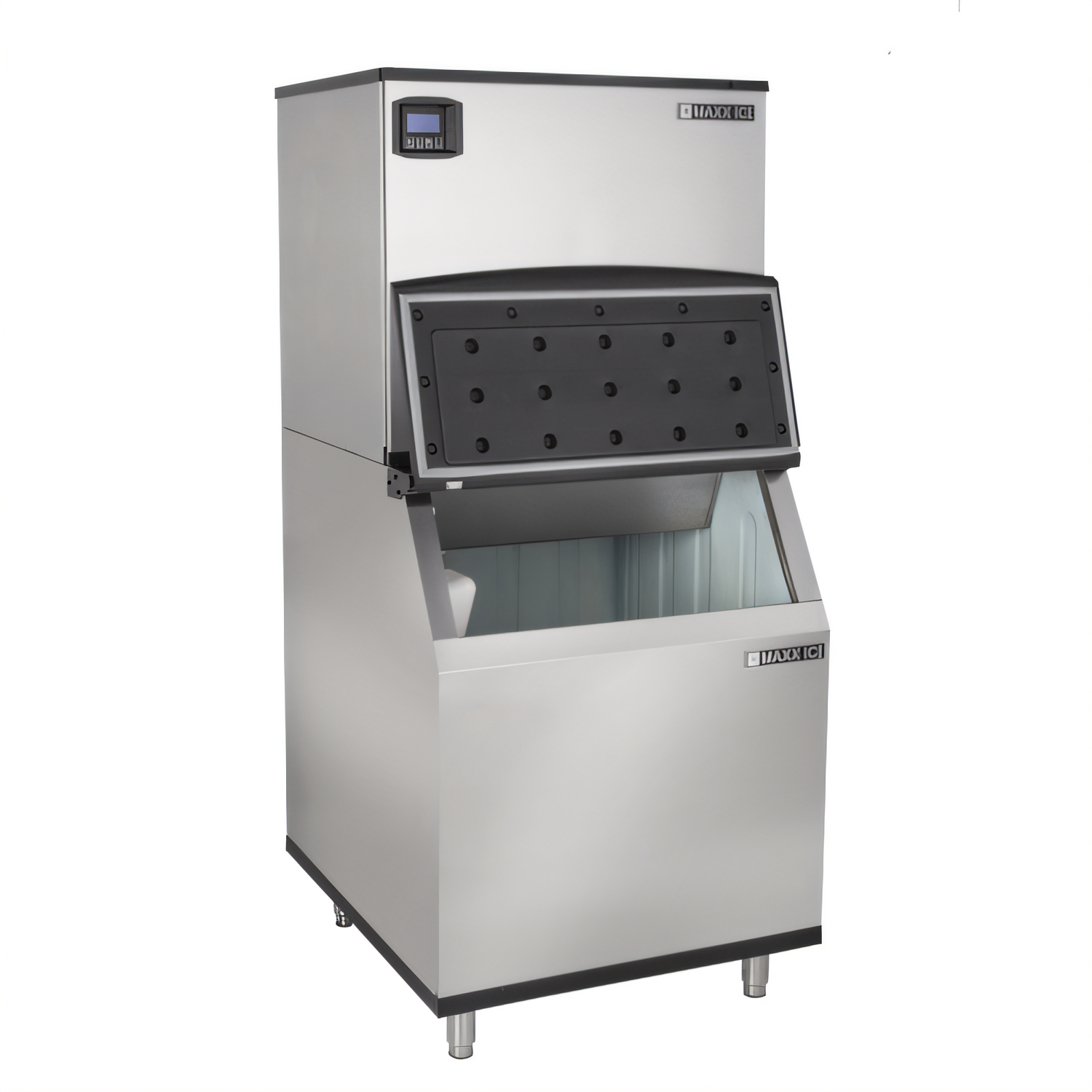

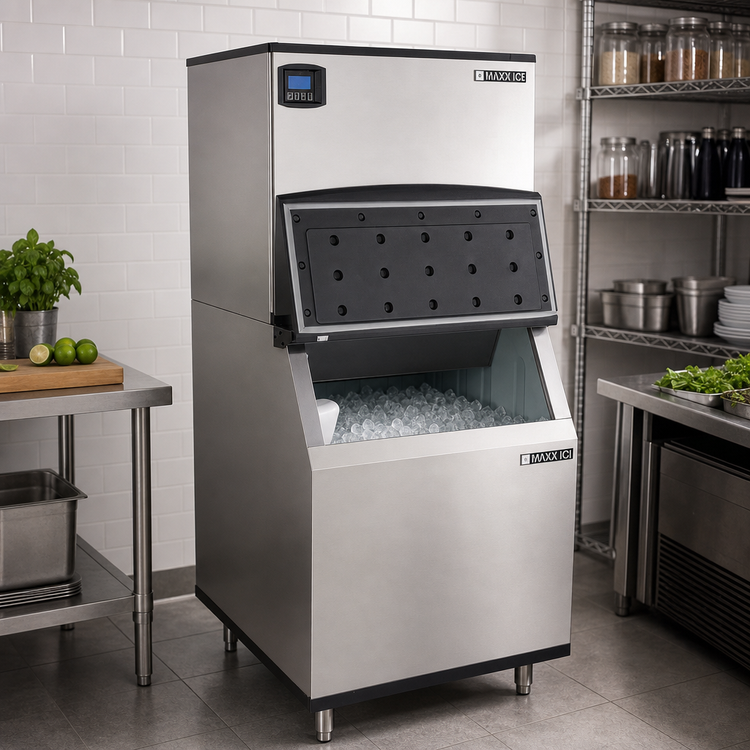

Maxx Ice Intelligent Series 60 Inch Wide Half Dice Air-Cooled Modular Ice Machine with 580 lb Storage Bin

Approx. 361 lb/day, 115V, Stainless Steel with Black Trim

Keep up with demand using a half-dice ice system that pairs a 361 lb/day modular head with a 580 lb storage bin.

  • Produces half-dice cube ice for versatile beverage service.
  • Delivers approximately 361 lb of ice per day under standard test conditions.
  • 580 lb storage bin helps maintain a ready supply during peak periods.
  • Air-cooled, self-contained design simplifies installation and operation.
  • Programmable digital controls and a status display make monitoring easy.
  • Automatic cleaning cycle and overflow prevention support reliable performance.
  • Stainless steel construction with black trim provides a durable commercial finish.

Overall Dimensions:

60.0"W x 58.6"D x 71.0"H

Product Weight:

308.0 lb

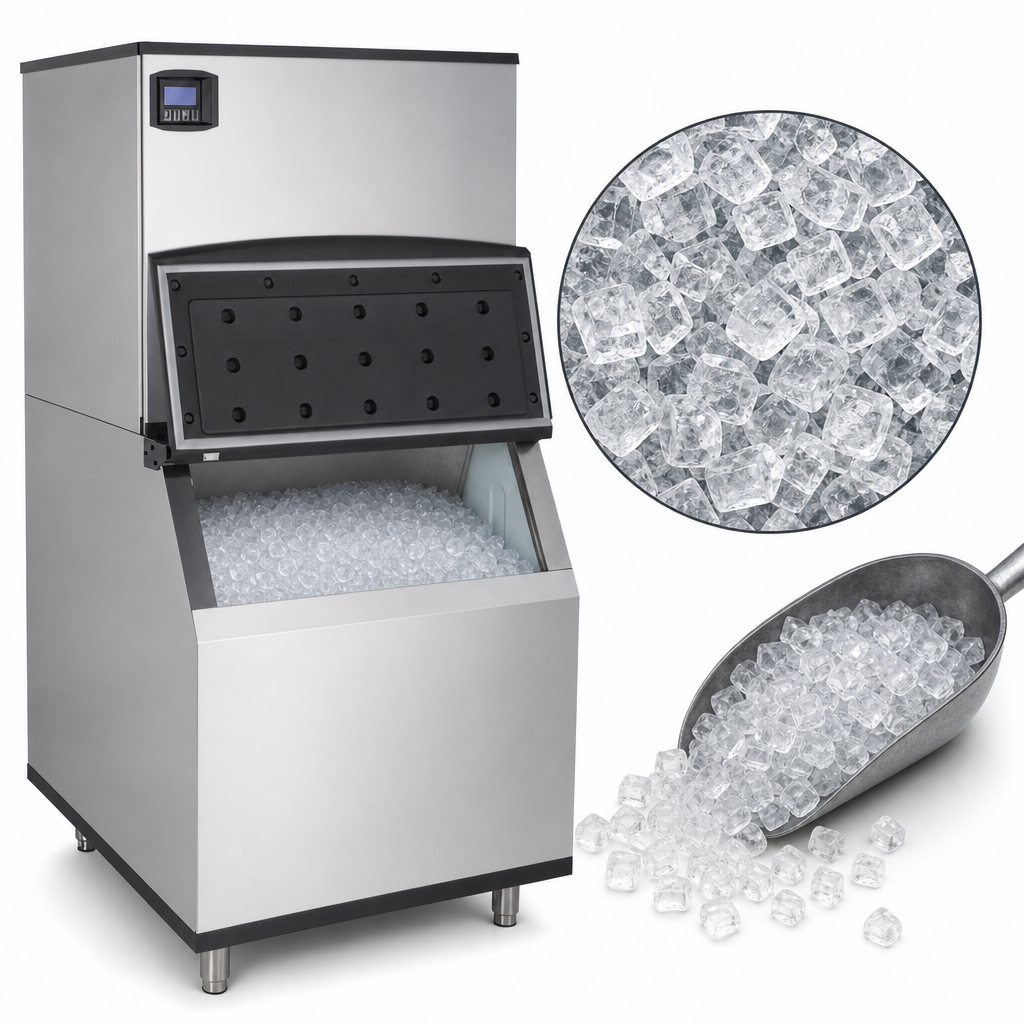

Half-Dice Cube Output

Makes half-dice cube-style ice for a wide range of foodservice and beverage applications.

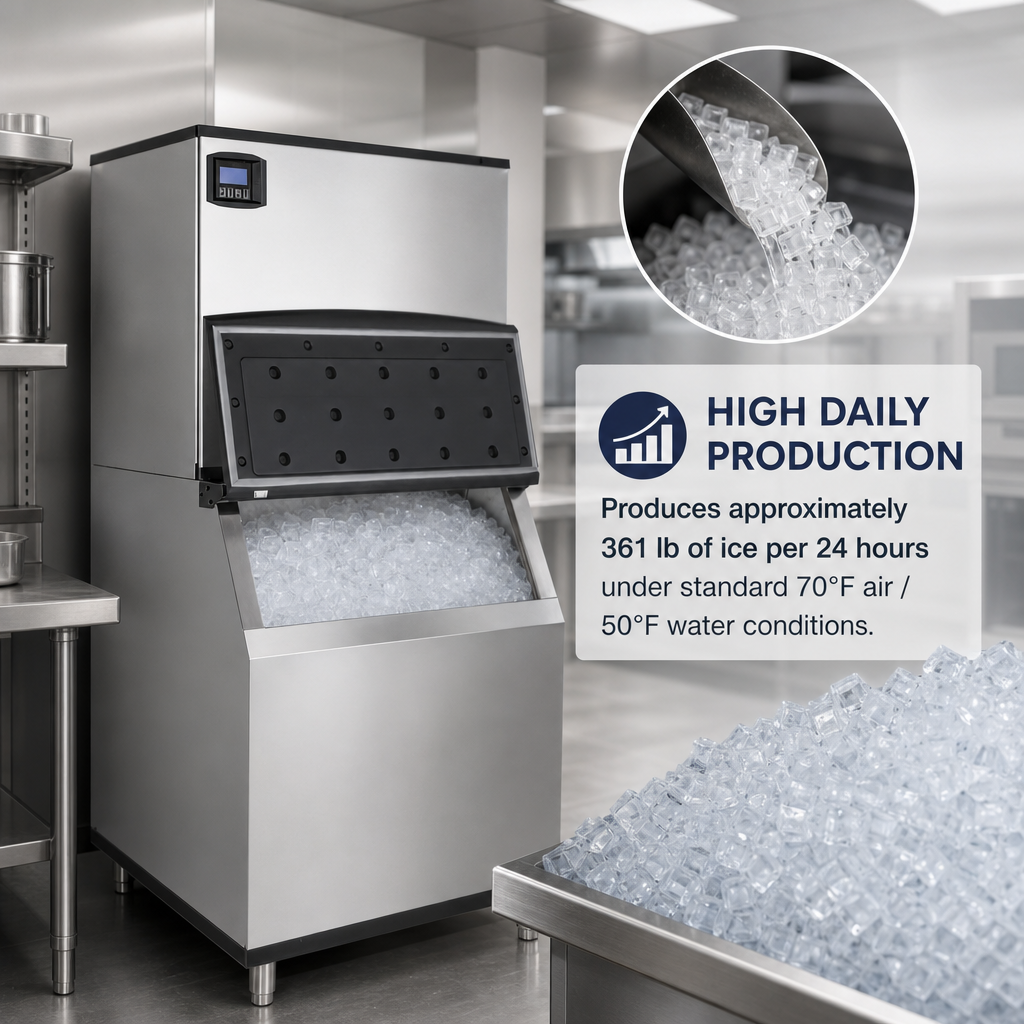

High Daily Production

Produces approximately 361 lb of ice per 24 hours under standard 70°F air / 50°F water conditions.

580 lb Storage Bin

Large bin capacity helps keep ice available during busy service periods.

Air-Cooled, Self-Contained Design

Features an air-cooled compressor and self-contained condenser for straightforward installation.

Programmable Digital Controls

User-friendly digital controls and a status display simplify operation and monitoring.

Automatic Cleaning Cycle

Built-in cleaning cycle helps reduce manual maintenance.

Bin Overflow Prevention

Helps prevent overfilling and supports more dependable operation.

Hinged Front Panel

Front panel opens for easier cleaning and servicing access.

Stainless Steel with Black Trim Exterior

Durable exterior finish designed for commercial environments.

Stackable Design

Units can be stacked for increased ice production with an optional adapter.

Type Ice Machine with Bin
Style Modular
Cube Type Half Dice
Installation Type Floor Model
Capacity 580 lb
Daily Ice Production 361 lb
Material Stainless Steel
Finish Stainless Steel with Black Trim
Refrigeration Type Air-Cooled
Controls Programmable Digital
Voltage 115 Volts
Amps 7.5 Amps / 10.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Refrigerant Type R-404a
Water Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Required
Drain Connection Size 1/2 Inch FPT
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 59 Inches
Shipping Height 71 Inches
Shipping Weight 308 lb

Warranty & Protection

Contact manufacturer for warranty statement.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces half-dice cube-style ice.
The published production rating for the MIM370NH head is approximately 361 lb per 24 hours under 70°F air and 50°F water conditions.
The bin capacity is 580 lb.
The unit operates on 115V / 60Hz / 1-phase power and includes a 6-foot cord with a NEMA 5-15P plug. A 230V / 50-60Hz / 1-phase option is also available.
It requires a 3/8 inch FPT water supply connection and a 1/2 inch drain line connection. A gravity drain line is required, and water pressure should be 15 to 80 PSI; a regulator is required above 80 PSI.
Yes. The units are stackable for increased ice production, but an optional adapter is required.
