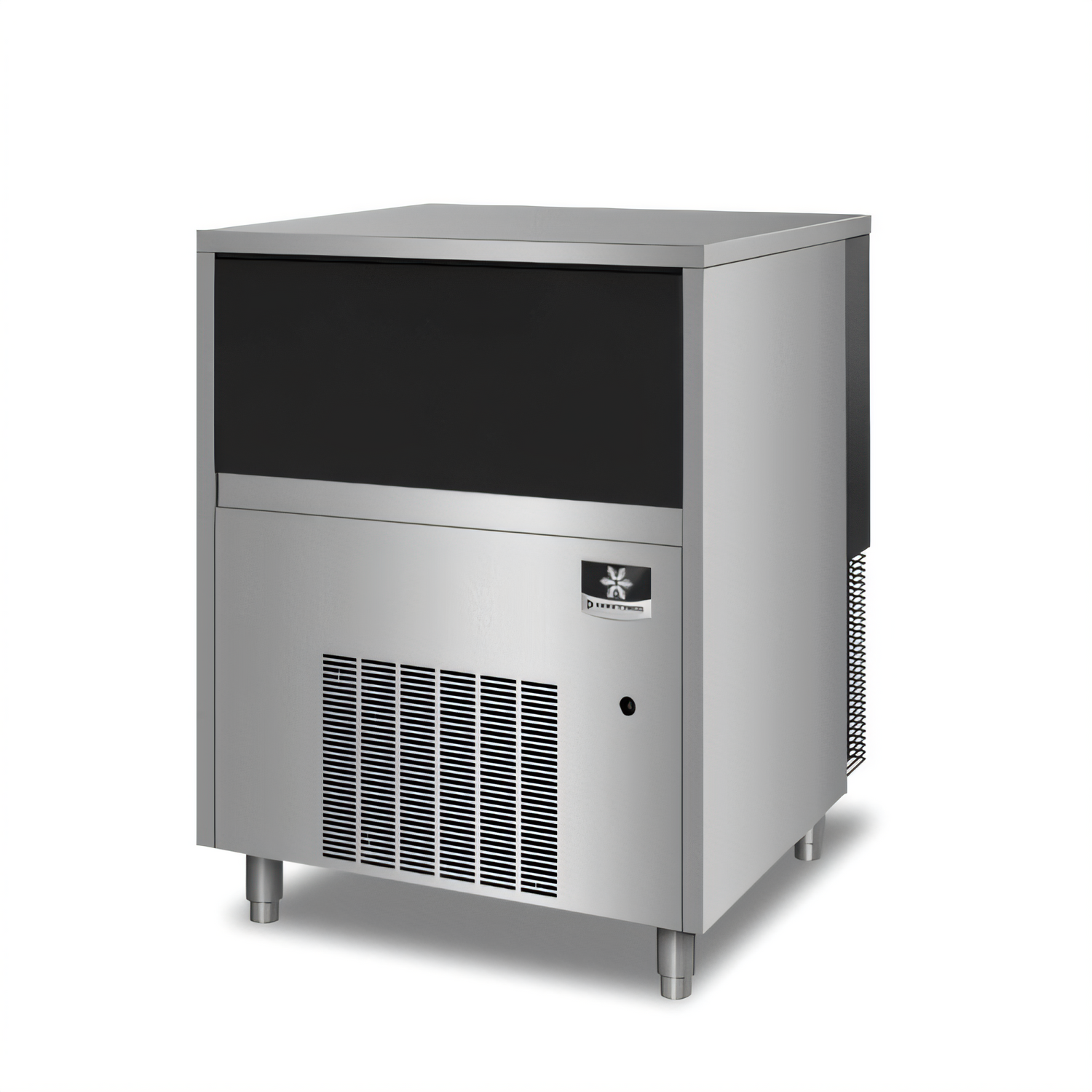

Manitowoc UFP0350A Air-Cooled Flake Ice Machine with 60 lb Storage Bin

SKU: UFP0350A
$5,646.41
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Machines with Bins Ice Makers & Bins Manitowoc New Arrivals Restaurant Equipment

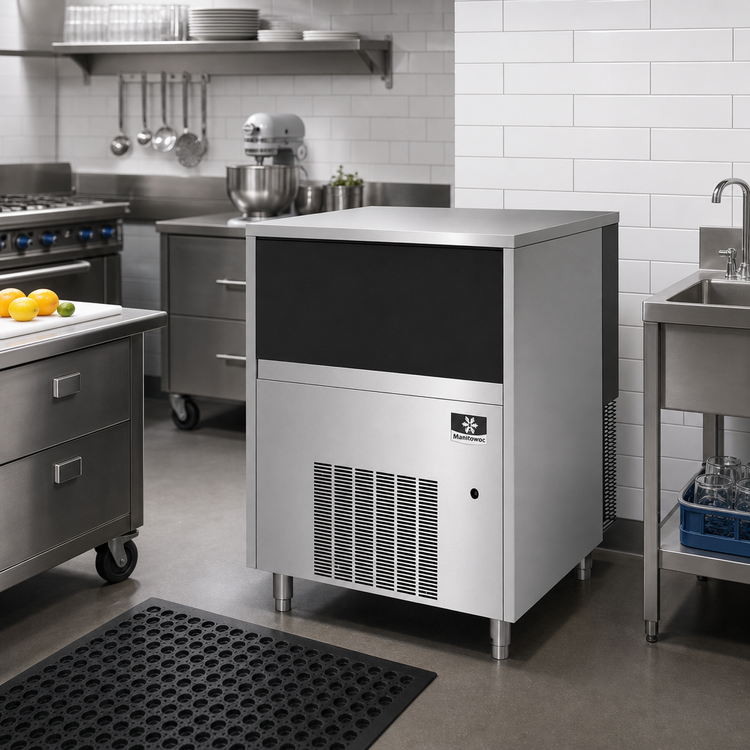

Manitowoc UFP0350A Air-Cooled Flake Ice Machine with 60 lb Storage Bin

Undercounter height, stainless steel finish, 115V/60Hz/1-phase

Compact flake ice machine delivers up to 398 lb of ice per day and stores 60 lb in a stainless steel undercounter design.

  • Produces up to 398 lb of flake ice per day for high-demand applications.
  • Integrated 60 lb bin keeps ice on hand for service and display needs.
  • Air-cooled, self-contained condenser simplifies installation.
  • Fits under standard counter heights with 6-inch bin legs.
  • Factory pre-wired 115V/60Hz/1-phase setup includes a 6-foot cord and NEMA 5-15P plug.
  • Easy-access door and maintenance-free bearings support serviceability and reliability.

Overall Dimensions:

29.06"W x 27.17"D x 39.52"H

Product Weight:

224.0 lb

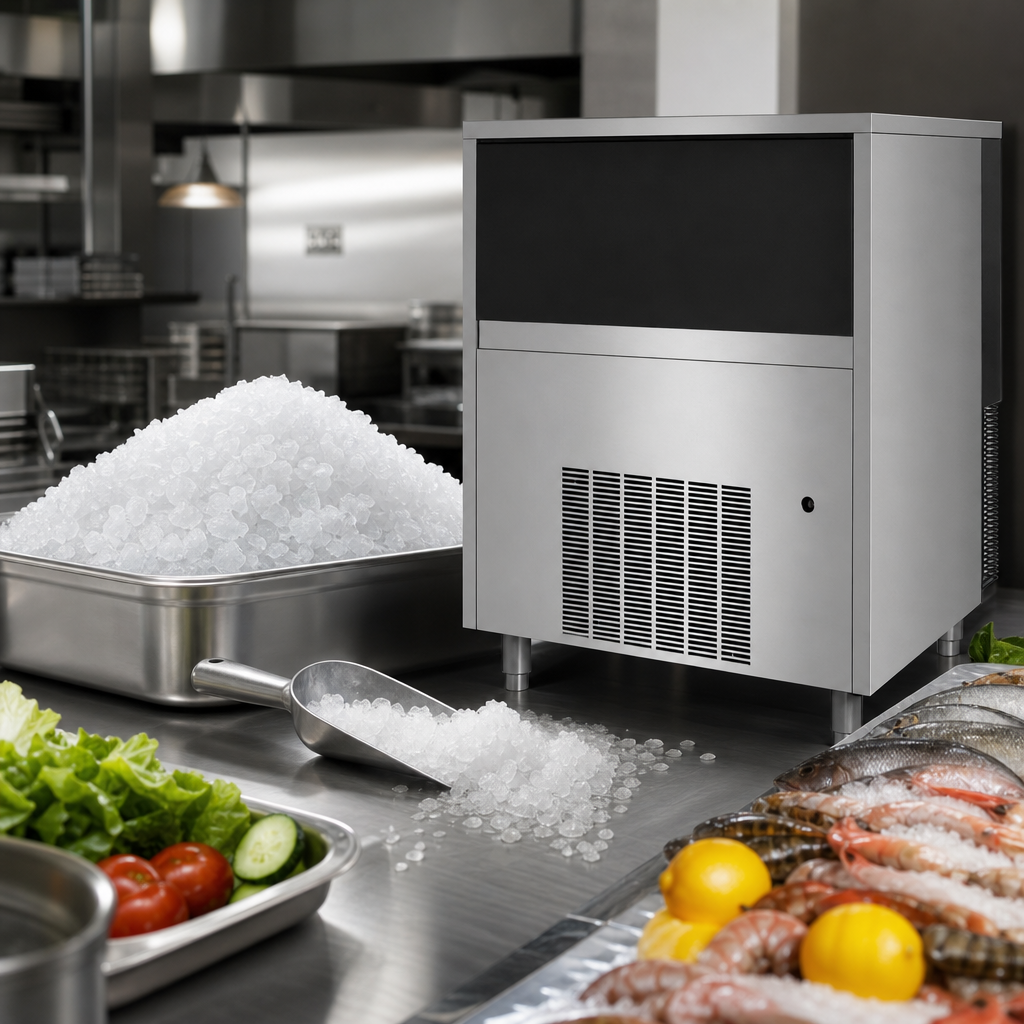

High Daily Ice Output

Produces up to 398 lb of flake ice per day under 70°F air and 50°F water conditions.

Storage Bin Capacity

Integrated bin stores up to 60 lb of ice for immediate use.

Flake Ice Shape

Flake ice is suited for food display, salad bars, and cold therapy applications.

Air-Cooled, Self-Contained Condenser

Uses ambient air and a built-in condenser for simpler installation.

Undercounter Height

Designed to fit under standard counter heights; height includes adjustable 4-1/2 to 6-inch legs set at 6 inches.

Stainless Steel Finish

Durable stainless steel exterior is built for commercial environments.

Maintenance-Free Bearings

High-load bearings are designed to improve reliability.

Easy-Access Door

Door slides up and out of the way for easier access to the machine interior.

R290 Refrigerant

Uses R290 refrigerant.

Included Standard Equipment

Includes an ice scoop and standard legs adjustable from 4-1/2 to 6 inches.

Front-to-Rear Airflow

Air enters from the front and exits the back; no side vents are used.

Type Flake Ice Machine with Bin
Style Flake
Installation Type Undercounter
Cooling Air-Cooled
Refrigeration Type Self-Contained
Capacity 60 lb
Ice Production Per 24 Hr 398 lb
Voltage 115 Volts
Amps 7.5 Amps
Phase 1-Phase
Hertz 60 Hz
Plug Type NEMA 5-15P
Cord Length 6 Feet
Refrigerant Type R290
Finish Stainless Steel
Water Inlet Size 3/8 Inch N.P.T.
Drain Connection Size 1/2 Inch N.P.T.
BTU 5,121 BTU per Hour
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 40 Inches
Shipping Weight 224 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and labor on the ice maker; 5-year parts and 3-year labor on the compressor.

Documents

PDF Cutsheet PDF Download PDF Quick reference guide - english PDF Download PDF Quick reference guide - spanish PDF Download PDF Cleaner product guide PDF Download PDF Ice type brochure PDF Download PDF Full line brochure PDF Download PDF Quick reference guide PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Up to 398 lb per day under 70°F air and 50°F water conditions.
The attached bin stores up to 60 lb of ice.
Standard power is 115/60/1 with a 6-foot cord and NEMA 5-15P plug; 230/50/1 is also available.
Yes. It is designed to fit under standard counter heights and measures 39.52 inches tall with the 6-inch legs.
Minimum clearances are 2 inches on the sides and 8 inches at the back.
Flake ice is ideal for food display, salad bars, and cold therapy or healthcare applications.
