Key specifications

Amps
5.5 Amps
Phase
1-Phase
Dimensions
19.69"W × 25.98"D × 37.5"H
Type
Flake Ice Machine
Installation Type
Undercounter
Material
Stainless Steel
Spec sheet
Manitowoc SKU: UFP0200A

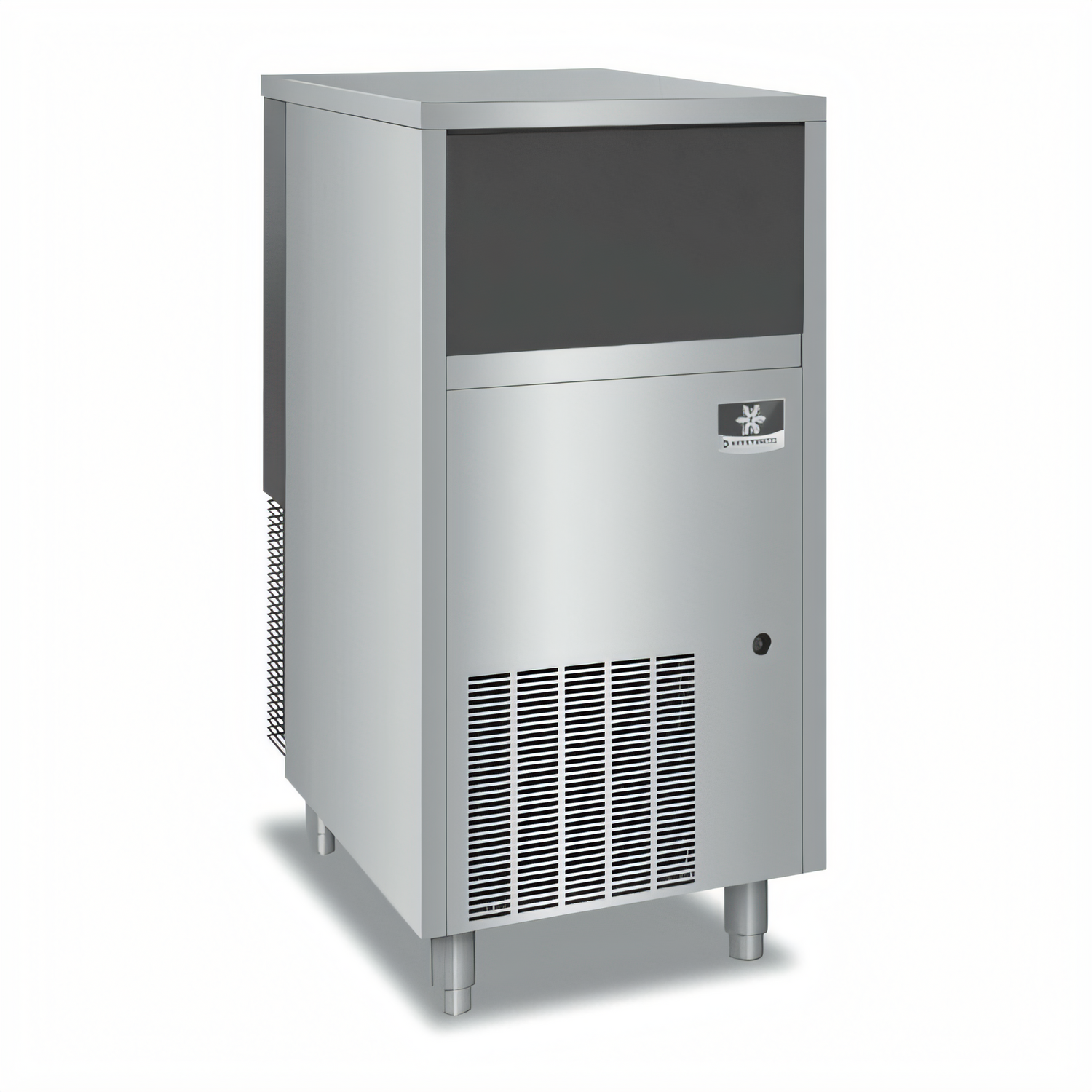

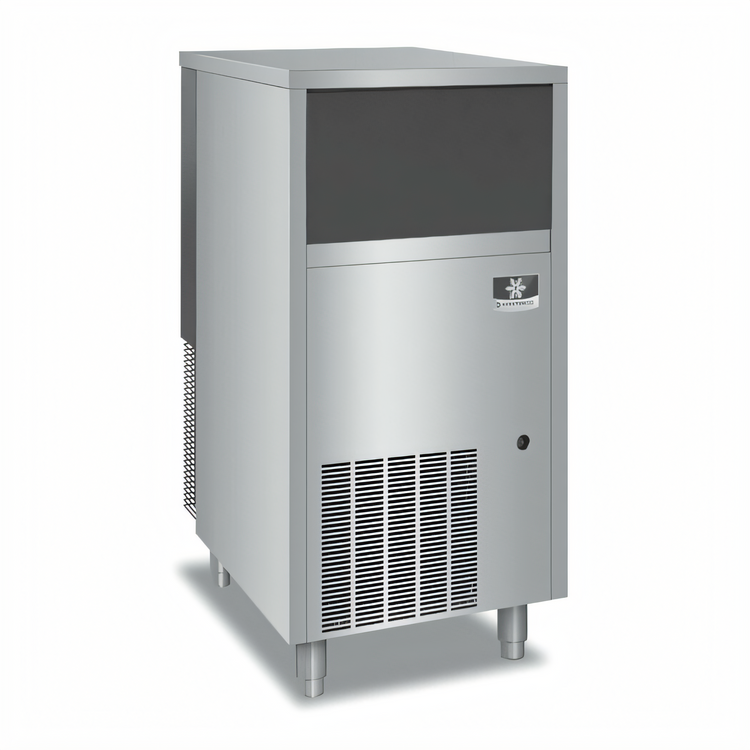

Manitowoc UFP0200A Undercounter Flake Ice Machine, 50 lb Bin

$5,048.44
/each
Estimated to ship in 21–24 business days
Electrical115 V · 1-phase · 60 Hz
Included: Manitowoc warranty 3-year parts and labor warranty; compressor parts are covered for 5 years and compressor labor for 3 years

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $467/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Flake Ice Machine
Installation Type Undercounter
Material Stainless Steel
Finish Stainless Steel
Ice Shape Flake
Capacity 50 lb
Production Per 24 Hours 257 lb at 70°F air/50°F water; 198 lb AHRI certified at 90°F air/70°F water
Refrigeration Type Air-Cooled
Condenser Type Self-Contained
Refrigerant Type R290A
Compressor Horsepower 1/4 HP
Voltage 115 Volts
Amps 5.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Ambient Temperature Range 50°F–110°F
Water Temperature Range 37°F–90°F
Water Inlet Pressure 14–80 psi
Water Usage 12 gal per 100 lb of ice
Energy Use 5.31 kWh per 100 lb of ice
Condenser Heat of Rejection 3,038 BTU/h average
Maximum Fuse Size 15 Amps
Energy Efficiency ENERGY STAR®

Description

Manitowoc UFP0200A is an air-cooled flake ice machine with a 50 lb storage bin and stainless steel finish.

It produces up to 257 lb of flake ice per 24 hours at 70°F air and 50°F water, with an AHRI-certified production capacity of 198 lb per 24 hours at 90°F air and 70°F water.

  • Self-contained air-cooled condenser
  • R290A refrigerant
  • High-load maintenance-free bearings
  • Easy-access door slides up and out of the way
  • Includes an ice scoop and 6 in bin legs; standard legs adjust from 4.5 to 6 in

Overall Dimensions:

19.69"W x 25.98"D x 37.5"H

Product Weight:

168.0 lb

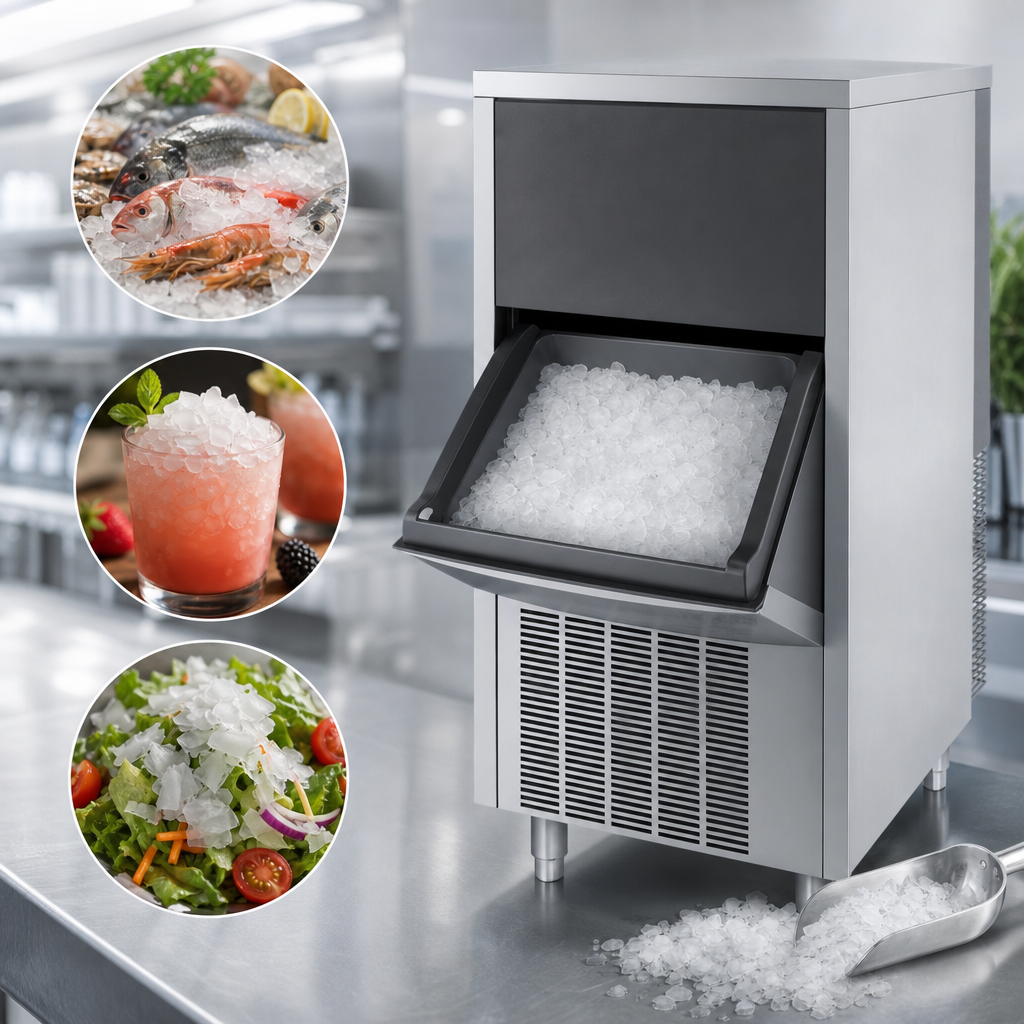

Flake Ice Production

Produces up to 257 lb of flake ice per 24 hours at 70°F air and 50°F water; AHRI-certified production is 198 lb per 24 hours at 90°F air and 70°F water.

50 lb Storage Bin

Provides up to 50 lb of ice storage.

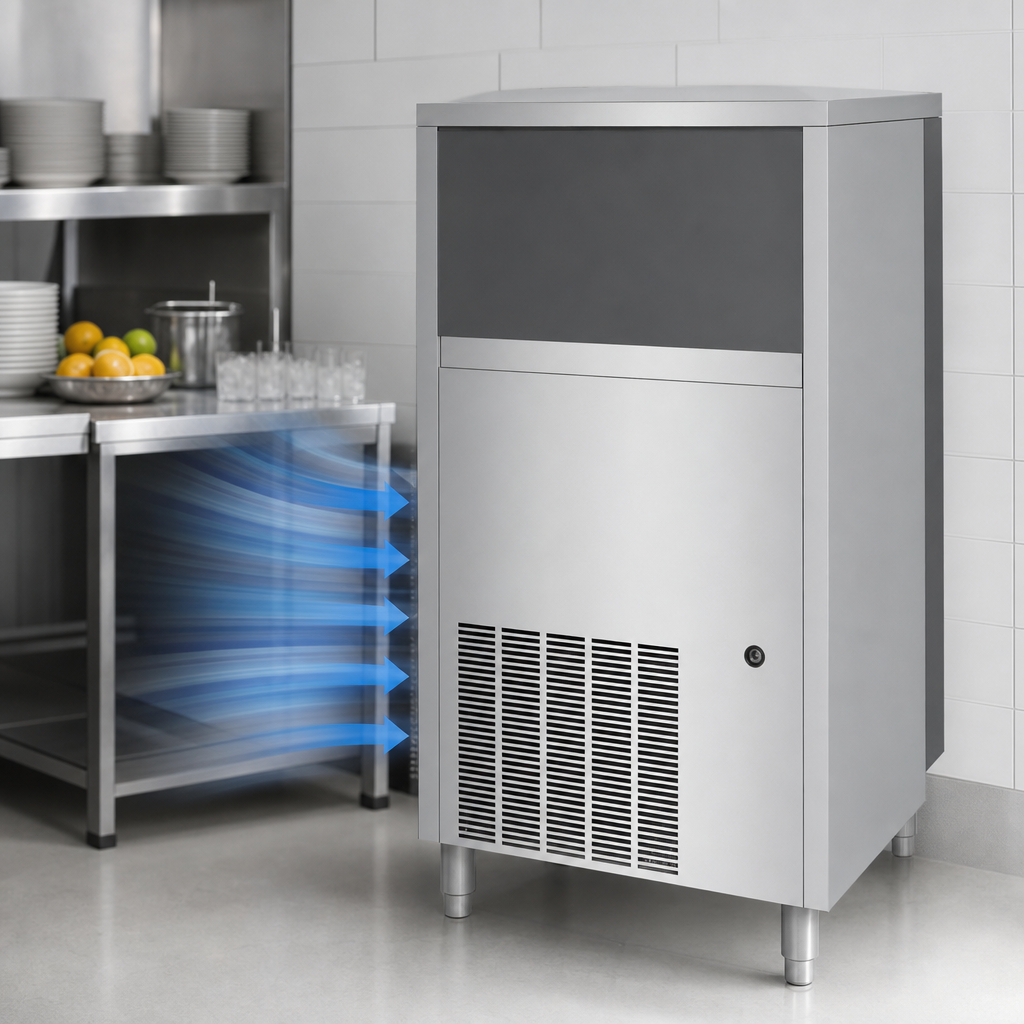

Air-Cooled Condenser

Uses an air-cooled, self-contained condenser.

Stainless Steel Finish

Finished in stainless steel.

High-Load Bearings

Uses high-load maintenance-free bearings.

Easy-Access Door

The door slides up and out of the way for access.

Standard Equipment

Includes an ice scoop and 6 in bin legs; standard legs are adjustable from 4.5 to 6 in.

Energy Efficiency

ENERGY STAR® listed.

Frequently Asked Questions

It produces flake ice.
It produces up to 257 lb per 24 hours at 70°F air and 50°F water. Its AHRI-certified production capacity is 198 lb per 24 hours at 90°F air and 70°F water.
The bin stores up to 50 lb of ice.
Yes. It uses an air-cooled, self-contained condenser.
It uses 115 Volts, 60 Hz, 1-Phase power with a NEMA 5-15P plug and a 6 ft power cord.
The product measures 19.69 in wide, 25.98 in deep, and 37.5 in high, with a listed weight of 168 lb.
The UFP series warranty provides 3 years of parts and labor coverage. Compressor parts are covered for 5 years and compressor labor for 3 years.
