Koolaire

Koolaire KDF0250A Undercounter Air-Cooled Full-Dice Ice Machine with 134 lb Bin

SKU: KDF0250A
$3,810.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

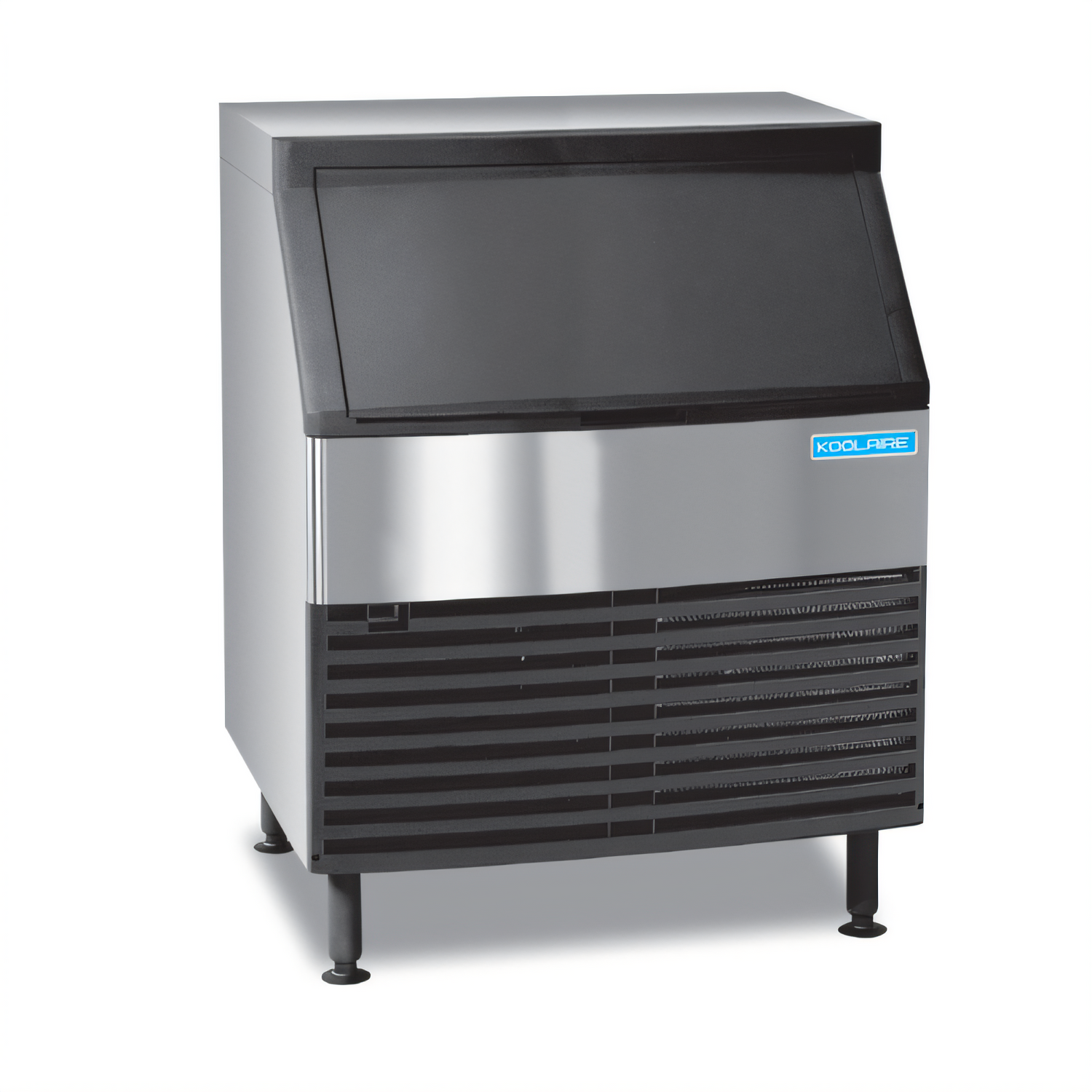

Koolaire KDF0250A Undercounter Air-Cooled Full-Dice Ice Machine with 134 lb Bin

30" Wide, 115V, Self-Contained Condenser

A compact undercounter ice maker that produces up to 256 lb of full-dice ice per day with 134 lb of built-in bin storage.

  • Produces up to 256 lb of ice per day at 70°F/50°F, with 180 lb AHRI certified output at 90°F/70°F.
  • Built-in 134 lb bin storage gives you a steady ice reserve in a compact footprint.
  • Air-cooled, self-contained design is made for undercounter installation.
  • Front air intake/discharge and no side vents help simplify tight placements.
  • Simple 3-way on/off/clean control and a removable reusable air filter make maintenance easier.
  • Hideaway bin door and included ice scoop add everyday convenience.

Overall Dimensions:

30.0"W x 28.15"D x 38.5"H

Product Weight:

203.0 lb

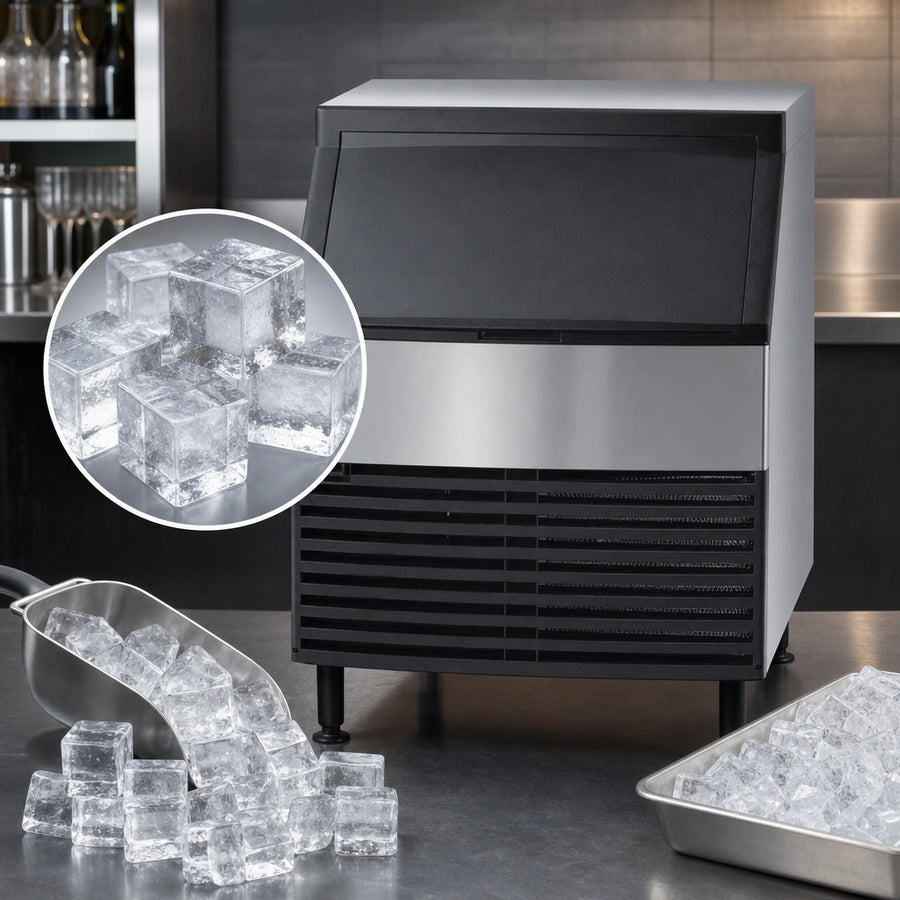

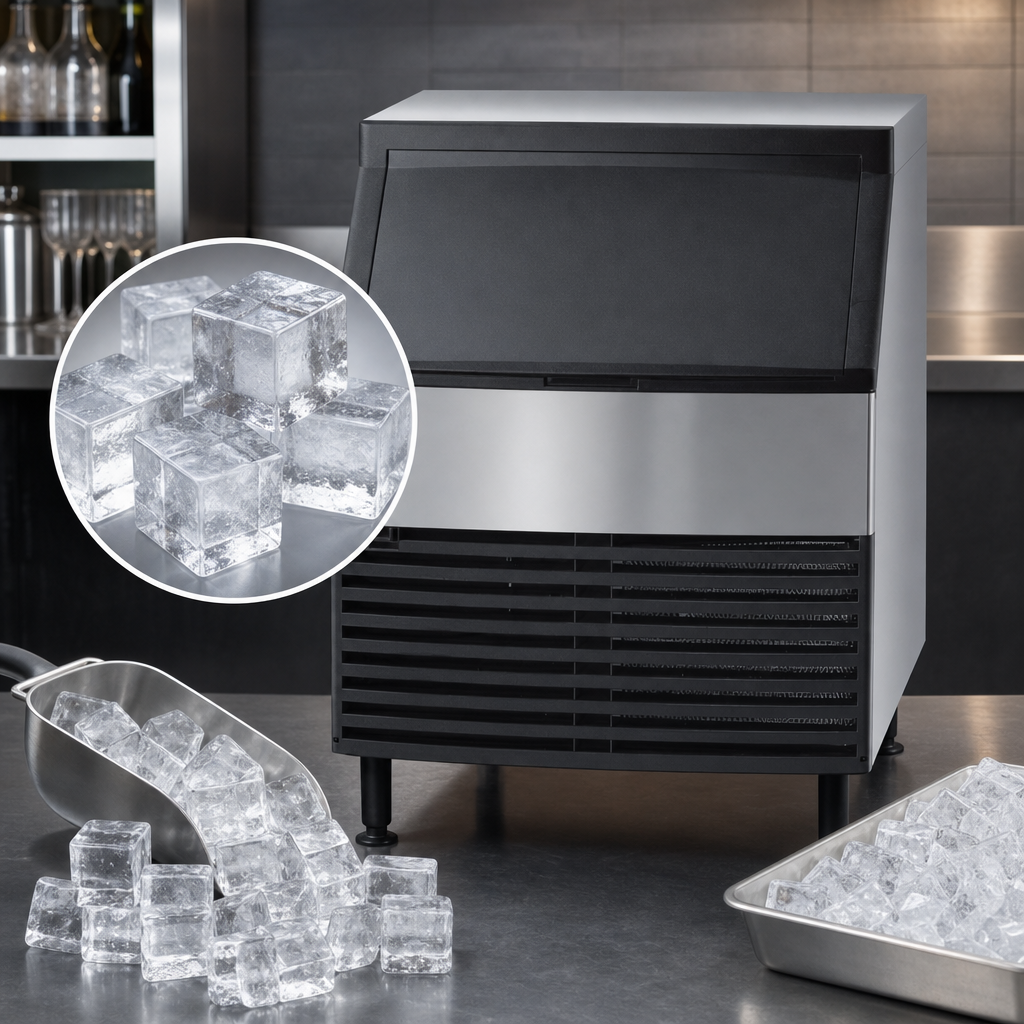

Full-Dice Ice Production

Makes full-size cube-style ice for versatile beverage service.

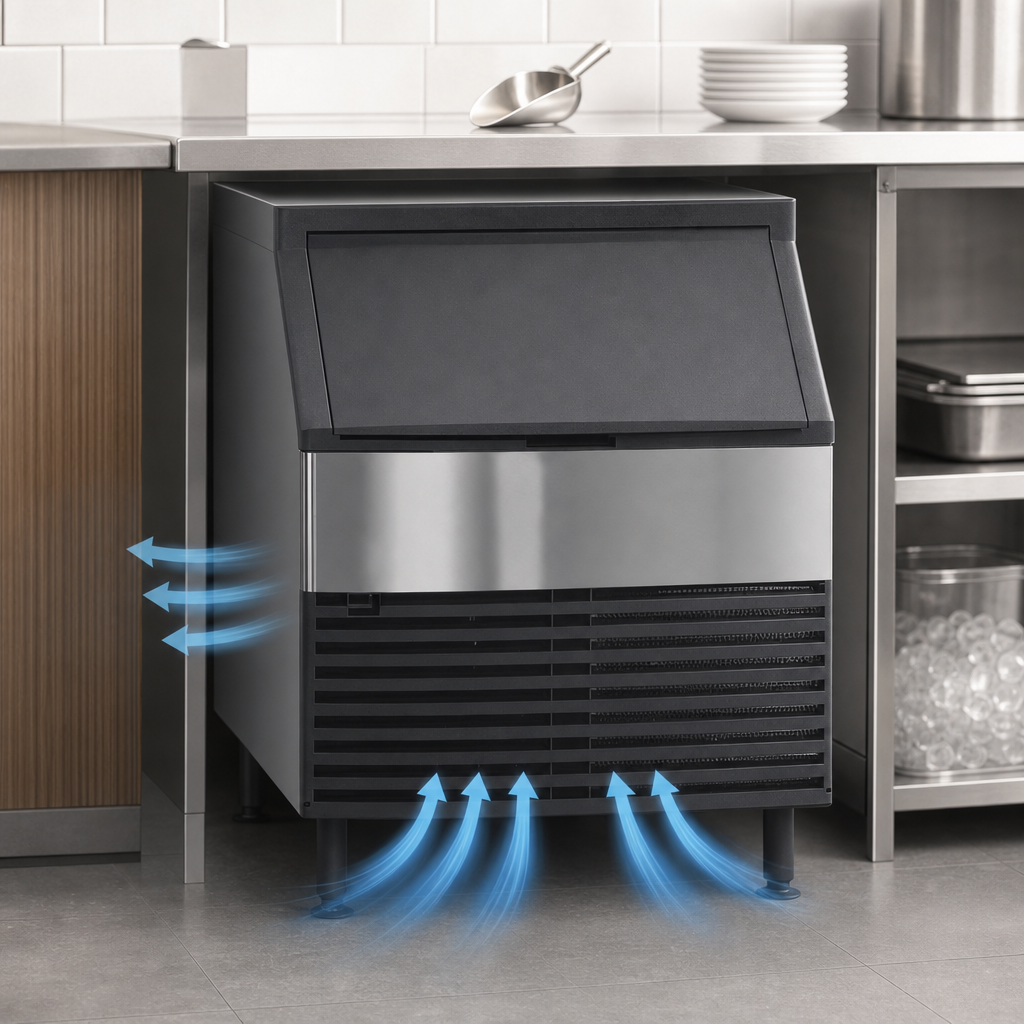

Air-Cooled, Self-Contained Design

Integrated refrigeration system with front air intake and discharge supports undercounter installation.

Compact Undercounter Footprint

Measures only 30 inches wide and 28.15 inches deep, making it a space-saving fit for tight back-of-house areas.

134 lb Bin Storage

Built-in bin provides convenient ice storage for steady service.

Simple 3-Way Control

On/off/clean switch is easy to use and does not require removing the front panel.

Removable Reusable Air Filter

Front-access filter slides out for cleaning and helps keep the condenser cleaner.

Hideaway Bin Door

Bin door slides under the machine top for easier access to stored ice.

Factory Pre-Wired Power Cord

115V machine comes pre-wired with a 6-foot cord and NEMA 5-15P plug.

Adjustable Legs Included

Standard 6-inch adjustable flange feet are included for installation flexibility.

Ice Scoop Included

Includes a standard plastic ice scoop for dispensing ice.

Type Ice Machine with Bin
Style Cube-Style
Installation Type Undercounter
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Cube Type Full Dice
Production Capacity 256 lb per 24 Hours at 70°F/50°F
Bin Storage Capacity 134 lb
Controls 3-Way Switch
Voltage 115 Volts
Amps 10.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Breaker Size 15 Amps
BTU 2,700 Average / 3,300 Peak BTU/hr
Refrigerant Type R-404A
Ambient Temperature Range 40°F to 110°F
Water Temperature Range 45°F to 90°F
Water Pressure Range 20 to 80 PSI
Shipping Width 30 Inches
Shipping Depth 29 Inches
Shipping Height 39 Inches
Shipping Weight 203 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

This model makes full-dice cube-style ice, also referred to as kube ice.
It produces up to 256 lb per 24 hours at 70°F/50°F, and it is AHRI certified at 180 lb per day at 90°F/70°F.
The built-in bin has a 134 lb ice storage capacity.
It is factory pre-wired for 115V, 60 Hz, 1-phase operation with a NEMA 5-15P plug and 10.7 amps.
Yes. It has a simple 3-way on/off/clean switch and a removable, reusable air filter.
Yes. The machine is designed for undercounter installation, with front air intake and discharge and no side vents.
