Ice-O-Matic MFI0800A Ice Machines
Description

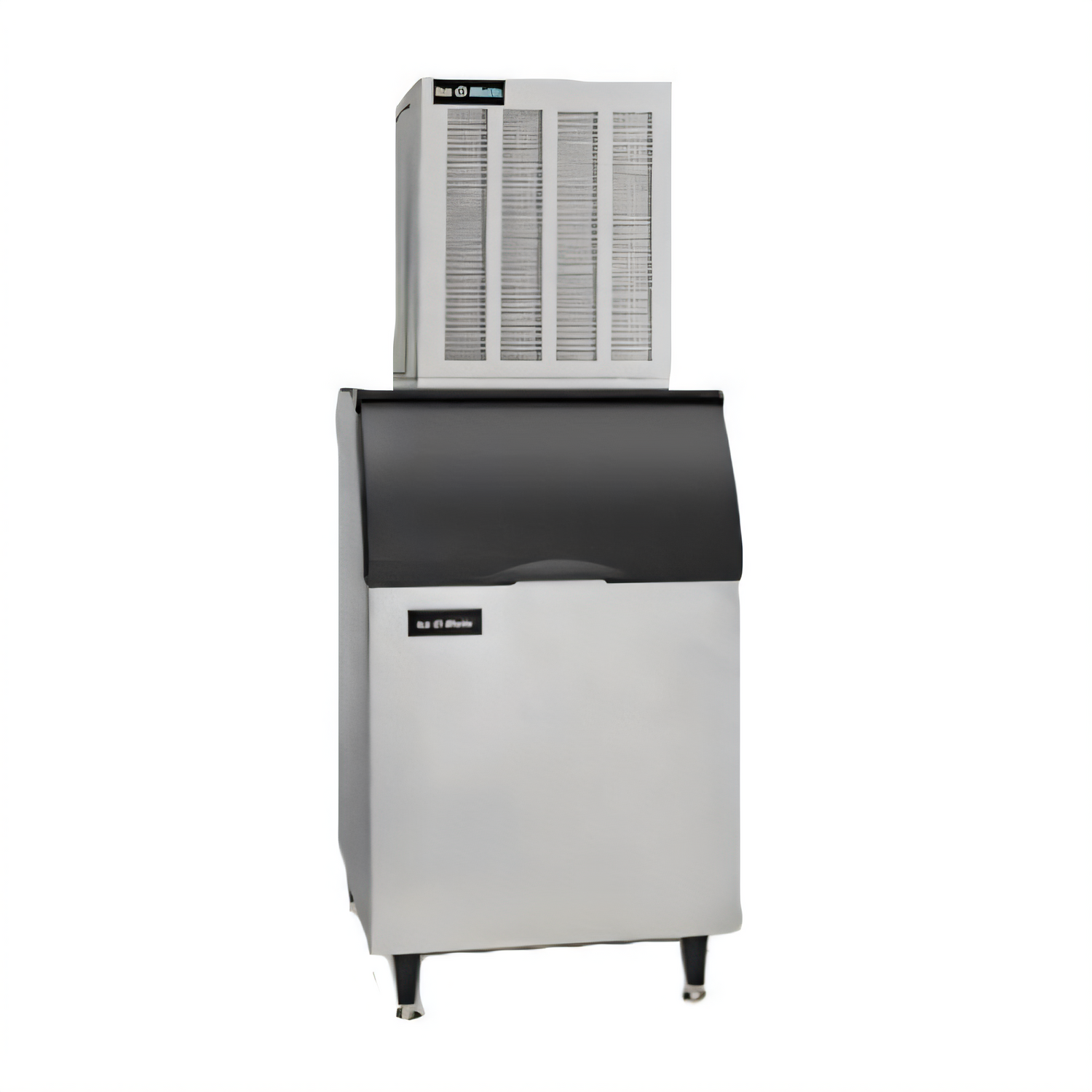

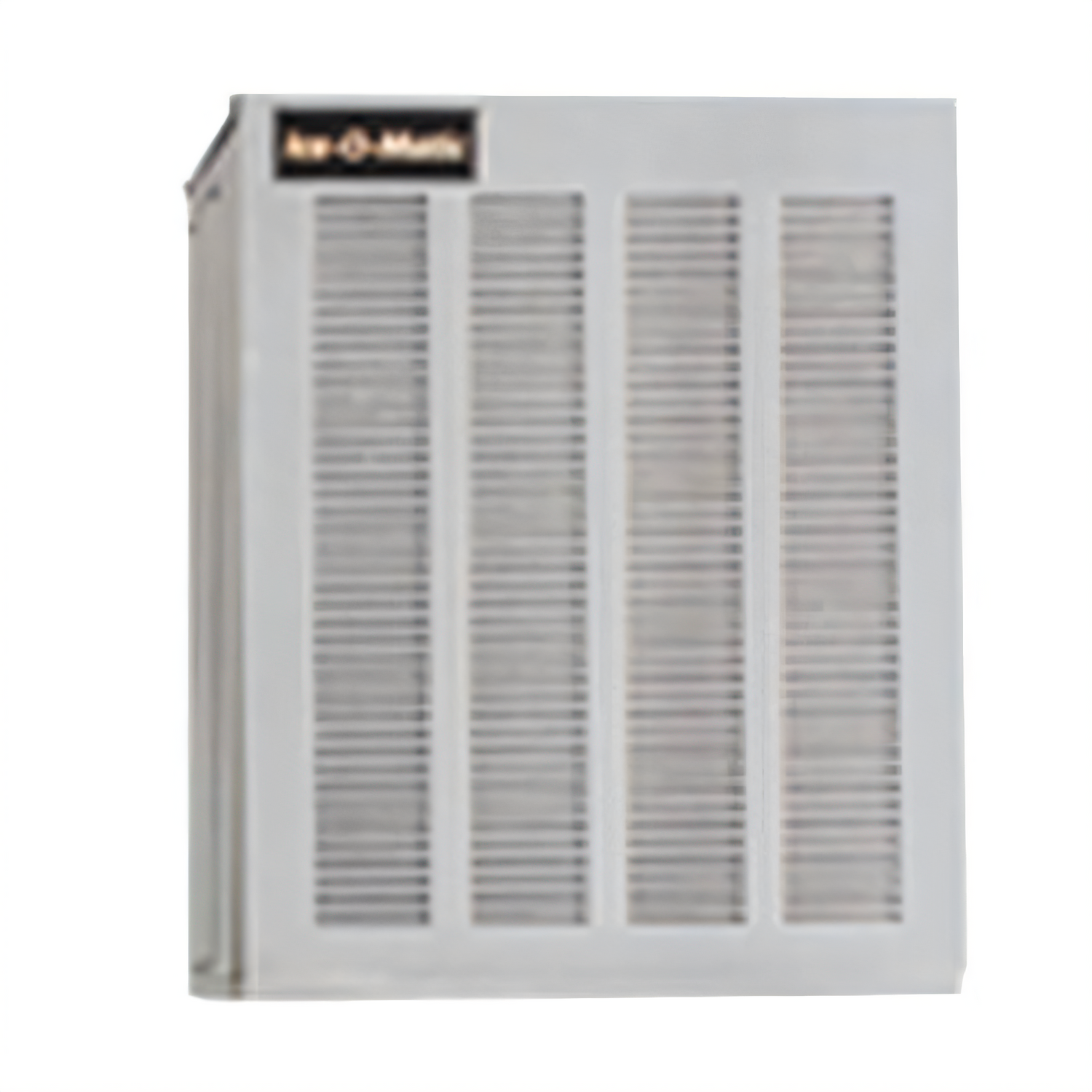

Ice-O-Matic MFI0800A Flake Ice Maker – 900 lb/24 hr
Air-cooled • Self-contained condenser • Stainless steel finishEngineered for high-volume, worry-free ice production, the Ice-O-Matic MFI0800A delivers up to 900 lb (408 kg) of soft, moldable flake ice every 24 hours—all from a compact 21"-wide footprint. Its rugged stainless steel construction, advanced SystemSafe™ monitoring and water-sensing technology make it the smart, long-term choice for grocery, seafood, healthcare and bar service operations that demand pure, versatile ice.
Key Features
- High capacity: up to 900 lb (408 kg) of flake ice per day at 70 °F air / 50 °F water.
- Slim 21" (533 mm) width fits tight back-of-house spaces or stacked installations.
- SystemSafe™ load monitoring automatically shuts the unit down before gearbox overloads can cause costly damage.
- Water sensor prevents low- or no-water failures and is immune to poor water quality conditions.
- Heavy-duty stainless steel evaporator & auger for maximum corrosion resistance and longevity.
- Industrial-grade roller bearings and reinforced gearbox rated for years of continuous duty.
- Self-contained, air-cooled condenser—no remote condenser or additional plumbing required.
- Certified safe: cULus, NSF & CE listed.
Performance & Utilities
| Ice type | Flaked ice |
|---|---|
| Production (70 °F air / 50 °F water) | 900 lb / 408 kg per 24 hr |
| Production (90 °F air / 70 °F water) | 615 lb / 278 kg per 24 hr |
| Water usage | 4.4 gal per 100 lb of ice |
| Energy usage | 4.4 kWh per 100 lb of ice @ 90 °F air / 70 °F water |
| Electrical | 115 V / 60 Hz / 1-phase, 3-wire (including ground) |
| Min. circuit ampacity | 22.3 A |
| Max. fuse / breaker | 30 A |
Dimensions & Weights
| Width | 21 in / 533 mm |
|---|---|
| Depth | 24 in / 610 mm |
| Height | 27 in / 686 mm |
| Net weight | Approx. 205 lb / 93 kg (shipping) |
Installation Highlights
- Provide 6" (152 mm) clearance at front and rear for proper air intake & exhaust.
- Ambient temperature: 50 °F – 110 °F (10 °C – 43 °C).
- Potable water temperature: 40 °F – 90 °F (4.4 °C – 32 °C).
- Water pressure: 20 – 120 psi (1.4 – 8.3 bar).
- 3/8" FPT potable water inlet & 3/4" FPT gravity drain required.
- Ice storage bin sold separately—compatible Ice-O-Matic bins: B25, B40, B42, B55, and more.
Warranty
Ice-O-Matic backs the MFI0800A with 3 years parts & labor coverage plus 5 years parts on the compressor.
Register your machine with an Ice-O-Matic water filtration system to optimize performance and maximize warranty protection.
