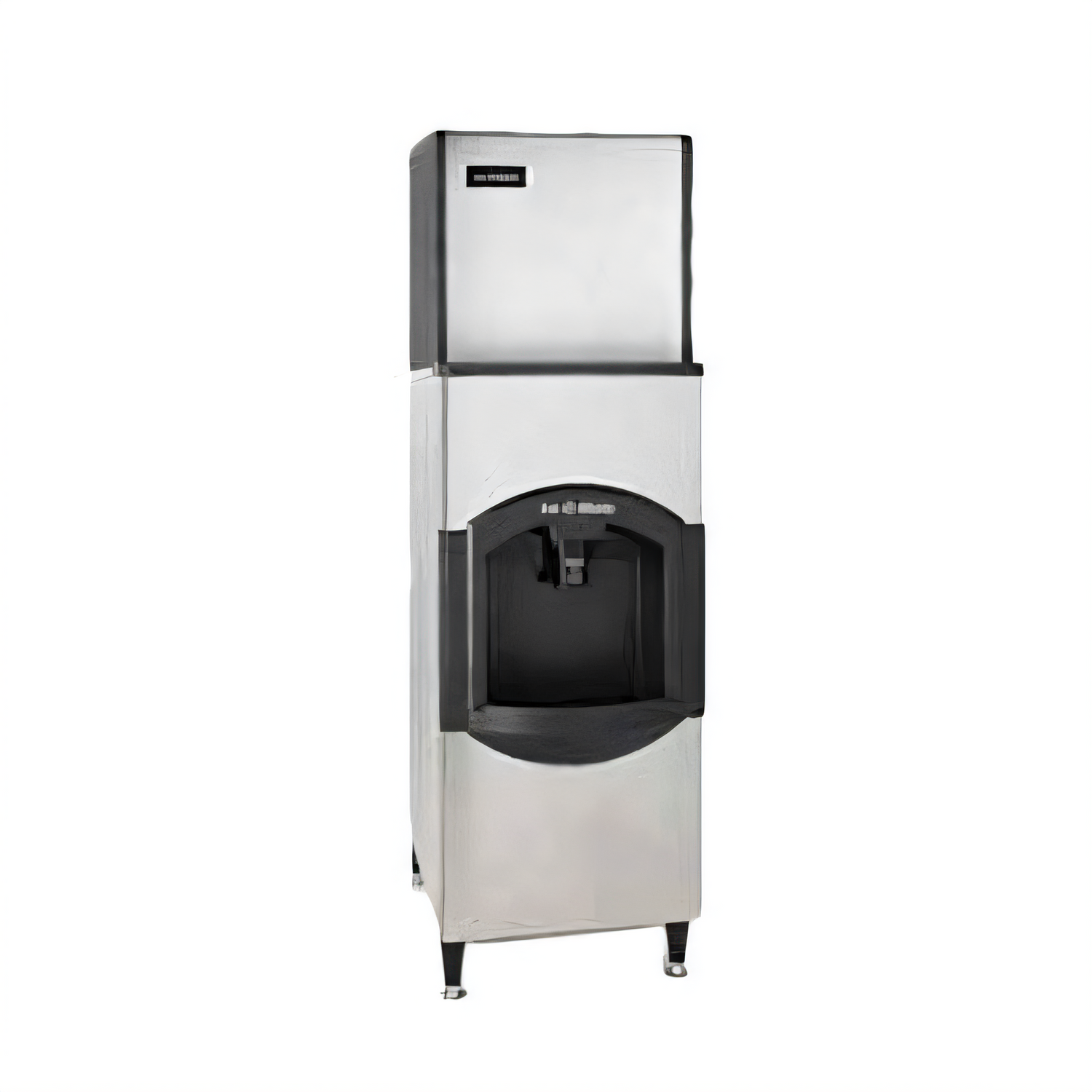

Ice-O-Matic ICE Series 22" Floor Ice Dispenser – 120 lb Storage
Model CD40022 / CD40522Built for high-demand hospitality and self-service stations, the compact CD Series dispenser stores 120 lb of crystal-clear cube ice and delivers it fast, cleanly and reliably at the push of a button.
Key Features

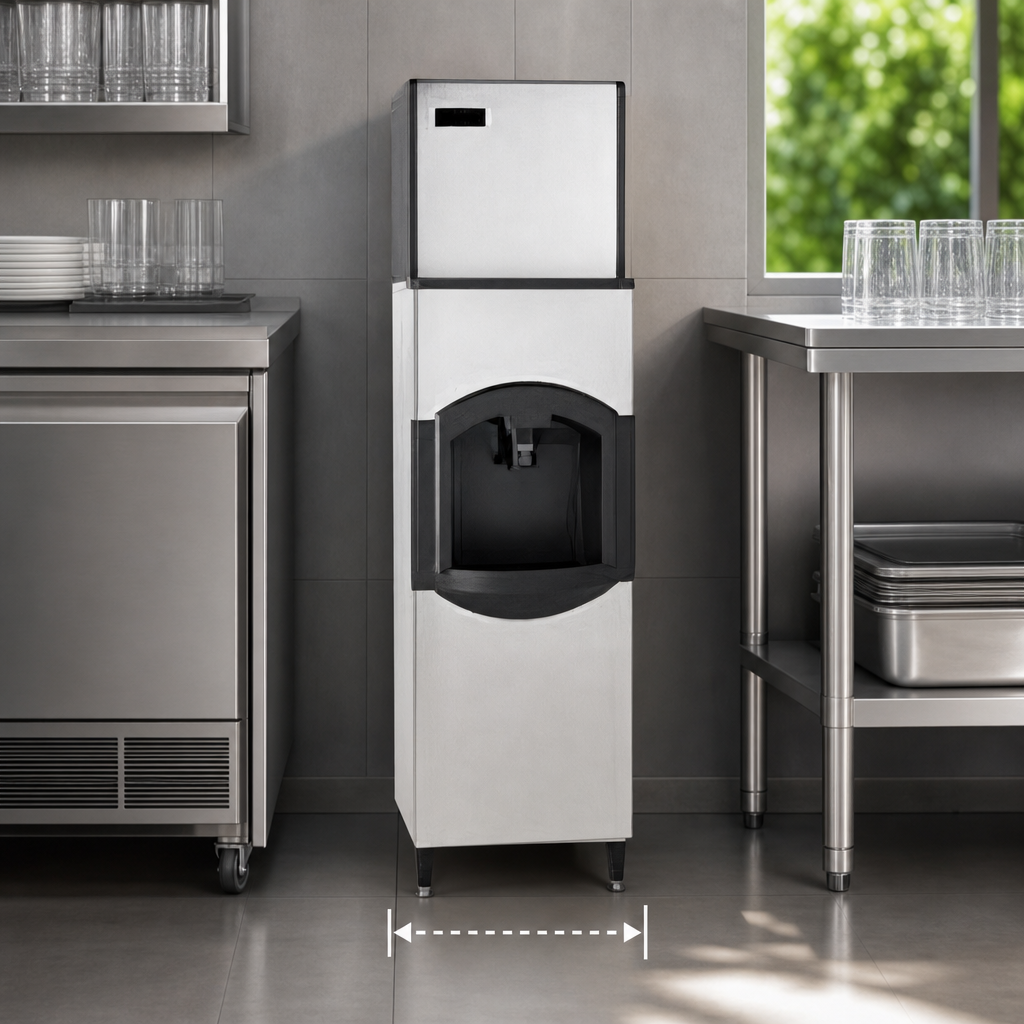

- Space-saving 22" (559 mm) footprint – no adapter kit required when paired with any 22" Ice-O-Matic CIM Series™ cube ice maker.

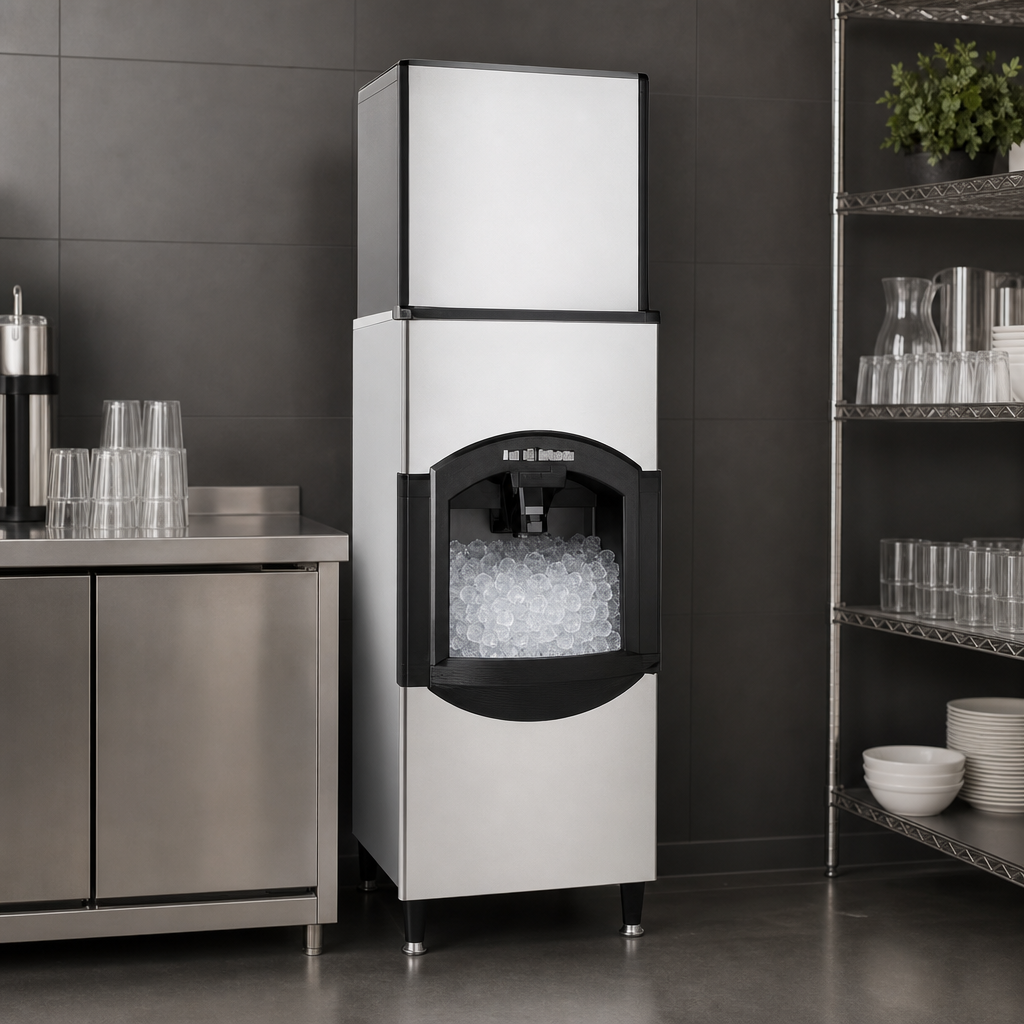

- 120 lb (55 kg) built-in storage keeps plenty of ice ready for peak periods.
- Turbo Dispense system pours up to ¼ lb of ice per second to slash wait times.
- Power Clean design swings the ice head forward for effortless interior access; safety interlock halts agitation when the front panel is removed.
- 4" (102 mm) foamed-in-place insulation minimizes melt and energy loss.
- Rugged stainless-steel cabinet with fingerprint-resistant plastic front withstands heavy, everyday use.
- Simple push-to-dispense operation promotes food-safe, hands-off ice service.
- cULus, NSF & CE certified for global compliance.
At-a-Glance Specs
| Ice Storage Capacity | 120 lb (55 kg) |
|---|---|
| Dispense Method | Push-button, agitator driven |
| Compatible Ice Makers | All 22" Ice-O-Matic CIM Series™ cubers (full or half cube) |
| Footprint (W × D × H) | 22 × 33.5 × 53.25 in (559 × 851 × 1353 mm) |
| Electrical | CD40022 – 115 V / 60 Hz / 1 ph CD40522 – 230 V / 50 Hz / 1 ph |
| Full-Load Amps | 2.1 A |
| Minimum Circuit | 15 A |
| Refrigerant | R404A |
| Shipping Weight | ≈ 230 lb (105 kg) |
Installation Requirements
- Ambient air: 50 – 110 °F (10 – 43 °C)
- Water temperature: 40 – 90 °F (4.4 – 32 °C)
- Water pressure: 20 – 60 psi (1.4 – 4.1 bar)
- ¾" FPT gravity drain
- Rear air intake (24" clearance) & side exhaust clearance required
Ice production rate is determined by the ice maker head selected—see CIM Series specifications for individual output.
Warranty
CD Series dispensers include a 3-year parts & labor warranty when installed and maintained to factory guidelines.
Complete Your Ice Program: Pair this dispenser with a matching 22" Ice-O-Matic CIM0320, CIM0520, CIM0826 or CIM1126 ice maker for a fully integrated,
high-capacity solution.
$3,837.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Ice-O-Matic floor ice & water dispenser with 120 lb storage, push dispensing, fits 22" ICE Series cube makers; NSF/cULus/CE certified for reliability.
Manufacturer
Ice-O-Matic
Brand name
ICE Series
Certifications
NSF, CE, cULus
Shipping Weight
173.0lbs
Capacity
100 - 199 lb capacity
Style
floor model
Type
ice only
Specifications
Ice Dispenser, floor model, approximately 120 lb ice storage capacity, push dispensing, designed to accept 22" wide ICE Series™ cube ice makers, cULus, NSF, CE
