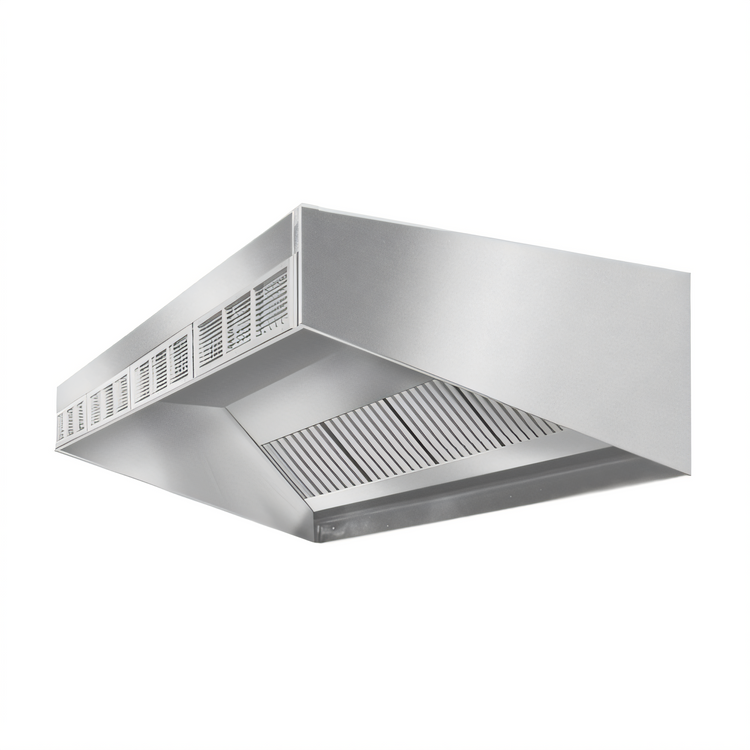

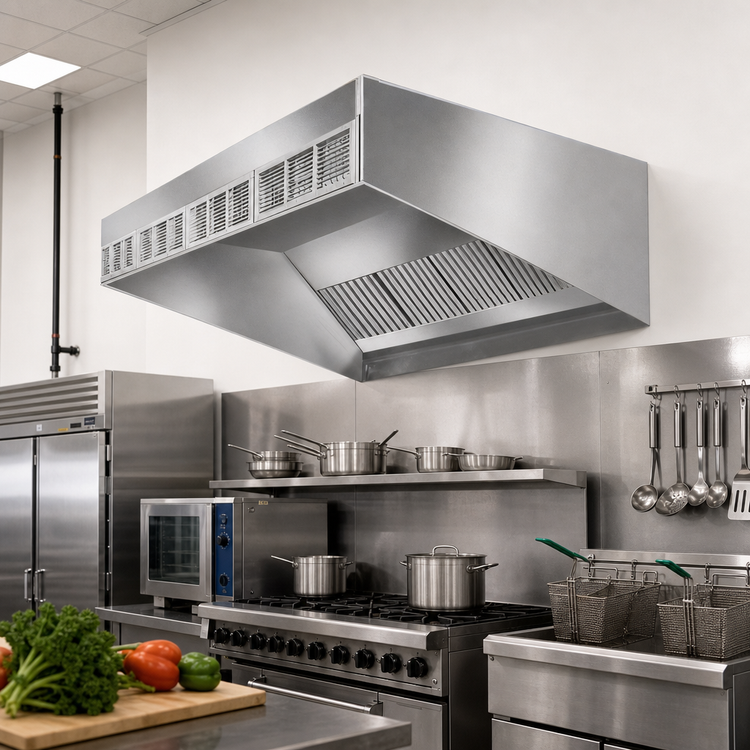

SpecAir HESFA96-96 96"W Wall Type Front Discharge Make-Up Air Exhaust Hood with Short Front
SpecAir HESFA96-96 96"W Wall Type Front Discharge Make-Up Air Exhaust Hood with Short Front
96 Inch Width, 51 Inch Depth, 24 Inch Height, Compensating Make-Up Air
Engineered for optimal kitchen ventilation, this SpecAir exhaust hood efficiently removes smoke and grease while providing compensating make-up air directly through the hood.
- Constructed from heavy gauge Type 430 stainless steel for durability and hygiene.
- Features front discharge make-up air, operating independently of other ventilation systems.
- Equipped with UL classified aluminum filters that are easily removable for cleaning.
- Includes UL listed vapor-proof incandescent light fixtures for bright illumination.
- Designed with a short front fascia, ideal for installations in kitchens with lower ceilings.
- Continuously liquid-tight welded seams ensure compliance with NFPA 96 standards.
Overall Dimensions:
96.0"W x 51.0"D x 24.0"HProduct Weight:

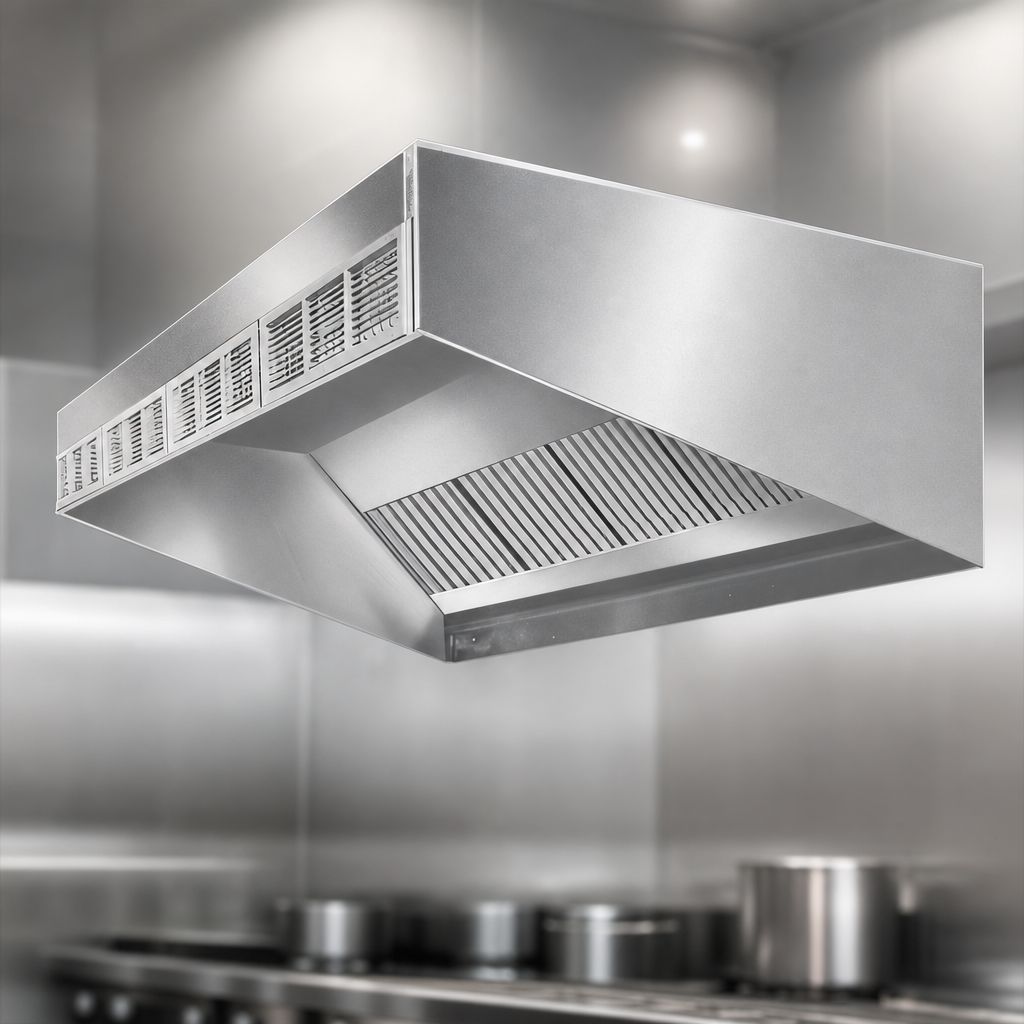

605.0 lbHeavy Gauge Stainless Steel Construction
Built with heavy gauge Type 430 stainless steel hood surfaces for long-lasting durability and easy cleaning in commercial kitchen environments.

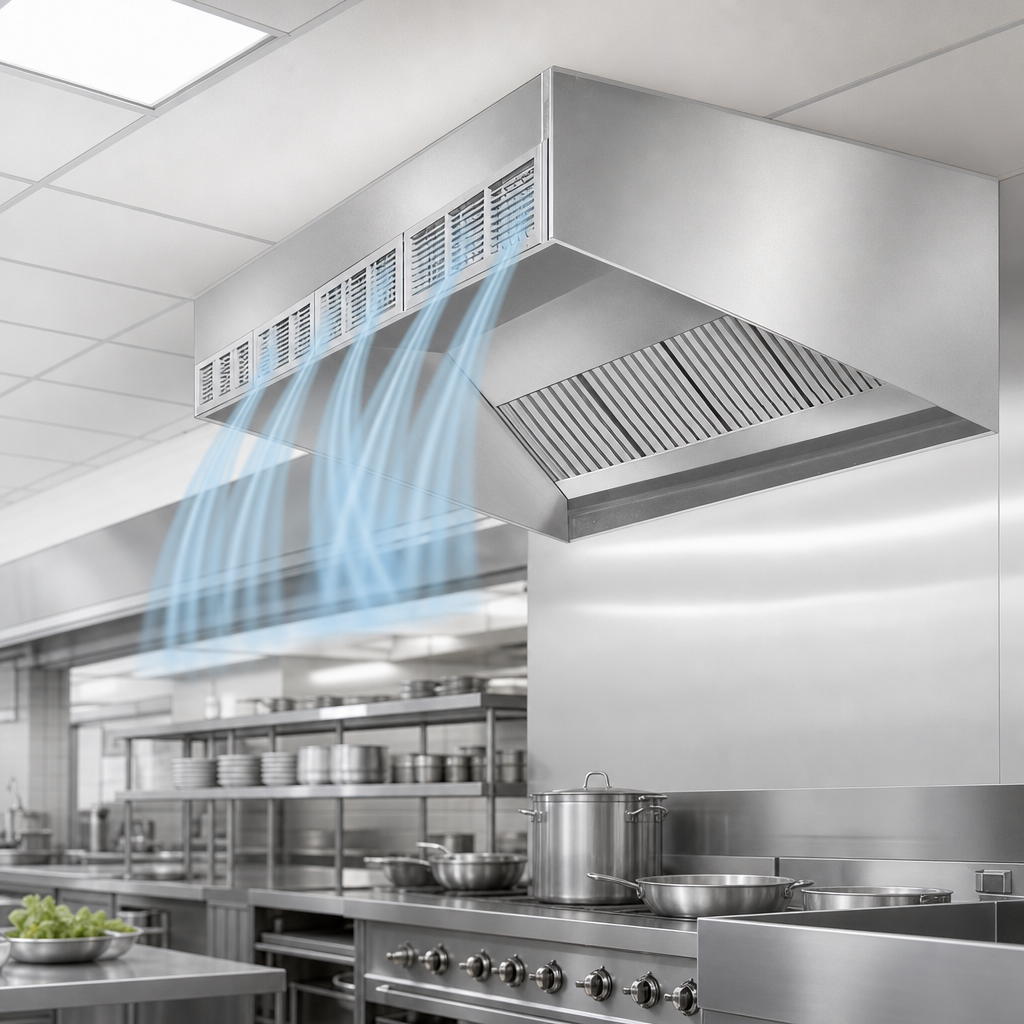

Front Discharge Make-Up Air
Supplies make-up air directly through the hood at ceiling level, ensuring proper kitchen pressure balance independent of other ventilation systems.
Short Front Fascia
Designed with a short front for applications where ceiling height is a concern, providing flexibility in installation without compromising performance.
Liquid-Tight Welded Seams
Canopy seams are continuously welded liquid-tight, meeting NFPA 96 requirements for fire safety and grease containment.
UL Classified Aluminum Filters
Furnished with UL classified aluminum filters that are easily removable for routine cleaning and maintenance.
UL Listed Vapor-Proof Lighting
Equipped with UL listed vapor-proof incandescent light fixtures, providing safe and effective illumination over the cooking area.
Full-Length Grease Management
Includes a full-length stainless steel grease trough and a removable grease container for efficient grease collection and disposal.
3-Inch Rear Air Space
Features a 3-inch (76mm) air space at the rear, facilitating proper ventilation and installation clearance.
Integrated Mounting Channels
Comes with front and rear mounting channels for secure and straightforward installation.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty from the date of original installation, not to exceed 18 months from the date of shipment.
