Eagle Group

SpecAir HESFA96-84 84" Wall Type Front Discharge Make-Up Air Exhaust Hood with Short Front

SKU: HESFA96-84
$8,743.77
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Eagle Group Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

SpecAir HESFA96-84 84" Wall Type Front Discharge Make-Up Air Exhaust Hood with Short Front

84" Width, 51" Depth, 24" Height, Type 430 Stainless Steel

Engineered for commercial kitchens, the SpecAir HESFA96-84 exhaust hood efficiently removes smoke and grease while supplying essential make-up air.

  • Features front discharge make-up air compensating system, independent of other ventilation.
  • Constructed from durable heavy gauge Type 430 stainless steel for longevity.
  • Designed with a short front fascia, ideal for establishments with lower ceiling heights.
  • Equipped with UL classified removable aluminum filters for easy cleaning and maintenance.
  • Includes UL listed vapor-proof incandescent light fixtures for bright illumination.
  • Built to NFPA-96 standards with liquid-tight welded seams for safety and compliance.

Overall Dimensions:

84.0"W x 51.0"D x 24.0"H

Product Weight:

529.0 lb

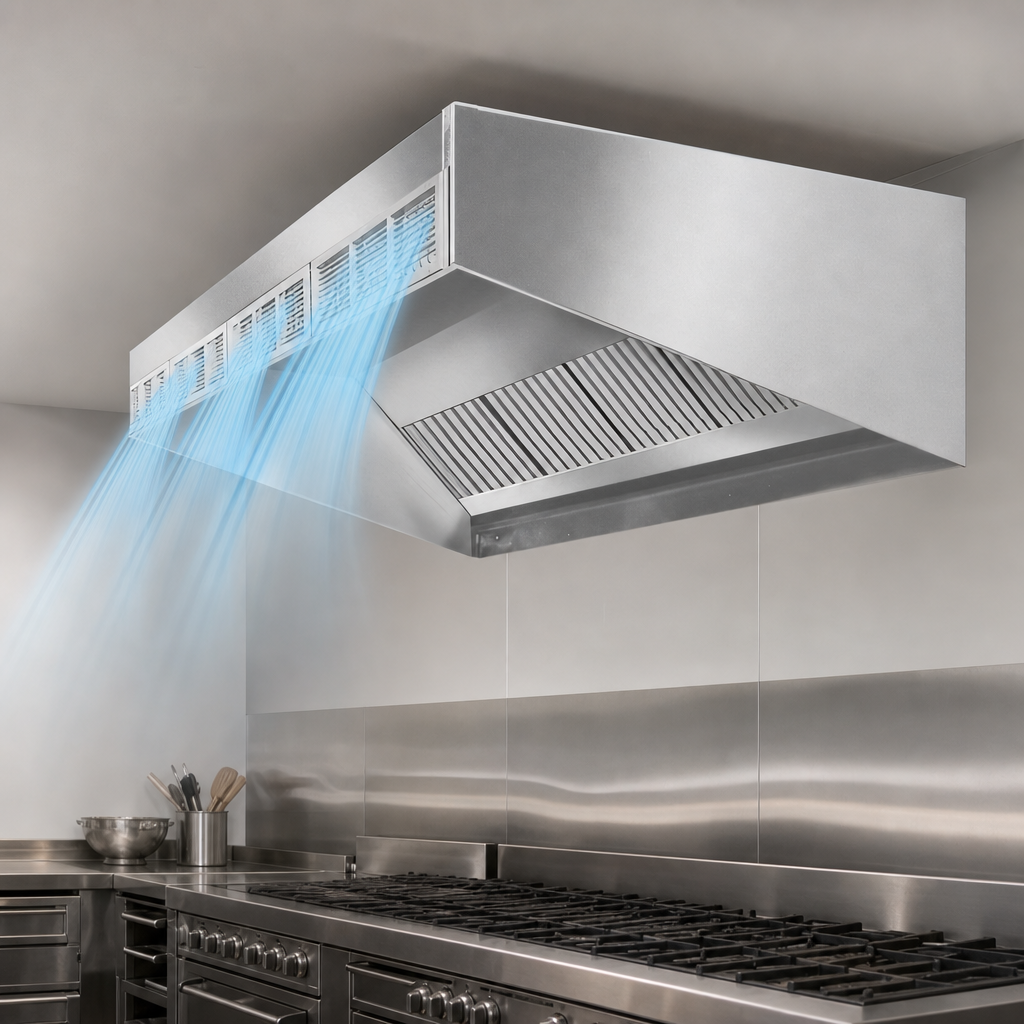

Front Discharge Make-Up Air

Supplies make-up air directly through the hood at ceiling level, operating independently of other ventilation systems to maintain balanced airflow.

Front Discharge Make-Up Air

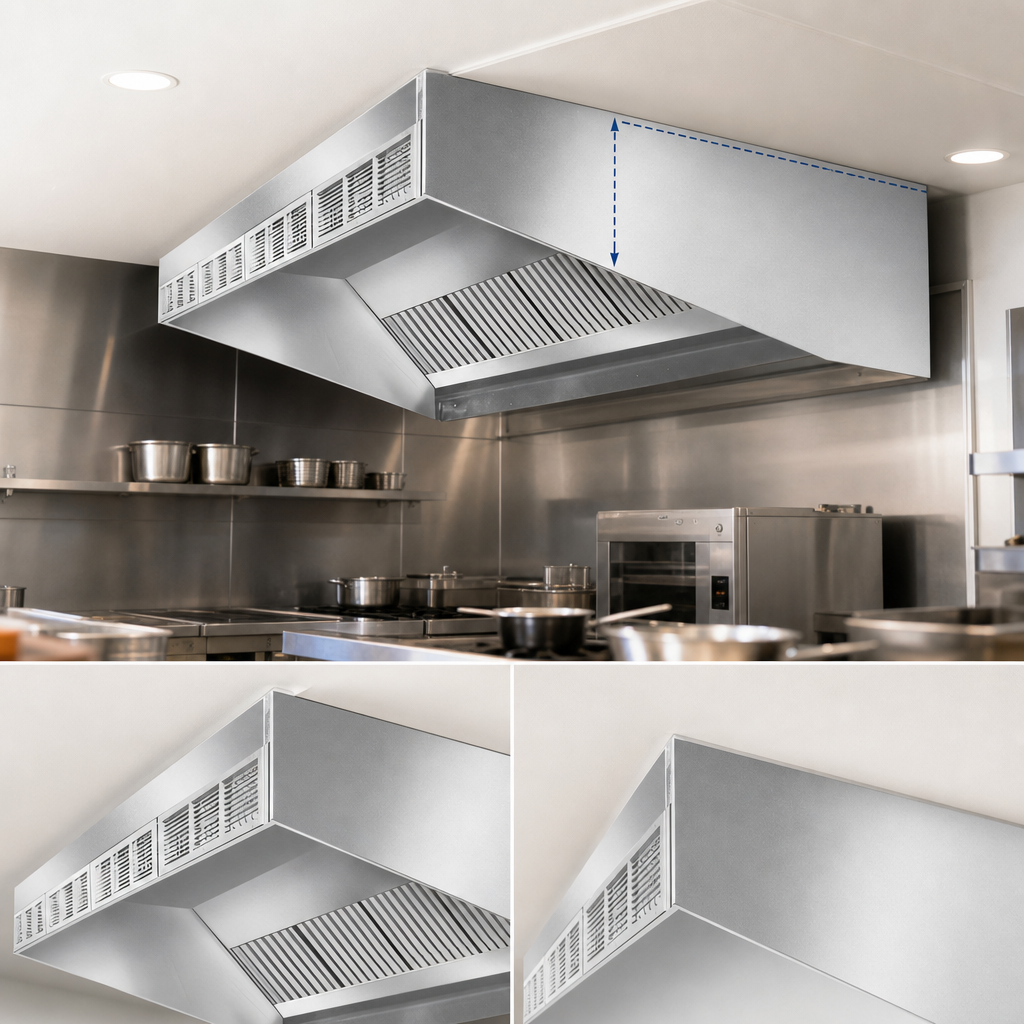

Short Front Fascia

Part of the HESFA Series, this model features a short front design, making it suitable for installations in commercial kitchens with low ceilings.

Short Front Fascia

Heavy Gauge Stainless Steel Construction

All hood surfaces are made from heavy gauge Type 430 stainless steel, ensuring durability, corrosion resistance, and a professional appearance.

Liquid-Tight Welded Seams

Canopy seams are continuously welded liquid-tight in accordance with NFPA 96 standards for enhanced safety and cleanliness.

Vapor-Proof Incandescent Lighting

Includes UL listed vapor-proof incandescent light fixtures, providing bright and safe illumination over the cooking area.

Removable Aluminum Filters

Furnished with UL classified aluminum filters that are easily removable for routine cleaning and maintenance.

Full-Length Grease Trough & Container

Equipped with a full-length stainless steel grease trough and a removable grease container for efficient collection and disposal of cooking byproducts.

Integrated Air Space

Features a 3-inch (76mm) air space at the rear, aiding in proper ventilation and installation.

Mounting Channels

Includes front and rear mounting channels for secure and straightforward installation.

Exhaust and Supply Collars

Comes with pre-installed exhaust and supply collars for connecting ductwork.

Type Exhaust Hood
Style Wall Type, Make-Up Air, Short Front
Installation Type Wall Mounted
Material Type 430 Stainless Steel
Interior Finish Stainless Steel
Pan Capacity 3 Full-Size Filters
Number of Lights 3
Exhaust CFM 2800 CFM
Exhaust Collars 1
Exhaust Collar Width 10 Inches
Exhaust Collar Length 22.5 Inches
Supply CFM 2380 CFM
Supply Collars 1
Supply Collar Width 10 Inches
Supply Collar Length 31 Inches
Air Space at Rear 3 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 529 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation date, not to exceed 18 months from shipment date.

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

A 'short front' hood, like the HESFA series, is designed with a reduced front fascia height, making it ideal for installations in commercial kitchens with lower ceiling clearances where a regular hood might not fit.
The SpecAir HESFA96-84 features a front discharge make-up air compensating system that supplies make-up air through the hood itself at ceiling level, independently of other ventilation systems. This helps balance the air pressure in your kitchen.
The hood is equipped with three UL-listed vapor-proof incandescent light fixtures, ensuring safe and adequate illumination over your cooking surfaces.
The hood requires a standard 3-inch air space at the rear. Specific installation details, including ductwork and fire protection, should adhere to local codes and NFPA 96 standards, which are not included with the unit.
The hood is constructed entirely from heavy gauge Type 430 stainless steel, providing durability, resistance to corrosion, and a professional finish suitable for commercial environments.
