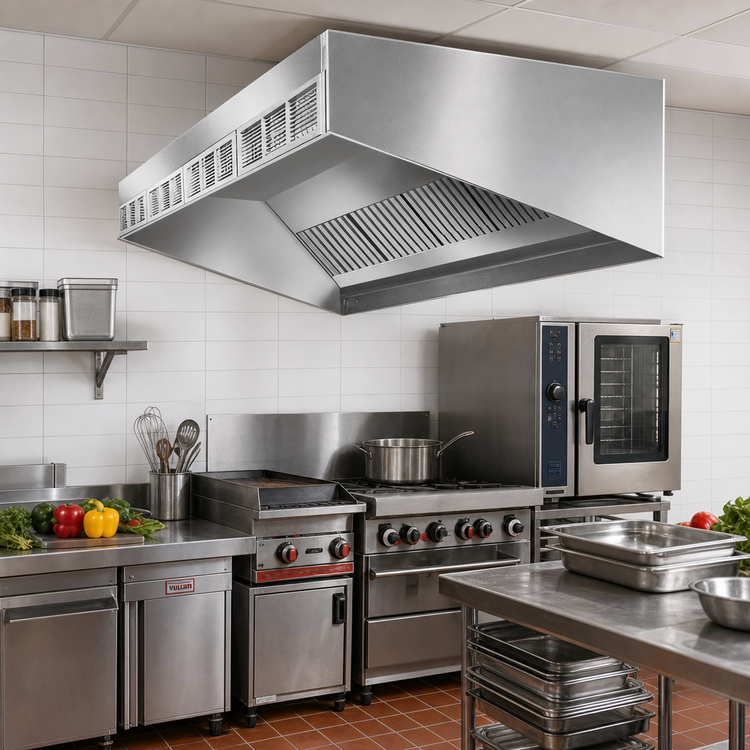

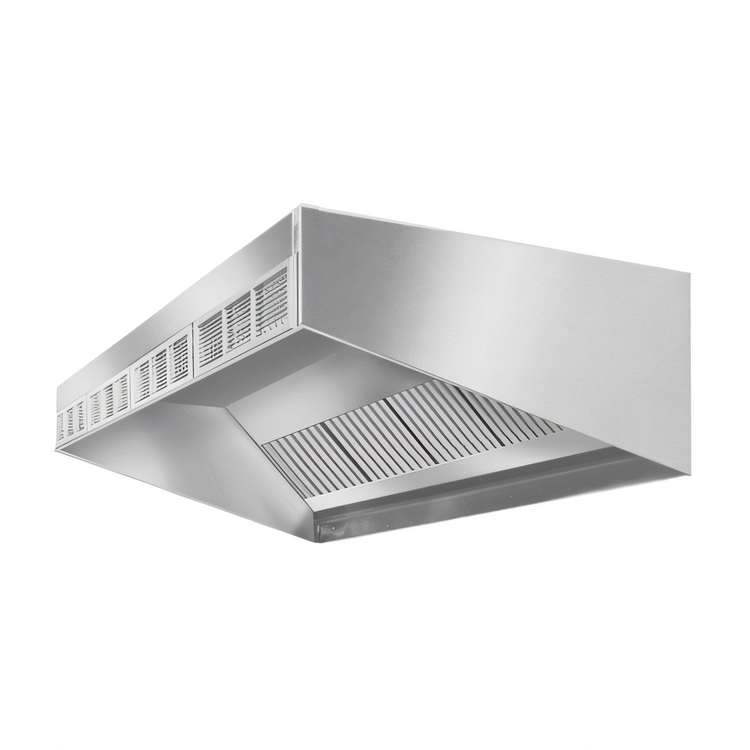

SpecAir HESFA96-66 Wall Type Front Discharge Make-Up Air Exhaust Hood

66 Inches Wide, Short Front Design

Engineered for commercial kitchens with low ceilings, this SpecAir exhaust hood provides efficient ventilation and integrated make-up air through its innovative front discharge system.

  • Constructed from durable heavy gauge type 430 stainless steel for longevity.
  • Features a front discharge make-up air system, independent of other ventilation, ideal for maintaining indoor air quality.
  • Designed with a short front fascia, making it suitable for installations with lower ceiling heights.
  • Equipped with UL classified removable aluminum filters for easy cleaning and maintenance.
  • Includes UL vapor-proof incandescent light fixtures to illuminate the cooking surface.
  • Built with a full-length grease trough and removable grease container to simplify grease management.
  • Complies with NFPA 96 standards and is NSF certified for commercial use.

Overall Dimensions:

66.0"W x 51.0"D x 24.0"H

Product Weight:

415.0 lb

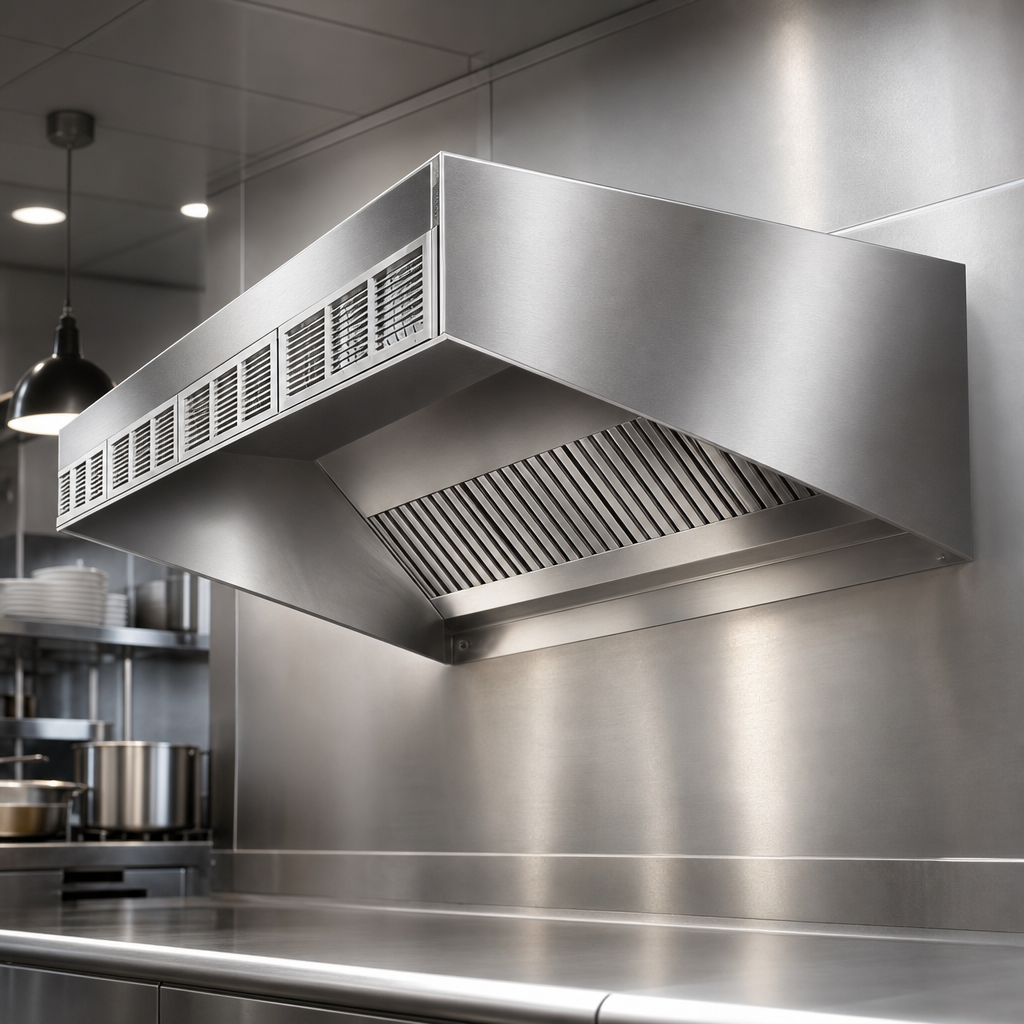

Heavy Gauge Stainless Steel Construction

All hood surfaces are made from heavy gauge type 430 stainless steel, ensuring durability and corrosion resistance in demanding commercial kitchen environments.

Heavy Gauge Stainless Steel Construction

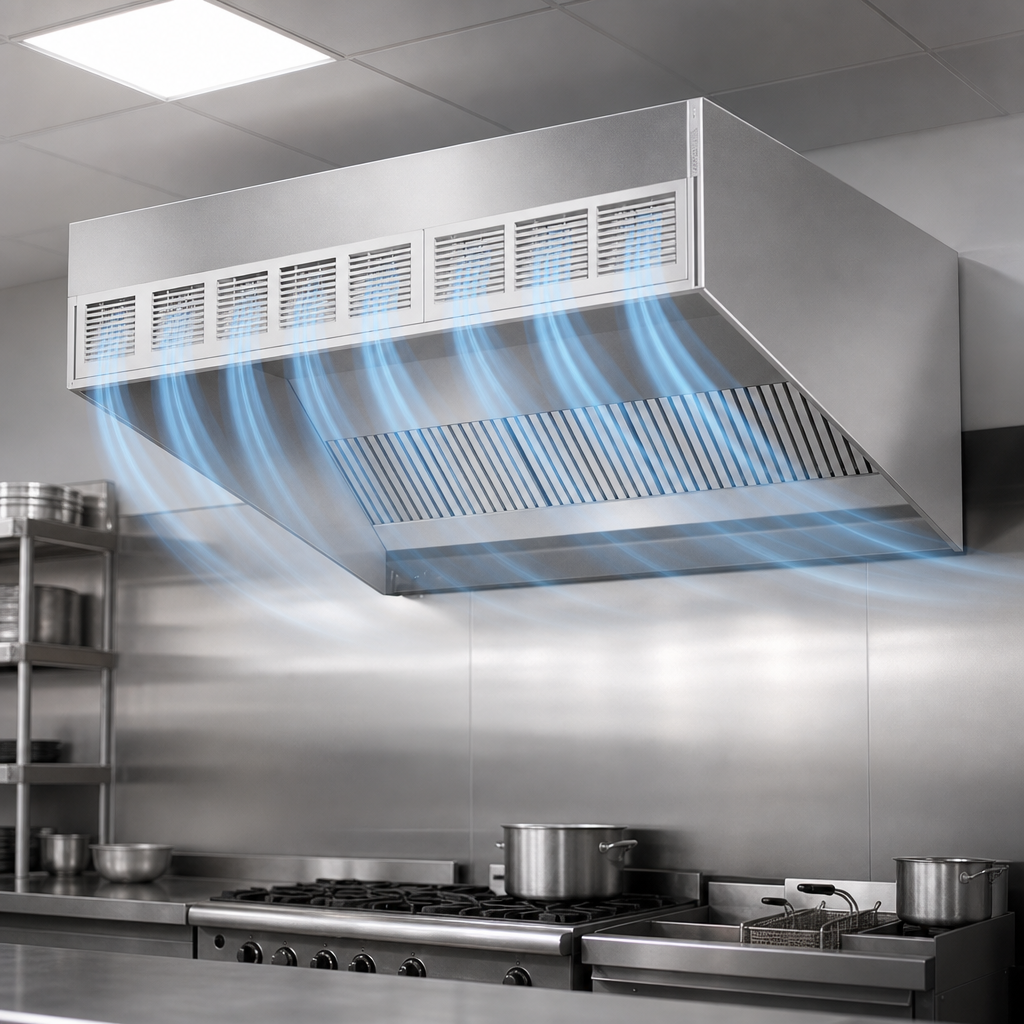

Front Discharge Make-Up Air System

Supplies make-up air through the hood at ceiling level, operating independently of other ventilation systems to ensure balanced air pressure and comfortable working conditions.

Front Discharge Make-Up Air System

Short Front Fascia

The HESFA Series features a short front design, specifically engineered for installations in commercial kitchens with lower ceiling heights.

Liquid-Tight Welded Seams

Canopy seams are continuously welded liquid-tight, preventing grease leaks and adhering to NFPA 96 requirements.

UL Classified Aluminum Filters

Comes with UL classified aluminum filters that are easily removable for routine cleaning and maintenance.

UL Vapor-Proof Incandescent Lights

Integrated UL-listed vapor-proof incandescent light fixtures provide ample illumination over the cooking area for improved visibility and safety.

Full-Length Grease Trough & Container

Includes a full-length stainless steel grease trough and a removable grease container for efficient collection and disposal of cooking byproducts.

3 Inch Rear Air Space

Features a standard 3-inch (76mm) air space at the rear for proper air circulation and installation.

Mounting Channels

Equipped with front and rear mounting channels for secure installation.

Exhaust and Supply Collars

Furnished with exhaust and supply collars for connecting to ductwork.

Type Exhaust Hood
Style Wall Type, Short Front Fascia
Installation Type Wall Mounted
Material 430 Stainless Steel
Interior Finish Stainless Steel
Make-up Air Compensating, Front Discharge
Exhaust CFM 2200 CFM
Supply CFM 1870 CFM
Exhaust Collar Quantity 1
Supply Collar Quantity 1
Number of Lights 2
Number of Filters 3
Shipping Width 66 Inches
Shipping Depth 51 Inches
Shipping Height 24 Inches
Shipping Weight 415 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation date (not to exceed 18 months from shipment date).

Documents

PDF Cutsheet PDF Download PDF Spec air® warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The HESFA96-66 exhaust hood is constructed from heavy gauge type 430 stainless steel, with all seams welded liquid tight for durability and compliance with NFPA 96.
Yes, the HESFA96-66 is a front discharge make-up air compensating ventilation hood, supplying make-up air through the hood at ceiling level, independent of other ventilation systems.
This model measures 66 inches wide, 51 inches deep (front-to-back), and 24 inches high. It also features a standard 3-inch air space at the rear.
Yes, the hood is furnished with UL classified aluminum filters that are removable for easy cleaning. It also includes UL vapor-proof incandescent light fixtures for illumination.
The HESFA96-66 has an exhaust CFM of 2200 and a supply CFM of 1870.
Eagle Group provides a limited warranty for its products, covering defects in materials and workmanship for one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle.
